B4R Question [Solved] LGT8F328 Error: Must specify exactly one sketch file

[derez]

LGT8F328 is a new board which I'm playing with, managed to install it and make it work in Arduino IDE with this link:

Installation

Board Package for Logic Green LGT8F328P LGT8F328D and LGT8F88D - dbuezas/lgt8fx

github.com

I ran the blink program and it blinks...

The variants are these:

Checking with B4R, blink program, the code is

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'Public variables can be accessed from all modules.
    Public Serial1 As Serial
    Private tmr As Timer
    Private pin13 As Pin
    Private state As Boolean = False
End Sub

Private Sub AppStart
    Serial1.Initialize(115200)
    Log("AppStart")
    tmr.Initialize("tmr_Tick",1000)
    pin13.Initialize(13,pin13.MODE_OUTPUT)
    tmr.Enabled = True
End Sub

Sub tmr_Tick
    state = Not(state)
    pin13.DigitalWrite(state)
    Log(state)
End Sub

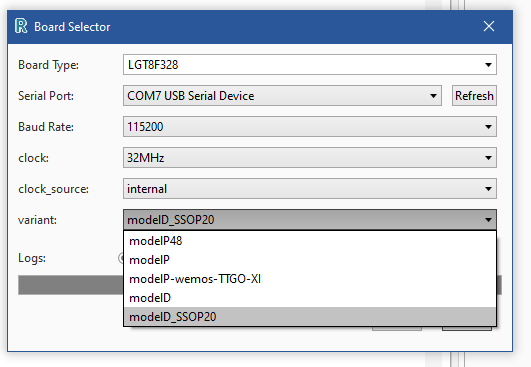

I found the board but the models are not the same:

Running with any of them I get the same error:

Compiling & deploying Ino project (LGT8F328 - COM7) Error
Error: Must specify exactly one sketch file

Searching the forum I found one similar case without solution.

Advise please ?



[MikeSW17]

Have you tried a full web search for "arduino Error: Must specify exactly one sketch file"? [DuckDuck Search]
There are several instances of this error, some with solutions. Without knowing much about your project and setup, I can't say if any might the fix you need though.
This does seem to be an Arduino environment issue rather than a specific B4R problem.



[derez]

Have you tried a full web search for "arduino Error: Must specify exactly one sketch file"? [DuckDuck Search]
There are several instances of this error, some with solutions. Without knowing much about your project and setup, I can't say if any might the fix you need though.
This does seem to be an Arduino environment issue rather than a specific B4R problem.

Trust me that I had searched the web before posting, and that I found no relevant solution there, the fact that the variants are different from what I have in Arduino IDE is for sure relevant to B4R.



[miker2069]

Do you get errors when you compile just an empty B4R program and no additional libraries/modules selected?



[derez]

Do you get errors when you compile just an empty B4R program and no additional libraries/modules selected?

Yes. The problem must be in the interface between Arduino IDE and B4R, since it works well in Arduino.



[Erel]

It happens because the board internal arguments include a space. It is fixed for the next version of B4R.



[derez]

Thanks Erel. What about the variants (not like those of Arduino IDE) ?



[Erel]

B4R shows the underlying values. I'm not sure where the descriptions comes from (haven't investigated it). The result should be the same.



[derez]

It is still the same, I get the same error " Error: Must specify exactly one sketch file " on any of the variants.



[Erel]

The original issue should have been fixed. It is not related to the variant.

Are you using B4R v3.31?



[derez]

Sorry, with 3.31 it compiles and runs, using modelID.
