B4J Question [Solved] xChartLite values lagging mouse pointer

[Chris2]

With bar charts on the xChartLite library, I'm finding that sometimes the values shown are lagging where the mouse pointer actually is.

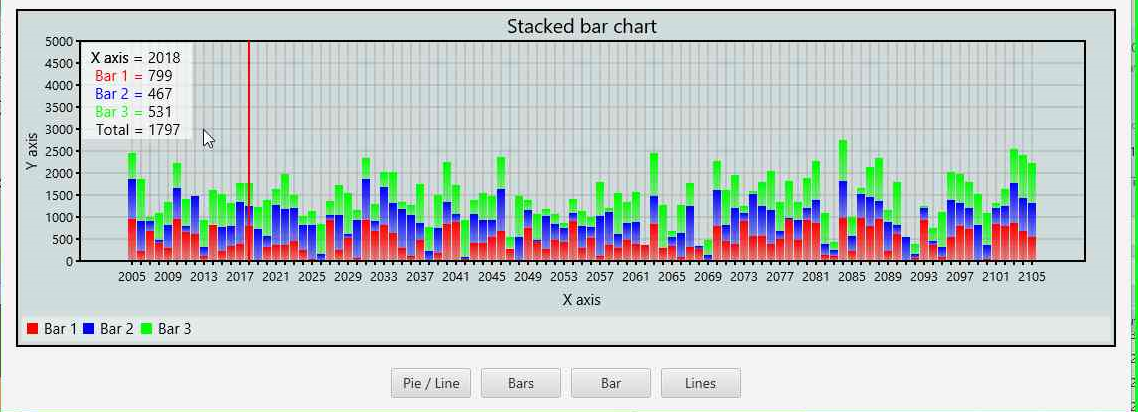

For example, in this screen shot:

the values shown are for where the vertical red line is drawn, but the mouse pointer is actually a few bars to the left of this.

The problem is only really noticeable with a relatively high number of bars (>50 or so). The amount of 'lag' seems to correspond to the distance between the y-axis and the position of the first bar.
So for example, you'll see it happen if you change the loop in the xChartLiteDemo StackedBarChart sub to:

Private Sub CreateStackedBarData
    ......
    ' add the items
    For i = 0 To 100
        StackedBarChart1.AddBarMultiplePoint(2005 + i, Array As Double(Rnd(0, 1000), Rnd(0, 1000), Rnd(0, 1000)))
    Next

   ......
End Sub

It occurs on all the types of bar chart, but not line charts.

Is there anything that can be done to correct this?



[Chris2]

Solved by @klaus...

[B4X] [XUI] xChartLite b4xlib

Current version : 1.6 xChartLite is a b4xlib library, it is a lite version of the xChart library. A mini version is also available: xChartMini. It has automatic scales, automatic text size according to the chart size. These can also be set manually. I am convinced that many user do not need...

www.b4x.com

Thank you (again)!



[klaus]

Sorry for not having answered here.
I was sure I did, but I probably missed it.



[Chris2]

Sorry for not having answered here.
I was sure I did, but I probably missed it.

No worries. I spotted your fix in the xChartLite library thread.

I thought it sensible to add a 'solved' post here for future reference, but wasn't sure about the etiquette of marking my own post as the solution when it wasn't me that solved it .



[klaus]

No problem, as you added the link to the solution.
