Hello,Can someone tell me how to use this java library with b4a ? Can Provide Me sample code ? Thanks In Advances
https://github.com/lemmingapex/trilateration
https://github.com/lemmingapex/trilateration
-
Welcome to B4X forum!
B4X is a set of simple and powerful cross platform RAD tools:
- B4A (free) - Android development
- B4J (free) - Desktop and Server development
- B4i - iOS development
- B4R (free) - Arduino, ESP8266 and ESP32 development
Android Question Solves a formulation of n-D space trilateration problem using a nonlinear least squares optimizer. Input: positions, distances Output: centroid with
- Thread starter mike1967
- Start date
- Similar Threads Similar Threads
RSSI filtering
RSSI needs to be (low-pass) filtered to become accurate (try filterFactor=0.1):filteredRSSI = beacon.RSSI * filterFactor + filteredRSSI * (1.0 - filterFactor)
RSSI to distance (meters)
Distance in meters can be calculated by txPower and measured RSSI:double calculateDistance( int txPower, double rssi ) {
if (rssi == 0) return -1.0; // if we cannot determine accuracy, return -1.
double ratio = rssi*1.0/txPower;
if (ratio < 1.0) return pow(ratio,10);
else return (0.89976) * pow(ratio,7.7095) + 0.111;
}
Trilateration
}I have also The Trialateration code for 3 Beacons But I Need Trilateration for N Beacons (Rilevated from a scanning functions).
Trilateration
Trilateration estimates the receivers’s position (using 3 or more) measured distances (meters) to the beacons and the known beacons positions.float xa = beacon1.locationX;
float ya = beacon1.locationY;
float xb = beacon2.locationX;
float yb = beacon2.locationY;
float xc = beacon3.locationX;
float yc = beacon3.locationY;
float ra = beacon1.filteredDistance;
float rb = beacon2.filteredDistance;
float rc = beacon3.filteredDistance;
float S = (pow(xc, 2.) - pow(xb, 2.) + pow(yc, 2.) - pow(yb, 2.) + pow(rb, 2.) - pow(rc, 2.)) / 2.0;
float T = (pow(xa, 2.) - pow(xb, 2.) + pow(ya, 2.) - pow(yb, 2.) + pow(rb, 2.) - pow(ra, 2.)) / 2.0;
float y = ((T * (xb - xc)) - (S * (xb - xa))) / (((ya - yb) * (xb - xc)) - ((yc - yb) * (xb - xa)));
float x = ((y * (ya - yb)) - T) / (xb - xa);
// now x, y is the estimated receiver position
Upvote
0
Upvote
0
Well, I had a go at using #IF JAVA and those three .java source files, but they depend on an apache math library that I can't figure out how to include.
But the math for multilateration isn't so bad, if you have ok-ish distance measurements.
Given that you've got the source code for the multilateration, I'm wondering if it can be "inlined" using #IF JAVA. I'm no Java expert, but I'll have a poke around, see what I can stir up.
Assuming that you're already capturing the RSSI of the beacons, and applying the above math to convert that distance, I'd be interested in your assessment of:
how good do those distance measurements look in actual real-life use?
But the math for multilateration isn't so bad, if you have ok-ish distance measurements.
Given that you've got the source code for the multilateration, I'm wondering if it can be "inlined" using #IF JAVA. I'm no Java expert, but I'll have a poke around, see what I can stir up.
Assuming that you're already capturing the RSSI of the beacons, and applying the above math to convert that distance, I'd be interested in your assessment of:
how good do those distance measurements look in actual real-life use?
B4X:
float ra = beacon1.filteredDistance;
float rb = beacon2.filteredDistance;
float rc = beacon3.filteredDistance;
Upvote
0
Lol you beat me by seconds. I knew I should have posted first and then gone make the cup of tea.
Upvote
0
While you look at how good the RSSI distance estimates are, I figured I'd check out that trilateration calculation.
If you transcribe it to B4X eg:
B4X:
Sub Trilaterate(positions() As Float, distances() As Float) As Float()
If positions.Length <> 6 Then Log("!!! s/b 3 positions")
Dim xa As Float = positions(0)
Dim ya As Float = positions(1)
Dim xb As Float = positions(2)
Dim yb As Float = positions(3)
Dim xc As Float = positions(4)
Dim yc As Float = positions(5)
If distances.Length <> 3 Then Log("!!! s/b 3 distances")
Dim ra As Float = distances(0)
Dim rb As Float = distances(1)
Dim rc As Float = distances(2)
'var S = (Math.pow(xc, 2.) - Math.pow(xb, 2.) + Math.pow(yc, 2.) - Math.pow(yb, 2.) + Math.pow(rb, 2.) - Math.pow(rc, 2.)) / 2.0;
Dim S As Float = (xc * xc - xb * xb + yc * yc - yb * yb + rb * rb - rc * rc) / 2
'var T = (Math.pow(xa, 2.) - Math.pow(xb, 2.) + Math.pow(ya, 2.) - Math.pow(yb, 2.) + Math.pow(rb, 2.) - Math.pow(ra, 2.)) / 2.0;
Dim T As Float = (xa * xa - xb * xb + ya * ya - yb * yb + rb * rb - ra * ra) / 2
'var y = ((T * (xb - xc)) - (S * (xb - xa))) / (((ya - yb) * (xb - xc)) - ((yc - yb) * (xb - xa)));
Dim y As Float = ((T * (xb - xc)) - (S * (xb - xa))) / (((ya - yb) * (xb - xc)) - ((yc - yb) * (xb - xa)))
'var x = ((y * (ya - yb)) - T) / (xb - xa);
Dim x As Float = ((y * (ya - yb)) - T) / (xb - xa)
Return Array As Float(x, y)
End Suband test it with random points eg:
B4X:
Dim Positions(6) As Float = Array As Float(0, 0, 100, 0, 0, 100)
Dim NumBeacons As Int = Positions.Length / 2
If Positions.Length <> NumBeacons * 2 Then Log("!!! odd number of beacons")
Log("Random X,Y" & TAB & "Distances A, B, C" & TAB & TAB & "Reconstructed X,Y")
For Burl = 1 To 10
Dim X As Float = Rnd(10, 90)
Dim Y As Float = Rnd(10, 90)
Dim Distances(NumBeacons) As Float
For b = 0 To NumBeacons - 1
Dim dx As Float = X - Positions(b * 2)
Dim dy As Float = Y - Positions(b * 2 + 1)
Distances(b) = Sqrt(dx * dx + dy * dy)
Next
Dim EstLoc(Positions) As Float = Trilaterate(Positions, Distances)
Log( _
X & TAB & _
Y & TAB & _
NumberFormat2(Distances(0), 1, 3, 3, False) & TAB & _
NumberFormat2(Distances(1), 1, 3, 3, False) & TAB & _
NumberFormat2(Distances(2), 1, 3, 3, False) & TAB & _
NumberFormat2(EstLoc(0), 1, 4, 4, False) & TAB & _
NumberFormat2(EstLoc(1), 1, 4, 4, False) _
)
Nextthen it looks like your
Log output:
Random X,Y Distances A, B, C Reconstructed X,Y
82 47 94.515 50.329 97.637 82.0000 47.0000
88 45 98.838 46.573 103.774 88.0000 45.0000
64 47 79.404 59.203 83.096 64.0000 47.0000
18 86 87.864 118.828 22.804 18.0000 86.0000
40 82 91.236 101.607 43.863 40.0000 82.0000
47 45 65.069 69.527 72.346 47.0000 45.0000
13 46 47.802 98.412 55.543 13.0000 46.0000
25 55 60.415 93.005 51.478 25.0000 55.0000
46 77 89.694 94.048 51.430 46.0000 77.0000
32 50 59.363 84.404 59.363 32.0000 50.0000
Last edited:
Upvote
0
Upvote
0
I can't see anything there about:
but the robot mower project caught my eye, because we moved house a few months ago and the grass here grows like crazy (1cm per day).
Upvote
0
I had a bit of an epiphany overnight of a Plan B for estimating a position given a set of ranges from known beacon positions.
Being a converging approach that starts of roughly in the centre of all the beacons, imagines the ranges as being springs or elastic bands between that point and all the beacons, and then calculates the net force on the point depending on whether the spring is longer or shorter than it should be. I'd expect within 10 iterations it'd be a pretty good estimate. Subsequent updates would take even fewer, because you're estimate would be starting from close to the solution, rather than from the "random" centre again.
Using a spring rate that is x² rather than linear might even give a solution of least-squares error rather than least-total-error.
It'll try it out this evening.
I'm intrigued as to whether it could also be used for situations where the actual distance isn't known, but the relative distances are (eg if you had two equal RSSI indicating two equal ranges, and a third RSSI that was a quarter of the other two, indicating the third range was twice the other two).
Being a converging approach that starts of roughly in the centre of all the beacons, imagines the ranges as being springs or elastic bands between that point and all the beacons, and then calculates the net force on the point depending on whether the spring is longer or shorter than it should be. I'd expect within 10 iterations it'd be a pretty good estimate. Subsequent updates would take even fewer, because you're estimate would be starting from close to the solution, rather than from the "random" centre again.
Using a spring rate that is x² rather than linear might even give a solution of least-squares error rather than least-total-error.
It'll try it out this evening.
I'm intrigued as to whether it could also be used for situations where the actual distance isn't known, but the relative distances are (eg if you had two equal RSSI indicating two equal ranges, and a third RSSI that was a quarter of the other two, indicating the third range was twice the other two).
Last edited:
Upvote
0
No inline Java, just some good old-fashioned JavaObject use. See the attached project.
Notes:
1) The AdditionalJar directives have to be made in the Main module
2) Only a B4J implementation, even though used the B4XPages template
3) No error capturing was done
4) No other functions of the library are implemented
5) I included a routine to convert a 1D double array to a 2D double array. There is no neat way to declare a multidimensional array in B4X (that I'm aware of)
6) The Java library also requires/depends upon The Apache Commons Mathematics Library version 3
Notes:
1) The AdditionalJar directives have to be made in the Main module
2) Only a B4J implementation, even though used the B4XPages template
3) No error capturing was done
4) No other functions of the library are implemented
5) I included a routine to convert a 1D double array to a 2D double array. There is no neat way to declare a multidimensional array in B4X (that I'm aware of)
6) The Java library also requires/depends upon The Apache Commons Mathematics Library version 3
Upvote
0
I am novice to problem , reading documents online the accuracy may be around 1-4 meters but i obtain bad value mostly when i go far from device. Some more stable value using this filter:I can't see anything there about:
but the robot mower project caught my eye, because we moved house a few months ago and the grass here grows like crazy (1cm per day).
KalmanFilter:
Sub KalmanFilter(distance As Double) As Double
' Initialize variables
Dim q As Double = 0.001 ' Process noise
Dim r As Double = 0.1 ' Measurement noise
Dim x As Double = 0 ' Initial estimate
Dim p As Double = 1 ' Initial error estimate
Dim k As Double ' Kalman gain
' Prediction
x = x ' No prediction step in this example
p = p + q
' Update
k = p / (p + r)
x = x + k * (distance - x)
p = (1 - k) * p
Return x
End SubQ = 0.001, R = 0.1
Q = 0.01, R = 0.5
Q = 0.1, R = 1
suggest me by AI.
can someone suggest me something of god?
thanks in advances
Upvote
0

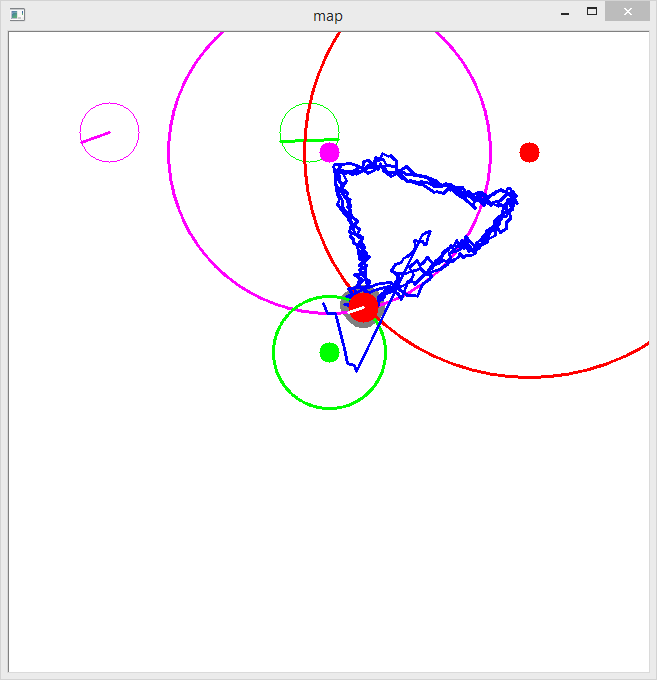

Yeah, I was super-impressed by this result, which is ten-times better than anything I ever got when using BLE iTags as beacons:
(from DIY localization using radio frequency beacons | Work-is-Playing )
Upvote
0
Calculate Distance of iBeacon applyed RSSISmooth and Particle Filter:
Here is a complete example of how to use the routine to calculate the accurate distance to an iBeacon:
```basic4android
