Android Question TouchPanelCreator (Solved)

[Shelby]

I installed a new hard drive, downloaded a new B4A 11.50 program, made sure the pathways are correct, and so on. My project will now not compile with the error message:

B4A Version: 11.50
Parsing code. Error
Error parsing program.
Error description: Unknown type: touchpanelcreator
Are you missing a library reference?
Error occurred on line: 38 (XUIScrollView)
Dim tpc As TouchPanelCreator

I can't find any touchpanelcreator in my code, so where is it?



[Shelby]

I don't have a folder: B4X Additional Libraries; my folder is Additional Libraries (within my B4X folder. Perhaps I should rename it.



[Sagenut]

You can rename it has you like.
But inside it you must create the other subfolders.
At least:
B4A
B4J
B4X



[Shelby]

I think that I didn't understood your question.
You have to create that folders structure for the Additional Libraries.
Then you have to copy/save the libraries that you download in the right folder.
The 2 libraries that you need must be inside the B4X subfolder has I show you, because they are Cross Platform Libraries.
In this way you will find them available in both B4A, B4J and B4i.

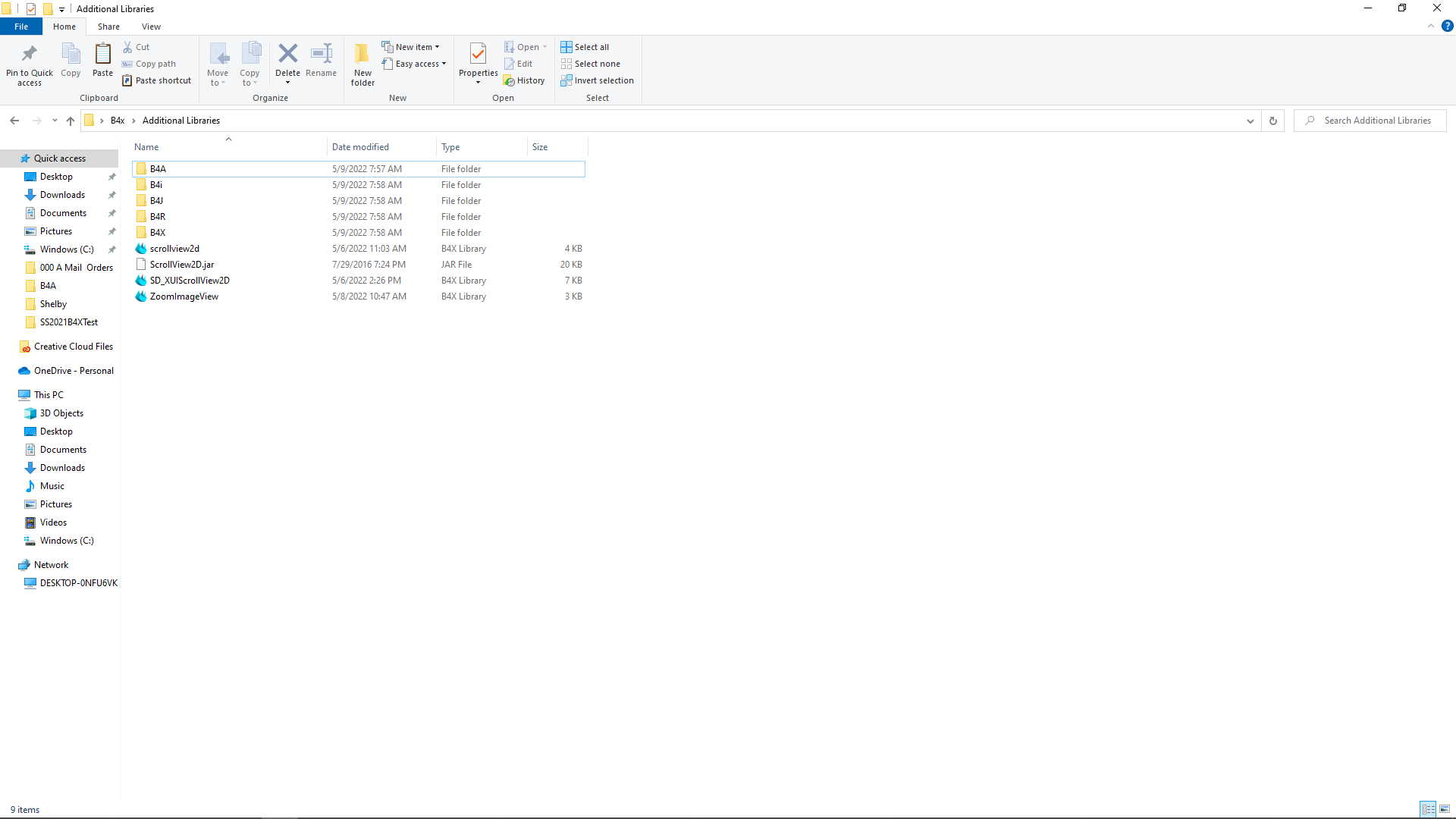

Here's my structure now; see image



[Sagenut]

Move ZoomImageView and SD_XUIScrollView inside the B4X subfolder that you just made.
The other 2 files called only ScrollView2d can be deleted.



[Shelby]

OK, I did that; I wonder if I should adjust my pathway in IDE



[Shelby]

Now IDE says: missing scrollview2d &

B4A Version: 11.50
Parsing code. Error
Error parsing program.
Error description: Unknown type: scrollview2d
Are you missing a library reference?
Error occurred on line: 64 (xTableLite)
Private SV2 As ScrollView2D



[Sagenut]

OK, I did that; I wonder if I should adjust my pathway in IDE

Yes.
Your path should be
C:\B4x\Additional Libraries
if I am right.
Then close and reopen B4A



[Sagenut]

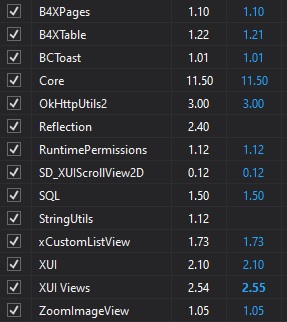

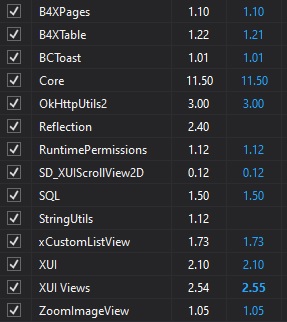

These are all the libraries needed to make the project work



[Shelby]

These are all the libraries needed to make the project work
View attachment 129016

If you're right, the code line:
'Private SV2 As ScrollView2D' has nowhere to go
When I run the IDE I get as usual, unknow type: scrollview2d.



[Shelby]

Remember you had me delete the scrollview2d and .jar files; maybe I should put them in the B4A subfolder you had me make.



[Sagenut]

Yes, you are right.
Take them from here
https://www.b4x.com/android/forum/threads/touchpanelcreator.140384/post-889481
and put these 2 files into the B4A subfolder.



[Shelby]

After viewing my old Addnl.

Yes, you are right.
Take them from here
https://www.b4x.com/android/forum/threads/touchpanelcreator.140384/post-889481
and put these 2 files into the B4A subfolder.

I already put them in (as I saved them when you said to delete them).



[Sagenut]

Check them because one you showed me was looking not correct.
The couple should be made of a JAR and an XML.



[Shelby]

Check them because one you showed me was looking not correct.
The couple should be made of a JAR and an XML.

OK I deleted them and used the ones you directed me to. Running project.



[Shelby]

It seems to be working; plugging in my phone to PC.



[Shelby]

It seems to be working; plugging in my phone to PC.

First time in 2 weeks it ran properly. I'm clicking the solved button on you last message. I see that it gave you a second solution on hovering over your name. Yay



[Sagenut]

Glad that finally you got it to work again, as it looks it was an important DB for you.



[Sagenut]

Would you like to email me? shelbyswayze@att.net? I have private info.

I wrote an email to you.
