Android Question Very simple layout

[LucaMs]

Only one button, anchored to right-bottom (distances 0 & 0).

Randomly the button goes out of screen.

Tablet 10" - Android 4.4.2



[LordZenzo]

sul mio tablet funziona bene

on my tablet works well



[Erel]

I'm unable to reproduce it. Do you change the orientation for it to happen?

Which device are you using?



[LucaMs]

Do you change the orientation for it to happen?

No, I simply start and close (back "key") a few times.

Which device are you using?

ASUS K010 TF103C



[Erel]

It didn't happen here, tested with two tablets.

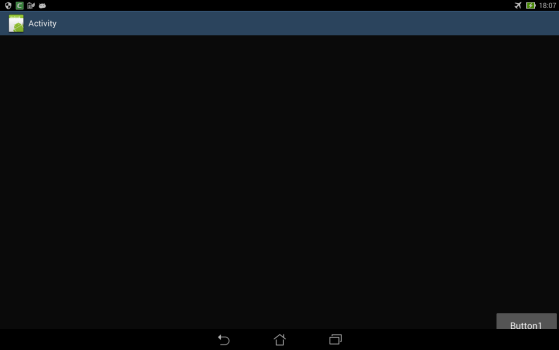

Based on the screenshot the activity size was not measured correctly when the activity was created. You can add Log(100%y) and see whether it is correct or not.



[LucaMs]

You can add Log(100%y) and see whether it is correct or not.

Added to Activity_Create.

First time I launched "the app" it resulted 671. Closed (back) it is 696. So the difference is 25dip, which is often a standard measure of some stuff, like title bar or other bars.

Third time, again 671 (and then the button is in the right place - or I should say it is fully visible)


Before this I have also updated the firmware.
I might reset to factory settings.

There are other strange cases, with this tablet; at times, leaving some app, the "home page" is defective... horizontally, though.



[LucaMs]

has someone else this device?



[Erel]

Try to add the HeightChanged event with the IME library. Is it raised with the correct height eventually?



[LucaMs]

Try to add the HeightChanged event with the IME library. Is it raised with the correct height eventually?

Yes, NewHeight (param of HeightChanged event) results always 357, when the button is correctly shown and when not.

[always 671 when the keyboard disappears]



[Erel]

The question is whether the event is raised without the keyboard appearing with the correct height (671)?



[LucaMs]

The question is whether the event is raised without the keyboard appearing with the correct height (671)

The keyboard measures and behavior result always the same (always correct), both when the button is shown correctly (100%y results 671) and when it is not (100%y results 696)



[Erel]

Is the event raised without you opening the keyboard?



[LucaMs]

Is the event raised without you opening the keyboard?

Yes.



[Erel]

Thank you. I cannot see it from the movie as I don't see the logs.

Anyway, I plan to make some changes to the way the activity is measured and it will probably fix such issues.
