Android Question xResizeAndCrop Square?

H

hasexxl1988

Active Member
Licensed User
Longtime User
Hello,
I have the following question:

I am slowly with my advice at the end and would like to know if anyone has an idea how can I make the marketed area at xResizeAndCrop always the same width and high?


So if I change the size of the selection area height and width should always be the same.

I found an old example from Klaus, this works with older Version of ResizeAndCrop at https://www.b4x.com/android/forum/threads/resize-and-crop.19550/#post-113884


Does somebody has any idea?

The Old Code:

B4X:
#Region Module Attributes
    #FullScreen: False
    #IncludeTitle: True
    #ApplicationLabel: ResizeAndCrop
    #VersionCode: 1
    #VersionName:
    #SupportedOrientations: unspecified
    #CanInstallToExternalStorage: False
#End Region

'Activity module
Sub Process_Globals
    ' Version 1.3 with markers in the angles
    Dim Left, Top, Right, Bottom, Width As Int
    Dim DeltaDot, Delta, DeltaX, DeltaY, StartX, StartY, MarkerDot, MarkerDot_1 As Int
    Dim fTopLeft, fTopRight, fBottomLeft, fBottomRight, fCenter As Boolean
    Dim colMarker As Int        : colMarker = Colors.RGB(255, 215, 0)
End Sub

Sub Globals
    Dim imvImage As ImageView
    Dim pnlAction As Panel
    Dim cvsAction As Canvas
    Dim rectImage, rectOuter As Rect
End Sub

Sub Activity_Create(FirstTime As Boolean)
    imvImage.Initialize("")
    Activity.AddView(imvImage, 0, 20%y, 100%x, 67%x)
    imvImage.Bitmap= LoadBitmap(File.DirAssets, "image0.jpg")
    imvImage.Gravity = Gravity.FILL

    pnlAction.Initialize("pnlAction")
    Activity.AddView(pnlAction, 0, 0, 100%x, 100%y )
    pnlAction.Color = Colors.ARGB(128, 0, 0, 0)
    cvsAction.Initialize(pnlAction)

    Width = imvImage.Height
    Top = imvImage.Top
    Bottom = Top + Width
    Left = 50%x - Width / 2
    Right = Left + Width
    rectImage.Initialize(Left, Top, Right, Bottom)    ' square of croped bitmap
    rectOuter.Initialize(Left, Top, Right, Bottom)    ' outer square including the markers
    cvsAction.DrawRect(rectImage, Colors.Transparent, True , 1)    ' draws the transparent croped square

    DeltaDot = 10dip                            ' half of selection square
    MarkerDot = 6dip                            ' half of marker square
    MarkerDot_1 = MarkerDot + 1        ' half of marker square + 1 for outer square
    DrawMarkers
End Sub

Sub Activity_Resume

End Sub

Sub Activity_Pause (UserClosed As Boolean)

End Sub

Sub pnlAction_Touch (Action As Int, X As Float, Y As Float)
    Select Action
    Case Activity.ACTION_DOWN
        fTopLeft = False
        fTopRight = False
        fBottomLeft = False
        fBottomRight = False
        fCenter = False
        If X >= Left - DeltaDot And X <= Left + DeltaDot And Y >= Top - DeltaDot And Y <= Top + DeltaDot Then
            fTopLeft = True
            Activity.Title = "TopLeft"
        Else If X >= Left - DeltaDot And X <= Left + DeltaDot And Y >= Bottom - DeltaDot And Y <= Bottom + DeltaDot Then
            fBottomLeft = True
            Activity.Title = "BottomLeft"
        Else If X >= Right - DeltaDot And X <= Right + DeltaDot And Y >= Top - DeltaDot And Y <= Top + DeltaDot Then
            fTopRight = True
            Activity.Title = "TopRight"
        Else If X >= Right - DeltaDot And X <= Right + DeltaDot And Y >= Bottom - DeltaDot And Y <= Bottom + DeltaDot Then
            fBottomRight = True
            Activity.Title = "BottomRight"
        Else If X >= Left + DeltaDot And X < Right - DeltaDot And Y >= Top + DeltaDot And Y < Bottom - DeltaDot Then
            fCenter = True
            Activity.Title = "Center"
        End If
        StartX = X
        StartY = Y
    Case Activity.ACTION_MOVE
        Dim Diff, Sign As Int
        DeltaX = X - StartX
        DeltaY = Y - StartY
        If Abs(DeltaX) >= Abs(DeltaY) Then
            Delta = DeltaX
        Else
            Delta = DeltaY
        End If
        cvsAction.DrawRect(rectOuter, Colors.Transparent, True , 1)
        cvsAction.DrawRect(rectOuter, Colors.ARGB(128, 0, 0, 0), True , 1)
        pnlAction.Invalidate2(rectOuter)
        If fCenter = True Then
            rectImage.Left = Left + DeltaX
            rectImage.Right = Right + DeltaX
            rectImage.Top = Top + DeltaY
            rectImage.Bottom = Bottom + DeltaY
            If rectImage.Left < imvImage.Left Then
                Diff = imvImage.Left - rectImage.Left
                rectImage.Left = imvImage.Left
                rectImage.Right = rectImage.Right + Diff
            End If
            If rectImage.Top < imvImage.Top Then
                Diff = imvImage.Top - rectImage.Top
                rectImage.Top = imvImage.Top
                rectImage.Bottom  = rectImage.Bottom + Diff
            End If
            If rectImage.Right >  imvImage.Left + imvImage.Width Then
                Diff = rectImage.Right - (imvImage.Left + imvImage.Width)
                rectImage.Right = imvImage.Left + imvImage.Width
                rectImage.Left  = rectImage.Left - Diff
            End If
            If rectImage.Bottom > imvImage.Top + imvImage.Height Then
                Diff = rectImage.Bottom - (imvImage.Top + imvImage.Height)
                rectImage.Bottom = imvImage.Top + imvImage.Height
                rectImage.Top  = rectImage.Top - Diff
            End If
        Else
            If fTopLeft = True Then
                If Left + Delta > imvImage.Left And Top + Delta > imvImage.Top Then
                    rectImage.Left = Left + Delta
                    rectImage.Top = Top + Delta
                End If
            End If
            If fTopRight = True And DeltaX <> 0 Then
                Sign = DeltaY / Abs(DeltaY)
                If Abs(DeltaX) >= Abs(DeltaY) Then
                    Delta = Abs(DeltaX) * Sign
                Else
                    Delta = DeltaY
                End If
                If Top + Delta > imvImage.Top And Right - Delta < imvImage.Left + imvImage.Width Then
                    rectImage.Top = Top + Delta
                    rectImage.Right = Right - Delta
                End If
            End If
            If fBottomLeft = True Then
                Sign = DeltaY / Abs(DeltaY)
                If Abs(DeltaX) >= Abs(DeltaY) Then
                    Delta = Abs(DeltaX) * Sign
                Else
                    Delta = DeltaY
                End If
                If Bottom + Delta < imvImage.Top + imvImage.Height And Left - Delta > imvImage.Left Then
                    rectImage.Bottom = Bottom + Delta
                    rectImage.Left = Left - Delta
                End If
            End If
            If fBottomRight = True Then
                If Bottom + Delta < imvImage.Top + imvImage.Height And Right + Delta < imvImage.Left + imvImage.Width Then
                    rectImage.Bottom = Bottom + Delta
                    rectImage.Right = Right + Delta
                End If
            End If
        End If
        cvsAction.DrawRect(rectImage, Colors.Transparent, True , 1)
        pnlAction.Invalidate2(rectImage)
        DrawMarkers
        rectOuter.Initialize(rectImage.Left - MarkerDot_1, rectImage.Top - MarkerDot_1, rectImage.Right + MarkerDot_1, rectImage.Bottom + MarkerDot_1)
    Case Activity.ACTION_UP
        Left = rectImage.Left
        Top = rectImage.Top
        Right = rectImage.Right
        Bottom = rectImage.Bottom
        Activity.Title = ""
    End Select
End Sub

Sub DrawMarkers
    Dim r As Rect

    r.Initialize(rectImage.Left - MarkerDot, rectImage.Top - MarkerDot, rectImage.Left + MarkerDot, rectImage.Top + MarkerDot)
    cvsAction.DrawRect(r, colMarker, True , 1)
    pnlAction.Invalidate2(r)

    r.Initialize(rectImage.Right - MarkerDot, rectImage.Top - MarkerDot, rectImage.Right + MarkerDot, rectImage.Top + MarkerDot)
    cvsAction.DrawRect(r, colMarker, True , 1)
    pnlAction.Invalidate2(r)

    r.Initialize(rectImage.Left - MarkerDot, rectImage.Bottom - MarkerDot, rectImage.Left + MarkerDot, rectImage.Bottom + MarkerDot)
    cvsAction.DrawRect(r, colMarker, True , 1)
    pnlAction.Invalidate2(r)

    r.Initialize(rectImage.Right - MarkerDot, rectImage.Bottom - MarkerDot, rectImage.Right + MarkerDot, rectImage.Bottom + MarkerDot)
    cvsAction.DrawRect(r, colMarker, True , 1)
    pnlAction.Invalidate2(r)

End Sub

Sort by date Sort by votes
klaus

klaus

Expert
Licensed User
Longtime User
Can you please try the attached class file?
In the Designer check the Square property.



Attachments

  • xResizeAndCrop.bas
    21 KB · Views: 306
Upvote 0
H

hasexxl1988

Active Member
Licensed User
Longtime User
klaus said:
Can you please try the attached class file?
In the Designer check the Square property.

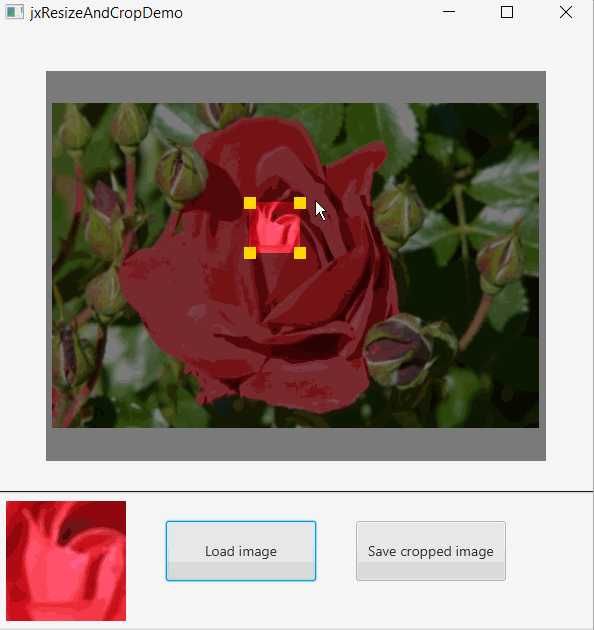

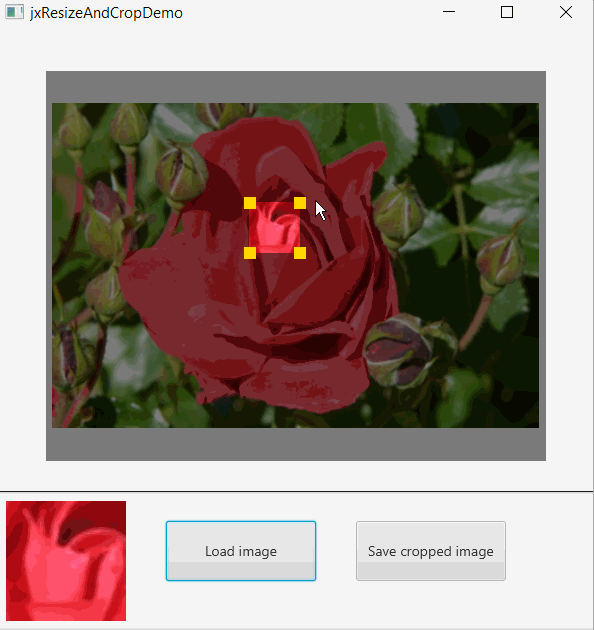

View attachment 76878
Click to expand...

The Class not Work. :-(

Error:
B4X:
Error occurred on line: 75 (xResizeAndCrop)
java.lang.RuntimeException: Cannot parse: null as boolean
    at anywheresoftware.b4a.BA.parseBoolean(BA.java:607)
    at anywheresoftware.b4a.BA.ObjectToBoolean(BA.java:677)
    at com.logo.picture.xresizeandcrop._designercreateview(xresizeandcrop.java:635)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:733)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:355)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:144)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:175)
    at anywheresoftware.b4a.objects.CustomViewWrapper.AfterDesignerScript(CustomViewWrapper.java:61)
    at anywheresoftware.b4a.keywords.LayoutBuilder.loadLayout(LayoutBuilder.java:162)
    at anywheresoftware.b4a.objects.ActivityWrapper.LoadLayout(ActivityWrapper.java:209)
    at com.logo.picture.main._activity_create(main.java:433)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:733)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:355)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:144)
    at com.logo.picture.main.afterFirstLayout(main.java:104)
    at com.logo.picture.main.access$000(main.java:17)
    at com.logo.picture.main$WaitForLayout.run(main.java:82)
    at android.os.Handler.handleCallback(Handler.java:794)
    at android.os.Handler.dispatchMessage(Handler.java:99)
    at android.os.Looper.loop(Looper.java:173)
    at android.app.ActivityThread.main(ActivityThread.java:6653)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:547)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:821)
** Activity (main) Resume **

Any ideas?

Upvote 0
Erel

Erel

B4X founder
Staff member
Licensed User
Longtime User
Click on the custom view in the designer. It will then add the new property.

Tip for Klaus:
When you add a new designer property you should get its value like this:
B4X:
Dim Square As Boolean = Props.GetDefault("square", False)
This way it will work with old layouts which do not include the new property.

Upvote 0
