Games [XUI2D] Limit the ScreenAABB edges not crossing the world edges

[ilan]

For my understanding X direction and y-direction are independent dimensions, e.g. both directions should follow the same mathematics.
Therefore I didn't get why your x-direction is coded diffrently compared to the y-direction (minY and maxY)!?

https://www.b4x.com/android/forum/threads/xui2d-how-is-the-tilemap-drawn.97652/



[Gunther]

small part of black space but smaller then in your first screenshot

Yes, with the +2 it is gone.

Let me read the link you provided.

Greetings.



[Gunther]

HI,

well, also on your last drawing the red frame is overlapping the screen (and tilemap) in both directions and not only the y-directions. Therefore it is not understandable by me why you used different formulas for the both directions.

Greetings.



[ilan]

HI,

well, also on your last drawing the red frame is overlapping the screen (and tilemap) in both directions and not only the y-directions. Therefore it is not understandable by me why you used different formulas for the both directions.

Greetings.

sorry i have not understood what you mean in your last post. the red frames are drawn by me only to show you the frame of youtube player. it is not show in my phone.



[Gunther]

hi, no the one of the https://www.b4x.com/android/forum/threads/xui2d-how-is-the-tilemap-drawn.97652/



[Gunther]

hm,

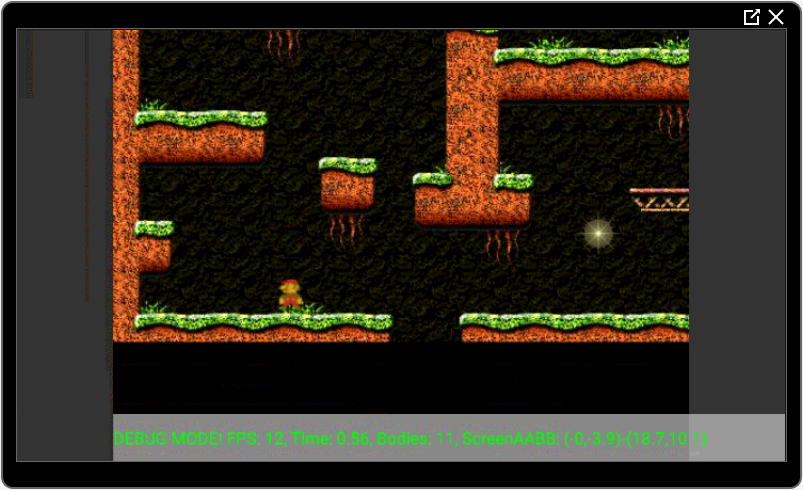

may it has also to do with the ratio in the Designer. My Ratio is 1.07, but when I used the unchanged I am getting a non filled screen:

While changing the Designer Script by swapping the orientation:

I am getting a normal full screen but as you know the settings have influence to the given setup:

Dim WorldWidth As Float = WorldHeight * 1.3333

Therefore I have the feeling I am running in the forest with no way out.



[Erel]

I haven't read all posts. Are you calling TileMap.SetBackgroundColor?

Don't call it and the default transparent color will be used (instead of the blue color).



[Gunther]

Dears,

I don't care about the color to be seen outside the tilemap. It should simply not be seen at all. Means the screen should never be outside the tilemap.

Greetings



[Erel]

Discussion continued here: https://www.b4x.com/android/forum/threads/xui2d-designer-variable-mixed-up.97663/



[Gunther]

Dear Erel,

I think this discussion is different than the one about the ratios used in Designer, which I treat as finished.

This one here is still open as even the drawing of ilan ( https://www.b4x.com/android/forum/threads/xui2d-how-is-the-tilemap-drawn.97652/) is not finalized in total to explain the different items.



[Erel]

Do you want to prevent the screen from moving outside of the tile map?



[Gunther]

Correct, the screen should stay always in the tilesmap while the character is able to reach the edges when the screen is at the edges but the screen shall follow the character when the edges of the map are not reached by the screen.

As we have it here in the Video partly for x-direction.:

https://www.b4x.com/android/forum/t...t-crossing-the-world-edges.97550/#post-615428



[Erel]

Change the code in Mario class to:

If bw.Body.WorldCenter.X > x2.ScreenAABB.Center.X Then
       'update the screen center
       Dim WorldX As Float = Min(bw.Body.WorldCenter.X, bw.mGame.TileMap.MapAABB.TopRight.X - x2.ScreenAABB.Width / 2)
       If WorldX > x2.ScreenAABB.Center.X Then
           x2.UpdateWorldCenter(x2.CreateVec2(WorldX, x2.ScreenAABB.Center.Y))
           bw.mGame.WorldCenterUpdated(GS)
       End If
   End If



[Gunther]

Thanks this. And for both axis at the same time? Maens it should not only the x-direction limited also the y-direction and may be both, if the character is near to a corner.



[Erel]

You just need to do a similar thing for the Y axis.



[Gunther]

Dear Erel,

your code works as expected only for the right end of the tilemap as it is used in your Mario example.
unfortunately not for the left edge and not for both dimentions together when adapted to the y-direction.

My approach was this. At least it works for both sides of x-Direction but not for the y-direction and for sure not for both togehter:

    If (x2.ScreenAABB.BottomLeft.X >= 0 And bw.Body.WorldCenter.X < x2.ScreenAABB.Width/2) Or _
          (x2.ScreenAABB.TopRight.X >= Main.WorldEdges.Right And bw.Body.WorldCenter.X > Main.WorldEdges.Right-x2.ScreenAABB.Width /2)  Then
        x2.UpdateWorldCenter(x2.CreateVec2(x2.ScreenAABB.Center.X,  bw.Body.WorldCenter.y))
    Else
        x2.UpdateWorldCenter(x2.CreateVec2(bw.Body.WorldCenter.X, bw.Body.WorldCenter.y))
    End If



[Erel]

your code works as expected only for the right end of the tilemap as it is used in your Mario example

That's true. It was added to the Mario example where the screen only moves to the right.
There is nothing special about this code. You need to understand it and you will then be able to limit the screen movement in any way you like.

I've updated the X2Tiles example and it now limits the map movement to the visible map. The relevant code is:

Sub ClipScreenCenterToMapArea (v As B2Vec2) As B2Vec2
   Dim ScreenHalfWidth As Float = X2.ScreenAABB.Width / 2
   Dim ScreenHalfHeight As Float = X2.ScreenAABB.Height / 2
   v.X = Max(ScreenHalfWidth, Min(TileMap.MapAABB.Width - ScreenHalfWidth, v.X))
   v.Y = Max(ScreenHalfHeight, Min(TileMap.MapAABB.Height - ScreenHalfHeight, v.Y))
   Return v
End Sub
