Games [XUI2D] [solved] AsyncDrawTasks and BCPath

[Gunther]

Hi,

we can add a async drawing task with adding a path and than adding the final path as clone to the task list with:

myPath.Initialize(p1.X, p1.Y)
myPath.LineTo(p2.X,p2.Y).LineTo(p3.X,p3.Y).LineTo(p1.X, p1.Y)

GS.DrawingTasks.Add(X2.MainBC.AsyncDrawPath(myPath.Clone, BrushLineColor, True, 1))

Well, how we can be sure that the path can be safely reused (and so its clone) or the drawtask is finished?

Can we remove that draw task from the draw task list(= that special one, do we have a reference to the added the task to be found in the list?) assuming that there will be some more draw tasks on that list added?

Thanks.



[Erel]

Once you cloned the path, the original path can be modified immediately. The cloned path is a different path.



[Gunther]

Thanks, a newly cloned path is NOT overwriting the path clone of the previous one, correct?

Since I do have about 40 paths in the loop of 5 paths each loop and sometimes I am getting a null pointer exception at different times in the game play.



[Erel]

A cloned path has no relation to the original path. Each cloned path is a completely new and unique path.



[Gunther]

Ok than it is an diffrent reason for the exception.



[Erel]

Note that if you are not modifying the paths every loop then it is better to clone the path when you want to modify it.

Can you post the error message?



[Gunther]

They are modified every loop.

the non-optimized code in question is:

Private Sub Drawitems(GS As X2GameStep, mbw As X2BodyWrapper)

    If mbw=Null Or mbw.IsVisible=False Then Return

    Dim Rhombus, Rhombus2, Rhombus3, Rhombus4, Rhombus5  As BCPath
    Dim p5, p6, p7, p8 As B2Vec2

    Dim f As B2Fixture = mbw.Body.FirstFixture

    Dim HalbBreite As Float = mbw.X2.GetShapeWidthAndHeight(f.Shape).X/2.
    Dim HalbHohe As Float =  mbw.X2.GetShapeWidthAndHeight(f.Shape).Y/2.

    Dim p1 As B2Vec2 = X2.WorldPointToMainBC(mbw.Body.Position.X-HalbBreite, mbw.Body.Position.Y-HalbHohe)
    Dim p2 As B2Vec2 = X2.WorldPointToMainBC(mbw.Body.Position.X+HalbBreite, mbw.Body.Position.Y-HalbHohe)
    Dim p3 As B2Vec2 = X2.WorldPointToMainBC(mbw.Body.Position.X+HalbBreite, mbw.Body.Position.Y+HalbHohe)
    Dim p4 As B2Vec2 = X2.WorldPointToMainBC(mbw.Body.Position.X-HalbBreite, mbw.Body.Position.Y+HalbHohe)
    '
    '
    'Punkte definition:

    ' calculating a small offset
    Punkte(p1, p5)
    Punkte(p2, p6)
    Punkte(p3, p7)
    Punkte(p4, p8)

    ' top
    If p3.Y > Click.Y Then
        Rhombus.Initialize(p3.X, p3.Y).LineTo(p7.X, p7.Y).LineTo(p8.X,p8.Y).LineTo(p4.X,p4.Y)
        GS.DrawingTasks.Add(X2.MainBC.AsyncDrawPath(Rhombus.Clone, BrushLineColor1, True, 0))

    End If
    ' bottom
    If p1.Y < Click.Y Then
        Rhombus2.Initialize(p2.X, p2.Y).LineTo(p6.X, p6.Y).LineTo(p5.X,p5.Y).LineTo(p1.X,p1.Y)
        GS.DrawingTasks.Add(X2.MainBC.AsyncDrawPath(Rhombus2.Clone, BrushLineColor2, True, 0))
    End If
    ' left
    If p1.X > Click.X Then
        Rhombus3.Initialize(p4.X, p4.Y).LineTo(p8.X, p8.Y).LineTo(p5.X,p5.Y).LineTo(p1.X,p1.Y)
        GS.DrawingTasks.Add(X2.MainBC.AsyncDrawPath(Rhombus3.Clone, BrushLineColor3, True, 0))
    End If
    ' right
    If p2.X < Click.X Then
        Rhombus4.Initialize(p2.X, p2.Y).LineTo(p6.X, p6.Y).LineTo(p7.X,p7.Y).LineTo(p3.X,p3.Y)
        GS.DrawingTasks.Add(X2.MainBC.AsyncDrawPath(Rhombus4.Clone, BrushLineColor4, True, 0))
    End If
'    ' back
'    Rhombus5.Initialize(p1.X, p1.Y).LineTo(p2.X, p2.Y).LineTo(p3.X,p3.Y).LineTo(p4.X,p4.Y)
'    GS.DrawingTasks.Add(X2.MainBC.AsyncDrawPath(Rhombus5.Clone, BrushLineColor5, True, 0))


End Sub

And the error log:

0
0
0
1
2
3
5
6
7
8
10
12
13
14
java.lang.NegativeArraySizeException
    at b4j.example.bitmapcreator._createcolumn(bitmapcreator.java:677)
    at b4j.example.bitmapcreator._drawfullpath(bitmapcreator.java:2012)
    at b4j.example.bitmapcreator._drawpath2(bitmapcreator.java:2187)
    at b4j.example.bitmapcreator._drawcanvasasync(bitmapcreator.java:1406)
    at b4j.example.bitmapcreator$1.run(bitmapcreator.java:4566)
    at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
    at java.util.concurrent.FutureTask.run(FutureTask.java:266)
    at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
    at java.lang.Thread.run(Thread.java:748)
skipping frame!!!
skipping frame!!!
skipping frame!!!
skipping frame!!!
skipping frame!!!
skipping frame!!!
skipping frame!!!



[Gunther]

it may be that is throuwing that error when the fixtures are outside the screen but only in Y-direction.

If they are outside the screen in X-direction but the Y-Position is in the range of the Min/Max plus a little more of the screen it works fine.

Could also be the hight of the TiledMap behind. If the total hight of the TiledMap is visible on the screen than it works (width of the Map is 6x the hight). If the visible hight smaller than the Map than it crashes.



[Erel]

It might be a bug in BitmapCreator. Please upload the project (simplify it as much as you can).



[Gunther]

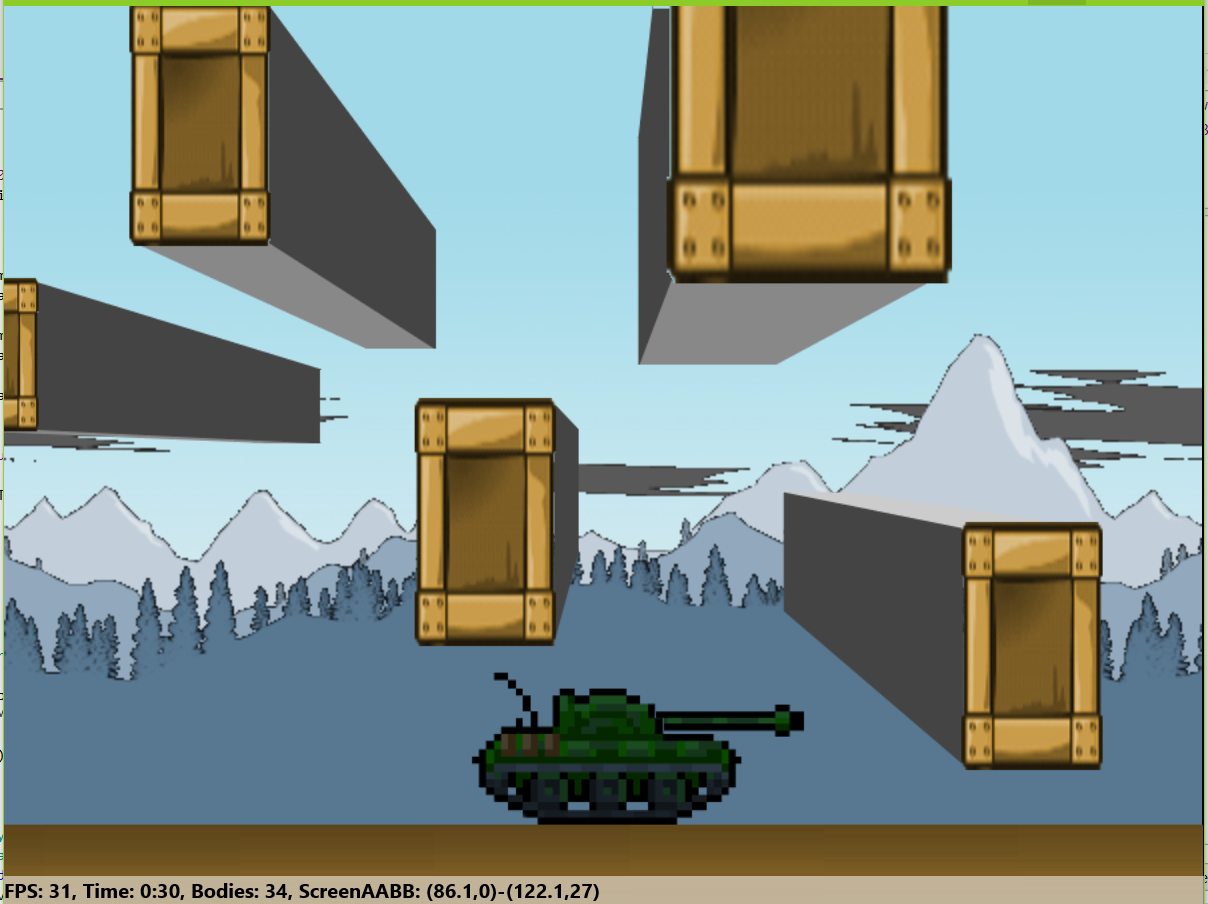

let me try to shrink the bigger project (already) to the necessary ... here it is...

In the Initialize Procedure you may change the factor behind WorldHeight to a lower one (more zoomed in) this will create an NullPointer Exception.

Public Sub Initialize (Parent As B4XView)
    Parent.LoadLayout("1")
    world.Initialize("world", world.CreateVec2(0, -20))
    X2.Initialize(Me, ivForeground, world)
    WorldHeight = 40 '
    WorldWidth  = WorldHeight * 1.3333

    X2.ConfigureDimensions(world.CreateVec2(WorldWidth / 2, WorldHeight / 2), WorldHeight * 1.16) '<------ lower Then 1.15 will produce the error

    lblStats.TextColor = xui.Color_Black
    lblStats.Color = 0x88ffffff
    lblStats.Font = xui.CreateDefaultBoldFont(20)


    'comment to disable debug drawing
'    X2.EnableDebugDraw
    TileMap.Initialize(X2, File.DirAssets, "tank.json", Null)
    TileMap.SetSingleTileDimensionsInMeters(WorldHeight / TileMap.TilesPerColumn, WorldHeight / TileMap.TilesPerColumn)
    TileMap.PrepareObjectsDef(ObjectLayer)

'    TileMap.SetBackgroundColor(0xFF008AFF)  ' <--------------------- first error when uncommented

    Dim ol As X2ObjectsLayer = TileMap.Layers.Get(ObjectLayer)
    For Each template As X2TileObjectTemplate In ol.ObjectsById.Values
        If template.Name <> "hinge" Then
            Dim bw As X2BodyWrapper = TileMap.CreateObject(template)
            If bw.Name = "tank" Then
                Tank = bw
            End If
        End If
    Next


    TankMovementForce = X2.CreateVec2(12,0)

    GroundLevel = X2.ScreenAABB.BottomLeft.Y

    BrushLineColor1 = X2.MainBC.CreateBrushFromColor(xui.Color_LightGray)

    X2.Start
End Sub



[Erel]

The issue is related to lines that are completely above or below the BC. It is fixed for the next update of BitmapCreator.

You should avoid drawing bodies that are outside of the visible screen. Change your code to:

If bw.IsVisible And bw.Name.Contains("block") Then

This will probably prevent this issue.



[Gunther]

Unfortunately, the project logic asks for bodies with are outside and not visible. This bodies edge points are start or end points of the drawn lines.

Is this issue only related to lines which are 100% out of BC?

If the Y-Direction behavious like the X-Direction then it is fine.

So, I need to wait for the update.



[Erel]

Unfortunately, the project logic asks for bodies with are outside and not visible.

There is no reason to draw a body that is fully invisible. bw.IsVisible will return False when the body is fully invisible.



[Gunther]

Well, I think yes. It looks very wirred if the extruded drawing is disappering with the box going out to the left. Or the drawing is first drawn if the box is seen on the right.



[Erel]

Now it is clear. You can still check the bounds of the drawn area and avoid drawing paths that are completely outside.



[Gunther]

With the new X2 in the x-platform X2 b4x library this issue is solved.
