B4A Library ZXingLib by icefairy333 - modified by Johan Schoeman (Scan QR Codes and other 1D/2D Barcodes)



See the attached project (with library files in the /files folder of the project). This is based on the original work of @icefairy333. I have modified @icefairy333's library so that it can do the following:

1. Set the color of the border of the framing rectangle from B4A code
2. Set the color of the laser from B4A code
3. Set the color of the mask around the framing rectangle from B4A code
4. Set the color of the result points from B4A code
5. Set the color of the final panel being displayed before control is being returned to the B4A project from B4A code
6. Ability to switch on/off the torch when making use of the back camera scanner by means of the volume up/down buttons. Use the volume up/down buttons to toggle the torch on/off when the scanner is active.

a. It retains the Portrait /Landscape option as per @icefairy333 's version 1.5 posted in post #1 of his original post.
b. It retains use of the front / back camera (not sure if it supports all types of devices)

See post #5 for changes that might be required to the Manifest of the project.

Edit: Posting JohanIceFairyZxingWidthMod.zip that will allow you to change the width / height of the ViewFinder. New library files are in the /files folder of the attached project. Replace the old lib files with the new ones.

Edit: Posting JohanIceFairyZxingWidthModAndTextMod.zip that will allow you also add text to the mask around the viewfinder of the scanner.

Edit: Posting JohanIceFairyZxingWidthTextBitmap.zip that will allow you to also add a bitmap to the mask around the viewfinder of the scanner.

Edit: Posting JohanIcefairyZxingWidthTextBitmapTouchTorch.zip that retains all previously added functionality but you can now also switch on/off the flash when using the back camera by either using the volume up/down buttons or just touch the screen while the scanner is active.

Edit: attached file src.zip contains the java source code. It can be compiled into a B4A library with Simple Library Compiler (SLC) as is, provided you set up the directory structure correctly and you set up SLC correctly. See elsewhere in this thread how to do it.

Edit: Attached JohanIcefairyZxingTimeout.zip with all the previously added functionality but adding an option to specify a timeout duration. Default timeout duration is 15 seconds (should you not specify any timeout duration). Also posting src_2.zip with the amended java source code

eg of Button1_Click for project in JohanIcefairyZxingTimeout.zip
B4X:
Sub Button1_Click
  zx.isportrait = True
  zx.useFrontCam = False

  'set the timeoutDuration to a very high value (such as 2000000000) if you dont want it to time out
  '2000000000 = 63 years+
  zx.timeoutDuration = 30

  'change these factors between 0 and 1 to change the size of the viewfinder rectangle
  'the library will limit the minimum size to 240 x 240 pixels and the maximum to (screen width) x   (screen height) pixels
  zx.theViewFinderXfactor = 0.7
  zx.theViewFinderYfactor = 0.5

  zx.theFrameColor = Colors.Blue
  zx.theLaserColor = Colors.Yellow
  zx.theMaskColor = Colors.argb(95, 0, 0, 255)
  zx.theResultColor = Colors.Green
  zx.theResultPointColor = Colors.Red

  'set the prompt messages
  zx.theTopPromptMessage = "This was done......"
  zx.theTopPromptTextSize = 5%y'text size in pixels
  zx.topPromptColor = Colors.Red
  zx.topPromptDistanceFromTop = 1%y'pixel distance from top

  zx.theBottomPromptMessage = "Just for fun......"
  zx.theBottomPromptTextSize = 5%y'text size in pixels
  zx.bottomPromptColor = Colors.Blue
  zx.bottomPromptDistanceFromBottom = 5%y'pixel distance from top

  'add a bitmap
  zx.theBitMap = bm
  zx.theBitMapLeft = 40%x
  zx.theBitMapTop = 10%y
  zx.theBitMapWidth = 20%x
  zx.theBitMapHeight = 20%x

  zx.BeginScan("myzx")
End Sub

Enjoy!


Attachments

  • JohanIcefairyZxing.zip
    416.8 KB · Views: 1,977
  • JohanIcefairyZxingWidthMod.zip
    417.5 KB · Views: 1,335
  • JohanIcefairyZxingWidthModAndTextMod.zip
    418.4 KB · Views: 1,268
  • JohanIcefairyZxingWidthTextBitmap.zip
    421 KB · Views: 1,204
  • JohanIcefairyZxingWidthTextBitmapTouchTorch.zip
    421.5 KB · Views: 1,316
  • JohanIcefairyZxingTimeout.zip
    421.5 KB · Views: 1,352
  • b4aZXINGusingVer1.05.zip
    12.2 KB · Views: 1,060
  • JhsIceZxing1Ver1.05.zip
    444.1 KB · Views: 1,097
  • JhsIceZxing1Ver1.06.zip
    444.1 KB · Views: 1,707
Last edited:

DonManfred

Expert
Licensed User
Longtime User
Can you guide me to add those permissions?


joe.dai

Member

Erel :
thank you ! runtime-permissions add is ok , Worked
but scan qrcode chinese result is garbled ,
how to fix mistakes ? Thanks for your help.



hatzisn

Expert
Licensed User
Longtime User
Maybe it is UTF-8 codes read wrong so you could write something like the following code:

B4X:
    Dim s As String
    's = QRCodeResult
    Dim b() As Byte
    b = s.GetBytes("ASCII")
    s = BytesToString(b,0,b.Length, "UTF8")


joe.dai

Member
Maybe it is UTF-8 codes read wrong so you could write something like the following code:

B4X:
    Dim s As String
    's = QRCodeResult
    Dim b() As Byte
    b = s.GetBytes("ASCII")
    s = BytesToString(b,0,b.Length, "UTF8")

hi hatzisn

not work !! thanks


ivan.tellez

Active Member
Licensed User
Longtime User
how to fix mistakes ?

No QR sample, No actual content of the scan result. no comparison with what is scanned with another app... It is a guessing contest?

You can try to debug and see what is the binary content of the result and work from there.


joe.dai

Member
No QR sample, No actual content of the scan result. no comparison with what is scanned with another app... It is a guessing contest?

You can try to debug and see what is the binary content of the result and work from there.
Maybe it is UTF-8 codes read wrong so you could write something like the following code:

B4X:
    Dim s As String
    's = QRCodeResult
    Dim b() As Byte
    b = s.GetBytes("ASCII")
    s = BytesToString(b,0,b.Length, "UTF8")

i change new library is ok !!

thanks all


loonet

Member
Licensed User
Thanks Johan Schoeman for yoyr great job.

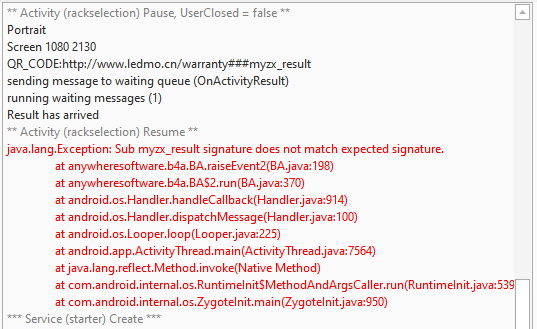

Using the libraries 1.05 and 1.06 I obtain the following exception when scanning a Qr code or every normal barcode.
How can I solve it ?

Is it possible to send the scan result to a EditText positioned on the same activity of the scan button ?



DonManfred

Expert
Licensed User
Longtime User
How can I solve it ?
1. You should NEVER post to existing threads. Always create a new thread in the questionsforum for any question/issue you have.
2. You should post errors as TEXT (right click to copy)
3. You need to provide more informations. As the error is telling about a wrong event_signature. But you are giving ZERO Info how your code looks like. Especially the Event_signature

Hello Johan


First, I apologize for my English. I just signed up for the B4X Programming Forum and I don't know if I'm contacting you correctly (I couldn't find your email address).


I did tests with your example of QrCode detection and liked the result. I made a donation through PayPal (Transaction ID: 7SR3134370589415D) and would like to know how to remove protection to use it in a personal use application.


Congratulations for your work and for the interaction with the other members.


Thanks.
