Android Tutorial Android database encryption with SQLCipher library

SQLCipher is an open source project that extends SQLite and adds full database encryption.
License: https://www.zetetic.net/sqlcipher/open-source/

B4A SQLCipher is a special subtype of SQL object. There is almost no need to change any code in order to switch from regular SQL to SQLCipher.

The only difference between SQL API and SQLCipher API is the Initialize method.
SQLCipher.Initialize expects two additional values: Password and a second parameter that is not used (it was used in the past).

Password is the database password. You can pass an empty string if there is no password. Note that it is not possible to change the password (or set a new password) to an existing database.

Code changes required to convert from SQL to SQLCipher
- Declare the SQL object as SQLCipher.
- Change the initialize code to:

SQL1.Initialize(File.DirRootExternal, "1.db", True, DB_PASSWORD, "")

V1.70

• Based on SQLCipher v4.5.4: https://www.zetetic.net/blog/2023/04/27/sqlcipher-4.5.4-release/

V1.60

• Based on SQLCipher v4.00: https://www.zetetic.net/blog/2018/11/30/sqlcipher-400-release/
• Includes 64 bit binaries and emulator binaries.
• Requires B4A v8+.
• Library is attached.
• Not compatible by default with databases created with older versions. See this link: https://www.zetetic.net/blog/2018/11/30/sqlcipher-400-release/#compatibility

V1.50

• Based on SQLCipher v3.59
• Supports targetSdkVersion 26.
• The icu.zip file is no longer required. You can delete it from the Files folder.
• It is no longer required to disable the debugger virtual assets feature.
  Remove this line: #DebuggerForceStandardAssets: True
• Old version: www.b4x.com/android/files/SQLCipher150.zip

Depends on: https://repo1.maven.org/maven2/net/...er/4.5.4/android-database-sqlcipher-4.5.4.aar
You should download and copy it to the additional libraries folder.



[Erel]

It is more or less correct. Just to make it clear, these steps are only required when you need to convert an existing unencrypted database. Once you have the encrypted database you can work with it exactly like you worked with the unencrypted database.

Step 3 should be: Add the records from database1 into database 2.



[Taha]

Ok, now I understand. The library DOES create SQLCipher database. Checked that and it works! Thanks, Erel!



[AscySoft]

I made a .net solution that uses multiple sqlite(normal) databases. If I'll switch to encryption on Android device, is there any possibilities on doing so on PC?
Is there any way to manipulate this SQLite encrypted database on normal PC?



[Erel]

SQLCipher is available on the desktop as well. However I think that you either need to build it yourself or purchase a build: Home - SQLCipher - Open Source Full Database Encryption for SQLite



[AscySoft]

SQLCipher is available on the desktop as well. However I think that you either need to build it yourself or purchase a build: Home - SQLCipher - Open Source Full Database Encryption for SQLite

Thank you for your reply.



[CapReed]

Hi all,

I managed to run correctly with the emulator SQLCipher. I copied the files manually sqlcipher_native.zip unpacked to the folder "/ data / data / xxxxxxxx.yyyyy.zzzzz / files /" and then I copied the compressed file "sqlcipher_native.zip" in "/ mnt / sdcard / sqlcipher_native. zip "that is where I have stored the test database I created.

After that, everything works, great.

But now I want to do it in an automatic mode, that is, everything you need is inside the APK and only have to install the application from google play with everything you need.

Actually I have no idea how to do, how you could help me?

Thank you very much for your time.



[Erel]

You should include the zip file in the Files tab and change the last parameter (NativeLibsFolder) to File.DirAssets.



[CapReed]

Erel Ok, I understand, I will try.

Thank you very much! :sign0060:



[Dexter438]

I would love to use SQL-Cipher, but I'm worried that all somebody would have to do is unpack my .apk and easily find the password used to encrypt the database... wouldn't this be a pretty easy way to circumvent the db encryption?


Does anyone have any suggestions for hiding a password (within an Android app) that I could then use to encrypt the database with? I could of course obfuscate the password but this would only make the password slightly more tedious to detect.

I'm really just looking for a way to store data for my Android app that I absolutely don't want anybody messing with. Any suggestions would be extremely appreciated.



[Erel]

For some reason you appear as an unlicensed user in the forum. Please contact support@basic4ppc.com in order to fix it.



[djpero]

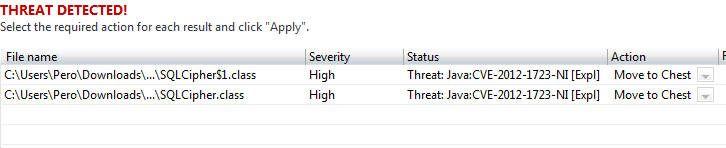

My antivirus reporting a virus in this library jar file.



[NJDude]

It seems like a false positive reported by your scanner.



[Erel]

I also think that it is a false positive as the original file wasn't changed. Anyway I've uploaded a new file.



[sioconcept]

I've add sqlcipher_native.zip to Files Tab and i've this error :

Compiling generated Java code. Error
javac 1.6.0_26
src\b4a\example\main.java:231: package a.b.test does not exist
public static a.b.test.SQLCipher _sqlc = null;

I've missing a step ?



[Erel]

Please download the library again. The XML file didn't match the Jar file.

After you copy the files you should right click on the libraries tab and choose Refresh.



[djpero]

Just to make clear to myself and others:

- SQL cipher only create new database with ability of password
- you MUST include the sqlcipher_native in project under Files folder (that increasing the apk size plus 3,1Mb)

Am I right?

Is better way to encrypt all the data in db file? I found db files of other wellknown apps from market, they doing this: encryption of data, not ciphering.



[Erel]

Am I right?

Yes.

You can encrypt specific fields and store the data as blobs.
For a complete solution SQLCipher will give you the best result.



[Sinan Tuzcu]

Helo,

i Need a example tutorial for this library.
can somebody help me

greet
sinan



[Erel]

This library is similar to the SQL library. You should follow the instructions in the first post.



[coyote]

Hi,

I've already opened a thread in the german forum, but I've still no answer.

http://www.b4x.com/forum/german-forum/26636-urls-classes-dex.html)

So, let me ask my question again.

When I add the SQLCipher V.1.00 lib, compile the programm and open the classes.dex in notepad++, I see many URLs. See the picture below.

Why are so many URLs in the file? What are they use for?

Greetings, Coyote
