Android Question App icon doesn't change

[username_987]

In one project app icon doesn't change, despite choosing an icon through (project - choose icon), still I have (android standard icon) when testing the app

Any reason why the app icon can be not updating?

Thank you



[username_987]

Current icon was placed by me long time ago, now it doesn't change at all

Also, files in ..Objects\res folder (like mipmap-hdpi) are deleted when I compile the project

In ..Objects\res\drawable I got a new icon, yet when I compile the project, I get the old (previous) icon still

Thank you



[username_987]

The project was an older one, yet I used its files to create a new project, which seems like caused that problem

I might create a new project

Question: which folder shall I copy in order to migrate the designer content between two projects?

Thank you



[Ferdari]

Hi @username_987 ,

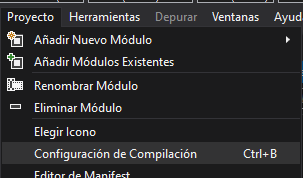

To change app icon use the Project menu > Choose icon

If Icon not changing check if folders not READ ONLY or PERMISSIONS on Windows

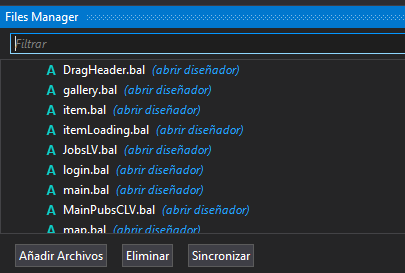

To set resources into your app Use file manager > Add file, or simply drag and drop from Windows file explorer(Designer files too .BAL)

Tip: Do not touch ..Objects\res folder, it REGENERATES everytime you COMPILE.

Don't forget to Thank if it helped you.



[asales]

Since Android 8 I use the adaptive icons:

Adaptive Icons - simple instructions and tips

All apps should have an adaptive icon. If you are not familiar with these icons then start here: Adaptive Icons Instruction steps: Create a new folder in the root project folder named icon. Create two folders inside that folder with the following files: mipmap: ic_launcher.png -...

www.b4x.com



[Erel]

Since Android 8 I use the adaptive icons:

This is indeed the recommended way to set the icon.



[username_987]

Hi @username_987 ,

Tip: Do not touch ..Objects\res folder, it REGENERATES everytime you COMPILE.

Don't forget to Thank if it helped you.

So, things are alright same like what you've guided, I recreated the project, just needs to know where is the files that I can migrate to migrate the designer interface to the new project

Thank you

Since Android 8 I use the adaptive icons:

Adaptive Icons - simple instructions and tips

All apps should have an adaptive icon. If you are not familiar with these icons then start here: Adaptive Icons Instruction steps: Create a new folder in the root project folder named icon. Create two folders inside that folder with the following files: mipmap: ic_launcher.png -...

www.b4x.com

This is indeed the recommended way to set the icon.

I use it too

Thanks to all of you



[username_987]

Well, the designer can (select all) views, and paste it into the new project's designer

Now I've got a new project, and hope it works well

Thank you



[username_987]

Since Android 8 I use the adaptive icons:

Adaptive Icons - simple instructions and tips

All apps should have an adaptive icon. If you are not familiar with these icons then start here: Adaptive Icons Instruction steps: Create a new folder in the root project folder named icon. Create two folders inside that folder with the following files: mipmap: ic_launcher.png -...

www.b4x.com

I get an error that I used to not get, sdk is set to version 14 till 34, yet I get the following error when using adaptive icons

Linking resources    Error
../icon\mipmap\ic_launcher.xml: error: <adaptive-icon> elements require a sdk version of at least 26.
res\mipmap-anydpi-v26\ic_launcher.xml:3: error: resource mipmap/background (aka .........:mipmap/background) not found.
res\mipmap-anydpi-v26\ic_launcher.xml:4: error: resource mipmap/foreground (aka .........:mipmap/foreground) not found.
error: failed linking file resources.

Picking an icon works now after starting a new project, yet adaptive icons doesn't work, after adding manifest code and (#AdditionalRes: ../icon), I get the error above

I hope someone can help with that

Thank you



[username_987]

It's weird that the manifest code used to work, and now gives an error code as shown above, when adding it, nothing was changed in the IDE as far as I know



[username_987]

That's the content of manifest file, in case of any syntax error, which I'm sure is not there

'This code will be applied to the manifest file during compilation.
'You do not need to modify it in most cases.
'See this link for for more information: https://www.b4x.com/forum/showthread.php?p=78136
AddManifestText(
<uses-sdk android:minSdkVersion="14" android:targetSdkVersion="34"/>
<supports-screens android:largeScreens="true"
    android:normalScreens="true"
    android:smallScreens="true"
    android:anyDensity="true"/>)
SetApplicationAttribute(android:icon, "@drawable/icon")
SetApplicationAttribute(android:label, "$LABEL$")
CreateResourceFromFile(Macro, Themes.LightTheme)
'End of default text.
SetApplicationAttribute(android:icon, "@mipmap/ic_launcher")
CreateResource(mipmap-anydpi-v26, ic_launcher.xml,
<adaptive-icon xmlns:android="http://schemas.android.com/apk/res/android">
<background android:drawable="@mipmap/background"/>
<foreground android:drawable="@mipmap/foreground"/>
</adaptive-icon>
)



[username_987]

I took instructions from another thread earlier. After following the instructions found here:

Adaptive Icons

Updated instructions are available here: https://www.b4x.com/android/forum/threads/adaptive-icons-simple-instructions-and-tips.123843/ Starting from Android 8 apps should include an adaptive icon. Without it the icon will appear as a small icon inside the larger template: (B4A designer still...

www.b4x.com

Adaptive icons now seems to work

Thanks to everyone
