Hi,

This class cPDF.bas (version 0.6 - 2024-01-03) generate PDF File with limited fonctionnalities (but enough for me)
  • Add pages with different paper size (use constants or custom size)

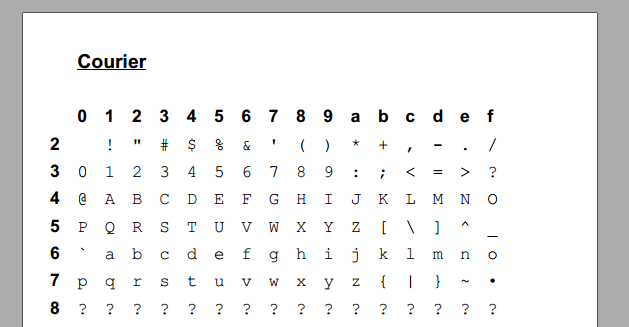

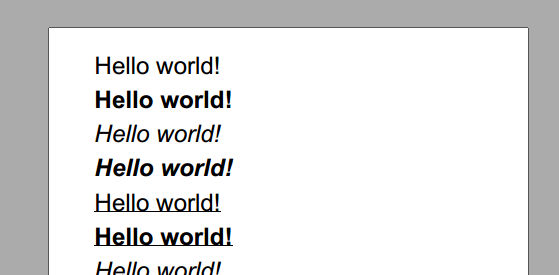

  • PDF standards font (Courier, Helvetica, Times, Symbol and Zapfdingbats), style (Normal, Bold, Italic, Underline and StrikeThrough), encoding cp1252
  • draw text : single line of text at position x, y
  • draw text flow with explicit and automatic CR at current x,y position with alignment (left, center, right, justify)
  • Measure text (width and height)
  • Measure multiline text (width and height)

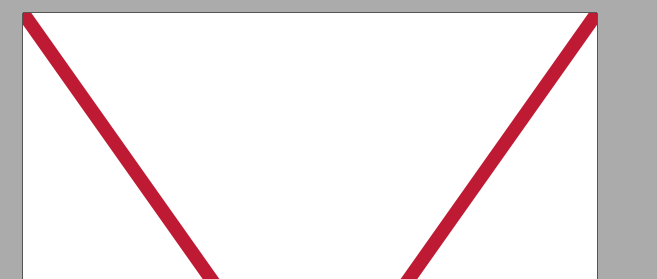

  • draw line
  • draw rectangle

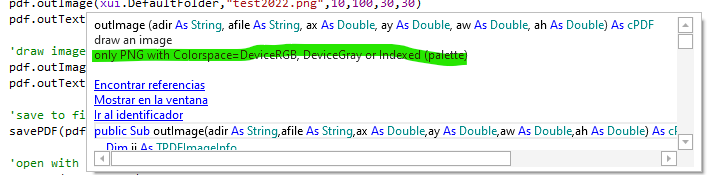

  • draw images (only PNG, all format that can be loaded with xui.loadbitmap)
  • use pdf commands directly
  • save to file with/without compression
Source full commented, example for B4J and B4A, I don't use B4I (but should be OK)
dependencies :
  • B4XCollections
  • RandomAccessFile

Help welcome to add support for :
  • PNG image wih colorspace = 6
  • JPG image
  • loading font from file








spsp


Attachments

  • 1672644870818.png
    7.1 KB · Views: 1,068
  • 1672644931064.png
    48.8 KB · Views: 2,673
  • pdfgen.zip
    284.4 KB · Views: 536
Last edited:
Click to expand...
ivanomonti

ivanomonti

Expert
Licensed User
Longtime User
i am trying to create a pdf with your class but i have this error

s = "L'amore è come una rosa: ha bisogno di essere curato e nutrito per crescere e prosperare."

while trying to clean the text by changing the text passed with a string type variable it crashes

ERROR:
L
'
a
m
o
r
e

è



Error occurred on line: 128 (B4XBytesBuilder)
java.lang.ArrayIndexOutOfBoundsException: length=256; index=-24
    at java.lang.reflect.Array.get(Array.java:196)
    at anywheresoftware.b4a.shell.ArraysUtils.getElement(ArraysUtils.java:76)
    at anywheresoftware.b4a.shell.Shell.getArrayElement(Shell.java:584)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:383)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
    at anywheresoftware.b4a.debug.Debug.delegate(Debug.java:262)
    at b4a.example.cpdf._gmultilinetextsize(cpdf.java:1233)
    at b4a.example.cpdf._outtextflow(cpdf.java:497)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
    at anywheresoftware.b4a.keywords.Common.CallSub4(Common.java:1114)
    at anywheresoftware.b4a.keywords.Common.CallSubNew2(Common.java:1069)
    at b4a.example.as_tabmenuadvanced._tabclickevent(as_tabmenuadvanced.java:1824)
    at b4a.example.as_tabmenuadvanced._xpnl_tab_click(as_tabmenuadvanced.java:1984)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
    at anywheresoftware.b4a.BA.raiseEvent(BA.java:201)
    at anywheresoftware.b4a.objects.ViewWrapper$1.onClick(ViewWrapper.java:80)
    at android.view.View.performClick(View.java:8160)
    at android.view.View.performClickInternal(View.java:8137)
    at android.view.View.access$3700(View.java:888)
    at android.view.View$PerformClick.run(View.java:30236)
    at android.os.Handler.handleCallback(Handler.java:938)
    at android.os.Handler.dispatchMessage(Handler.java:99)
    at android.os.Looper.loop(Looper.java:246)
    at android.app.ActivityThread.main(ActivityThread.java:8625)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:602)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1130)

Last edited:
S

spsp

Active Member
Licensed User
Longtime User
ivanomonti said:
i am trying to create a pdf with your class but i have this error

s = "L'amore è come una rosa: ha bisogno di essere curato e nutrito per crescere e prosperare."

while trying to clean the text by changing the text passed with a string type variable it crashes

ERROR:
L
'
a
m
o
r
e

è



Error occurred on line: 128 (B4XBytesBuilder)
java.lang.ArrayIndexOutOfBoundsException: length=256; index=-24
    at java.lang.reflect.Array.get(Array.java:196)
    at anywheresoftware.b4a.shell.ArraysUtils.getElement(ArraysUtils.java:76)
    at anywheresoftware.b4a.shell.Shell.getArrayElement(Shell.java:584)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:383)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
    at anywheresoftware.b4a.debug.Debug.delegate(Debug.java:262)
    at b4a.example.cpdf._gmultilinetextsize(cpdf.java:1233)
    at b4a.example.cpdf._outtextflow(cpdf.java:497)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
    at anywheresoftware.b4a.keywords.Common.CallSub4(Common.java:1114)
    at anywheresoftware.b4a.keywords.Common.CallSubNew2(Common.java:1069)
    at b4a.example.as_tabmenuadvanced._tabclickevent(as_tabmenuadvanced.java:1824)
    at b4a.example.as_tabmenuadvanced._xpnl_tab_click(as_tabmenuadvanced.java:1984)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
    at anywheresoftware.b4a.BA.raiseEvent(BA.java:201)
    at anywheresoftware.b4a.objects.ViewWrapper$1.onClick(ViewWrapper.java:80)
    at android.view.View.performClick(View.java:8160)
    at android.view.View.performClickInternal(View.java:8137)
    at android.view.View.access$3700(View.java:888)
    at android.view.View$PerformClick.run(View.java:30236)
    at android.os.Handler.handleCallback(Handler.java:938)
    at android.os.Handler.dispatchMessage(Handler.java:99)
    at android.os.Looper.loop(Looper.java:246)
    at android.app.ActivityThread.main(ActivityThread.java:8625)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:602)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1130)
Click to expand...
Hello,

Could you post your project ?

spsp

ivanomonti

ivanomonti

Expert
Licensed User
Longtime User
@spsp not at the moment, it's a privately funded project, but I can replicate the code as soon as I have the time.

ivanomonti

ivanomonti

Expert
Licensed User
Longtime User
@spsp,

title string:
pdf.sProperty(pdf.PropertyAuthor,"spsp"). _
sProperty(pdf.PropertyTitle,m.Get("ms_gpt_01_05").As(String).Trim). _
sProperty(pdf.PropertyKeywords,"B4X,PDF,Cross platform")


string text:
Dim s As String
s=m.Get("ms_gpt_01_05").As(String).Replace(" ",Chr(32)).Replace(Chr(34),"").Trim
Log(s)


B4X:
Private Sub TextToPdf(m As Map)

    Dim pdf As cPDF
    'initialize with mm unit
    pdf.Initialize("mm")

    'set properties
    pdf.sProperty(pdf.PropertyAuthor,"spsp"). _
        sProperty(pdf.PropertyTitle,m.Get("ms_gpt_01_05").As(String).Trim). _
        sProperty(pdf.PropertyKeywords,"B4X,PDF,Cross platform")

    'add a page
    pdf.pageAdd(pdf.pageSizeA4PortraitWidth,pdf.pageSizeA4PortraitHeight)

    'set current position 10mm from the left, 287mm from the bottom
    pdf.sX(10).sY(287)

    Dim s As String

    s=m.Get("ms_gpt_01_05").As(String).Replace(" ",Chr(32)).Replace(Chr(34),"").Trim

    Log(s)


    pdf.sFont(pdf.fontHelvetica,pdf.fontNormal,14,pdf.colorBlack)

    pdf.outtextflow(10,200,pdf.AlignCenter,s)

    'save to file with compression if data compressed are smaller
    savePDF(pdf,"test.pdf",pdf.CompressAlways)

    'open with default viewer
    openPDF("test.pdf")

End Sub

S

spsp

Active Member
Licensed User
Longtime User
ivanomonti said:
@spsp,

title string:
pdf.sProperty(pdf.PropertyAuthor,"spsp"). _
sProperty(pdf.PropertyTitle,m.Get("ms_gpt_01_05").As(String).Trim). _
sProperty(pdf.PropertyKeywords,"B4X,PDF,Cross platform")


string text:
Dim s As String
s=m.Get("ms_gpt_01_05").As(String).Replace(" ",Chr(32)).Replace(Chr(34),"").Trim
Log(s)


B4X:
Private Sub TextToPdf(m As Map)

    Dim pdf As cPDF
    'initialize with mm unit
    pdf.Initialize("mm")

    'set properties
    pdf.sProperty(pdf.PropertyAuthor,"spsp"). _
        sProperty(pdf.PropertyTitle,m.Get("ms_gpt_01_05").As(String).Trim). _
        sProperty(pdf.PropertyKeywords,"B4X,PDF,Cross platform")

    'add a page
    pdf.pageAdd(pdf.pageSizeA4PortraitWidth,pdf.pageSizeA4PortraitHeight)

    'set current position 10mm from the left, 287mm from the bottom
    pdf.sX(10).sY(287)

    Dim s As String

    s=m.Get("ms_gpt_01_05").As(String).Replace(" ",Chr(32)).Replace(Chr(34),"").Trim

    Log(s)


    pdf.sFont(pdf.fontHelvetica,pdf.fontNormal,14,pdf.colorBlack)

    pdf.outtextflow(10,200,pdf.AlignCenter,s)

    'save to file with compression if data compressed are smaller
    savePDF(pdf,"test.pdf",pdf.CompressAlways)

    'open with default viewer
    openPDF("test.pdf")

End Sub
Click to expand...
Hello,

The problem comes from the 'è' char.

I will check the library

spsp

S

spsp

Active Member
Licensed User
Longtime User
ivanomonti said:
@spsp,

title string:
pdf.sProperty(pdf.PropertyAuthor,"spsp"). _
sProperty(pdf.PropertyTitle,m.Get("ms_gpt_01_05").As(String).Trim). _
sProperty(pdf.PropertyKeywords,"B4X,PDF,Cross platform")


string text:
Dim s As String
s=m.Get("ms_gpt_01_05").As(String).Replace(" ",Chr(32)).Replace(Chr(34),"").Trim
Log(s)


B4X:
Private Sub TextToPdf(m As Map)

    Dim pdf As cPDF
    'initialize with mm unit
    pdf.Initialize("mm")

    'set properties
    pdf.sProperty(pdf.PropertyAuthor,"spsp"). _
        sProperty(pdf.PropertyTitle,m.Get("ms_gpt_01_05").As(String).Trim). _
        sProperty(pdf.PropertyKeywords,"B4X,PDF,Cross platform")

    'add a page
    pdf.pageAdd(pdf.pageSizeA4PortraitWidth,pdf.pageSizeA4PortraitHeight)

    'set current position 10mm from the left, 287mm from the bottom
    pdf.sX(10).sY(287)

    Dim s As String

    s=m.Get("ms_gpt_01_05").As(String).Replace(" ",Chr(32)).Replace(Chr(34),"").Trim

    Log(s)


    pdf.sFont(pdf.fontHelvetica,pdf.fontNormal,14,pdf.colorBlack)

    pdf.outtextflow(10,200,pdf.AlignCenter,s)

    'save to file with compression if data compressed are smaller
    savePDF(pdf,"test.pdf",pdf.CompressAlways)

    'open with default viewer
    openPDF("test.pdf")

End Sub
Click to expand...
Hello,

Bug is fixed, ZIP file in post #1 updated. (only cPDF.bas file has been changed)

Thanks for reporting this bug to me.

spsp

spsp

Almora

Almora

Well-Known Member
Licensed User
Longtime User
MichalK73 said:
Hello.

I'm testing this library right now. It's simple and fun to create pdf.
However, I have a problem to solve.
Namely, I have text for several pages. Now, when I insert a longer text, the page ends, the text as much as possible is on the PDF, the rest is not. How to detect the end of a PDF page so that further text goes to the next page?
Click to expand...
how can we do this..

MichalK73

MichalK73

Well-Known Member
Licensed User
Longtime User
Almora said:
how can we do this..
Click to expand...
I was looking for a PDF generator for printing from a web server. I couldn't wait for someone to correct or add pagination or other things. I used Python which has very good and rich libraries to generate PDF. I combined B4J with Python code execution and the generated PDF is now available in B4J.
As I do it will not work with B4A.

P

ProjectGroup19

Active Member
Licensed User

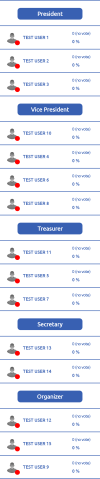

I'm unable to display png images like the attached image in the pdf. Could I be doing something wrong??
B4X:
pdf.outImage(xui.DefaultFolder,"test 2022.png",10,20,180,180)


Attachments

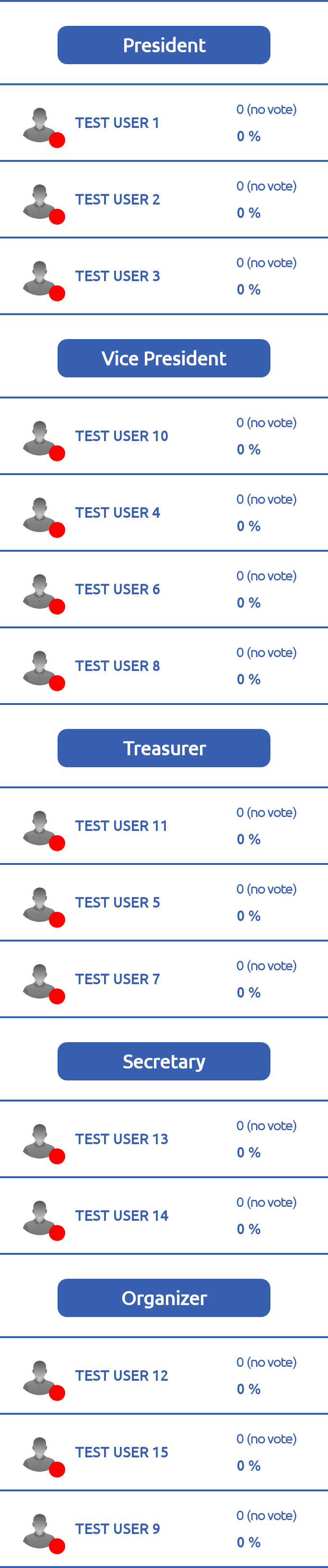

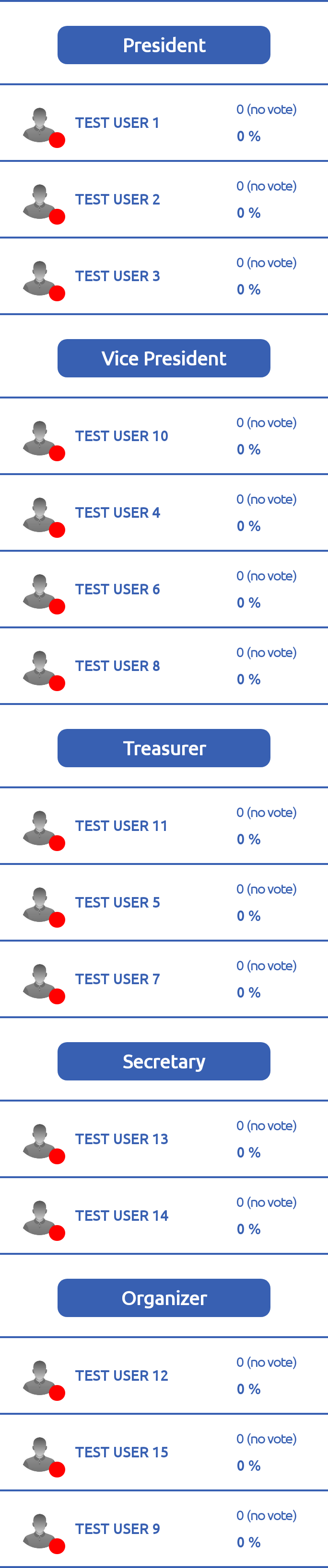

  • test 2022.png
    test 2022.png
    214.3 KB · Views: 232
Last edited:
DonManfred

DonManfred

Expert
Licensed User
Longtime User
ProjectGroup19 said:
I'm trying to add the attached image to the pdf
Click to expand...
Does the example provided work for you? For me it is working...

You have adapted the manifest of your app to add FileProvider? AND you are using fileprovider-Library?

Upload a small project showing the problem. Hard to guess anything on the informations you provided.

josejad

josejad

Expert
Licensed User
Longtime User
ProjectGroup19 said:
I'm unable to display png images like the attached image in the pdf
Click to expand...
I think you should have created a new thread indicating you're using this library.

I've not used it, but as far as I can see, the file has to meet a few requirements.

Looking the properties of your file, they seem to be different than the image in the example. Try to play with you file


P

ProjectGroup19

Active Member
Licensed User
José J. Aguilar said:
I think you should have created a new thread indicating you're using this library.
Click to expand...
Noted
José J. Aguilar said:
I've not used it, but as far as I can see, the file has to meet a few requirements.

Looking the properties of your file, they seem to be different than the image in the example. Try to play with you file

View attachment 142507
Click to expand...

The cPDF version I have states;
draw an image
only PNG

I didn't know PNG with Colorspace= DeviceRGB, DeviceGray or Indexed (palette). Thanks for the clarification :)?


I will have to create a new thread on How to convert a PNG image to the DeviceRGB, DeviceGray or Indexed (palette).

Last edited:
james_sgp

james_sgp

Active Member
Licensed User
Longtime User
spsp, an awesome library...so easy to use.

But I`m having a little trouble, I`m downloading an image from the internet and saving it as a PNG but it isn`t showing in the PDF file. I am loading PNG`s from assets and they are showing fine.

B4X:
            mp.MediaManager.SetMediaWithExtra(pdfImg, myi.photo, "", CreateMap(mp.MediaManager.REQUEST_CALLBACK: Me))
            Wait For (pdfImg) SMM_MediaReady (Success As Boolean, Media As SMMedia)
            If Success Then
                Dim x As B4XView = pdfImg
                Dim bmp As Bitmap = x.Snapshot
                Dim Out As OutputStream
                Out = File.OpenOutput(xui.DefaultFolder, "image.png", False)
                bmp.WriteToStream(Out, 100, "PNG")
                Out.Close
                Sleep(0)
                pdf.outImage(xui.DefaultFolder,"image.png",10,220,0,150)
            End If

Any advice?

Thanks James

S

spsp

Active Member
Licensed User
Longtime User
james_sgp said:
spsp, an awesome library...so easy to use.

But I`m having a little trouble, I`m downloading an image from the internet and saving it as a PNG but it isn`t showing in the PDF file. I am loading PNG`s from assets and they are showing fine.

B4X:
            mp.MediaManager.SetMediaWithExtra(pdfImg, myi.photo, "", CreateMap(mp.MediaManager.REQUEST_CALLBACK: Me))
            Wait For (pdfImg) SMM_MediaReady (Success As Boolean, Media As SMMedia)
            If Success Then
                Dim x As B4XView = pdfImg
                Dim bmp As Bitmap = x.Snapshot
                Dim Out As OutputStream
                Out = File.OpenOutput(xui.DefaultFolder, "image.png", False)
                bmp.WriteToStream(Out, 100, "PNG")
                Out.Close
                Sleep(0)
                pdf.outImage(xui.DefaultFolder,"image.png",10,220,0,150)
            End If

Any advice?

Thanks James
Click to expand...
Hi,

This library doesn't support all colorspace in PNG image. (see post #10)

spsp

You must log in or register to reply here.

Similar Threads

Erel
  • Locked
  • Article
B4A Library [B4X] TextRecognition based on MLKit
Replies
8
Views
3K
Erel
Erel
Star-Dust
  • Article
Android Code Snippet [B4X] [B4Xpages] PDF to Image (B4XBitmap)
Replies
3
Views
3K
james_sgp
james_sgp
Star-Dust
  • Article
iOS Code Snippet [B4X] [B4Xpages] PDF to Image (B4XBitmap)
Replies
0
Views
1K
Star-Dust
Star-Dust
Star-Dust
  • Article
B4J Code Snippet [B4X] [B4Xpages] PDF to Image (B4XBitmap)
Replies
0
Views
3K
Star-Dust
Star-Dust
Erel
  • Article
B4A Library [B4X] WebP images
Replies
10
Views
6K
Erel
Erel
Top
