THIS version is no longer updated and supported. You can continue to use it if you want.
Or try the new version with rewritten methods and new features
IMPORTANT
- depends on SD CreativeBackGround (0.06+) library which must be downloaded
- MaterialIcon font for special characters must be loaded.
Use: SD_Keyboard1.SpecialKeyFont = xui.CreateMaterialIcons (16)
SD_CustomKeyboard
Author: Star-Dust
Version: 1.20
- CustomKey
- Fields:
- CodeCanc As Int
- CodeDel As Int
- CodeEnter As Int
- CodeEraseAll As Int
- CodeEsc As Int
- CodeNext As Int
- CodeShift As Int
- CodeTab As Int
- Functions:
- AddCustomKeyToLastRow (UpperText As String, UpperCode As Int, LowerText As String, LowerCode As Int, size As Int, BackgroundKeyColor As Int, TextKeyColor As Int) As String
Ck.AddCustomKeyToLastRow("SPACE",32,"SPACE.",32,3,xui.Color_Red,xui.Color_White) ' space large 3 key
Ck.AddCustomKeyToLastRow("Enter",ck.CodeEnter,"Enter",ck.CodeEnter,1, ,xui.Color_Green,xui.Color_White)) - AddDoubleCharToLastRow (Keys As String()) As String
Char or key: Shift, Canc, Del, Tab, Esc, Next,EraseAll
CustomKey.AddRowDoubleCharToLastRow(array as string("Aa","Bb","Cc","Next","Tab","Canc"))
CustomKey.AddRowDoubleCharToLastRow(Regex.Split(",","Aa,Bb,Cc,00,11,12,Enter")) - AddEmptyRow As String
- AddEmptySpaceToLastRow As String
- AddKeyToLastRow (UpperText As String, UpperCode As Int, LowerText As String, LowerCode As Int, size As Int) As String
Ck.AddKeytoLastRow("SPACE",32,"SPACE.",32,3) ' space large 3 key
Ck.AddKeytoLastRow("",0,"",0,1) ' Empty
Ck.AddKeytoLastRow("Enter",ck.CodeEnter,"Enter",ck.CodeEnter,1) - AddRow (Keys As List) As String
CustomKey.AddRow(ListOfSingleKey) - AddRowDoubleChar (Keys As String()) As String
Char or key: Shift, Canc, Del, Tab, Esc, Next,EraseAll
CustomKey.AddRowDoubleChar(array as string("Aa","Bb","Cc","Next","Tab","Canc"))
CustomKey.AddRowDoubleChar(Regex.Split(",","Aa,Bb,Cc,00,11,12,Enter")) - AddRowSimpleChar (Keys As String()) As String
Char or key: Shift, Canc, Del, Tab, Esc, Next, EraseAll
CustomKey.AddRowSimpleChar(array as string("A","B","C","Next","Tab","Canc"))
CustomKey.AddRowSimpleChar(Regex.Split(",","A,B,C,0,1,2,Enter")) - AddRowStringtoKey (Strings As String()) As String
Don't insert special char: Shift, Canc, Del, Tab, Esc, Next
CustomKey.AddRowStringtoKey(array as string("00","000","Hallo"))
CustomKey.AddRowStringtoKey(Regex.Split(",","00,000,Hallo")) - AddSimpleCharToLastRow (Keys As String()) As String
Char or key: Shift, Canc, Del, Tab, Esc, Next, EraseAll
CustomKey.AddSimpleCharToLastRow(array as string("A","B","C","Next","Tab","Canc"))
CustomKey.AddSimpleCharToLastRow(Regex.Split(",","A,B,C,0,1,2,Enter")) - cEmptyKey As Type_SingleKey
- cKey (UpperText As String, UpperCode As Int, LowerText As String, LowerCode As Int) As Type_SingleKey
- cKeyCustomized (UpperText As String, UpperCode As Int, LowerText As String, LowerCode As Int, size As Int, BackgroundKeyColor As Int, TextKeyColor As Int) As Type_SingleKey
- cKeySized (UpperText As String, UpperCode As Int, LowerText As String, LowerCode As Int, size As Int) As Type_SingleKey
- Class_Globals As String
- Initialize As String
Initializes the object. You can add parameters to this method if needed. - IsInitialized As Boolean
Verifica se l'oggetto sia stato inizializzato. - KeyBoard As List
- AddCustomKeyToLastRow (UpperText As String, UpperCode As Int, LowerText As String, LowerCode As Int, size As Int, BackgroundKeyColor As Int, TextKeyColor As Int) As String
- Fields:
- SD_Keyboard
- Fields:
- InsertAlwaysAtEnd As Boolean
- keyCanc As String
- keyDel As String
- keyEnter As String
- keyEraseAll As String
- keyNext As String
- keyShiftDown As String
- keyShiftLock As String
- keyShiftUp As String
- KeyStyle As Int [write only]

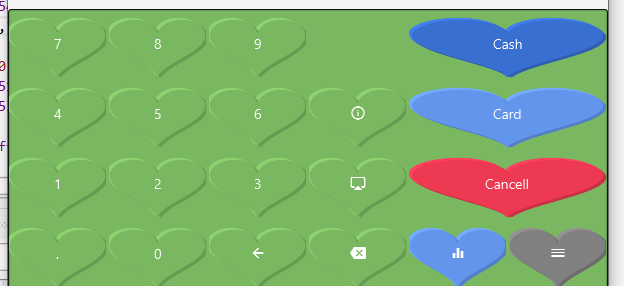

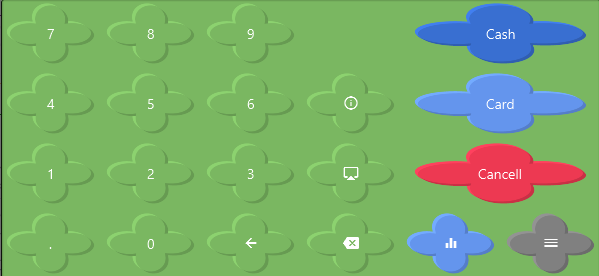

0-Standard; 1-Comics; 2-Heart; 3-Flower; 4-Octagon - keyTab As String
- mBase As B4XView
- Tag As Object
- TimeLapseMilliSec As Int
- Functions:
- Add (TextEditorView As B4XView, NativeEventName As String, CustomizeKeyboard As CustomKey, NextFocus As B4XView) As String
--------------------------------- aggiuntivi ------------------------------------ - Add2 (TextEditorView As B4XView, NativeEventName As String, CustomizeKeyboard As CustomKey, ShiftOn As Boolean, NextFocus As B4XView) As String
- Class_Globals As String
- ClearKeyboard As String
- DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
Base type must be Object - DrawKeyboard (V As B4XView) As String
- GetBase As B4XView
- Initialize (Callback As Object, EventName As String) As String
- Invalidate As String
- IsInitialized As Boolean
Verifica se l'oggetto sia stato inizializzato. - SetEvent (View As EditText, te As TypeED) As String
- SetupColor (BackgroundColorKey As Int, TextColorKey As Int, BackgroundColorBoard As Int)
- ShifOn (S As Boolean) As String
- ShiftStatus As Boolean
- Snapshot As B4XView
- Add (TextEditorView As B4XView, NativeEventName As String, CustomizeKeyboard As CustomKey, NextFocus As B4XView) As String
- Properties:
- DarkFactor As Float
To set the intensity of the dark part of the shadow - normally = 0.85 - Font
Set Key Font - Height As Int
- ImageBackground
- Left As Int
- LightFactor As Float
To set the intensity of the light part of the shadow - normally = 1.15 - ShowKeyboard As Boolean
- SpecialKeyFont
Set Font of SpecilKey - Standard: MaterialIcon - Top As Int
- Visible As Boolean
- Width As Int
- DarkFactor As Float
- Fields:
____________________________________________________________________________________________________________________________________________________
B4A, B4J, B4I
log release
- 1.03
Added AddRowDouble method: allows you to enter the value in uppercase and lowercase for each key, for keys with special characters you can establish the character that will show in normal and with the shift - 1.04
Added ClearKeyboard method to clear the keyboard with all the associations made with the views
Added AddRowStringtoKey method that allows you to associate a complex key with multi-character text. With this method it is not possible to set special keys such as Shift, Canc, Del, Tab, Esc, Next. - 1.05
Added Vibration option in design - 1.06
Added new Key: EraseAll. Delete all text in the field
Added: LightFactor and DarkFactor property - 1.07
Now the special keys are created with the MaterialIcons font.
It will be possible to change the font of the special characters and the text of the characters
We have updated all the examples with the addition of the MaterialIcons font and added all the missing iOs examples - 1.08
Customized keys with the possibility of establishing their size
Ability to customize the background with an image
Possibility to insert empty spaces between the keys
Possibility to set the StartSelect always at the end - 1.09
Added AddSimpleCharToLastRow and AddRowDoubleCharToLastRow methods.
Added constants with the numeric code of the special keys: CodeCanc,CodeTab,CodeEnter,CodeEsc,CodeDel,CodeNext,CodeShift,CodeEraseAll
Ability to add custom keys that raise an event other than TextChange
Added new event to TextField or EditText view to handle custom keys that can have a negative value return code. Example: TextField1_CustomKey (Code As Int) - 1.10; 1.11
Fix bugs - 1.12
Added AddCustomKeyToLastRow method in CustomKey class to customize single key colors
Added Add2 method in the SD_Keyboard class to set the SHIFT key when starting the keyboard - 1.13
Set Shift key by code
Fix bugs - 1.14
Added AddEmptyKeyToLastRow method in CustomKey class
Added cEmptyKey method in CustomKey class - 1.15
Added AddEmptyRow method in CustomKey class - 1.16
Fixed BUGS that gave false warning for missing MaterialIncons font - 1.17
Updated to work with version 0.6 of SD_CreativeBackGround - 1.18
Added the SetupColor method to change the color of the background, buttons and text from code - 1.19
Added KeyStyle property - 1.20
Fix bug
Important depends on SD CreativeBackGround library which must be downloaded
