B4A Library [B4X] [XUI] AS BottomColorChooser

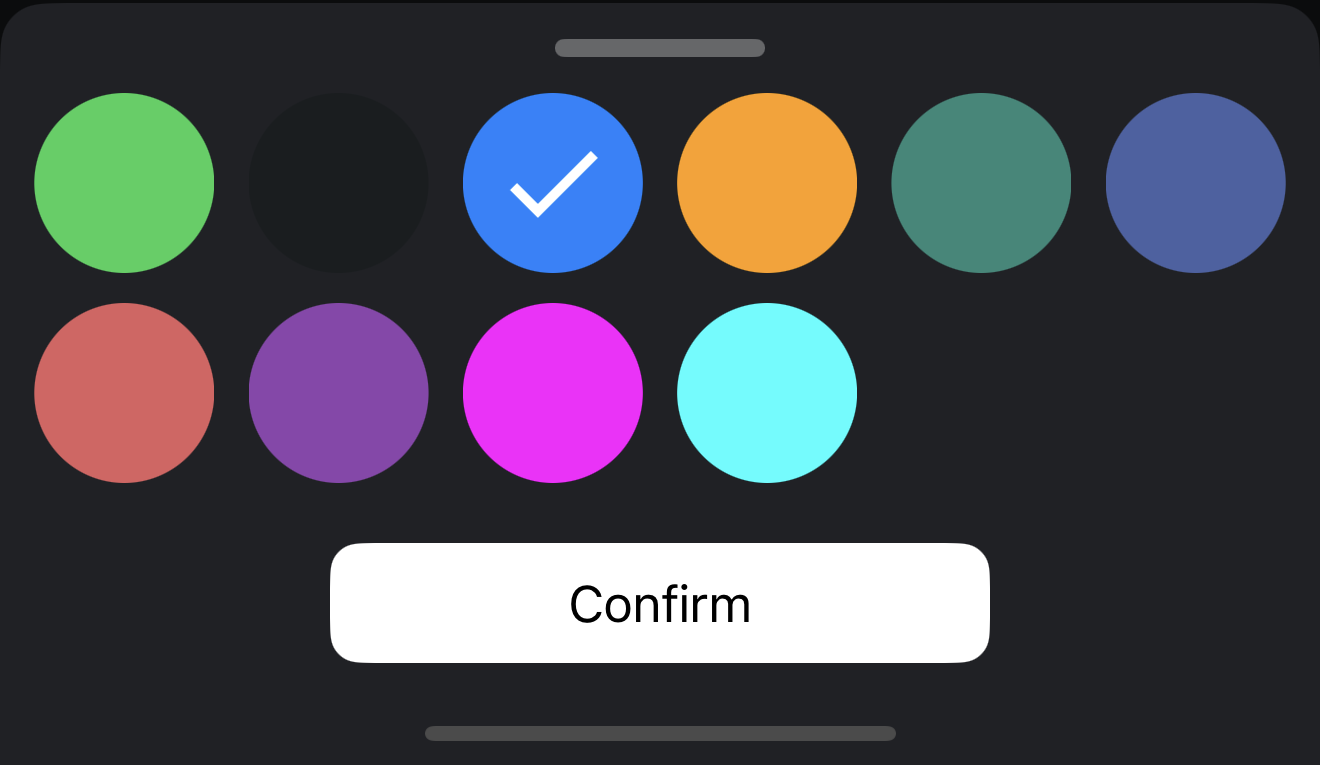

This view makes it quick and easy to let the user choose a color. Inspired by the colorchooser from the AS_Settings.

You need:

• AS_DraggableBottomCard

I spend a lot of time in creating views, like this and to create a high quality view cost a lot of time. If you want to support me and further views, then you can do it here by Paypal or with a coffee.

Private Sub OpenSheet(DarkMode As Boolean)

    BottomColorChooser.Initialize(Me,"BottomColorChooser",Root)

    Dim lst_Colors As List
    lst_Colors.Initialize
    lst_Colors.Add(xui.Color_ARGB(255, 49, 208, 89))
    lst_Colors.Add(xui.Color_ARGB(255, 25, 29, 31))
    lst_Colors.Add(xui.Color_ARGB(255, 9, 131, 254))
    lst_Colors.Add(xui.Color_ARGB(255, 255, 159, 10))

    lst_Colors.Add(xui.Color_ARGB(255, 45, 136, 121))
    lst_Colors.Add(BottomColorChooser.CreateColorItem(xui.Color_ARGB(255, 73, 98, 164),False))
    lst_Colors.Add(BottomColorChooser.CreateColorItem(xui.Color_ARGB(255, 221, 95, 96),False))
    lst_Colors.Add(BottomColorChooser.CreateColorItem(xui.Color_ARGB(255, 141, 68, 173),False))
    lst_Colors.Add(xui.Color_Magenta)
    lst_Colors.Add(xui.Color_Cyan)

    BottomColorChooser.SelectedColor = xui.Color_ARGB(255, 9, 131, 254)

    BottomColorChooser.Theme = IIf(DarkMode,BottomColorChooser.Theme_Dark,BottomColorChooser.Theme_Light)
    BottomColorChooser.ActionButtonVisible = True
    BottomColorChooser.SetItems(lst_Colors)
    BottomColorChooser.ShowPicker

    BottomColorChooser.ActionButton.Text = "Confirm"

End Sub

Events

Private Sub BottomColorChooser_ItemClicked(Item As AS_BottomColorChooser_Item)
    LogColor("ItemClicked",Item.Color)
End Sub

Private Sub BottomColorChooser_DisabledItemClicked(Item As AS_BottomColorChooser_Item)
    LogColor("DisabledItemClicked",Item.Color)
End Sub

Private Sub BottomColorChooser_ActionButtonClicked
    LogColor("ActionButtonClicked with color",BottomColorChooser.SelectedColor)
    BottomColorChooser.HidePicker
End Sub

Item Width and Height + Corner Radius
You can set the size of the items, if you want to keep a circle, you have to adjust the corner radius to the new size.

    BottomColorChooser.WidthHeight = 100dip
    BottomColorChooser.CornerRadius = BottomColorChooser.WidthHeight/2 'For a circle

If you don't want a circle, you can set the corner radius to a value of your choice.

AS_BottomColorChooser
Author: Alexander Stolte
Version: 1.00

Spoiler: Properties, Functions, Events, etc.

• AS_BottomColorChooser
  • Events:
    • ActionButtonClicked
    • Close
    • DisabledItemClicked (Item As AS_BottomColorChooser_Item)
    • ItemClicked (Item As AS_BottomColorChooser_Item)
  • Fields:
    • Tag As Object
  • Functions:
    • AddItem (Color As Int, Enabled As Boolean) As AS_BottomColorChooser_Item
    • Class_Globals As String
    • CreateColorItem (Color As Int, Enabled As Boolean) As AS_BottomColorChooser_Item
    • FontToBitmap (text As String, IsMaterialIcons As Boolean, FontSize As Float, color As Int) As B4XBitmap


      FontAwesome To Bitmap

      Unlike an older "TextToBitmap" sub that you can find in the forum, this code vertically centers the icon. It can also be used in B4J and B4i (only need to change the font line). Sub Activity_Create(FirstTime As Boolean) 'usage example Activity.AddMenuItem3("Android", "Test"...

      www.b4x.com
    • getActionButton As B4XView
    • getActionButtonVisible As Boolean
    • getColor As Int
    • getCornerRadius As Float
    • getDragIndicatorColor As Int
    • getSelectedColor As Int
    • getSheetWidth As Float
    • getSize As Int
      Get the number of items
    • getTheme_Dark As AS_BottomColorChooser_Theme
    • getTheme_Light As AS_BottomColorChooser_Theme
    • getWidthHeight As Float
    • HidePicker As String
    • Initialize (Callback As Object, EventName As String, Parent As B4XView) As String
      Initializes the object. You can add parameters to this method if needed.
    • IsInitialized As Boolean
      Tests whether the object has been initialized.
    • setActionButtonVisible (Visible As Boolean) As String
    • setColor (Color As Int) As String
    • setCornerRadius (CornerRadius As Float) As String
      The CornerRadius of a color item
    • setDragIndicatorColor (Color As Int) As String
    • SetItems (ColorList As List) As String
    • setSelectedColor (SelectedColor As Int) As String
      <code>BottomColorChooser.SelectedColor = xui.Color_ARGB(255, 9, 131, 254)</code>
    • setSheetWidth (SheetWidth As Float) As String
      Set the value to greater than 0 to set a custom width
      Set the value to 0 to use the full screen width
      Default: 0
    • setTheme (Theme As AS_BottomColorChooser_Theme) As String
    • setWidthHeight (WidthHeight As Float) As String
      Default: 60dip
      If you want a circle, then dont forget to set the CornerRadius property
    • ShowPicker
  • Properties:
    • ActionButton As B4XView [read only]
    • ActionButtonVisible As Boolean
    • Color As Int
    • CornerRadius As Float
      The CornerRadius of a color item
    • DragIndicatorColor As Int
    • SelectedColor As Int
      <code>BottomColorChooser.SelectedColor = xui.Color_ARGB(255, 9, 131, 254)</code>
    • SheetWidth As Float
      Set the value to greater than 0 to set a custom width
      Set the value to 0 to use the full screen width
      Default: 0
    • Size As Int [read only]
      Get the number of items
    • Theme
    • Theme_Dark As AS_BottomColorChooser_Theme [read only]
    • Theme_Light As AS_BottomColorChooser_Theme [read only]
    • WidthHeight As Float
      Default: 60dip
      If you want a circle, then dont forget to set the CornerRadius property
• AS_BottomColorChooser_Item
  • Fields:
    • Color As Int
    • Enabled As Boolean
    • IsInitialized As Boolean
      Tests whether the object has been initialized.
  • Functions:
    • Initialize
      Initializes the fields to their default value.
• AS_BottomColorChooser_Theme
  • Fields:
    • ActionButtonBackgroundColor As Int
    • ActionButtonTextColor As Int
    • BodyColor As Int
    • DragIndicatorColor As Int
    • IsInitialized As Boolean
      Tests whether the object has been initialized.
  • Functions:
    • Initialize
      Initializes the fields to their default value.

Changelog

• 1.00
  • Release

Have Fun
