? B4XTurtle - Examples for teachers and parents

Erel

B4X founder
Staff member
Licensed User
Longtime User
The sine function has a very interesting characteristic - its second derivative equals to -sine(x).
With this knowledge we can draw it with very simple code and without using any trigonometric function.
B4X:
Sub Turtle_Start
    Turtle.RabbitMode.SetPenColor(xui.Color_Blue).SetPenSize(1)
    Dim YZero As Float = 100
    Turtle.SetY(YZero).SetX(10).SetAngle(-45)
    For i = 1 To 600
        Dim value As Float = Turtle.GetY - YZero 'f(x)
        Turtle.TurnLeft(value * 0.01).MoveForward(1) 'TurnLeft = f''(x) * constant
    Next
End Sub

It will only work in rabbit mode as we need to get the current position before executing the next command.



Johan Schoeman

Expert
Licensed User
Longtime User

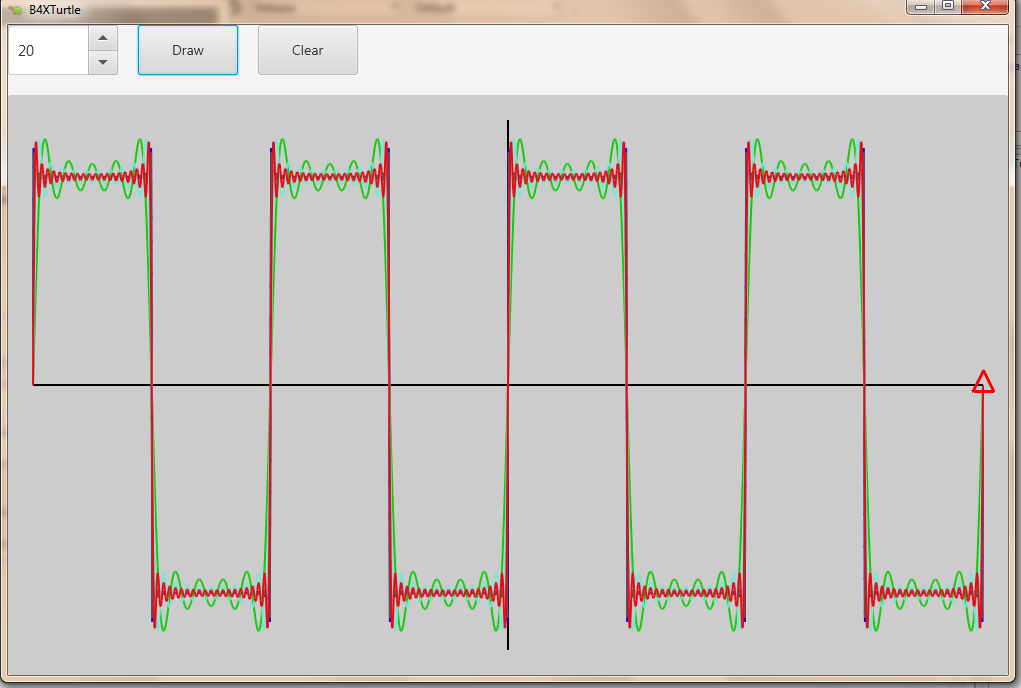

Using the Fourier Series.....
B4X:
sin((2n−1)*x)/(2n−1)
.... to generate a square wave.



B4X:
#Region Project Attributes
    #MainFormWidth: 1000
    #MainFormHeight: 650
#End Region

#Region Form Preperation
'Template version 1.00
Sub Process_Globals
    Private fx As JFX
    Private MainForm As Form
    Private xui As XUI 'ignore
    Private Turtle As B4XTurtle
    Dim zerox, zeroy, offset As Float

    Private Spinner1 As Spinner
End Sub

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1
    MainForm.RootPane.LoadLayout("Main")
    MainForm.Show
    Spinner1.SetNumericItems(1, 150, 1, 1)

End Sub

#End Region

'B4XTurtle examples: https://www.b4x.com/android/forum/threads/examples-for-teachers-and-parents.116979
Sub Turtle_Start

    turtle_prep

End Sub

Private Sub btnDraw_Click

    Dim val As Int = Spinner1.Value

    Dim x As Float = 0
    Dim y As Float = 0

    Turtle.SetPenColor(xui.Color_ARGB(255, Rnd(0, 255), Rnd(0, 255), Rnd(0, 255)))
    For i = -720 To 720
        x = offset + (2 * zerox / (2 * cPI)) * ((i+720)/1440) * 2 * cPI            'add the offset to the calculated x position
        y=0
        For n = 1 To val                                                        'Fourier series for a square wave
            y = y + (Sin((2*n-1) * i * 2 * cPI/360)/(2*n-1))
        Next

        y = offset + (y * -1 * zeroy) + zeroy

        If i = -720 Then
            Turtle.SetX(x)
            Turtle.SetY(y)
        End If
        Turtle.MoveTo(x,y)
    Next

End Sub

Private Sub btnClear_Click

    Turtle.SetPenColor(xui.Color_Black)
    Turtle.ClearScreen
    turtle_prep

End Sub

Sub turtle_prep

    offset = 25  'leave a gap of 25 at the top and bottom as well as on the left and right of the X and Y axis
    zerox = (Turtle.Width - 2 * offset ) / 2
    zeroy = (Turtle.Height - 2 * offset) / 2

    Turtle.SetSpeedFactor(10)
    Turtle.mBase.Color = xui.Color_LightGray                  'set the Turtle background color
    Turtle.PenUp
    Turtle.SetX(zerox + offset)
    Turtle.SetY(0 + offset)
    Turtle.PenDown
    Turtle.MoveTo(zerox + offset, 2 * zeroy + offset)          'Draw the y-axis
    Turtle.SetX(0 + offset)
    Turtle.SetY(zeroy + offset)
    Turtle.MoveTo(2 * zerox + offset , zeroy + offset)         'Draw the x-axis

End Sub


Attachments

  • TurtleSquareWave.zip
    4 KB · Views: 317
