B4J Tutorial [BANano] New tools for debugging remote devices in 9.05

We recently had a particular problem with a BANano Webapp running on a phone from a client which we could not reproduce on any of our devices. It was impossible for us to have this device in our office to debug it. If only we could see what is in his logs and his database locally on the phone...

In BANano v9.05 we have build a very simple to use solution: receiving remote logs and databases on demand.

De code in de WebApp is pretty simple:

' first in AppStart we tell the Transpiler we want this option
BANano.TranspilerOptions.UseRemoteConsole("TheNameOfTheDatabaseOnTheDevice")

' when the user encounters his problem, he just presses a button and his log for the last hour + his database is send to us in json format
BANano.GetRemoteLog
' ...
' the previous call raises this event when it has build the json file from his logs and database
Sub BANano_RemoteLog(json As String)
    BANano.Await(SendWaitRemoteLog(json))
End Sub

public Sub SendWaitRemoteLog(json As String)
    Dim fetch As BANanoFetch
    Dim fetchOptions As BANanoFetchOptions
    Dim fetchResponse As BANanoFetchResponse

    Dim data As Map
    Dim Error As String

    fetchOptions.Initialize
    fetchOptions.Method = "POST"
    fetchOptions.Body = json
    fetchOptions.Headers = CreateMap("Content-type": "application/json; charset=UTF-8", "api_key": APIKey)

    fetch.Initialize(APIUrl & "/v1/registration/uploadlog", fetchOptions)
    fetch.Then(fetchResponse)
        fetch.Return(fetchResponse.Json)
    fetch.ThenWait(data)
        If data.get("status") = "OK" Then
            SKTools.ShowToast("Report send...", "info", 3000, True)
        End If
    fetch.ElseWait(Error)
        Log(Error)
        SKTools.ShowToast(Error, "info", 3000, True)
    fetch.End
End Sub

the json has two properties:
log = {}
db = {}

our jServer REST API catches the json and saves it in our database:

public Sub UploadLog(req As ServletRequest, resp As ServletResponse) As String
    Dim OTID As Int = req.GetSession.GetAttribute2("OTID", 0)
    Dim Response As String
    Dim bodyCode As String
    Dim body As TextReader

    resp.ContentType = "application/json"
    Try
        body.Initialize(req.InputStream)
        bodyCode = body.ReadAll
    Catch
        Response = $"{"status": "NOK", "message": "JSON not valid"}"$
        Return Response
    End Try

    If bodyCode.StartsWith("{") Then
        Dim jsonP As JSONParser
        Try
            jsonP.Initialize(bodyCode)
            DBMApp.InsertLog(400,OTID, 0, 0, 0, "PWA REMOTE LOG", "", req.FullRequestURI, 0, bodyCode)
            Response = $"{"status": "OK"}"$
        Catch
            Response = $"{"status": "NOK", "message": "JSON not valid"}"$
        End Try
    Else
        Response = $"{"status": "NOK"}"$
    End If

    Return Response
End Sub

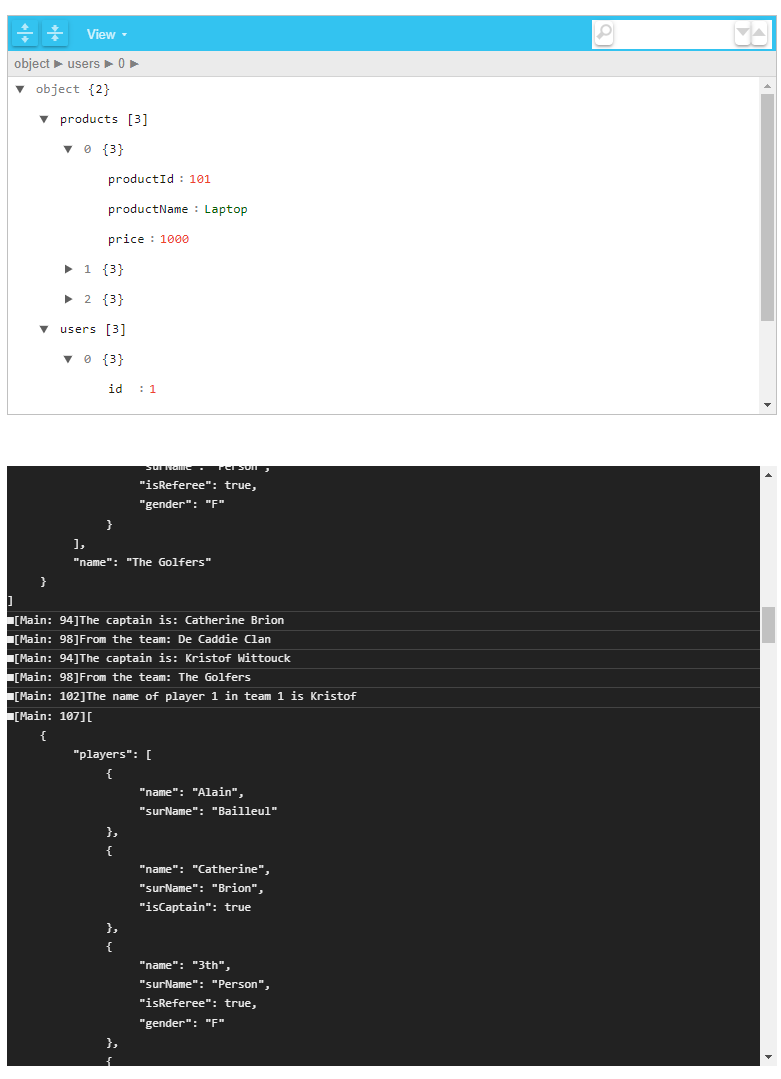

We can then later analyze this report and for this we have created two new objects in BANanoSkeleton to read it easier: SKJsonEditor and SKRemoteLogView which looks something like this:

The code behind this is also quite simple:

Sub BANano_Ready()
    Dim layout As SKLayout
    layout = layout.Initialize(Me, "body")

    ' for this demo I just load such a json from a file on disk
    Dim jsonMap As Map = BANano.Await(BANano.GetFileAsJSON("../test.json", Null))

    Dim emptyM As Map
    emptyM.Initialize

    Dim DBMap As Map = jsonMap.GetDefault("db", emptyM)
    Dim logMap As Map = jsonMap.GetDefault("log", emptyM)

    If DBMap.Size > 0 Then
        layout.AddFlexColumns(1,12,12,12, "center")
        layout.LastRow.Column(1).MarginTop = "20px"

        Dim jsonEditor As SKJsonEditor = layout.LastRow.Column(1).Add.JsonEditor("jsoneditor", "jsoneditor", "400px", "view")
        jsonEditor.MarginLeft = "10px"
        jsonEditor.Marginright = "10px"
        jsonEditor.LoadJson(DBMap)
    End If

    If logMap.Size > 0 Then
        layout.AddFlexColumns(1,12,12,12, "center")
        layout.LastRow.Column(1).MarginTop = "20px"

        Dim remotelog As SKRemoteLogViewer = layout.LastRow.Column(1).Add.RemoteLogViewer("remotelog", "remotelog", "600px")
        remotelog.MarginLeft = "10px"
        remotelog.Marginright = "10px"
        remotelog.LoadJson(logMap)
    End If
End Sub

BANano 9.05 will be released in week or two.

Alwaysbusy
