B4J Tutorial [BANanoVuetifyAD3] Create Professional Looking Vuetify WebSites & WebApps with BANano

Ola

**************************************************
Feb 2024: BVAD3 RoadMap

*************************************************

Download Additional Libraries
Download BANanoVuetifyAD3Core Library OR Download BANanoVuetifyAD3 Library
Download Kitchen Sink WebApp (Optional - useful for Learning how this works)
Download BVAD3Builder (Optional - useful to trim your final package)

Full Install Instructions on Github

What's New

To use this free and open source B4J library, you need BANano.

IMPORTANT: BANano License

Join Us

Telegram: https://t.me/bananovuematerial
Twitter: https://twitter.com/mashymbanga
Discord: https://discord.gg/ys8stGgWCU
YouTube: Mashy Teaches Video Series
B4x Blog: Mashy Teaches BVAD3 - New Series
Full Demo: New Awesome Kitchen Sink

Notable Forum Members Contributions

@Erel : Obviously
@alwaysbusy : valuable advice etc, BANano (incl. adjustments that support BVAD3)
@LJG : BANanoServer jRDC2, best overall bug finder
@aeric: Recommendations & Enhancements etc
@Star-Dust : Small solutions to development hitches etc
More...


What's Next?

You will find the most up to date content from this post onwards

Testing DataBase Connectivity (PHP)

The kitchen sink now has connectity testing for the various backends. To ensure that your app will work, you can check if your back-end is accessible.

MySQL
SQLite
MSSQL

WebServers You Can Use

Laragon - publish to c:\laragon\www



USBWebServer
IIS - Publish to C:\inetpub\wwwroot
XAMPP - change your publish folder to use // instead of \

You can find more information here related to IDE Setup

Enjoy

PS: Log Warnings & Compilation Errors

1. Please check the pre-run logs. In most cases modules with warnings will have an underline. Warning, 9, 10, 11, 12 are normal, don't be scared.



2. manifext.txt file not found - Download the library source code and RUN to recompile on your PC. "Do not Compile to Library"
3. Do a HARD REFRESH of your browser.[/B]

Last edited:

roberto64

Active Member
Licensed User
Longtime User

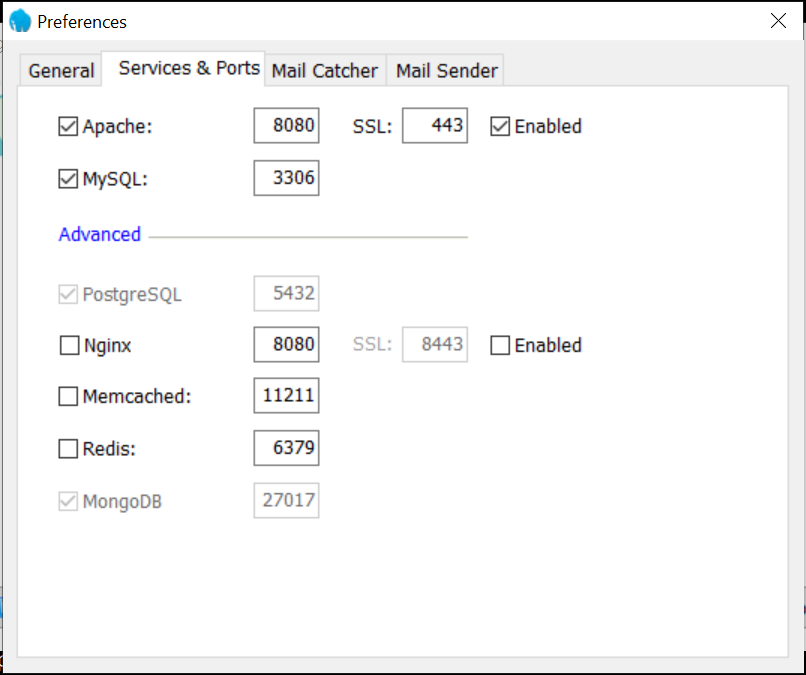

Hi, with some configuration on lagon I made the database of your example part60 work, but I don't understand how you do to insert in the db "the name and the age" where do you get the data to be stored?
regards


Mashiane

Expert
Licensed User
Longtime User
but I don't understand how you do to insert in the db "the name and the age" where do you get the data to be stored?
In relation to the data, there is a BANanoFakeIT class that I found and extended and included it in BVAD3. For example, we are creating fake data on the btnAdd_click event.

B4X:
'event to add the record
Sub btnAdd_click(e As BANanoEvent)
    Dim dbMySQL As BANanoMySQLE
    dbMySQL.Initialize("test", "users", "id", "id")
    'add field types
    dbMySQL.SchemaAddInt(Array("id", "age"))
    dbMySQL.SchemaAddText(Array("name"))
    'create a new record, do not specify auto increment
    Dim faker As BANanoFakeIT
    faker.Initialize
    'create a fake record
    Dim urec As Map = faker.GetRecord1(Array("name", "age"))
    'insert current record
    dbMySQL.Insert1(urec)
    dbMySQL.JSON = banano.CallInlinePHPWait(dbMySQL.MethodName, dbMySQL.Build)
    dbMySQL.FromJSON
    Select Case dbMySQL.OK
        Case False
            Dim strError As String = dbMySQL.Error
            vuetify.ShowSnackBarError("An error took place whilst running the command. " & strError)
        Case Else
            vuetify.ShowSnackBarSuccess("User has been added successfully!")
    End Select
End Sub


Mashiane

Expert
Licensed User
Longtime User
Please Note: The latest working example of BVAD3 is available on GitHub. This contains the latest updates on the source code and improvements and bug fixes. This is based on Tutorial 60.


Enjoy!

PS: Should you find a bug or something is not working as expected, please post it here and if you solved something, please share so that anyone who experiences the same issue is able to find a reference to solve it.

Thank you so much!


roberto64

Active Member
Licensed User
Longtime User

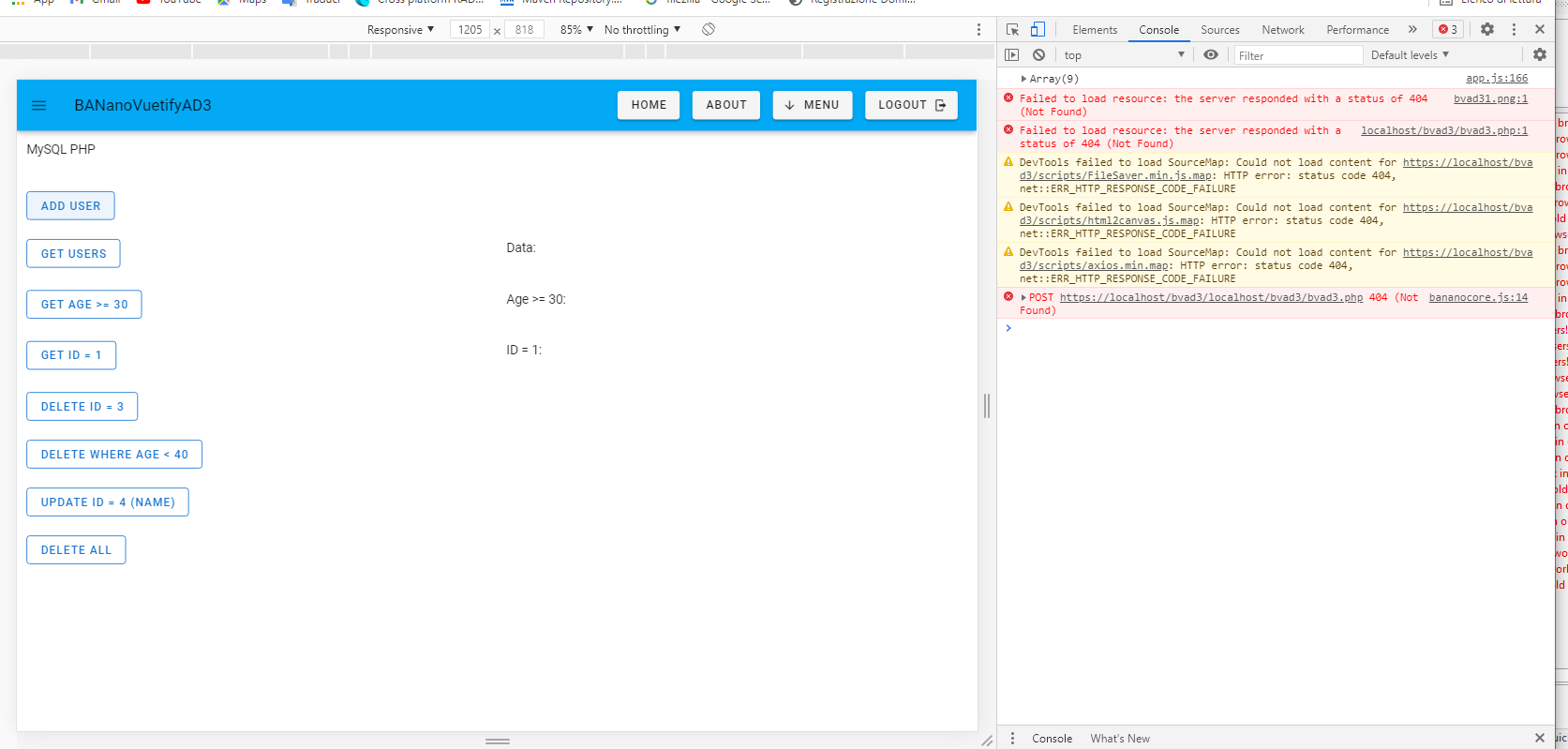

Mashiane, I notice that starting your example "https://mashiane.github.io/BANanoVuetifyAD3/#/phpmysql" gives the same error it gave to me before configuring Largon. the error is "An error took place whilst running the command"

/BANanoVuetifyAD3/#/phpmysql:1 Access to XMLHttpRequest at 'https://localhost/bvad3/bvad3.php' from origin 'https://mashiane.github.io' has been blocked by CORS policy: No 'Access-Control-Allow-Origin' header is present on the requested resource.
app.js:7508 POST https://localhost/bvad3/bvad3.php net::ERR_FAILED
(anonymous) @ app.js:7508
callAjaxWait @ app.js:7508
btnadd_click @ app.js:7547
_cb @ app.js:7527
He @ app.js:6
n @ app.js:6
He @ app.js:6
e.$emit @ app.js:6
click @ app.js:12
He @ app.js:6
n @ app.js:6
Yr.o._wrapper @ app.js:6
/BANanoVuetifyAD3/#/phpmysql:1 Access to XMLHttpRequest at 'https://localhost/bvad3/bvad3.php' from origin 'https://mashiane.github.io' has been blocked by CORS policy: No 'Access-Control-Allow-Origin' header is present on the requested resource.
app.js:7508 POST https://localhost/bvad3/bvad3.php net::ERR_FAILED
(anonymous) @ app.js:7508
callAjaxWait @ app.js:7508
btnadd_click @ app.js:7547
_cb @ app.js:7527
He @ app.js:6
n @ app.js:6
He @ app.js:6
e.$emit @ app.js:6
click @ app.js:12
He @ app.js:6
n @ app.js:6
Yr.o._wrapper @ app.js:6
/BANanoVuetifyAD3/#/phpmysql:1 Access to XMLHttpRequest at 'https://localhost/bvad3/bvad3.php' from origin 'https://mashiane.github.io' has been blocked by CORS policy: No 'Access-Control-Allow-Origin' header is present on the requested resource.
app.js:7508 POST https://localhost/bvad3/bvad3.php net::ERR_FAILED
regards


roberto64

Active Member
Licensed User
Longtime User

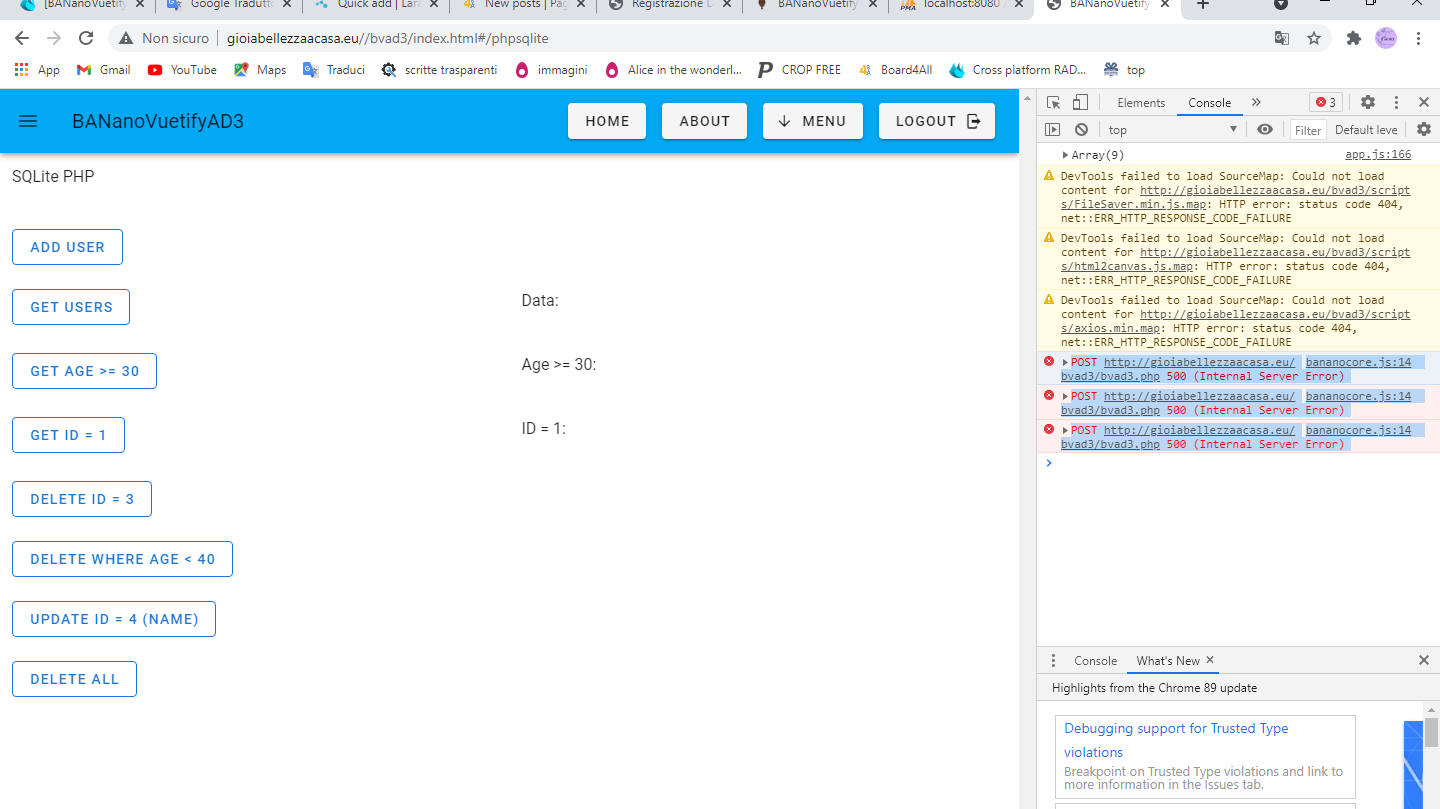

Mashiane, I did a test on my host by adding a mysql db, and I noticed that on the pc with the google browser it works ok "save the data etc .. both with mysql and with sqlite, instead with the mobile it gives the erore of "An error took place whilst running the command" I wonder why everything is ok with a pc and no cell phone?
I think then that I leave the PHP file "mysqlconfig.php" so configured, the data are stored in your local mysql.
regards


Mashiane

Expert
Licensed User
Longtime User
The proplem is what you have written on the ServerIP string.

I see, it seems your server is not able to find the file, perhaps try and use .gio... as ServerIP (include the "www"), you are using port 80 isnt it? If so, then we dont need to include a port number.

I see there are double // on the address bar, that's incorrect, you are surely making a mistake somewhere, dont include the last / on the ServerIP string.

Try also type the full path on the address bar for the php file and see whether it does something, use your full URL to see if it returns {} or something.

You are almost there.


roberto64

Active Member
Licensed User
Longtime User
nothing, however I thought that in my linux server / host the sqlite extension must be installed, as I did with laragon by installing the sqlite extension.
regards
