Android Question Debug mode displays correct result but release mode doesn't

[sconlon]

I am developing an app to keep track of wines in my wine fridge and have noticed an anomaly when running it in Release mode as opposed to Debug mode. I have a graphical representation of my fridge which has 12 shelves and 8 bottle positions per shelf - 4 bottles with their bottoms showing and 4 with their tops showing. I am adding the views within a For loop as below and want to have the images of tops of the bottles smaller than the bottoms.

    curtop = 0
    Dim front As Boolean = True
    Dim mult, offset As Double
    viewno = numshelves
    For i = 1 To numshelves
        curleft = 10dip
        For j = 1 To numpositions
            Dim bottle As Button
            bottle.Initialize("bottle")
            bottle.Background = empty
            bottle.Tag = i & ":0:" & j & ":" & viewno & ":empty"
            If front Then
                mult = 1 : offset = 0
                front = False
            Else
                mult = .6 : offset = bottlewidth*.2
                front = True
            End If
            pnlFridge.AddView(bottle, curleft, curtop + offset, bottlewidth*mult, bottlewidth*mult)
            curleft = curleft + bottlewidth + bottlegap
            viewno = viewno + 1
        Next
        curleft = 10dip
        curtop = curtop + shelfheight + shelfgap
    Next

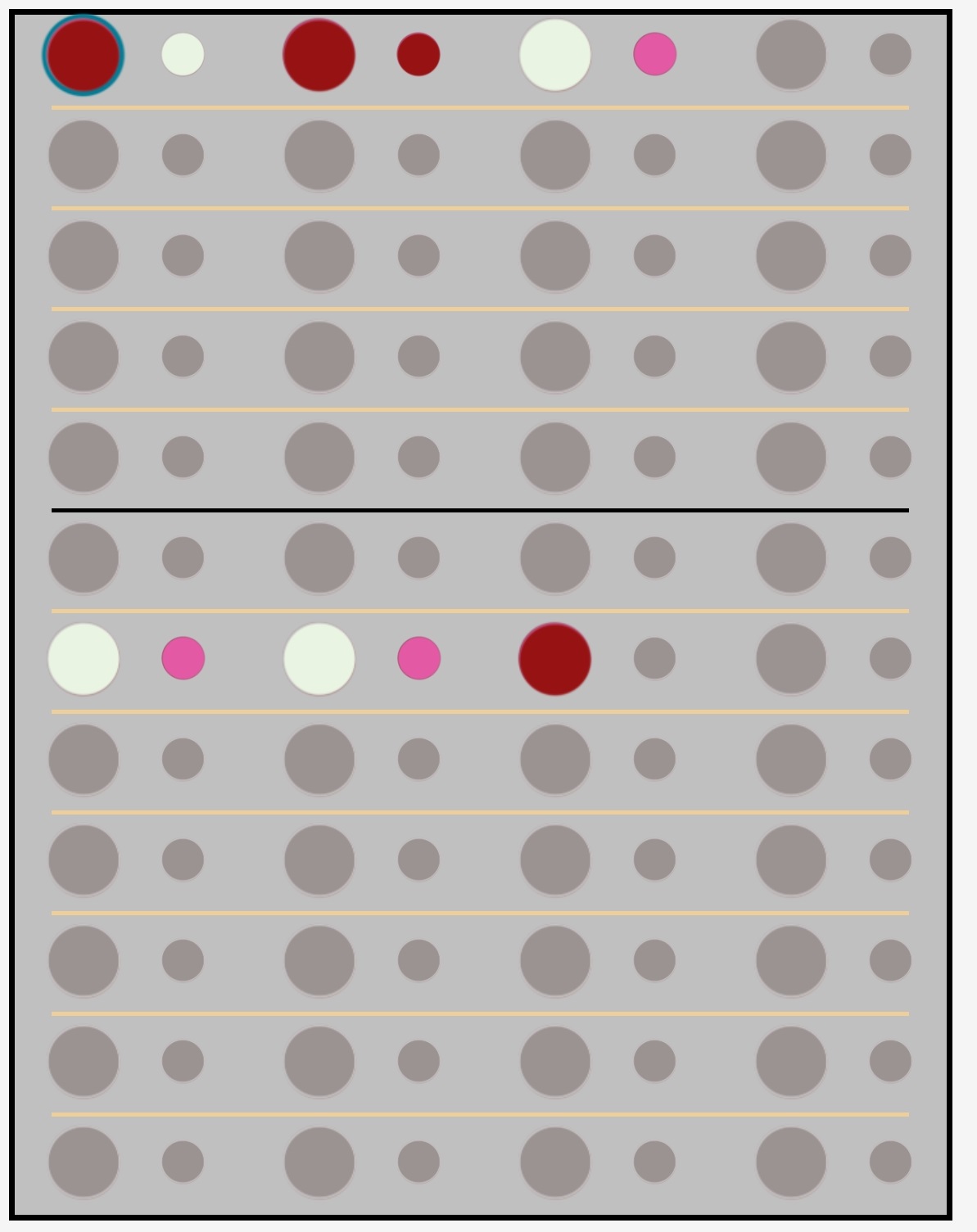

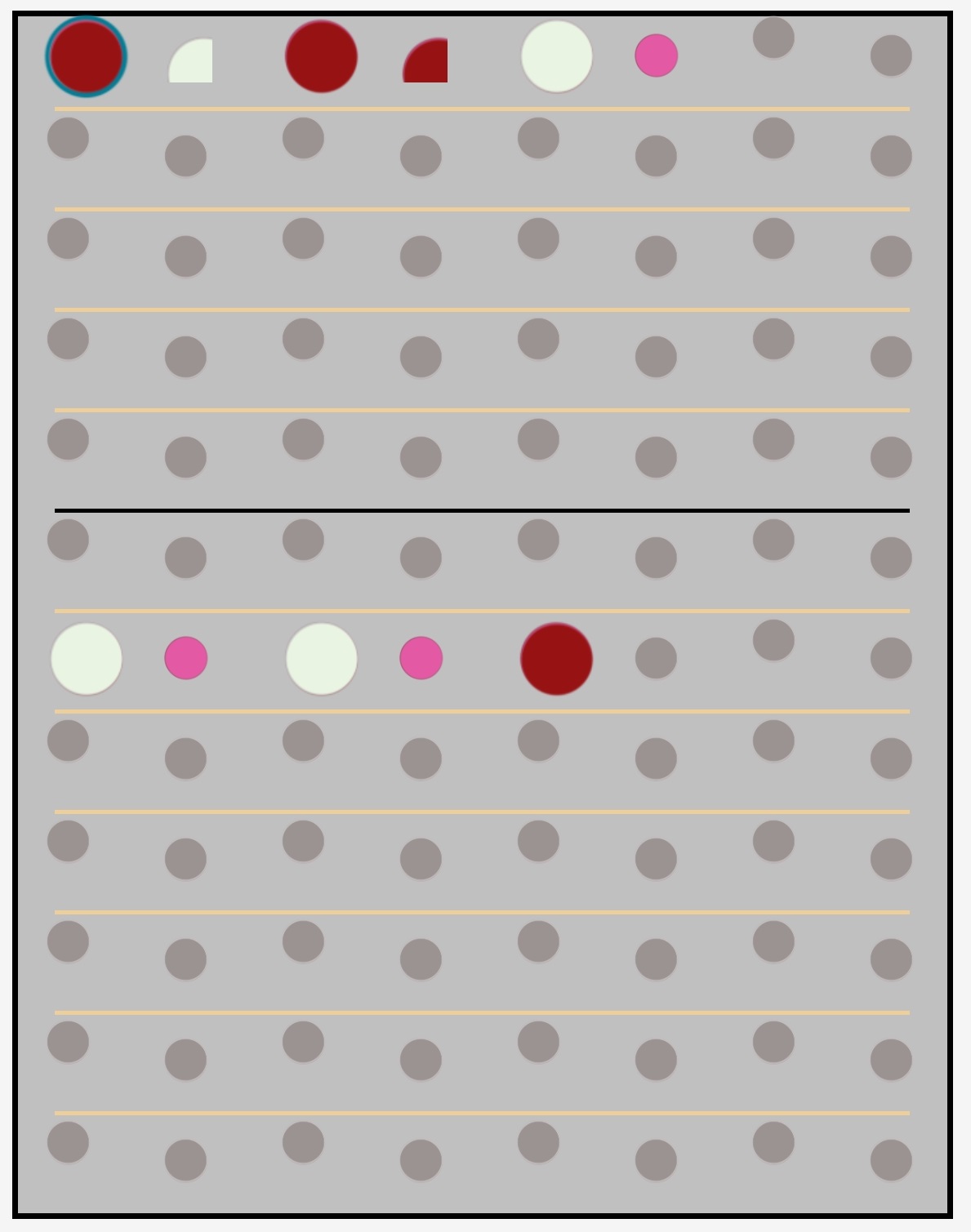

When I run this in debug I get the image in s1.jpg which is correct but when I run in release mode I get a different result as in s2.jpg. Any ideas why this is happening?



[LucaMs]

This is for sure a question for @klaus (and his friend @Erel) and not just because they are great programmers .



[Star-Dust]

I am developing an app to keep track of wines in my wine fridge and have noticed an anomaly when running it in Release mode as opposed to Debug mode. I have a graphical representation of my fridge which has 12 shelves and 8 bottle positions per shelf - 4 bottles with their bottoms showing and 4 with their tops showing. I am adding the views within a For loop as below and want to have the images of tops of the bottles smaller than the bottoms.

    curtop = 0
    Dim front As Boolean = True
    Dim mult, offset As Double
    viewno = numshelves
    For i = 1 To numshelves
        curleft = 10dip
        For j = 1 To numpositions
            Dim bottle As Button
            bottle.Initialize("bottle")
            bottle.Background = empty
            bottle.Tag = i & ":0:" & j & ":" & viewno & ":empty"
            If front Then
                mult = 1 : offset = 0
                front = False
            Else
                mult = .6 : offset = bottlewidth*.2
                front = True
            End If
            pnlFridge.AddView(bottle, curleft, curtop + offset, bottlewidth*mult, bottlewidth*mult)
            curleft = curleft + bottlewidth + bottlegap
            viewno = viewno + 1
        Next
        curleft = 10dip
        curtop = curtop + shelfheight + shelfgap
    Next

When I run this in debug I get the image in s1.jpg which is correct but when I run in release mode I get a different result as in s2.jpg. Any ideas why this is happening?

can I get a bottle of wine?


Try change this:

bottle.Background = image

With this:

bottle.SetBackgroundImage(image)



[LucaMs]

I would create the fridge using the Designer. Since you put the views that represent the bottles on a panel, then in your code you can use two cycles and the method pnlFridge.GetAllViewRecursive to fill a two dimensional array with those views.

You could also create a custom type to store data of a single bottle, like a constant: PLACE_EMPTY, PLACE_TOP, PLACE_BOTTOM, x and y (although it would be better to separate logical data and GUI data), and other (year, for example). If you store a custom type with x and y, you don't need a two dimensional array, you can use a mono dimensional or, better, a list or a map.

I would also write a routine to change at least the state of a "place for a bottle", to set if to one of the constants I wrote above; in this routine I would change the image (without bottle, bottle on front or bottom).

You could also use a StateListDrawable to represent "a bottle", a state for front, one for bottom, one for "empty" (empty place, not an empty bottle ).



[klaus]

Unfortunately, you don't give enough infromation.
In which routine is the code snippet from your first post?
Where and how is the empty background defined and where are the other backgrounds defined and set?
Where and how do you set a bottle?
In your code above all positions are empty, but in the images not !?
There are two problems:

The first, when you set all empty positions in the wine fridge and the second, when you fill it with bootles.
I suspect the following: you probably set the backgrounds with the same variables without initializing a new instance for each view.
You should post a small project showing the problem so we can see what exactly you have done and how to give to a concrete advice.
I would not use buttons, I would do all this with a canvas and a Touch event.



[Star-Dust]

I would not use buttons, I would do all this with a canvas and a Touch event.

I would not ImageView and a Touch event



[LucaMs]

tri-state button (StateListDrawable)



[LucaMs]

Do you think that a view is very "heavy"!



[LucaMs]

TO BE IMPROVED A LOT !!!



[sconlon]

Thanks for all the answers guys. I'm sure there is enough info within to help resolve the problem or try a different and better approach.
