B4J Tutorial DotMatrix

It is based on this posting. Copy the attached Jar to your B4J library folder.
Sample project attached

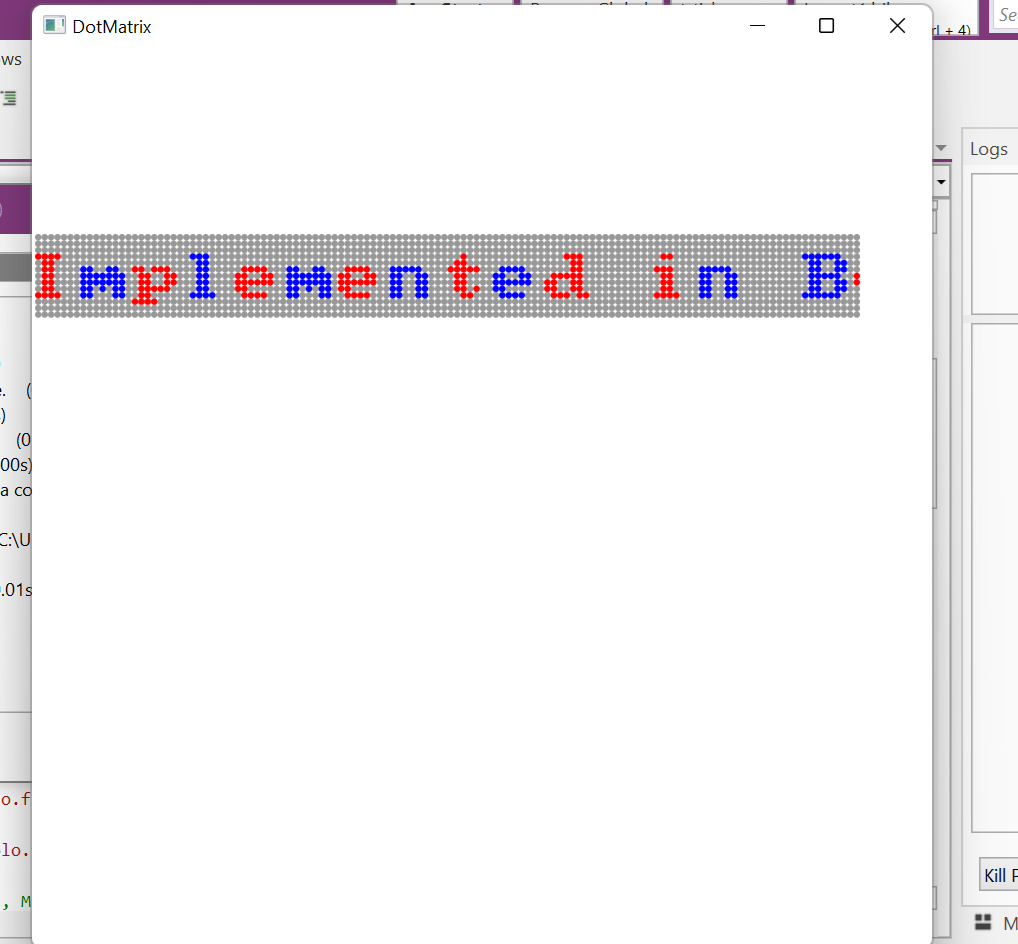

See how the chars scroll across the DotMatrix - the code (via a timer) will repeat the scroll of the text
Seems to think that you need to use at least Java 17. I have done this using Java 19.

#Region Project Attributes
    #MainFormWidth: 600
    #MainFormHeight: 600
#End Region

#AdditionalJar: dotmatrix-17.0.0

Sub Process_Globals
    Private fx As JFX
    Private MainForm As Form
    Private xui As XUI
    Dim matrix As JavaObject
    Dim width, height As Double
    Dim cols, row As Int
    Dim dm As JavaObject
    Dim dmb As JavaObject
    Dim mf As JavaObject
    Dim x, offset As Int
    Dim txt As String

    Dim textLengthInPixel As Int
    Dim textlength As Int

    Dim t As Timer
End Sub

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1
    MainForm.RootPane.LoadLayout("Layout1")
    MainForm.Show

    t.Initialize("t", 50)

    txt = "Hello Johan, Belinda, Chris, Stertjie, Peanut, Nunu (Buffel), and Kiki (uiltjie ogies)"
    textLengthInPixel = txt.Length * 8
    matrix.InitializeNewInstance("eu.hansolo.fx.dotmatrix.DotMatrix", Null)

    width = 500
    height = 50

    cols = 128
    row = 13

    'ROUND, SQUARE, ROUNDED_RECT
    dm.InitializeStatic("eu.hansolo.fx.dotmatrix.DotMatrix.DotShape")

    dmb.InitializeStatic("eu.hansolo.fx.dotmatrix.DotMatrixBuilder")

    'MatrixFont5x7, MatrixFont8x11, MatrixFont8x8
    mf.InitializeStatic("eu.hansolo.fx.dotmatrix.MatrixFont8x8")

    matrix = dmb.RunMethodJO("create", Null) _
                .RunMethodJO("prefSize",  Array(width, height)) _
                .RunMethodJo("colsAndRows", Array(cols, row)) _
                .RunMethodJO("activeColor", Array(fx.Colors.RGB(255, 55, 0))) _
                .RunMethodJO("dotShape", Array(dm.GetField("ROUND"))) _
                .RunMethodJO("matrixFont", Array(mf.GetField("INSTANCE"))) _
                .RunMethodJO("useSpacer", Array(False)) _
                .RunMethod("build", Null)

    x = matrix.RunMethod("getCols", Null) + 7

    MainForm.RootPane.AddNode(matrix, 2dip, 2dip, 550dip, 300dip)



    t.Enabled = True

End Sub

Sub t_tick
    If x < -1 * textLengthInPixel Then
        x = matrix.RunMethod("getCols", Null) + 7
    End If
    offset = 3             'how far from the top of the matrix do we start
    textlength = txt.Length
    textLengthInPixel = textlength * 8

    For i = 0 To txt.Length - 1
        matrix.RunMethod("setCharAt", Array(txt.CharAt(i), x + i * 8, offset, IIf(i Mod 2 = 0, matrix.runMethod("convertToInt", Array(fx.Colors.Red)), matrix.runMethod("convertToInt", Array(fx.Colors.Blue)))))
    Next
    x = x - 1

End Sub

I am leaving any further changes to this sample up to you. Study the attached JAR and classes within by making use of a suitable JAR viewer such as "jd-gui"



[Magma]

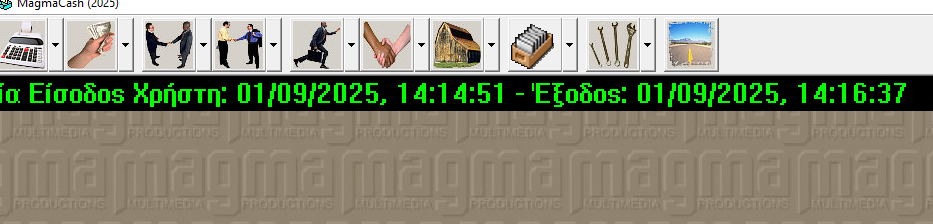

Hey, you ve remembered me old days of my invoice app (vb6 created and using it still here - time to replace it with b4x apps)

How can i change back dot-matrix colors ?

and how i can use unicode fonts to it ?
(not showing greek)

Thanks in advance!

edit:
ps: Beautiful Work as always @Johan Schoeman



[omo]

Is it possible to change this your java object to b4a compatible? I tried using XUI equivalent instead to replace all FX related like in color: fx.Colors.RGB(255, 55, 0) until there is no more error indicator in the code. The jar was declared correctly in the main and copied into additional folder. After my correction, the code compiled successfully, but didn't run with no error. When I got tired, I packed the code somewhere to do other things.

Can it be adapted to b4a or is there anybody that has the one that is b4a or b4x compatible?



[Johan Schoeman]

Is it possible to change this your java object to b4a compatible? I tried using XUI equivalent instead to replace all FX related like in color: fx.Colors.RGB(255, 55, 0) until there is no more error indicator in the code. The jar was declared correctly in the main and copied into additional folder. After my correction, the code compiled successfully, but didn't run with no error. When I got tired, I packed the code somewhere to do other things.

Can it be adapted to b4a or is there anybody that has the one that is b4a or b4x compatible?

It will not work in B4A it depends on JavaFX classes.



[omo]

It will not work in B4A it depends on JavaFX classes.

Ok, thank you; Noted! I sensed so initially, but one bypass post I saw using XUI instead made me to try that trick, and compiled and ran on phone further confused me. I was expecting it would give error relating to b4j core. Now, I know, thank you. I will look for planB



[Johan Schoeman]

@Alexander Stolte is good at developing B4X libraries. Maybe he can create something similar for B4A/B4J combined.



[LucaMs]

(ShareX)


(I wanted to write: "Johan Schoeman, you should attach animated gifs to your threads about your great libraries like this one" but the gif became almost 3 MB)
