B4A Library Grid/Table and ListView Library

aviario · Mar 13, 2013

stefanobusetto said:
set the width to 0

Thanks again.

We want develop an application with your grid and we wonder when will the modification or gravity of rows.

Thanks

Discorez · Mar 13, 2013

stefanobusetto said:
@discorez
i've compiled with no problems the sample project
with xnObject 1.67
i use jdk1.6.0_30

Mmmm... It isn't compiled...
The compiler shows a similar error :

Parsing code. 0.00
Compiling code. 0.01
Compiling layouts code. 0.00
Generating R file. Error
AndroidManifest.xml:22: error: Error: String types not allowed (at 'configChanges' with value 'keyboard|keyboardHidden|orientation|screenLayout|uiMode|screenSize|smallestScreenSize').

My version jdk 1.7.0_03 - may be this trouble is here?

if you want i can send the sample project again
please let me know

Please, if it isn't difficult to you

stefanobusetto · Mar 13, 2013

I'll try to compile with the same jdk you are using.

stefanobusetto · Mar 16, 2013

@discorez

hi
i've compiled the xnGridSample with jdk1.7.0_17
without any problem.
i've also tryed to recompile the xnObjects library
with jdk1.7.0_17.
everything ok.

please try to download and compile the xnGridSample project

stefanobusetto · Mar 17, 2013

Posted new version and updated sample code

Added ScrollBy ( x As int , y As int )
to scroll the grid of the specified number of horz and vert points

Added ScrollTo ( x As int , y As int )
to scroll the grid to the specified position in points

miquelr · Mar 18, 2013

click on header

I want to implement a sort algorithm but I can not find the xnGrid events documentation nowhere. Exist an even for detect a click on the header or the horizontal displacement when scroll?

stefanobusetto · Mar 19, 2013

@miquelr
i've added support for header click
please download version 1.69

B4X:

Sub gg_header_click
    Msgbox ( "column = " & gg.HeaderClicked , "clicked on header" )
End Sub

@aviario
working on gravity

bparent · Mar 20, 2013

Convert this without xnTable as from Ver 1.6

kaplanerkan said:

Hello stefanobusetto,

i thank you for your effort.

Can i add a Row at Runtime?
Please look my code below:

B4X:

Sub Globals
   'These global variables will be redeclared each time the activity is created.
   'These variables can only be accessed from this module.
Dim gg As xnGrid
Dim tt As xnTable
End Sub

Sub Activity_Create(FirstTime As Boolean)
      '
      tt.Initialize ( Array As String ( "Anz" , "PLU" , "Name" , "Preis" ) )
      For r = 0 To 1
      tt.Append ( Array As String ( "a" & r , "b" & r , "c" & r , "12.50"  ) )
      Next

''Here I can add a new row without any problems
      tt.Insert ( Array As String ( "3" , "125"  , "Cola mit Eis 0,3" , "2.50"  ),0)
      tt.Insert ( Array As String ( "2" , "122"  , "Cola mit Fanta 0,3" , "2.50"  ),0)

      '
      gg.Initialize("gg")
'      gg.HeaderHeight=50
'      gg.RowEvenColor = Colors.Green
'      gg.RowOddColor = Colors.Red
'      gg.Color = colors.DarkGray
'      gg.SelectedEvenColor = Colors.Yellow




      Dim c0 As xnGridCol
      Dim c1 As xnGridCol
      Dim c2 As xnGridCol
      Dim c3 As xnGridCol

      gg.RowHeight = 50dip
      c0.Initialize ( "Anz." , "Anz" , 50dip )
      c0.Gravity=Gravity.LEFT
      gg.Columns.Add ( c0 )

      c1.Initialize ( "PLU." , "PLU" , 50dip )
      gg.Columns.Add ( c1 )

      c2.Initialize ( "Speisename" , "Name" , 150dip )
      gg.Columns.Add ( c2 )

      c3.Initialize ( "€" , "Preis", 70dip)
      c3.Gravity=Gravity.RIGHT
      gg.Columns.Add ( c3 )


      Activity.AddView ( gg , 0dip , 130dip , 400dip , 300dip )
      gg.GridCreate ( tt )

      Activity.LoadLayout("Test")

End Sub

'Here I would like to add a new row, but not happens
Sub Button1_Click
   tt.Insert ( Array As String ( "2" , "122"  , "Eistee 0,3" , "2.50"  ),0)
End Sub

How do I convert this code since xnTable is integrated in xnGrid? Several llines and methods are affected. Thanks.

stefanobusetto · Mar 20, 2013

B4X:

If gg.InsertRow ( 3 , Array As String ( "new" , "new" , "new" , "new" ) ) Then
   Msgbox ( "ok" , "InsertRow" )
End If

B4X:

If gg.AppendRow ( Array As String ( "new" , "new" , "new" , "new" ) )Then
   Msgbox ( "ok" , "AppendRow" )
End If

Brad · Mar 25, 2013

Nice grid stef! One problem I see is when the .gridclear is called .rowcount does not reset to 0.

stefanobusetto · Mar 25, 2013

Thanks for reporting Brad.
I'll fix.

stefanobusetto · Mar 27, 2013

Added vertical gravity support for cells

B4X:

   Dim cc(4) As xnGridCol

   cc(0).Initialize2 ( "Cod." , "cod" , 40dip , Gravity.TOP + Gravity.LEFT )
   gg.AppendCol ( cc(0) )

   cc(1).Initialize2 ( "Des." , "des" , 160dip , Gravity.CENTER_VERTICAL + Gravity.CENTER_HORIZONTAL)
   gg.AppendCol ( cc(1) )

      cc(2).Initialize2 ( "Grp." , "grp" , 160dip , Gravity.BOTTOM + Gravity.RIGHT )
   gg.AppendCol ( cc(2) )

   cc(3).Initialize2 ( "Other" , "other" , 360dip , Gravity.LEFT )
   gg.AppendCol ( cc(3) )

aviario · Apr 1, 2013

Hello, I downloaded the new version 1.71 of the date and xnObjects xnObjects.jar, xml is 27/03/2013
I set one of the headers in this way because I want the header and data center it put me to the left and puts it all on the left
cc (1). Initialize2 ("Off.", "des" 120dip, Gravity.CENTER_HORIZONTAL + Gravity.LEFT)
gg.AppendCol (cc (1))

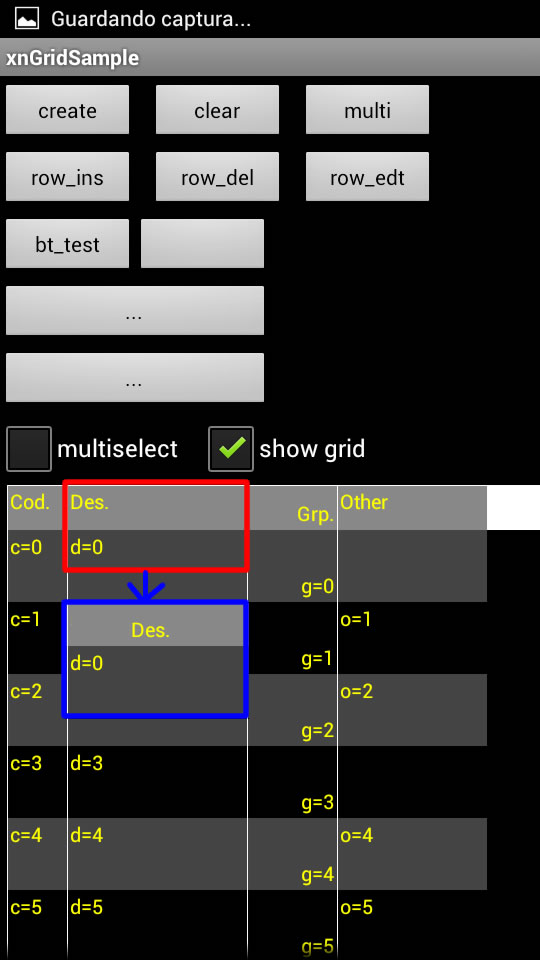

I am attaching a picture of how it is and as it should be

un saludo
Paco

stefanobusetto · Apr 1, 2013

hi
i'm not sure i've fully understood you question.

header and cells use the same gravity.
you can set vertical and horizontal alignment
for example
Gravity.CENTER_VERTICAL + Gravity.CENTER_HORIZONTAL
or
Gravity.CENTER_VERTICAL + Gravity.TOP

aviario · Apr 2, 2013

stefanobusetto said:
hi
i'm not sure i've fully understood you question.

header and cells use the same gravity.
you can set vertical and horizontal alignment
for example
Gravity.CENTER_VERTICAL + Gravity.CENTER_HORIZONTAL
or
Gravity.CENTER_VERTICAL + Gravity.TOP

Hi,
We'd like have an independient Gravity for Header and another Gravity for cells of that column. For example, we want center text header, but for this column we want left align for cells(data).

Many thanks

Brad · Apr 3, 2013

Found something else. When I attempt to save values that I changed, the values do not go into the correct columns. So for example, the variable newvalue1 would be inserted into the column for newvalue3.

Sample code I'm using

B4X:

grid1.SetValue(grid1.RowSelected,0,newvalue1)
grid1.SetValue(grid1.RowSelected,1,newvalue2)
grid1.SetValue(grid1.RowSelected,2,newvalue3)

stefanobusetto · Apr 4, 2013

@brad
there are 2 methods in the grid
GridClear : deletes all the visual components of the gird
but does not delete the grid data

DeleteRows : deletes all the gird data
and repaints the grid ( actually calls GridClear )

stefanobusetto · Apr 5, 2013

@brad
fixed SetValue bug

qsrtech · Apr 10, 2013

Padding

HI, Great grid and I was wondering if it's possible to add some padding to the cells?

stefanobusetto · Apr 12, 2013

i'm working on the ver. 2 of the grid
rewriting everything.
i'll add the feature
