Hi Everyone, I'm working on a small project using ABMaterial and the frappe charts library found here, so far everything seems to be working fine for me.
What I am doing is connecting to a Temperature Chamber through Ethernet and reading the temperature profiles already stored in the Temp Controller, the project is running on a Raspberry Pi and as I mentioned all that is working just fine.

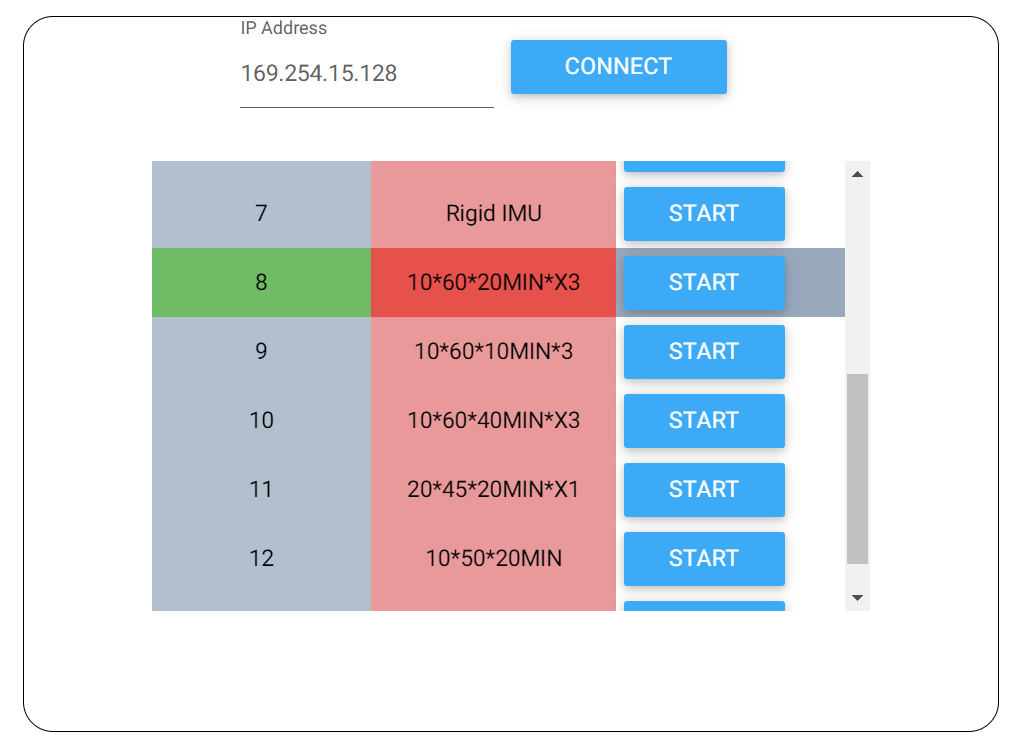

I am listing the profile names in a table and here's what that looks like:
When the user clicks on the profile number, for example in the example above, the profile #8 has been clicked on, and the profile steps are retrieved which is a Json string and when parsed I can see the step type as Soak or as RampTime along with the temperature target value and the time duration.
The problem I am having is that when trying to plot the profile it doesn't look the way it's supposed to.

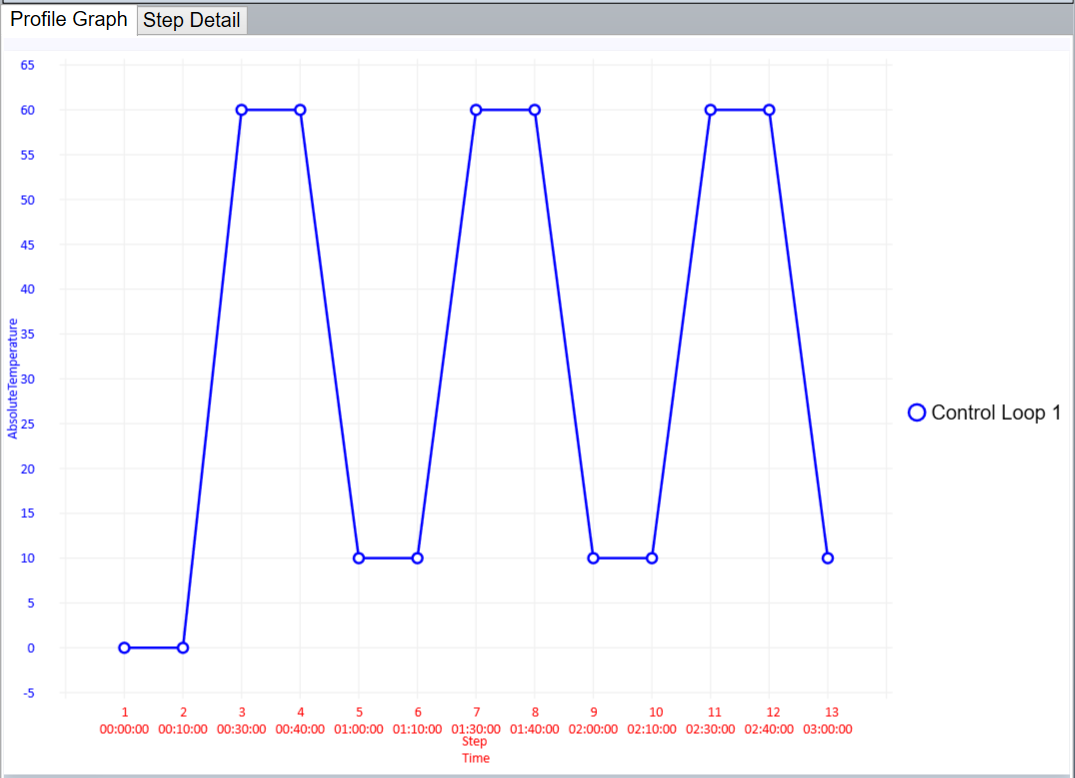

This is what the selected profile should look like:

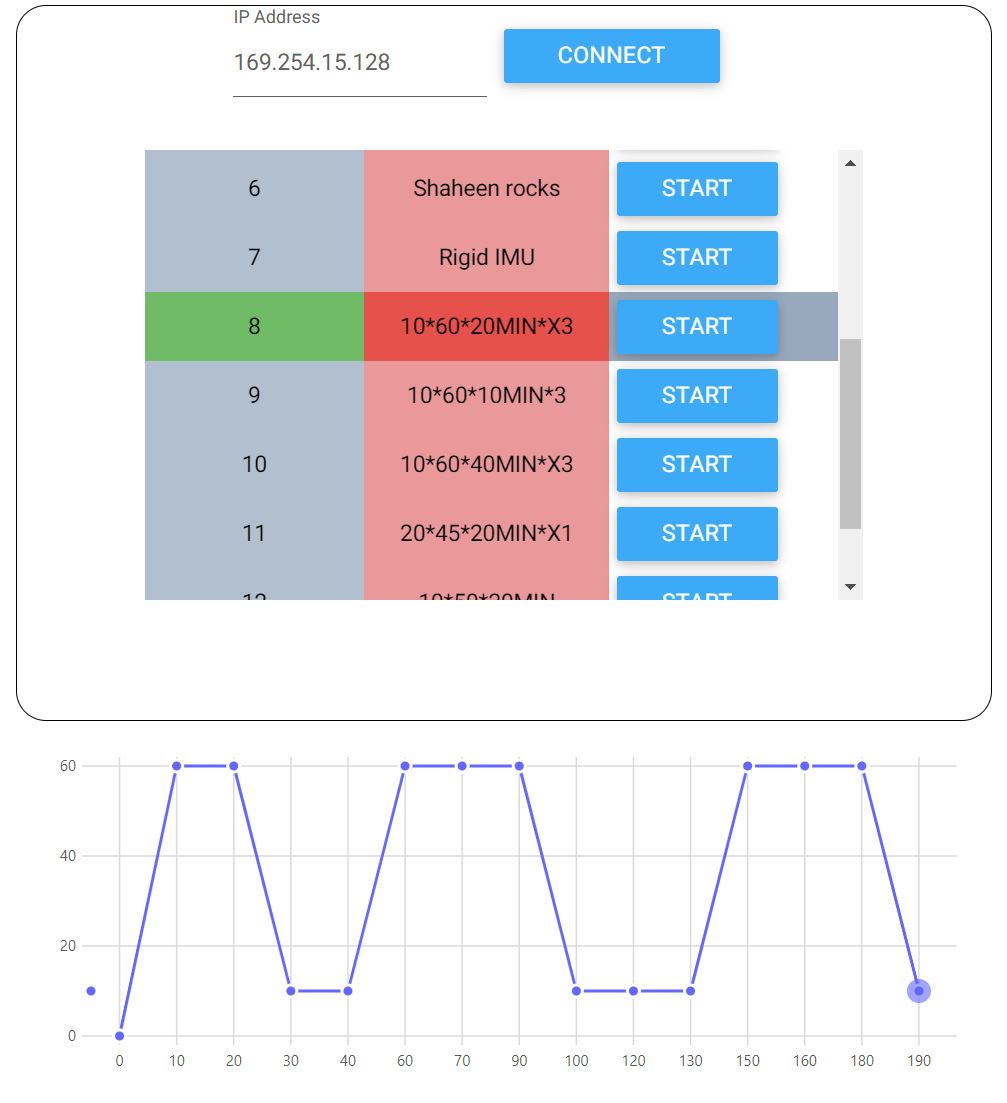

But instead when I try to plot the values this is what I get instead.
I know at first sight both charts look similar, but if you pay close attention you will see that the times does not align to the top chart.
I Realize this has to do with my code, but my brain just can't figure it out.
Here's the json string that is received from the Temperature Controller when clicked on any of the profile names. In this instance I have selected the profile name "10*20*60MIN*X3".
From there I extract the Step Types, Duration, temp target from the loops section and my code to iterate though each step type, duration etc. is this:
The x and y lists are passed to the chart to plot the profile, but as I mentioned above, I am unable to get the profile I am plotting to match what the profile actually should look like.
I know this is probably something very simple, but as I am working on multiple projects I have not been able to focus and dedicate my time 100% to this problem, I am hoping someone can help me or point me in the right direction.
Thanks everyone!.
What I am doing is connecting to a Temperature Chamber through Ethernet and reading the temperature profiles already stored in the Temp Controller, the project is running on a Raspberry Pi and as I mentioned all that is working just fine.
I am listing the profile names in a table and here's what that looks like:
When the user clicks on the profile number, for example in the example above, the profile #8 has been clicked on, and the profile steps are retrieved which is a Json string and when parsed I can see the step type as Soak or as RampTime along with the temperature target value and the time duration.
The problem I am having is that when trying to plot the profile it doesn't look the way it's supposed to.
This is what the selected profile should look like:
But instead when I try to plot the values this is what I get instead.
I know at first sight both charts look similar, but if you pay close attention you will see that the times does not align to the top chart.
I Realize this has to do with my code, but my brain just can't figure it out.
Here's the json string that is received from the Temperature Controller when clicked on any of the profile names. In this instance I have selected the profile name "10*20*60MIN*X3".
From there I extract the Step Types, Duration, temp target from the loops section and my code to iterate though each step type, duration etc. is this:
