Wish Hope to add a debug key combination

cxbs

cxbs

Active Member
Licensed User
Longtime User




B4i is a very good software that allows you to write and debug your own programs without registering an apple account. However, it takes a lot of time to select two-tier menus with the mouse every time. I hope it can be solved by combining keys in reality. Thank you very much!

The above English comes from translation software

cxbs

cxbs

Active Member
Licensed User
Longtime User
Erel said:
What are you using this option for? This is a quite esoteric feature.
Click to expand...
Hello, Mr. Erel!
I'm using this menu to run b4i program on MAC virtual, because pressing F5 directly can't work normally!

cxbs

cxbs

Active Member
Licensed User
Longtime User
Erel said:

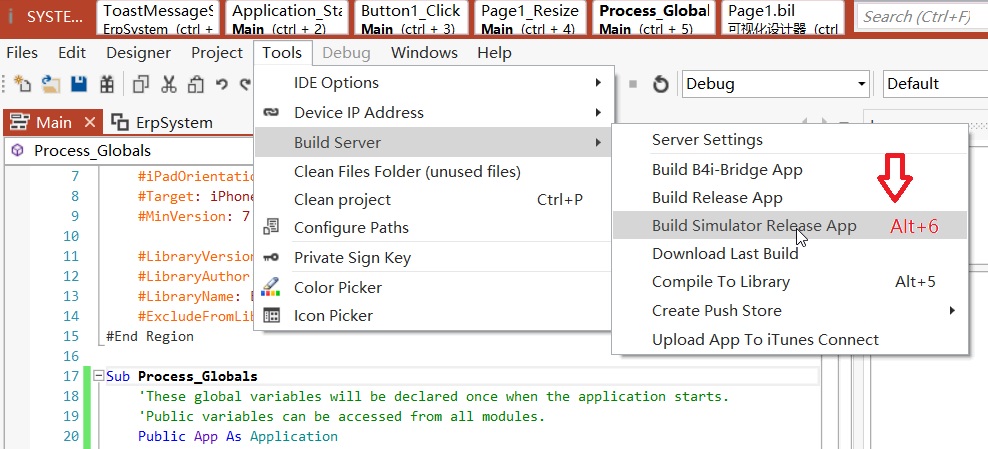

You should select SIMULATOR in the "device ip" menu and then run. You can make a release app using Alt + T + B + R
Click to expand...

When I press F5 to debug the program, the following errors will appear, so I can only debug the apple program by pressing Alt + T + B + R


B4X:
B4i Version: 7.50
Parsing code.    (0.00s)
Building folders structure.    (0.03s)
Compiling code.    (0.00s)
Compiling layouts code.    (0.00s)
Compiling debugger engine code.    (0.00s)
Building Xcode project.    (0.19s)
Preparing project for builder.    (0.03s)
    Project size: 0.15 MB
Sending data to remote compiler.    Error
Out: Build settings from command line:
    ARCHS = x86_64
    CODE_SIGNING_REQUIRED = NO
    CONFIGURATION_BUILD_DIR = /Users/admin/a/UploadedProjects/<user id>/Payload
    PRODUCT_NAME = ErpSystem
    SDKROOT = iphonesimulator13.0

note: Using new build system
note: Planning build
note: Constructing build description
CreateBuildDirectory /Users/admin/a/UploadedProjects/<user id>/build (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    builtin-create-build-directory /Users/admin/a/UploadedProjects/<user id>/build

MkDir /Users/admin/a/UploadedProjects/<user id>/Payload/ErpSystem.app (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    /bin/mkdir -p /Users/admin/a/UploadedProjects/<user id>/Payload/ErpSystem.app

WriteAuxiliaryFile /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources/Entitlements-Simulated.plist (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    write-file /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources/Entitlements-Simulated.plist

WriteAuxiliaryFile /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources/Entitlements.plist (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    write-file /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources/Entitlements.plist

ProcessProductPackaging "" /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem.app.xcent (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>


Entitlements:

{
    "com.apple.security.get-task-allow" = 1;
}


    builtin-productPackagingUtility -entitlements -format xml -o /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem.app.xcent

ProcessProductPackaging "" /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem.app-Simulated.xcent (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>


Entitlements:

{
    "application-identifier" = "FAKETEAMID.com.erp80";
}


    builtin-productPackagingUtility -entitlements -format xml -o /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem.app-Simulated.xcent

WriteAuxiliaryFile /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem.hmap (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    write-file /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem.hmap

WriteAuxiliaryFile /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/all-product-headers.yaml (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    write-file /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/all-product-headers.yaml

WriteAuxiliaryFile /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-project-headers.hmap (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    write-file /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-project-headers.hmap

WriteAuxiliaryFile /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-own-target-headers.hmap (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    write-file /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-own-target-headers.hmap

WriteAuxiliaryFile /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-generated-files.hmap (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    write-file /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-generated-files.hmap

WriteAuxiliaryFile /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-all-target-headers.hmap (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    write-file /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-all-target-headers.hmap

WriteAuxiliaryFile /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-all-non-framework-target-headers.hmap (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    write-file /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-all-non-framework-target-headers.hmap

CompileC /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/b4i_erpsystem.o /Users/admin/a/UploadedProjects/<user id>/B4iProject/b4i_erpsystem.m normal x86_64 objective-c com.apple.compilers.llvm.clang.1_0.compiler (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    export LANG=en_US.US-ASCII
    /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/clang -x objective-c -target x86_64-apple-ios8.0-simulator -fmessage-length=0 -fdiagnostics-show-note-include-stack -fmacro-backtrace-limit=0 -std=gnu99 -fobjc-arc -fmodules -gmodules -fmodules-prune-interval=86400 -fmodules-prune-after=345600 -fbuild-session-file=/var/folders/dt/cbhht1s13d7bj68nn7qc7ylw0000gn/C/org.llvm.clang/ModuleCache.noindex/Session.modulevalidation -fmodules-validate-once-per-build-session -Wnon-modular-include-in-framework-module -Werror=non-modular-include-in-framework-module -Wno-trigraphs -fpascal-strings -O0 -Wno-missing-field-initializers -Wno-missing-prototypes -Werror=return-type -Wno-implicit-atomic-properties -Werror=deprecated-objc-isa-usage -Wno-objc-interface-ivars -Werror=objc-root-class -Wno-arc-repeated-use-of-weak -Wduplicate-method-match -Wno-missing-braces -Wparentheses -Wswitch -Wunused-function -Wno-unused-label -Wno-unused-parameter -Wunused-variable -Wunused-value -Wempty-body -Wuninitialized -Wconditional-uninitialized -Wno-unknown-pragmas -Wno-shadow -Wno-four-char-constants -Wno-conversion -Wconstant-conversion -Wint-conversion -Wbool-conversion -Wenum-conversion -Wno-float-conversion -Wno-non-literal-null-conversion -Wno-objc-literal-conversion -Wshorten-64-to-32 -Wpointer-sign -Wno-newline-eof -Wno-selector -Wno-strict-selector-match -Wundeclared-selector -Wno-deprecated-implementations -DB4I_VERSION=13 -DNS_BLOCK_ASSERTIONS=1 -DOBJC_OLD_DISPATCH_PROTOTYPES=1 -isysroot /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator13.0.sdk -fasm-blocks -fstrict-aliasing -Wprotocol -Wdeprecated-declarations -fvisibility=hidden -Wno-sign-conversion -Wno-infinite-recursion -Wno-comma -Wno-block-capture-autoreleasing -Wno-strict-prototypes -Wno-semicolon-before-method-body -fobjc-abi-version=2 -fobjc-legacy-dispatch -iquote /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-generated-files.hmap -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-own-target-headers.hmap -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-all-target-headers.hmap -iquote /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-project-headers.hmap -I/Users/admin/a/UploadedProjects/<user id>/Payload/include -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources-normal/x86_64 -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources/x86_64 -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources -F/Users/admin/a/UploadedProjects/<user id>/Payload -F../../Libs -MMD -MT dependencies -MF /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/b4i_erpsystem.d --serialize-diagnostics /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/b4i_erpsystem.dia -c /Users/admin/a/UploadedProjects/<user id>/B4iProject/b4i_erpsystem.m -o /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/b4i_erpsystem.o

CompileC /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/main.o /Users/admin/a/UploadedProjects/<user id>/B4iProject/main.m normal x86_64 objective-c com.apple.compilers.llvm.clang.1_0.compiler (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    export LANG=en_US.US-ASCII
    /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/clang -x objective-c -target x86_64-apple-ios8.0-simulator -fmessage-length=0 -fdiagnostics-show-note-include-stack -fmacro-backtrace-limit=0 -std=gnu99 -fobjc-arc -fmodules -gmodules -fmodules-prune-interval=86400 -fmodules-prune-after=345600 -fbuild-session-file=/var/folders/dt/cbhht1s13d7bj68nn7qc7ylw0000gn/C/org.llvm.clang/ModuleCache.noindex/Session.modulevalidation -fmodules-validate-once-per-build-session -Wnon-modular-include-in-framework-module -Werror=non-modular-include-in-framework-module -Wno-trigraphs -fpascal-strings -O0 -Wno-missing-field-initializers -Wno-missing-prototypes -Werror=return-type -Wno-implicit-atomic-properties -Werror=deprecated-objc-isa-usage -Wno-objc-interface-ivars -Werror=objc-root-class -Wno-arc-repeated-use-of-weak -Wduplicate-method-match -Wno-missing-braces -Wparentheses -Wswitch -Wunused-function -Wno-unused-label -Wno-unused-parameter -Wunused-variable -Wunused-value -Wempty-body -Wuninitialized -Wconditional-uninitialized -Wno-unknown-pragmas -Wno-shadow -Wno-four-char-constants -Wno-conversion -Wconstant-conversion -Wint-conversion -Wbool-conversion -Wenum-conversion -Wno-float-conversion -Wno-non-literal-null-conversion -Wno-objc-literal-conversion -Wshorten-64-to-32 -Wpointer-sign -Wno-newline-eof -Wno-selector -Wno-strict-selector-match -Wundeclared-selector -Wno-deprecated-implementations -DB4I_VERSION=13 -DNS_BLOCK_ASSERTIONS=1 -DOBJC_OLD_DISPATCH_PROTOTYPES=1 -isysroot /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator13.0.sdk -fasm-blocks -fstrict-aliasing -Wprotocol -Wdeprecated-declarations -fvisibility=hidden -Wno-sign-conversion -Wno-infinite-recursion -Wno-comma -Wno-block-capture-autoreleasing -Wno-strict-prototypes -Wno-semicolon-before-method-body -fobjc-abi-version=2 -fobjc-legacy-dispatch -iquote /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-generated-files.hmap -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-own-target-headers.hmap -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-all-target-headers.hmap -iquote /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-project-headers.hmap -I/Users/admin/a/UploadedProjects/<user id>/Payload/include -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources-normal/x86_64 -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources/x86_64 -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources -F/Users/admin/a/UploadedProjects/<user id>/Payload -F../../Libs -MMD -MT dependencies -MF /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/main.d --serialize-diagnostics /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/main.dia -c /Users/admin/a/UploadedProjects/<user id>/B4iProject/main.m -o /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/main.o

WriteAuxiliaryFile /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/ErpSystem.LinkFileList (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    write-file /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/ErpSystem.LinkFileList

CompileC /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/b4i_main.o /Users/admin/a/UploadedProjects/<user id>/B4iProject/b4i_main.m normal x86_64 objective-c com.apple.compilers.llvm.clang.1_0.compiler (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    export LANG=en_US.US-ASCII
    /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/clang -x objective-c -target x86_64-apple-ios8.0-simulator -fmessage-length=0 -fdiagnostics-show-note-include-stack -fmacro-backtrace-limit=0 -std=gnu99 -fobjc-arc -fmodules -gmodules -fmodules-prune-interval=86400 -fmodules-prune-after=345600 -fbuild-session-file=/var/folders/dt/cbhht1s13d7bj68nn7qc7ylw0000gn/C/org.llvm.clang/ModuleCache.noindex/Session.modulevalidation -fmodules-validate-once-per-build-session -Wnon-modular-include-in-framework-module -Werror=non-modular-include-in-framework-module -Wno-trigraphs -fpascal-strings -O0 -Wno-missing-field-initializers -Wno-missing-prototypes -Werror=return-type -Wno-implicit-atomic-properties -Werror=deprecated-objc-isa-usage -Wno-objc-interface-ivars -Werror=objc-root-class -Wno-arc-repeated-use-of-weak -Wduplicate-method-match -Wno-missing-braces -Wparentheses -Wswitch -Wunused-function -Wno-unused-label -Wno-unused-parameter -Wunused-variable -Wunused-value -Wempty-body -Wuninitialized -Wconditional-uninitialized -Wno-unknown-pragmas -Wno-shadow -Wno-four-char-constants -Wno-conversion -Wconstant-conversion -Wint-conversion -Wbool-conversion -Wenum-conversion -Wno-float-conversion -Wno-non-literal-null-conversion -Wno-objc-literal-conversion -Wshorten-64-to-32 -Wpointer-sign -Wno-newline-eof -Wno-selector -Wno-strict-selector-match -Wundeclared-selector -Wno-deprecated-implementations -DB4I_VERSION=13 -DNS_BLOCK_ASSERTIONS=1 -DOBJC_OLD_DISPATCH_PROTOTYPES=1 -isysroot /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator13.0.sdk -fasm-blocks -fstrict-aliasing -Wprotocol -Wdeprecated-declarations -fvisibility=hidden -Wno-sign-conversion -Wno-infinite-recursion -Wno-comma -Wno-block-capture-autoreleasing -Wno-strict-prototypes -Wno-semicolon-before-method-body -fobjc-abi-version=2 -fobjc-legacy-dispatch -iquote /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-generated-files.hmap -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-own-target-headers.hmap -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-all-target-headers.hmap -iquote /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-project-headers.hmap -I/Users/admin/a/UploadedProjects/<user id>/Payload/include -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources-normal/x86_64 -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources/x86_64 -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources -F/Users/admin/a/UploadedProjects/<user id>/Payload -F../../Libs -MMD -MT dependencies -MF /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/b4i_main.d --serialize-diagnostics /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/b4i_main.dia -c /Users/admin/a/UploadedProjects/<user id>/B4iProject/b4i_main.m -o /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/b4i_main.o

CompileC /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/LS_page1.o /Users/admin/a/UploadedProjects/<user id>/B4iProject/LS_page1.m normal x86_64 objective-c com.apple.compilers.llvm.clang.1_0.compiler (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    export LANG=en_US.US-ASCII
    /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/clang -x objective-c -target x86_64-apple-ios8.0-simulator -fmessage-length=0 -fdiagnostics-show-note-include-stack -fmacro-backtrace-limit=0 -std=gnu99 -fobjc-arc -fmodules -gmodules -fmodules-prune-interval=86400 -fmodules-prune-after=345600 -fbuild-session-file=/var/folders/dt/cbhht1s13d7bj68nn7qc7ylw0000gn/C/org.llvm.clang/ModuleCache.noindex/Session.modulevalidation -fmodules-validate-once-per-build-session -Wnon-modular-include-in-framework-module -Werror=non-modular-include-in-framework-module -Wno-trigraphs -fpascal-strings -O0 -Wno-missing-field-initializers -Wno-missing-prototypes -Werror=return-type -Wno-implicit-atomic-properties -Werror=deprecated-objc-isa-usage -Wno-objc-interface-ivars -Werror=objc-root-class -Wno-arc-repeated-use-of-weak -Wduplicate-method-match -Wno-missing-braces -Wparentheses -Wswitch -Wunused-function -Wno-unused-label -Wno-unused-parameter -Wunused-variable -Wunused-value -Wempty-body -Wuninitialized -Wconditional-uninitialized -Wno-unknown-pragmas -Wno-shadow -Wno-four-char-constants -Wno-conversion -Wconstant-conversion -Wint-conversion -Wbool-conversion -Wenum-conversion -Wno-float-conversion -Wno-non-literal-null-conversion -Wno-objc-literal-conversion -Wshorten-64-to-32 -Wpointer-sign -Wno-newline-eof -Wno-selector -Wno-strict-selector-match -Wundeclared-selector -Wno-deprecated-implementations -DB4I_VERSION=13 -DNS_BLOCK_ASSERTIONS=1 -DOBJC_OLD_DISPATCH_PROTOTYPES=1 -isysroot /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator13.0.sdk -fasm-blocks -fstrict-aliasing -Wprotocol -Wdeprecated-declarations -fvisibility=hidden -Wno-sign-conversion -Wno-infinite-recursion -Wno-comma -Wno-block-capture-autoreleasing -Wno-strict-prototypes -Wno-semicolon-before-method-body -fobjc-abi-version=2 -fobjc-legacy-dispatch -iquote /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-generated-files.hmap -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-own-target-headers.hmap -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-all-target-headers.hmap -iquote /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem-project-headers.hmap -I/Users/admin/a/UploadedProjects/<user id>/Payload/include -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources-normal/x86_64 -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources/x86_64 -I/Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/DerivedSources -F/Users/admin/a/UploadedProjects/<user id>/Payload -F../../Libs -MMD -MT dependencies -MF /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/LS_page1.d --serialize-diagnostics /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/LS_page1.dia -c /Users/admin/a/UploadedProjects/<user id>/B4iProject/LS_page1.m -o /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/LS_page1.o

Ld /Users/admin/a/UploadedProjects/<user id>/Payload/ErpSystem.app/ErpSystem normal x86_64 (in target 'B4iProject' from project 'B4iProject')
    cd /Users/admin/a/UploadedProjects/<user id>
    /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/clang -target x86_64-apple-ios8.0-simulator -isysroot /Applications/Xcode.app/Contents/Developer/Platforms/iPhoneSimulator.platform/Developer/SDKs/iPhoneSimulator13.0.sdk -L/Users/admin/a/UploadedProjects/<user id>/Payload -L../../Libs -F/Users/admin/a/UploadedProjects/<user id>/Payload -F../../Libs -filelist /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/ErpSystem.LinkFileList -Xlinker -rpath -Xlinker @executable_path/Frameworks -Xlinker -object_path_lto -Xlinker /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/ErpSystem_lto.o -Xlinker -no_deduplicate -Xlinker -objc_abi_version -Xlinker 2 -fobjc-arc -fobjc-link-runtime -ObjC -Xlinker -sectcreate -Xlinker __TEXT -Xlinker __entitlements -Xlinker /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/ErpSystem.app-Simulated.xcent -lCore -framework Foundation -framework CoreGraphics -framework UIKit -liXUI -liHUD -framework AVFoundation -liDebug2 -Xlinker -dependency_info -Xlinker /Users/admin/a/UploadedProjects/<user id>/build/B4iProject.build/Release-iphonesimulator/B4iProject.build/Objects-normal/x86_64/ErpSystem_dependency_info.dat -o /Users/admin/a/UploadedProjects/<user id>/Payload/ErpSystem.app/ErpSystem
ld: warning: Could not find or use auto-linked framework 'UniformTypeIdentifiers'
Undefined symbols for architecture x86_64:
  "___darwin_check_fd_set_overflow", referenced from:
      _connect_timeout in libiDebug2.a(FastSocket.o)
ld: symbol(s) not found for architecture x86_64
clang: error: linker command failed with exit code 1 (use -v to see invocation)


Error: ** BUILD FAILED **


The following build commands failed:
    Ld /Users/admin/a/UploadedProjects/<user id>/Payload/ErpSystem.app/ErpSystem normal x86_64
(1 failure)

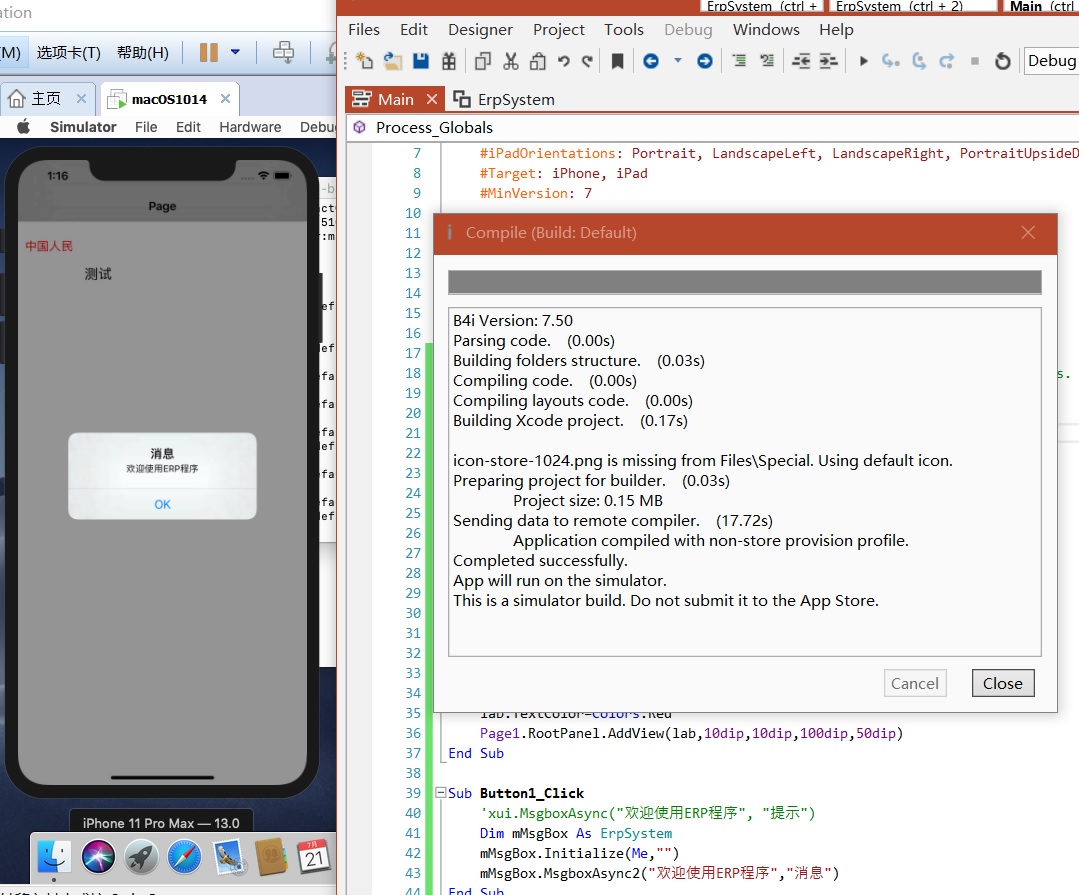

Attachments

  • b4Iapp.jpg
    246.6 KB · Views: 207
cxbs

cxbs

Active Member
Licensed User
Longtime User
Erel said:

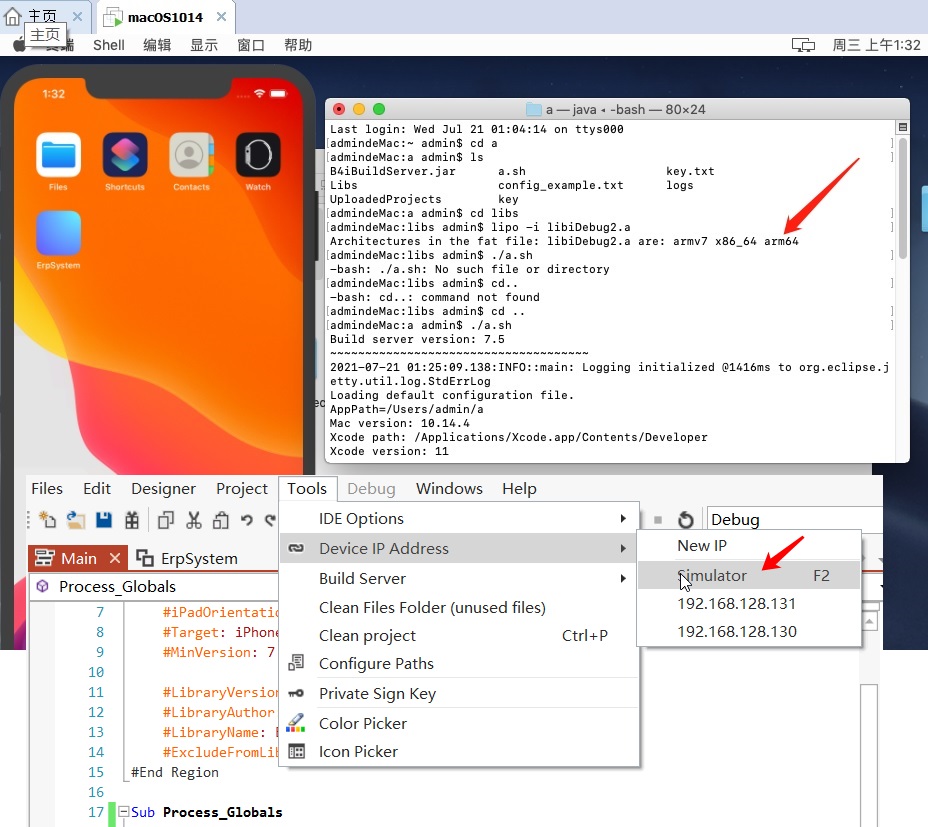

Open a terminal and go to the Libs folder.
Run: lipo -i libiDebug2.a
The output should be:
Architectures in the fat file: libiDebug2.a are: armv7 x86_64 arm64
Click to expand...

Hello, Mr. Erel. Can't F5 be used to debug programs without an apple account?


cxbs

cxbs

Active Member
Licensed User
Longtime User
Erel said:
It can. It looks like Xcode is misconfigured.

stackoverflow.com

Undefined symbol: ___darwin_check_fd_set_overflow

I'm getting this error when I try to run my project. Undefined symbol: ___darwin_check_fd_set_overflow Here, I'm included pod 'mobile-ffmpeg-full', '4.3.2' this frame work for video streaming. Co...
stackoverflow.com stackoverflow.com
Click to expand...


Dear Mr. Erel, thank you very much for your help. This is the service information I started. I'm not sure what's wrong with the configuration. Is it necessary to upgrade to Xcode 12 to solve this problem!

B4X:
Last login: Wed Jul 21 02:03:45 on console
admindeMac:~ admin$ cd a
admindeMac:a admin$ ls
B4iBuildServer.jar    a.sh            key.txt
Libs            config_example.txt    logs
UploadedProjects    key
admindeMac:a admin$ ./a.sh
Build server version: 7.5
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
2021-07-21 02:10:38.135:INFO::main: Logging initialized @579ms to org.eclipse.jetty.util.log.StdErrLog
Loading default configuration file.
AppPath=/Users/admin/a
Mac version: 10.14.4
Xcode path: /Applications/Xcode.app/Contents/Developer
Xcode version: 11
2021-07-21 02:10:41.131:INFO:oejs.Server:main: jetty-9.4.z-SNAPSHOT; built: 2018-05-03T15:56:21.710Z; git: daa59876e6f384329b122929e70a80934569428c; jvm 1.8.0_291-b10
2021-07-21 02:10:41.250:INFO:oejs.session:main: DefaultSessionIdManager workerName=node0
2021-07-21 02:10:41.251:INFO:oejs.session:main: No SessionScavenger set, using defaults
2021-07-21 02:10:41.284:INFO:oejs.session:main: node0 Scavenging every 660000ms
2021-07-21 02:10:41.304:INFO:oejsh.ContextHandler:main: Started o.e.j.s.ServletContextHandler@64bfbc86{/,file:///Users/admin/a/www,AVAILABLE}
2021-07-21 02:10:41.318:INFO:oejs.AbstractNCSARequestLog:main: Opened /Users/admin/a/logs/b4j-2021_07_21.request.log
2021-07-21 02:10:41.415:INFO:oejs.AbstractConnector:main: Started ServerConnector@56d72147{HTTP/1.1,[http/1.1]}{0.0.0.0:51041}
2021-07-21 02:10:41.503:INFO:oejus.SslContextFactory:main: x509=X509@1f28c152(rootca,h=[],w=[]) for SslContextFactory@7d907bac[provider=null,keyStore=file:///Users/admin/a/key/key.jks,trustStore=null]
2021-07-21 02:10:41.503:INFO:oejus.SslContextFactory:main: x509=X509@7791a895(jetty,h=[192.168.128.131],w=[]) for SslContextFactory@7d907bac[provider=null,keyStore=file:///Users/admin/a/key/key.jks,trustStore=null]
2021-07-21 02:10:42.008:INFO:oejs.AbstractConnector:main: Started ServerConnector@1dbaaedb{SSL,[ssl, http/1.1]}{0.0.0.0:51042}
2021-07-21 02:10:42.009:INFO:oejs.Server:main: Started @4464ms
Build server is ready
https://192.168.128.131:51042
http://192.168.128.131:51041
Build server version: 7.50

cxbs

cxbs

Active Member
Licensed User
Longtime User
Erel，帖子：838352，成员：1 said:
值得尝试使用 Xcode 12。无论如何，Apple 都需要它。
[/引用]
Click to expand...

Dear Mr. Erel, according to your prompt, I reinstalled Xcode 12 on Mac OS 10.15.5 virtual machine. Now I can debug b4i program by pressing F5 normally.
Thank you very much for your help!

I wish you a happy life!
