Android Question how to Auto-cut thermal receipt in a printer Bluetooth? (Solved)
- Thread starter f0raster0
- Start date
- Similar Threads Similar Threads
Solution
yes, using your code:
B4X:
Sub POS_onBind()
' You can now use the BDxxx Methods. The Service is connected.
Log($"POS_onBind()"$)
'pos.BDconnectBtPort("00:00:00:00:00","BDconnectBtPort")
pos.BDconnectBtPort("DC:0D:30:06:98:71","BDconnectBtPort")
End Sub
Upvote
0
Ok. I´ll try to teach you how you can "translate" the code in the Exampleapp they provided:
In the app you can for example start to print a barcode-test....
This is the code
As MainActivity you can see your activity you are running a instance of my lib.
The "binder" is the one you got in the Event
. Okk you dont GET it... Just the info that the binder is now available.
writeDataByYouself is the same named Method in my library.
Inside the code are two callbacks defined. One for successfull and unsuccefull result, one for handling of the commands. Here i ned to return the comand list to the library behind....
The interesting part is
Here a list of commands are gnerwated and returned to the lib behind... This is what you need to do in b4a.
This is the code you need in b4a for this
After this code the lib send the commands to the printer and it will end in raising either a successful or failed event with the given tag, In this case "Barcode"
The last item added to the list causes a problem here. I needed to extend the lib. Find the new lib attached.
In the app you can for example start to print a barcode-test....
This is the code
B4X:
private void printBarcode(){
MainActivity.binder.writeDataByYouself(new UiExecute() {
@Override
public void onsucess() {
}
@Override
public void onfailed() {
}
}, new ProcessData() {
@Override
public List<byte[]> processDataBeforeSend() {
ArrayList<byte[]> list=new ArrayList<byte[]>();
//first you have to set the width and heigt ,
// you can also use dot or inch as a unit method, specific conversion reference programming manual
list.add(DataForSendToPrinterTSC.sizeBymm(60,30));
//set the gap
list.add(DataForSendToPrinterTSC.gapBymm(0,0));
//clear cach
list.add(DataForSendToPrinterTSC.cls());
//print barcode
list.add(DataForSendToPrinterTSC.barCode(60,50,"128",100,1,0,2,2,"abcdef12345"));
//print
list.add(DataForSendToPrinterTSC.print(1));
return list;
}
});
}As MainActivity you can see your activity you are running a instance of my lib.
The "binder" is the one you got in the Event
B4X:
POS_onBind()writeDataByYouself is the same named Method in my library.
Inside the code are two callbacks defined. One for successfull and unsuccefull result, one for handling of the commands. Here i ned to return the comand list to the library behind....
The interesting part is
B4X:
//first you have to set the width and heigt ,
// you can also use dot or inch as a unit method, specific conversion reference programming manual
list.add(DataForSendToPrinterTSC.sizeBymm(60,30));
//set the gap
list.add(DataForSendToPrinterTSC.gapBymm(0,0));
//clear cach
list.add(DataForSendToPrinterTSC.cls());
//print barcode
list.add(DataForSendToPrinterTSC.barCode(60,50,"128",100,1,0,2,2,"abcdef12345"));
//print
list.add(DataForSendToPrinterTSC.print(1));Here a list of commands are gnerwated and returned to the lib behind... This is what you need to do in b4a.
This is the code you need in b4a for this
B4X:
Dim list As List
list.Initialize
list.add(pos.sizeBymm(60,30))
'//set the gap
list.add(pos.gapBymm(0,0))
'//clear cach
list.add(pos.cls())
'//print barcode
list.add(pos.barCode(60,50,"128",100,1,0,2,2,"abcdef12345"))
'//print
list.add(pos.print(1))
pos.writeDataByYouself(list,"Barcode")After this code the lib send the commands to the printer and it will end in raising either a successful or failed event with the given tag, In this case "Barcode"
The last item added to the list causes a problem here. I needed to extend the lib. Find the new lib attached.
Last edited:
Upvote
0
Another example
B4A
No warranty if it works
B4X:
private void printContent() {
MainActivity.binder.writeDataByYouself(new UiExecute() {
@Override
public void onsucess() {
showSnackbar("print ok !");
}
@Override
public void onfailed() {
showSnackbar("print not ok !");
}
}, new ProcessData() {
@Override
public List<byte[]> processDataBeforeSend() {
ArrayList<byte[]> list=new ArrayList<byte[]>();
//default is gbk,if you don't set the charset
DataForSendToPrinterTSC.setCharsetName("gbk");
byte[] data= DataForSendToPrinterTSC.sizeBymm(60,30);
list.add(data);
//set the gap
list.add(DataForSendToPrinterTSC.gapBymm(0,0));
// clear the cache
list.add(DataForSendToPrinterTSC.cls());
//barcode command，parama：int x: x print start point；int y:y print start point；
//string font，text font type ；int rotation，angle of rotation ；
//int x_multiplication，Font x directional magnification
//int y_multiplication,Font y directional magnification
//string content，print cont
byte[] data1 = DataForSendToPrinterTSC
.text(10, 10, "1", 0, 1, 1,
"abc123");
list.add(data1);
//print line,int x;int y;int width，width of the line ;int height,height of the line
list.add(DataForSendToPrinterTSC.bar(20,
40, 200, 3));
//print barcode
list.add(DataForSendToPrinterTSC.barCode(
60, 50, "128", 100, 1, 0, 2, 2,
"abcdef12345"));
//print
list.add(DataForSendToPrinterTSC.print(1));
showSnackbar("content");
return list;
}
});
}B4A
B4X:
Dim list As List
list.Initialize
'//default Is gbk,If you don't set the charset
pos.CharsetName = "gbk"
list.Add(pos.sizeBymm(60,30))
list.add(pos.gapBymm(0,0))
'// clear the cache
list.add(pos.cls())
'//barcode command，parama：int x: x print start point；int y:y print start point；
'//string font，text font Type ；int rotation，angle of rotation ；
'//int x_multiplication，Font x directional magnification
'//int y_multiplication,Font y directional magnification
'//string content，print cont
list.Add(pos.text(10, 10, "1", 0, 1, 1,"abc123"))
'//print line,int x;int y;int width，width of the line ;int height,height of the line
list.add(pos.bar(20,40, 200, 3))
'//print barcode
list.add(pos.barCode(60, 50, "128", 100, 1, 0, 2, 2,"abcdef12345"))
'//print
list.add(pos.print(1))
pos.writeDataByYouself(list,"Text")No warranty if it works
Upvote
0
Maybe, to come back to you initial post, use it like this
B4X:
Dim list As List
list.Initialize
'//default Is gbk,If you don't set the charset
pos.CharsetName = "gbk"
list.Add(pos.sizeBymm(60,30))
list.add(pos.gapBymm(0,0))
'// clear the cache
list.add(pos.cls())
'//barcode command，parama：int x: x print start point；int y:y print start point；
'//string font，text font Type ；int rotation，angle of rotation ；
'//int x_multiplication，Font x directional magnification
'//int y_multiplication,Font y directional magnification
'//string content，print cont
list.Add(pos.text(10, 10, "1", 0, 1, 1,"abc123"))
'//print line,int x;int y;int width，width of the line ;int height,height of the line
list.add(pos.bar(20,40, 200, 3))
'//print barcode
list.add(pos.barCode(60, 50, "128", 100, 1, 0, 2, 2,"abcdef12345"))
list.add(pos.feed(20)) ' Added feed
list.add(pos.cut) ' Added CUT
'//print
list.add(pos.print(1))
pos.writeDataByYouself(list,"Text")
Upvote
0
@DonManfred
I'm getting this:
I'm getting this:
B4X:
Logger connected to: BMXC K107
--------- beginning of system
--------- beginning of main
** Service (starter) Create **
** Service (starter) Start **
** Activity (main) Create, isFirst = true **
main_activity_create (B4A line: 55)
pos.writeDataByYouself(list,"Text")
java.lang.NullPointerException: Attempt to invoke interface method 'void net.posprinter.posprinterface.IMyBinder.writeDataByYouself(net.posprinter.posprinterface.UiExecute, net.posprinter.posprinterface.ProcessData)' on a null object reference
at de.donmanfred.POSPrinterwrapper.writeDataByYouself(POSPrinterwrapper.java:443)
at b4a.example.main._activity_create(main.java:400)
at java.lang.reflect.Method.invoke(Native Method)
at java.lang.reflect.Method.invoke(Method.java:372)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:179)
at b4a.example.main.afterFirstLayout(main.java:102)
at b4a.example.main.access$000(main.java:17)
at b4a.example.main$WaitForLayout.run(main.java:80)
at android.os.Handler.handleCallback(Handler.java:815)
at android.os.Handler.dispatchMessage(Handler.java:104)
at android.os.Looper.loop(Looper.java:194)
at android.app.ActivityThread.main(ActivityThread.java:5631)
at java.lang.reflect.Method.invoke(Native Method)
at java.lang.reflect.Method.invoke(Method.java:372)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:959)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:754)
Upvote
0
Try it again with this lib. As i did changed the lib in the meantime the line numbers does not match anymore... Post the error again using this lib
Upvote
0
B4X:
Logger connected to: BMXC K107
--------- beginning of system
--------- beginning of main
** Service (starter) Create **
** Service (starter) Start **
** Activity (main) Create, isFirst = true **
** Activity (main) Resume **
binder connected
POS_onBind()
POS_onSuccess(BDconnectBtPort)
POS_onSuccess(Text)
** Activity (main) Pause, UserClosed = false **
** Activity (main) Create, isFirst = false **
** Activity (main) Resume **
binder connected
POS_onBind()
POS_onFailed(BDconnectBtPort)
POS_onFailed(Text)

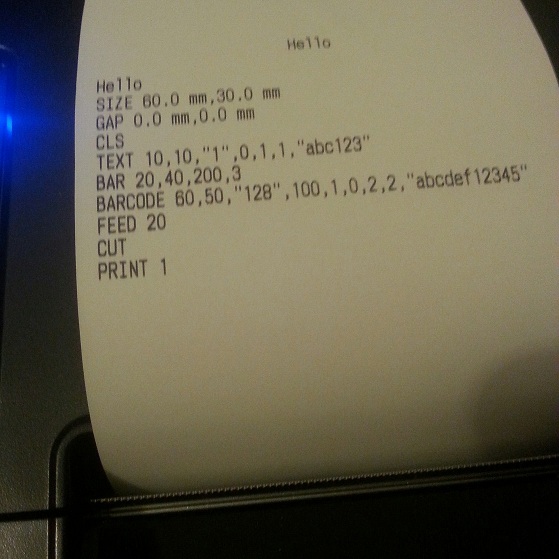

** Activity (main) Pause, UserClosed = false **printing..not cut yet
Attachments
Last edited:
Upvote
0
lol. I did not expect this. Not really...
Ok, i´ll investigate and check the lib.
Can you please try if the method to print a bitmap works? Or does it print the command also?
Upvote
0

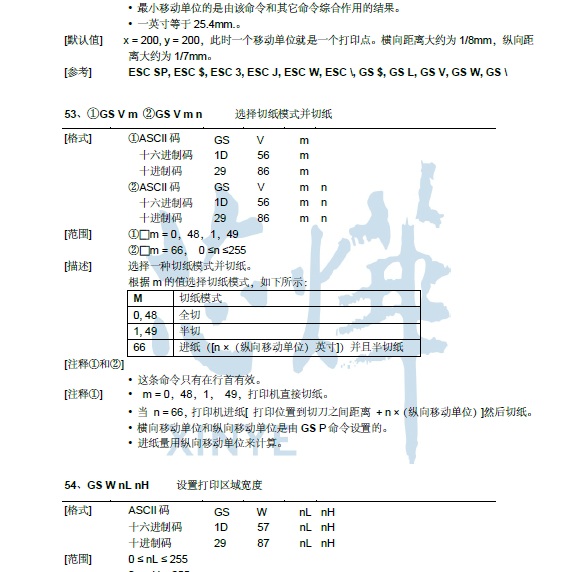

I rechecked the example project. The 3rd party jar contains three different "Sets of Commands" (all bytearrays).
What i wrapped was the TSC Set.
Then there is a set for Pos80 too (with a lot of new methods like in the TSC one). The Pos80-Set has Commands to switch the printing model.
Hold on; i´m writing a helper for the POS80 Commands too.
What i wrapped was the TSC Set.
Then there is a set for Pos80 too (with a lot of new methods like in the TSC one). The Pos80-Set has Commands to switch the printing model.
Hold on; i´m writing a helper for the POS80 Commands too.
Upvote
0
All TSC Commands are moved to a new helper class.
All Pop80 Commands in a new 2nd helperclass
Note the new references....
PosPrintSDK
Author:
Version: 0.2
All Pop80 Commands in a new 2nd helperclass
Note the new references....
B4X:
Sub Globals
'These global variables will be redeclared each time the activity is created.
'These variables can only be accessed from this module.
Dim pos As POSPrinter
Dim tsc As TSChelper
Dim pos80 As POS80helper
End Sub
Sub Activity_Create(FirstTime As Boolean)
'Do not forget to load the layout file created with the visual designer. For example:
'Activity.LoadLayout("Layout1")
pos.Initialize("POS")
End Sub
Sub Activity_Resume
End Sub
Sub Activity_Pause (UserClosed As Boolean)
End Sub
Sub POS_onBind()
' You can now use the BDxxx Methods. The Service is connected.
Log($"POS_onBind()"$)
pos.BDconnectBtPort("DC:0D:30:06:98:71","BDconnectBtPort")
End Sub
Sub POS_onFailed(tag As Object)
Log($"POS_onFailed(${tag})"$)
End Sub
Sub POS_onSuccess(tag As Object)
Log($"POS_onSuccess(${tag})"$)
Dim list As List
list.Initialize
list.add(tsc.sizeBymm(60,30))
'//set the gap
list.add(tsc.gapBymm(0,0))
'//clear cach
list.add(tsc.cls())
'//print barcode
list.add(tsc.barCode(60,50,"128",100,1,0,2,2,"abcdef12345"))
'//print
list.add(tsc.print(1))
pos.writeDataByYouself(list,"Barcode")
Dim list As List
list.Initialize
'//default Is gbk,If you don't set the charset
tsc.CharsetName = "gbk"
list.Add(tsc.sizeBymm(60,30))
list.add(tsc.gapBymm(0,0))
'// clear the cache
list.add(tsc.cls())
'//barcode command，parama：int x: x print start point；int y:y print start point；
'//string font，text font Type ；int rotation，angle of rotation ；
'//int x_multiplication，Font x directional magnification
'//int y_multiplication,Font y directional magnification
'//string content，print cont
list.Add(tsc.text(10, 10, "1", 0, 1, 1,"abc123"))
'//print line,int x;int y;int width，width of the line ;int height,height of the line
list.add(tsc.bar(20,40, 200, 3))
'//print barcode
list.add(tsc.barCode(60, 50, "128", 100, 1, 0, 2, 2,"abcdef12345"))
list.add(tsc.feed(20))
list.add(tsc.cut)
'//print
list.add(tsc.print(1))
pos.writeDataByYouself(list,"Text")
End Sub
Sub POS_onUnBind()
' Service Disconnected....
' DO NOT use the DBxxx-Methods....
Log($"POS_onUnBind()"$)
End SubPosPrintSDK
Author:
Version: 0.2
- POS80helper
- Functions:
- CancelChineseCharModel As Byte()
- cancelUserDefinedCharacters (n As Int) As Byte()
- canclePrintDataByPagemodel As Byte()
- creatCashboxContorlPulse (m As Int, t1 As Int, t2 As Int) As Byte()
- definedDownLoadBmp (bitmap As android.graphics.Bitmap, bmpType As net.posprinter.utils.BitmapToByteData.BmpType) As Byte()
- definedFlashBmp (list As java.util.List, n As Int, bmpType As net.posprinter.utils.BitmapToByteData.BmpType) As Byte()
- definedUserDefinedChineseChar (c2 As Int, b As Byte()) As Byte()
- defineuserDefinedCharacters (c1 As Int, c2 As Int, b As Byte()) As Byte()
- executeMacrodeCommand (r As Int, t As Int, m As Int) As Byte()
- executePrintDataSaveByTransformToHex As Byte()
- horizontalPositioning As Byte()
- initializePrinter As Byte()
- openCashboxRealtime (m As Int, t As Int) As Byte()
- openOrCloseAutoReturnPrintState (n As Int) As Byte()
- POSallowOrForbidPressButton (n As Int) As Byte()
- printAndBackStandardmodel As Byte()
- PrintAndCarriageReturn As Byte()
- printAndFeed (n As Int) As Byte()
- printAndFeedForward (n As Int) As Byte()
- printAndFeedLine As Byte()
- printBarcode (m As Int, content As String) As Byte()
- printBarcode2 (m As Int, n As Int, content As String) As Byte()
- printBmpInFLASH (n As Int, m As Int) As Byte()
- printByPagemodel As Byte()
- printDownLoadBmp (m As Int) As Byte()
- printerOrderBuzzingAndWarningLight (m As Int, t As Int, n As Int) As Byte()
- printerOrderBuzzingHint (n As Int, t As Int) As Byte()
- printQRcode (n As Int, errLevel As Int, code As String) As Byte()
- printRasterBmp (m As Int, bitmap As android.graphics.Bitmap, bmpType As net.posprinter.utils.BitmapToByteData.BmpType, alignType As net.posprinter.utils.BitmapToByteData.AlignType, pagewidth As Int) As Byte()
- PrintsTheMaxiCodeSymbolDataInTheSymbolStorageArea As Byte()
- PrintsThePDF417SymbolDataInTheSymbolStorageArea As Byte()
- PrintsTheQRCodeSymbolDataInTheSymbolStorageArea As Byte()
- requestRealtimeForPrint (n As Int) As Byte()
- returnState (n As Int) As Byte()
- selectAlignment (n As Int) As Byte()
- selectBmpModel (m As Int, nL As Int, nH As Int, b As Byte()) As Byte()
- selectCharacterCodePage (n As Int) As Byte()
- selectCharacterSize (n As Int) As Byte()
- selectChineseCharModel As Byte()
- selectCutPagerModerAndCutPager (m As Int) As Byte()
- selectFont (n As Int) As Byte()
- selectHRICharacterPrintPosition (n As Int) As Byte()
- selectHRIFont (n As Int) As Byte()
- selectInternationalCharacterSets (n As Int) As Byte()
- selectOrCancelBoldModel (n As Int) As Byte()
- selectOrCancelChineseCharDoubleWH (n As Int) As Byte()
- selectOrCancelChineseCharUnderLineModel (n As Int) As Byte()
- selectOrCancelCW90 (n As Int) As Byte()
- selectOrCancelDoubelPrintModel (n As Int) As Byte()
- selectOrCancelInvertPrintModel (n As Int) As Byte()
- selectOrCancelUnderlineModel (n As Int) As Byte()
- selectOrCancleCustomChar (n As Int) As Byte()
- selectPageModel As Byte()
- selectPrintDirectionUnderPageModel (n As Int) As Byte()
- selectPrinter (n As Int) As Byte()
- selectPrintModel (n As Int) As Byte()
- selectPrintTransducerOutPutPageOutSignal (n As Int) As Byte()
- selectPrintTransducerStopPrint (n As Int) As Byte()
- selectStandardModel As Byte()
- sendRealtimestatus (n As Int) As Byte()
- setAbsolutePositionUnderPageModel (nL As Int, nH As Int) As Byte()
- setAbsolutePrintPosition (m As Int, n As Int) As Byte()
- setBarcodeHeight (n As Int) As Byte()
- setBarcodeWidth (n As Int) As Byte()
- setCharRightSpace (n As Int) As Byte()
- setDefultLineSpacing As Byte()
- setLeftSpace (nL As Int, nH As Int) As Byte()
- setLineSpaceing (n As Int) As Byte()
- setPrintAreaUnderPageModel (xL As Int, xH As Int, yL As Int, yH As Int, dxL As Int, dxH As Int, dyL As Int, dyH As Int) As Byte()
- setRelativeHorizontalPrintPosition (nL As Int, nH As Int) As Byte()
- SetsTheErrorCorrectionLevelForPDF417 (m As Int, n As Int) As Byte()
- SetsTheModuleWidthOfPDF417 (n As Int) As Byte()
- SetsTheNumberOfColumnsOfTheDataAreaForPDF417 (n As Int) As Byte()
- SetsTheNumberOfRowsOfTheDataAreaForPDF417 (n As Int) As Byte()
- SetsTheSizeOfTheQRCodeSymbolModule (n As Int) As Byte()
- setVerticalRelativePositionUnderPageModel (nL As Int, nH As Int) As Byte()
- SpecifiesTheModeForMaxiCodeSymbol (n As Int) As Byte()
- CancelChineseCharModel As Byte()
- Functions:
- POSPrinter
- Events:
- onBind()
- onFailed (tag As Object)
- onSuccess (tag As Object)
- onUnBind()
- Fields:
- binder As net.posprinter.posprinterface.IMyBinder
- ISCONNECT As Boolean
- binder As net.posprinter.posprinterface.IMyBinder
- Functions:
- BDacceptdatafromprinter
- BDcheckLinkedState (tag As Object)
- BDclearBuffer
- BDconnectBtPort (arg0 As String, tag As Object)
- BDconnectNetPort (arg0 As String, arg1 As Int, tag As Object)
- BDconnectUsbPort (arg1 As String, tag As Object)
- BDdisconnectCurrentPort (tag As Object)
- Initialize (EventName As String)
- readBuffer As net.posprinter.utils.RoundQueue
- write (data As Byte(), tag As Object)
- writeDataByYouself (commands As List, tag As Object)
- BDacceptdatafromprinter
- Properties:
- AlignTypeCenter As net.posprinter.utils.BitmapToByteData.AlignType [read only]
- AlignTypeLeft As net.posprinter.utils.BitmapToByteData.AlignType [read only]
- AlignTypeRight As net.posprinter.utils.BitmapToByteData.AlignType [read only]
- BmpTypeDithering As net.posprinter.utils.BitmapToByteData.BmpType [read only]
- BmpTypethreshold As net.posprinter.utils.BitmapToByteData.BmpType [read only]
- AlignTypeCenter As net.posprinter.utils.BitmapToByteData.AlignType [read only]
- Events:
- TSChelper
- Functions:
- autoDetect (x As Int, y As Int) As Byte()
- backFeed (n As Int) As Byte()
- bar (x As Int, y As Int, width As Int, heigth As Int) As Byte()
- barCode (x As Int, y As Int, codeType As String, heigth As Int, human As Int, rotation As Int, narrow As Int, wide As Int, content As String) As Byte()
- bitmap (x As Int, y As Int, mode As Int, bitmap As android.graphics.Bitmap, bmpType As net.posprinter.utils.BitmapToByteData.BmpType) As Byte()
- blineBydot (m As Int, n As Int) As Byte()
- blineByinch (m As Double, n As Double) As Byte()
- blineBymm (m As Double, n As Double) As Byte()
- blineDetect (x As Int, y As Int) As Byte()
- block (x As Int, y As Int, width As Int, height As Int, font As String, rotation As Int, x_multiplication As Int, y_multiplication As Int, space As Int, alignment As Int, content As String) As Byte()
- box (x As Int, y As Int, x_end As Int, y_end As Int, thickness As Int) As Byte()
- checkPrinterStateByPort4000 As Byte()
- checkPrinterStateByPort9100 As Byte()
- cls As Byte()
- codeBlockFMode (x As Int, y As Int, rotation As Int, row_height As Int, module_width As Int, content As String) As Byte()
- codePage (n As String) As Byte()
- country (n As String) As Byte()
- cut As Byte()
- delay (ms As Int) As Byte()
- density (n As Int) As Byte()
- direction (n As Int) As Byte()
- disPlay (s As String) As Byte()
- dmatrix (x As Int, y As Int, width As Int, height As Int, expression As String, content As String) As Byte()
- dmatrix3 (x As Int, y As Int, width As Int, height As Int, xm As Int, row As Int, col As Int, expression As String, content As String) As Byte()
- downLoad (filename As String) As Byte()
- downLoad2 (filename As String, bitmap As String) As Byte()
- downLoad3 (filename As String, filepath As String) As Byte()
- downLoad4 (filename As String, size As Int, content As String) As Byte()
- ellipse (x As Int, y As Int, width As Int, height As Int, thickness As Int) As Byte()
- eop As Byte()
- erase (x As Int, y As Int, width As Int, height As Int) As Byte()
- feed (n As Int) As Byte()
- files As Byte()
- formFeed As Byte()
- gapBydot (m As Int, n As Int) As Byte()
- gapByinch (m As Double, n As Double) As Byte()
- gapBymm (m As Double, n As Double) As Byte()
- gapDetect (x As Int, y As Int) As Byte()
- home As Byte()
- initialPrinter As Byte()
- kill (filename As String) As Byte()
- limitFeedBydot (n As Int) As Byte()
- limitFeedByinch (n As Double) As Byte()
- limitFeedBymm (n As Double) As Byte()
- move As Byte()
- offSetBydot (m As Int) As Byte()
- offSetByinch (m As Double) As Byte()
- offSetBymm (m As Double) As Byte()
- pdf417 (x As Int, y As Int, width As Int, height As Int, rotate As Int, option As String, content As String) As Byte()
- print (m As Int) As Byte()
- print2 (m As Int, n As Int) As Byte()
- putBmp (x As Int, y As Int, filename As String, bpp As Int, contrast As Int) As Byte()
- qrCode (x As Int, y As Int, eccLevel As String, cellWidth As Int, mode As String, rotation As Int, model As String, mask As String, content As String) As Byte()
- reference (x As Int, y As Int) As Byte()
- reverse (x As Int, y As Int, width As Int, height As Int) As Byte()
- run (filename As String) As Byte()
- selfTest As Byte()
- selfTest2 (page As String) As Byte()
- shift (n As Int) As Byte()
- sizeBydot (m As Int, n As Int) As Byte()
- sizeByinch (m As Double, n As Double) As Byte()
- sizeBymm (m As Double, n As Double) As Byte()
- sound (level As Int, interval As Int) As Byte()
- speed (n As Double) As Byte()
- text (x As Int, y As Int, font As String, rotation As Int, x_multiplication As Int, y_multiplication As Int, content As String) As Byte()
- autoDetect (x As Int, y As Int) As Byte()
- Properties:
- CharsetName As String [write only]
- CharsetName As String [write only]
- Functions:
Upvote
0
In the Pos80 helper you´ll find different methods starting with "select". Check if one of these is able to switch the printing mode (printing model).
Also check method
and try different values...
Also check method
B4X:
selectPrintModel (n As Int)
Upvote
0
In the meantime that @DonManfred's printer arrive..or I can make the new library work..
I'd like to go back to the original code and do a try..
Notes:
-Using the code-demo the printer is printing OK,
-Using this App (posprinterdriver) the printer is cutting the paper
How should I send this Chr(29) & Chr(86) & Chr(48) command to the printer?
The right way to send those commands..
Edit: I have the English manual now, attached..
I'd like to go back to the original code and do a try..
Notes:
-Using the code-demo the printer is printing OK,
-Using this App (posprinterdriver) the printer is cutting the paper
B4X:
#Region Module Attributes
#FullScreen: False
#IncludeTitle: True
#ApplicationLabel: Bluetooth POS Printing
#VersionCode: 1
#VersionName:
#SupportedOrientations: portrait
#CanInstallToExternalStorage: False
#End Region
Sub Process_Globals
Dim PrintBuffer As String
Dim BtAdmin As BluetoothAdmin
Dim BTConnection As Serial
Dim Printer As TextWriter
End Sub
Sub Globals
End Sub
Sub Activity_Create(FirstTime As Boolean)
If FirstTime Then
BtAdmin.Initialize("BlueTooth")
BTConnection.Initialize("Printer")
Dim PairedDevices As Map
PairedDevices = BTConnection.GetPairedDevices
Dim l As List
Dim DeviceName, MacAddress As String
l.Initialize
For i = 0 To PairedDevices.Size - 1 'Check all devices
l.Add(PairedDevices.GetKeyAt(i))
DeviceName=PairedDevices.Getkeyat(i)
MacAddress=PairedDevices.GetValueAt(i)
Log(DeviceName & " -> " & MacAddress)
If DeviceName.Contains("Printer001") Then 'Insert the BT-Name of the printer or use the MAC address
Exit
End If
Next
BTConnection.Connect(MacAddress)
End If
End Sub
Sub Activity_Resume
End Sub
Sub Activity_Pause
End Sub
Sub Printer_Connected (Success As Boolean)
If Success Then
Printer.Initialize2(BTConnection.OutputStream,"windows-1252") 'important to print f.e. German/French chars
PrintBuffer=Chr(27)&"t"&Chr(16)&"Hello" 'Set codepage 1252
Printer.WriteLine(PrintBuffer)
PrintBuffer=Chr(29) & Chr(86) & Chr(48)
Printer.Flush 'limpia la impresora
Msgbox("Printed!","")
Printer.Close
BTConnection.Disconnect 'disable this if you like
Else
Msgbox("No printer found...","Print error")
End If
End SubHow should I send this Chr(29) & Chr(86) & Chr(48) command to the printer?
The right way to send those commands..
Edit: I have the English manual now, attached..
Attachments
Last edited:
Upvote
0
B4X:
...
Sub Printer_Connected (Success As Boolean)
If Success Then
Printer.Initialize2(BTConnection.OutputStream,"windows-1252") 'important to print f.e. German/French chars
PrintBuffer=Chr(27)&"t"&Chr(16)&"Hello" 'Set codepage 1252
Printer.WriteLine(PrintBuffer)
PrintBuffer=Chr(29) & Chr(86) & Chr(48)
Printer.WriteLine(PrintBuffer) '<-------- YOU FORGET THIS
Printer.Flush 'limpia la impresora
Msgbox("Printed!","")
Printer.Close
BTConnection.Disconnect 'disable this if you like
Else
.....
Upvote
0
Solution
Similar Threads
- Question
Android Question
How to set alignment for pos printing receipt on sunmi t2
- Question
Android Question
Microflash 4TE Receipt Printer, using USB Connection
