iOS Question Issue with Google Maps Camera Position in 1:1 Panel

[ykucuk]

Hello,

I'm encountering an issue with Google Maps in my application. When I use Google Maps in full screen mode, the camera position works correctly. However, when I place the map inside a 1:1 aspect ratio panel, the camera position does not focus as expected.

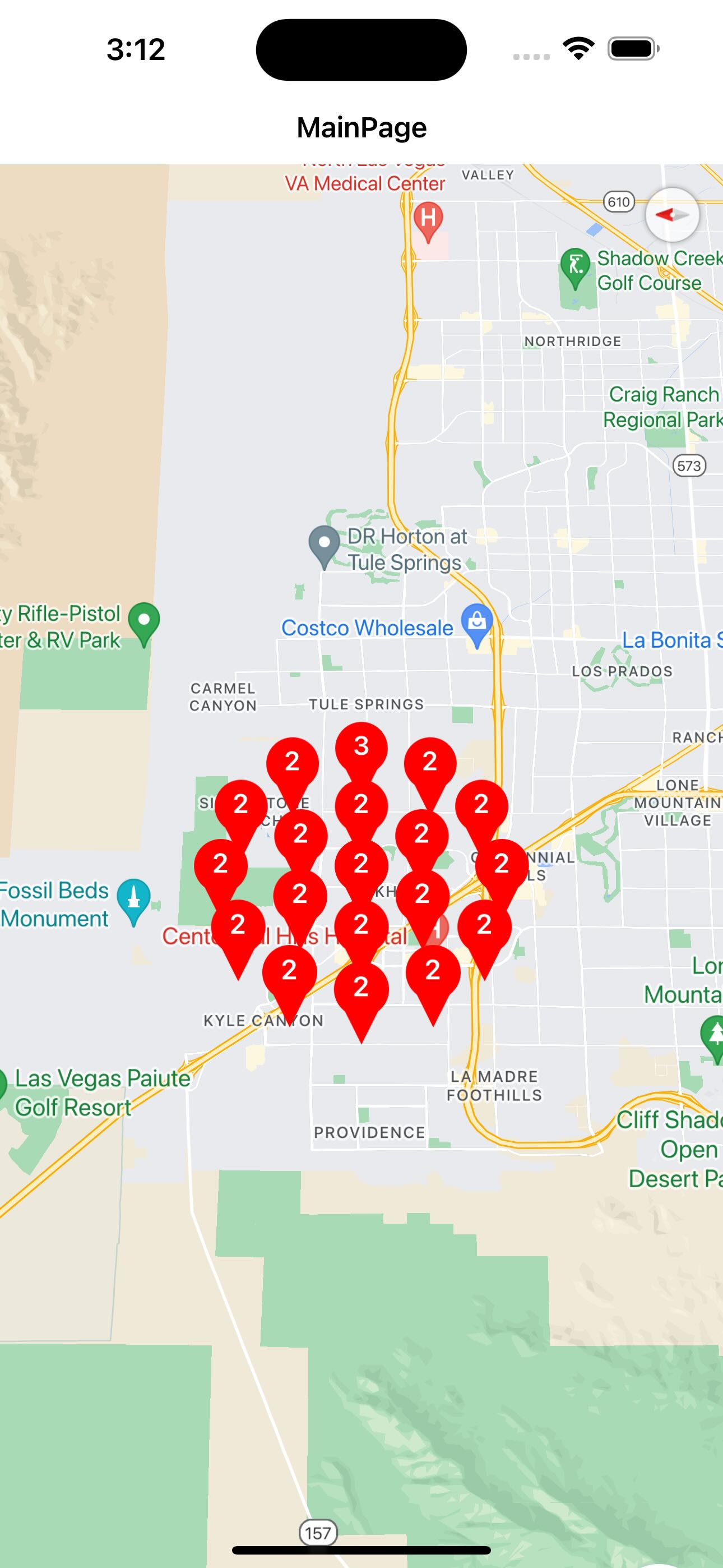

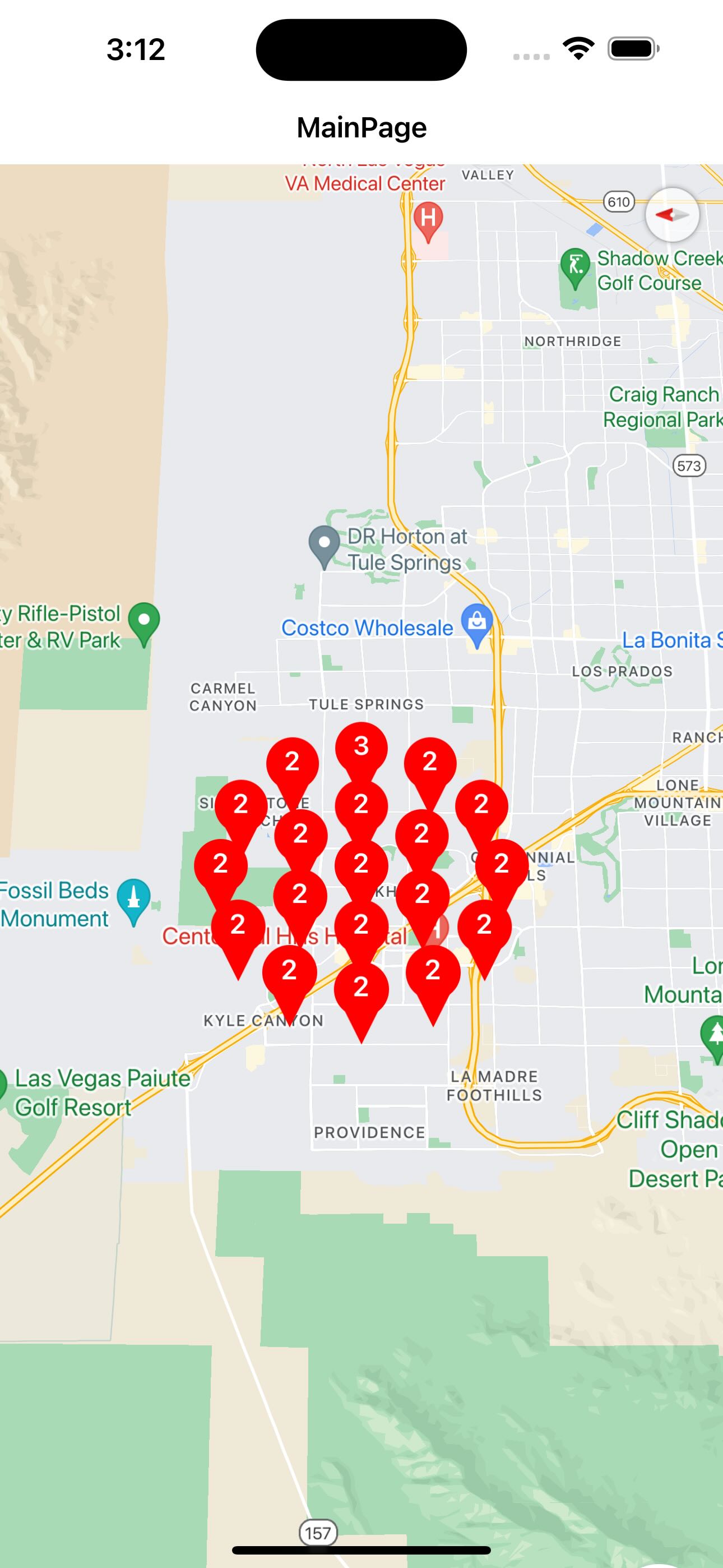

Works well

gmap.Initialize("gmap", ApiKey)
Root.AddView(gmap, 0,0,GetDeviceLayoutValues.Width,GetDeviceLayoutValues.Height)

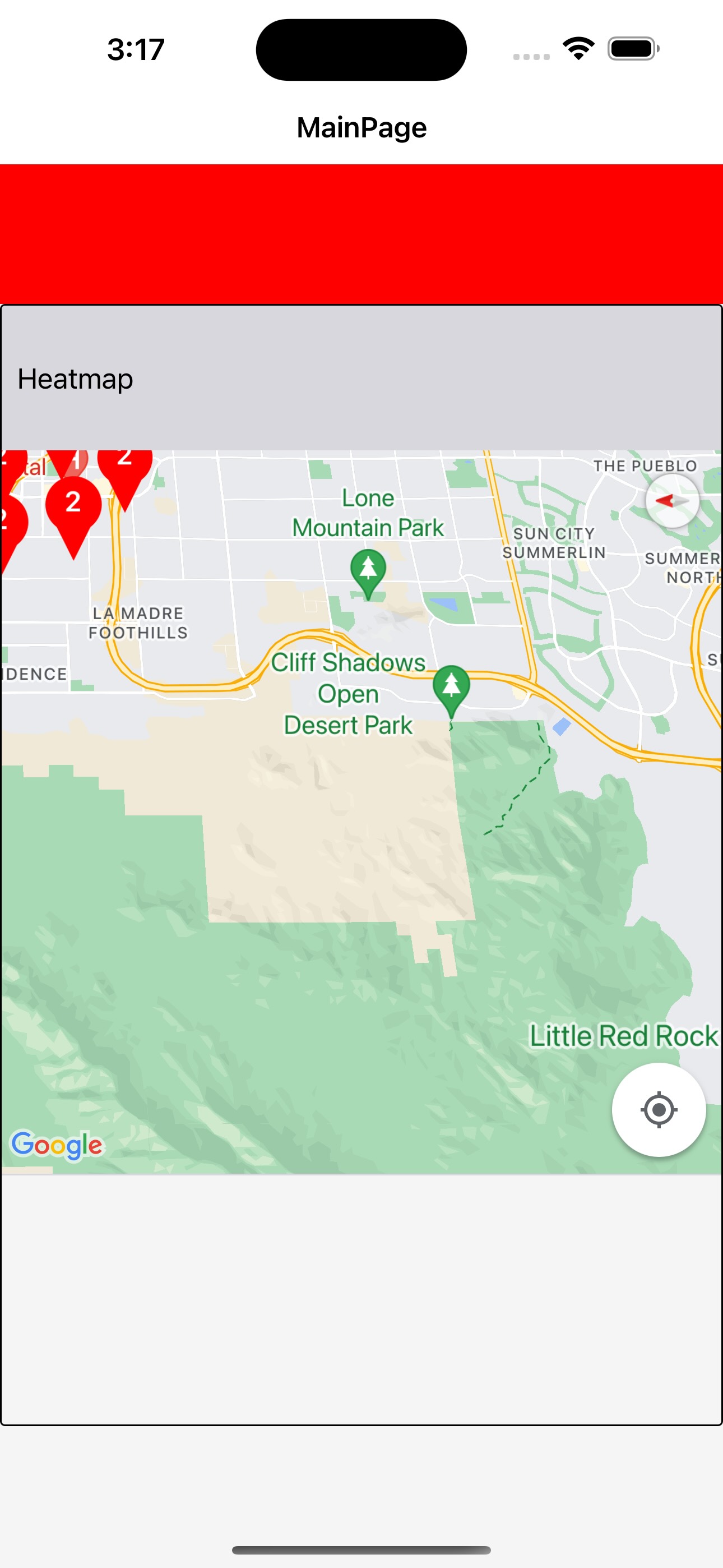

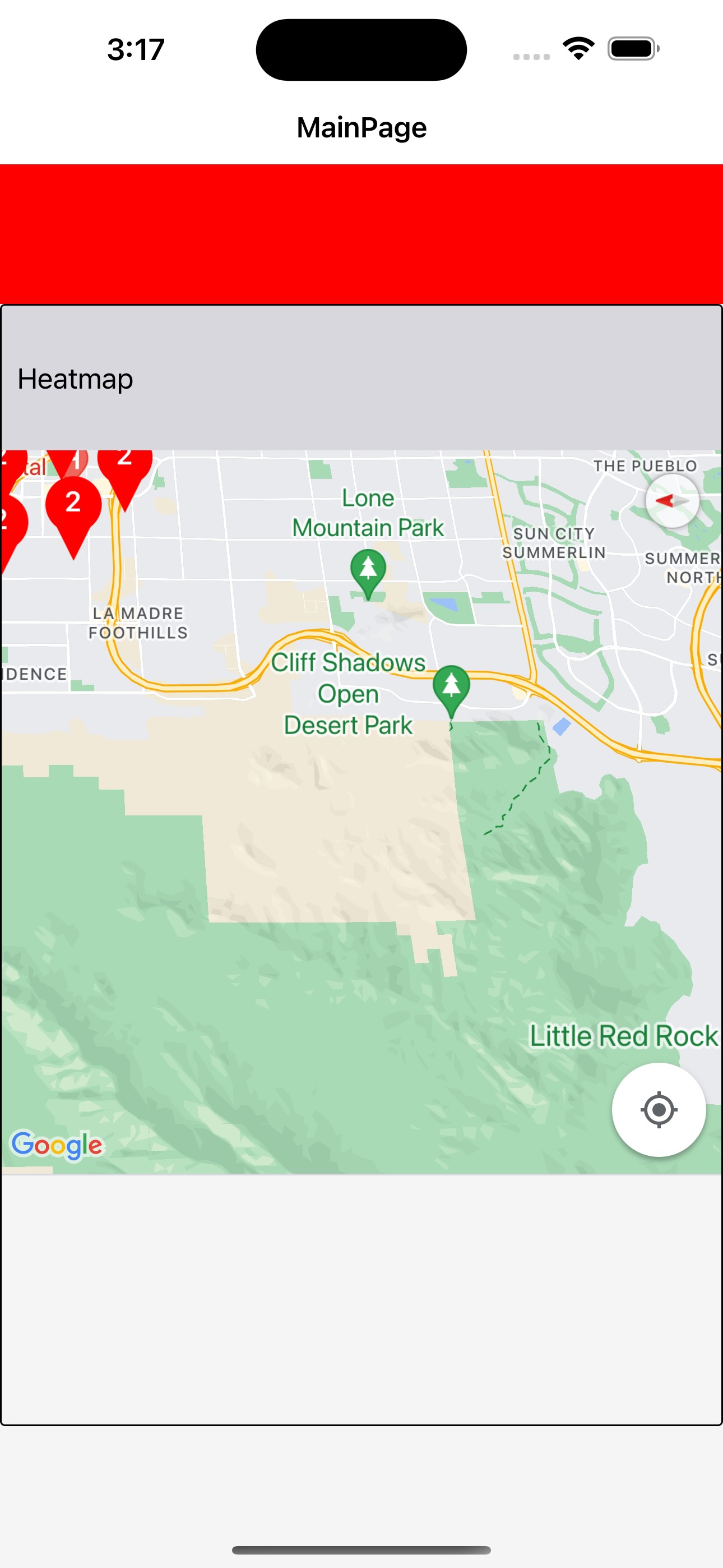

Position is wrong

gmap.Initialize("gmap", ApiKey)
pnl.AddView(gmap, 0, 0, pnl.Width,pnl.Width)

Despite setting the camera position , it doesn't focus correctly when the map is placed in the 1:1 panel. Any suggestions on how to resolve this issue would be greatly appreciated.

Thank you!



[Erel]

Are you resizing the map when the page is resized?

Something like:

Private Sub Page1_Resize(Width As Int, Height As Int)
    If gmap.IsInitialized Then gmap.SetLayoutAnimated(0, 1, 0, 0, Width, Height)
End Sub

Or B4XPage_Resize for B4XPages projects.



[ykucuk]

Are you resizing the map when the page is resized?

Yes

Hello Erel,

In the example project, I set the height of the Panel to %100X via the designer. While adding the gmap inside Addmap, I used these dimensions. I made the camera position the same as the markers I added to the map, but the problem persists.

Private Sub AddMap
    gmap.Initialize("gmap", ApiKey)
    Panel1.AddView(gmap, 0, 0, Panel1.Width, Panel1.Height)
    'gmap.MapType = gmap.MAP_TYPE_TERRAIN
    gmap.GetUiSettings.CompassEnabled = True
    gmap.GetUiSettings.MyLocationButtonEnabled = True
    gmap.MyLocationEnabled = True
    'add three markers
    Dim m As Marker = gmap.AddMarker(41.01, 28.01, "test")
    m.Snippet = "Marker 1"
    m.Opacity = 0.5
    m = gmap.AddMarker2(41, 28, "Marker 2", Colors.Green)
'    gmap.AddMarker3(30, 30, "marker3", LoadBitmap(File.DirAssets, "up76.png"))
    gmap.AddMarker3(41.011, 28.011, "marker3", CreateBitmap("L1"))
    gextra.Initialize(gmap)
    gextra.SetGroundAnchor(m, 0.5, 0.5)
    'gextra.MapStyle(File.ReadString(File.DirAssets, "style.json"))
    Dim no As NativeObject = gmap
    no.SetField("selectedMarker", m)
    m.Draggable = True
    'gmap.AddMarker3(20, 20, "ddd", LoadBitmap(File.DirAssets, "up76.png"))
'    'change the camera position
    Dim c As CameraPosition
    c.Initialize2(41, 28, 14, 315, 45)
    gmap.AnimateCamera(c)
    gextra.SetMarkerRotation(m, 45)
    Dim ne, sw As LatLng
    ne.Initialize(20, 20)
    sw.Initialize(00, 00)
    Dim bounds As Object = gextra.CreateBounds(ne, sw)
    gextra.AddGroundOverlay(bounds, LoadBitmap(File.DirAssets, "up76_2.png"))
    gextra.SetSelectedMarker(m)
''    'add a polyline
    pl = gmap.AddPolyline
    Dim l1, l2, l3, l4 As LatLng
    l1.Initialize(10, 10)
    l2.Initialize(10, 20)
    l3.Initialize(20, 20)
    l4.Initialize(20, 10)
    'pl.Points = Array(l1, l2, l3, l4, l1)
    'gextra.ZoomToPoints(pl.Points)
    pl.Width = 5
    pl.Color = Colors.Red
    gextra.AddPolygon(Array(l1, l2, l3, l4, l1), 0x800000FF, Colors.Gray)
End Sub

You can download the example project from the following link:

example project



[Erel]

The mistake is here:

Private Sub Page_Resize (Width As Float, Height As Float)
    If gmap.IsInitialized Then gmap.SetLayoutAnimated(0, 1, 0, 0, Width, Height)
End Sub

You are resizing the map to the page size.

Best to handle the panel resize event instead:

Private Sub Panel1_Resize (Width As Float, Height As Float)
    If gmap.IsInitialized Then gmap.SetLayoutAnimated(0, 1, 0, 0, Width, Height)
End Sub
