B4A Library libGDX - Game Engine



One of the best game engines for Android is now available to B4A users. Unleash your creativity!

You can read a description of this library in this guide.

Download for B4A v10.60 and older (4 MB)
Download for B4A v10.70 and newer (4 MB)

Starting from version 1.13, the library is compiled with Java 8, and thus requires a recent version of B4A and Java 8+.
To install the library, copy the .jar file and the .xml file in your libraries folder.

This library is not compatible with the Debug mode. Ensure that you always compile in Release mode.

Download also the examples and templates.

You can reduce the weight of the library if you want to keep your APK file as small as possible. Read this post to learn how to create your Lite version.

Tutorials:
How to make games
Introduction to the libGDX library
PacDroid: from scratch to fun
Shaders

Take also a look at the Cloney Bird tutorial by andymc.

Plugins:
Box2DLights
SpecialFX

Versions:
v1.14:
- I fixed a bug when Looping was changed during the execution of a sound;
- I added the RenderImageLayerAt function to all map renderers;
- I added the support of the new packaging tool used by B4A v10.70 (this mainly fixes the problem of / in paths of internal assets);
- I updated the manifest of all examples.

v1.13:
- I fixed a bug when the device was rotated (the Timer thread, for example, was not disposed which caused a problem in lgGestureDetector);
- I added two functions for Tiled maps: renderImageLayerAt and renderTileLayerAt.

v1.12:
- I added the .so libraries for 64 bits CPU;
- I added the PinchStop event to lgGestureDetector;
- I added the Orientation property to lgBox2DTransform;
- I fixed minor bugs.

v1.11:
- I fixed several bugs;
- I removed the unwanted delay after a change of screen in the Render event;
- I added the lgAsyncExecutor and lgAsyncTask classes;
- I added the missing file for the Progression demo;
- I updated the Freetype library (.so).

v1.10:
- I fixed several bugs;
- I added the support of expansion files: classes lgZipResourceFile and lgZipEntry, functions lgFiles.SetAPKExpansion and lgFiles.ExpansionFile (untested);
- I added a HashCode function to all lg...Array classes;
- I added a dozen of predefined colors to lgColor;
- I added the "raw_y" property to lgMapObjects;
- I added the grow, growX and growY functions to lgScn2DTableCell;
- I added the lerpAngle and lerpAngleDeg functions to lgMathUtils;
- I improved Atan2 in lgMathUtils;
- the collision objects of TMX tiles are now accessible via the Objects property of lgMapAnimatedTiledMapTile and lgMapStaticTiledMapTile;
- I added two new examples: Progression and Map_Box2D;
- I updated the manifest of most examples and templates.

v1.09:
- I fixed bugs, notably a major bug that crashed sometimes the game in the Render event handler when the current screen is changed;
- I added getColumnWidth and getRowHeight to lgScn2DTable and all classes that inherit from lgScn2DTable;
- I added the defaults function to lgScn2DTableCell;
- TMX files are loaded faster.

1.08:
- I fixed bugs;
- I added the lgFontGeneratorParameters class;
- I added CreateFontWithParam to lgFontGenerator;
- lgFontGenerator can add now a border and a shadow to the generated fonts (via CreateFontWithParam);
- I added Initialize2, LabelAlign and LineAlign to lgScn2DLabel;
- I added SetStateWithoutEvent to lgScn2DButton and lgScn2DTextButton;
- I added TitleLabel and TitleTable to lgScn2DWindow (this deprecates ButtonTable, Title, TitleWidth and TitleAlignment);
- I added getIndex to lgMapLayers and lgMapObjects;
- I added Target to actions of Scene2D;
- I removed Print from lgScn2DGroup (use Log(myGroup) instead);
- lgMapTiledMapImageLayer uses now float values for position;
- lgNinePatch uses now float values for paddings;
- lgPixmapPacker and lgPixmapPackerPage were rewritten (the many changes will break your existing code).

1.07:
- I fixed a few bugs, as usual;
- I added InitializeTransparentView to LibGDX;
- I added the lgKTXTextureData class to support the KTX and ZKTX file formats;
- I added a new demo: Format_KTX;
- I added argb8888 and argb8888ToColor to lgColor
- I added the lgMapAtlasTmxMapLoaderParameters class;
- I added Initialize3 and Load2 to lgMapAtlasTmxMapLoader;
- I added LoadExternal and IsInitialized to lgMapTmxMapLoader;
- I added FrameTiles to lgMapAnimatedTiledMapTile;
- I added a Tag property to lgSprite;
- I added hasOppositeDirection, hasSameDirection, isCollinear, isOnLine, isPerpendicular, AngleRad and rotateRad to lgMathVector2;
- I added rotateRad to lgMathMatrix4;
- I added clamp4, log, log2, Randomize, randomInt, randomInt2, randomSign, randomTriangular and randomTriangular2 to lgMathUtils;
- the random number generator of lgMathUtils uses now the xorshift128+ algorithm;
- I renamed Create2 to Combine in lgMesh;
- I removed the Create and Create3 functions from lgMesh;
- I removed the deprecated Color property from lgVertexAttributesUsage;
- it is possible now to change the KeyFrames array of lgAnimation after its initialization.

v1.06:
- I fixed a few bugs;
- I added a Texture property to lgSprite;
- I added the MotorJoint type to lgBox2DWorld;
- I added GetFixture to lgBox2DBody;
- I added Initialize3 to lgShapeRenderer to allow the use of custom shader programs;
- I added ScaleEffect to lgParticleEffect;
- I added CleanUpBlendFunction to lgParticleEmitter;
- I added scl2 to lgMathVector2;
- I added IsEnabled to lgGLProfiler;
- I added Percent, VisualPercent and VisualInterpolation to lgScn2DProgressBar;
- I added Percent, VisualPercent, VisualInterpolation and VisualInterpolationInverse to lgScn2DSlider;
- I added isLeftEdge, isRightEdge, isTopEdge, isBottomEdge to lgScn2DScrollPane;
- The Reset function of lgScn2DTableCell sets now all constraints to their default values;
- I modified the Map_Hexagonal example to display the coordinates of the touched hex.

v1.05:
- I fixed two bugs;
- the latest TMX format of Tiled Map Editor is now properly decoded (with support of animated tiles and image layers);
- I added the RenderImageLayer function to the map renderers;
- I added the lgMapTiledMapImageLayer class for the image layer of tiled maps;
- I added the OffsetX and OffsetY properties to lgMapAnimatedTiledMapTile and lgMapStaticTiledMapTile;
- I added the CurrentFrame and CurrentFrameIndex properties to lgMapAnimatedTiledMapTile;
- I added the FinishLoadingAsset function to lgAssetManager;
- I added the SetAlpha function to lgBitmapFontCache;
- I added FixtureCount and GetAllFixtures to lgBox2DWorld;
- I added the ResetOnTouchUp property to lgTouchpad;
- I removed Scale and Div from lgMathVector3 because these functions were deprecated.

v1.04:
- I fixed various bugs, notably a bug affecting the Backspace key on the virtual keyboard of some devices;
- I added the missing OpenGL functions in lgGL;
- I added the KeepWithinStage function to lgDragAndDrop;
- I added the dampingRatio and frequencyHz fields to lgBox2DWeldJointDef;
- I added the DampingRatio and Frequency properties to lgBox2DWeldJoint;
- I added the Line6 function to lgShapeRenderer;
- I added VisualScrollPercentX, VisualScrollPercentY and FlickScrollTapSquareSize to lgScn2DScrollPane;
- the LineHeight property of BitmapFonts can be modified;
- I updated the .so files;
- I added an example: Sensors.

v1.03:
- I fixed various bugs;
- I added the VertexColor property to lgPolygonSprite;
- I added the Equals function to lgArray;
- I renamed Ellipse to Ellipsis in lgScn2DLabel;
- I improved the code of lgPixmapIO (less memory used, PNG with compression);
- I fixed a problem with the fragment shaders of two examples.

v1.02:
- I fixed 3 bugs in lgScn2dTable and a few others in other classes;
- I added 4 examples using shaders;
- I removed the lgDefaultGroupStrategy class because it was useless and changed the initialization of lgDecal objects;
- I added the SetRotation function to lgDecal;
- I added the Tint function to lgBitmapFontCache;
- I added the Cancel and Reset functions to lgGestureDetector;
- I added the IsKeyJustPressed function to lgInput;
- I added the Colinear and EnsureCCW functions to lgMathGeometryUtils;
- I added the Equals function to lgMathGridPoint2, lgMathGridPoint3 and lgMathRay;
- I added the IntersectRayRay and DistanceLinePoint2 functions to lgMathIntersector;
- I added the Extract4x3Matrix function to lgMathMatrix4;
- I added the WindowSize property to lgMathWindowedMean;
- I added the IsDrawing function to lgShapeRenderer;
- I added the ColorUnpacked field to lgVertexAttributesUsage;
- I added the Clear function to lgScn2DButtonGroup;
- I added the CancelTouchFocus property to lgScn2DDragAndDrop;
- I added the Rows, Columns, BackgroundTop, BackgroundLeft, BackgroundBottom, and BackgroundRight properties to lgScn2DTable;
- I added the ClearActor function to lgScn2dTableCell;
- I added the ActionsRequestRendering property to lgScn2DStage;
- I renamed CancelTouchFocus2 to CancelTouchFocusExcept in lgScn2DStage;
- I removed the Clear function from lgScn2dTableCell;
- The color markups are now supported by lgScn2dLabel and lgScn2dWindow (title).

v1.01:
- I fixed a handful of minor bugs and a big bug affecting the screen events;
- I added IsDrawing in lgSpriteBatch.

v1.0:
- I fixed bugs in various classes;
- I rewrote big chunks of internal graphics classes;
- the TMX map loaders are now able to read the Rotation property;
- the FrameDuration property of lgAnimation can now be changed during the animation;
- I added an Initialize function to lgMapAnimatedTiledMapTile to be able to set dynamically an animated tile;
- I added two new classes for debugging: lgGLProfiler and lgScn2DDebugRenderer;
- I added DebuggingEnabled and DebugColor to all actors of Scene2D;
- I added ChildrenDebuggingEnabled to all groups of Scene2D;
- I added CellDebugColor to lgScn2DTable and removed all its debug functions;
- I added SetCenterPosition, CenterX and CenterY to all actors of Scene2D;
- I replaced the Widget word by Actor in lgScn2DTableCell;
- I added the Equals and HashCode functions to a few lgMath classes;
- I added the ApproxLength function to lgMathBezier, lgMathBSpline and lgMathCatmullRomSpline;
- I added Set3, SetPosition2, Contains2, Circumference and Area to lgMathCircle;
- I added Set3, SetPosition2, Circumference and Area to lgMathEllipse;
- I added Merge2, Area and Perimeter to lgMathRectangle;
- I added Len and Len2 to lgMathSegment;
- I added Volume and SurfaceArea to lgMathSphere;
- I added Interpolate to lgMathVector2 and lgMathVector3;
- I added the following functions to lgMathMatrix4: mulLeft, Set2, Set3, Set4, Set5, Set6, ScaleX, ScaleY, ScaleZ, ScaleXSquared, ScaleYSquared, ScaleZSquared;
- I added a LoadMipMap event and replaced UseHardwareMipMap by Get/SetGenerationMethod in lgMipMapGenerator;
- Box2D has now its own .so library;
- I added Separations to lgBox2DWorldManifold;
- I added the following functions to lgBox2DEdgeShape: Vertex0, SetVertex0, SetVertex0_xy, HasVertex0, Vertex3, SetVertex3, SetVertex3_xy, HasVertex3;
- I added LocalAxisA to lgBox2DPrismaticJoint;
- I added two new classes to Box2D: lgBox2DMotorJoint and lgBox2DMotorJointDef;
- I added the LoadTextureWithParam function to lgAssetManager and the related lgTextureLoaderParam class;
- I added two new properties (Normalized, Type) and a function (HashCode) to lgVertexAttribute;
- I renamed Color to ColorPacked in lgVertexAttribute;
- I renamed Loop to Repeat in lgSound;
- I renamed consumeCompressedData to consumeCustomData in all TextureData classes;
- I protected some important classes against a repeated initialization to avoid memory leaks and side effects;
- I added a Scene2D_EventsHierarchy demo and modified the following examples: BitmapFont, FrameBuffer, Map_tIDE and Scene2D_Table.

v0.99:
- I fixed numerous bugs, especially in Scene2D where the listeners did not work as expected and actors were not fully re-initialized when Initialize was called again;
- I set to Null the internal objects of classes after a call to Dispose;
- I added the following functions:
+ IsInitialized where it was still missing;​
+ Move to lgArray;​
+ ComputeScaleForPixelHeight to lgBitmapFont;​
+ SetNameForColor, GetColorByName and SetAlpha to lgColor;​
+ Clear to lgMapLayers;​
+ Lerp to lgMathUtils;​
+ Load3 and LoadEmitterImages3 to lgParticleEffect;​
+ SetString to lgScn2DLabel;​
+ Initialize4 to lgScn2DSpriteDrawable, lgScn2DTextureRegionDrawable and lgScn2DTiledDrawable;​
+ UpdateMatrices to lgShapeRenderer;​
+ SetCenterX, SetCenterY and SetCenter to lgSprite;​
- I added a ChildrenCount property to lgScn2DGroup;
- I added a Draw event to lgScn2DImage and lgScn2DLabel;
- I added a Disabled property to lgScn2DScrollPane;
- I added the following predefined colors to lgColor: Olive, Purple, Maroon, Teal, Navy;
- I renamed the alpha function to to255 in lgColor;
- lgBitmapFont and lgBitmapFontCache now support in-string colored text through a simple markup language (see the demo);
- I added the MarkupEnabled property to lgBitmapFont;
- I added a BitmapFont demo;
- I modified the FrameBuffer demo;
- I removed the yUp and yDown parameters from the tiled map loaders and renderers (yUp is now always true);
- I removed Rotation and rotateBy from lgScn2DLabel, lgScn2DList, lgScn2DSelectBox and lgScn2DTouchpad because they were not effective.

v0.98:
- I fixed a bug affecting the scaling and rotation of lgScn2DImage;
- I fixed a bug in lgBox2DParticleEmitter;
- I fixed a bug in lgScn2DButton;
- I added the lgFrameBuffer class and a FrameBuffer demo;
- I added the IsInitialized function where it was missing;
- I added the PolygonRegion type to lgAssetManager;
- I added a Payload parameter to the SrcDragStop event of lgScn2DDragAndDrop;
- I added the Draw2 function to lgScn2DSpriteDrawable;
- I added the Set3 function to lgMathMatrix3.

v0.97:
- I fixed a few bugs (the immersive mode works now as expected);
- I found a solution for the repetition of tiles, so I added two properties (RepeatX, RepeatY) to lgMapTiledMapLayer and I modified the Map demos.
- I added an IsInitialized function to 15 classes;
- I added a RemoveRange function to all the lgArray classes;
- I added the Fling function to lgScn2DScrollPane;
- I added the IsVisualPressed function and the VisualPressedDuration property to lgScn2DClickListener.

v0.96: Major update!
In this version, I:
- removed all the code supporting OpenGL ES 1.x
- fixed a few bugs
- added new classes for decals (2D objects in 3D space): lgDecal, lgDecalBatch, lgCameraGroupStrategy, lgDefaultGroupStrategy, lgSimpleOrthoGroupStrategy
- added an example for decals
- removed the Mesh example as it cannot work with OpenGL 2 without being rewritten
- added the lgScn2DProgressBar class and modified the Scene2D_TextFieldsAndSliders example to show how to use it
- added the IsInitialized function to a dozen of classes
- added these functions:
lgBox2DWheelJoint: isMotorEnabled
lgFontGenerator: CreateFont5, CreateFont6 (for mip maps and filters)
lgMathGeometryUtils: polygonArea, triangleArea
lgMathMatrix3: getScale, getTranslation, setToRotation2, setToRotation3, setToRotationRad, rotateRad
lgMathMatrix4: det3x3, setToRotationRad, setTranslation
lgMathUtils: isEqual, isEqual2, isZero, isZero2
lgMesh: CalculateRadius, CalculateRadius2, CalculateRadiusSquared
lgScn2DDragAndDrop: SetTouchOffset
lgSprite: SetOriginCenter
- added these properties:
lgBox2DJoint: CollideConnected
lgBox2DDistanceJoint, lgBox2DFrictionJoint, lgBox2DRopeJoint, lgBox2DWeldJoint: LocalAnchorA, LocalAnchorB
lgBox2DGearJoint: Joint1, Joint2
lgBox2DPrismaticJoint: LocalAnchorA, LocalAnchorB, MaxMotorForce, ReferenceAngle
lgBox2DWheelJoint: LocalAnchorA, LocalAnchorB, LocalAxisA
lgMathMatrix3: Rotation, RotationRad
lgScn2DActor: isTouchable
lgScn2DScrollPane: ScrollHeight, ScrollWidth, VariableSizeKnobs
lgScn2DWindow: ButtonTable, Resizable, ResizeBorder, TitleWidth
- renamed the functions Translate -> MoveBy, Rotate -> RotateBy and Size -> SizeBy of the lgScn2DActor class
- removed toScreenCoordinates from lgStage and toWindowCoordinates from lgScissorStack
- removed the yDown parameter from ComputePolygon and ComputePolygon2 in the lgMathConvexHull class
- improved a bit the help text of a few functions

v0.95:
Bugfixes and minor improvements
New classes: lgFloatArray, lgIntArray, lgShortArray
The lgMathConvexHull and lgMathEarClippingTriangulator classes are now usable
New functions:
- lgPerspectiveCamera: GetPickRay
- lgScn2DStage: SetViewport2
- lgMathFrustum: pointInFrustum2, sphereInFrustum2, sphereInFrustumWithoutNearFar2
- lgBox2DChainShape: createLoop2
- lgMathIntersector: intersectSegments2
- lgMathVector2: isUnit, isUnit2, isZero, isZero2
- lgMathVector3: set2, isUnit2, isZero2
New configuration setting: useImmersiveMode (for Kitkat)

v0.94:
Bugfixes (including a serious bug with the listeners of Scene2D)
New classes: lgMapTmxMapLoaderParameters and lgMipMapGenerator
New functions:
- lgAnimation: KeyFrames
- lgAssetManager: LoadTMXWithParam
- lgBitmapFontCache: SetColors, SetColors2, SetColorsRGBA
- lgGestureDetector: Initialize2
- lgMapTmxMapLoader: Initialize3, Load2
- lgMathVector2: Rotate90
- lgMesh: UpdateVertices, UpdateVertices2
- lgMusic: Duration, Position
- lgScn2DClickListener: inTapSquare2
- lgScn2DList: ItemHeight
- lgShapeRenderer: RectLine
- lgSocket: RemoteAddress
- lgSprite: Alpha, SetFlip
New parameters: ListBox and ScrollPane styles in lgScn2DSelectBoxStyle.Initialize
New example: Filters
Modified example: Map_tIDE (I fixed the visual issues)
New configuration setting: disableAudio

v0.93:
Bugfixes (including the problem reported for the Get...List functions of Box2D)
Class rewritten: lgTexture (some functions have been added, some have been removed)
New configuration setting: useGLSurfaceViewAPI18 (for Gingerbread and older versions)
New functions: lgFileHandle.equals, lgFileHandle.hashCode, lgShapeRenderer.Triangle2
New class: lgPerspectiveCamera (for 3D)
New example: ShapeRenderer
Modified example: Perf_Skaters (the background scrolls endlessly now)

0.92:
Minor bugfixes
Internal changes for texture handling
Viewport parameters added to CalculateScissors in lgScissorStack
New function in lgScn2DScrollPane: setScrollBarPositions
New function in lgMathVector2: epsilonEquals2
New function in lgMathIntersector: intersectRectangles
Initialize3 and FindDirectionForIsoView functions removed from lgOrthographicCamera

0.91:
Bugfixes (including the problem reported for tIDE properties)
New event for gesture detector: PanStop
New Initialize function for Bitmapfont to allow to flip the font
New Rect functions for the ShapeRenderer
New class: lgMapIsometricStaggeredMapRenderer (for staggered isometric maps)
New function for lgScn2dScrollPane: Cancel
lgMathBezier and lgMathBresenham2 are now fully usable
New functions in lgMathIntersector
A few internal changes to improve performance and stability

0.9:
Bugfixes
New class: lgArray (ordered array with an initial capacity)
Many Lists have been replaced by lgArray for a better performance and more possibilities
Improved documentation (mainly in lgMath and lgSprite classes)
lgMathBSpline and lgMathCatmullRomSpline are now fully usable
New example: SplinePath
New function for particle effects and particle emitters: BoundingBox
New property for lgScn2DLabel: Ellipse

0.8:
First release

Last edited by a moderator:

walterf25

Expert
Licensed User
Longtime User
Hi Frederick, i'm trying to use the "CallSubUI" method in my game but it doesn't seem to be working, can you maybe look into this, this is my code
B4X:
If scorecount > 500 Then
    GAME_STATE = GAME_PASS
    lGdx.CallSubUI("LoadInterstitial", Null)
end if
I'm calling this inside the LG_Render event, i've tried calling from other places also and it still doesn't work, am I missing something?

Please let me know!

thanks,
Walter
Informatix, I have figured it out, i did not know I had to add "LG_" in front of the sub name, thanks anyway.

Cheers
Walter


Erel

B4X founder
Staff member
Licensed User
Longtime User
informatix can you post a simple game like same: flappy birds or super mario using your library?
i m not programer and i like your exemples, it works in my all devices. can you make a simples game using your lib
same mario or flappy birds?
I wouldn't call super mario a simple game. Programming a real game requires programming knowledge. You should download the guides, read the tutorials: http://www.b4x.com/android/documentation.html


Informatix

Expert
Licensed User
Longtime User
Hi Frederick, i'm trying to use the "CallSubUI" method in my game but it doesn't seem to be working, can you maybe look into this, this is my code
B4X:
If scorecount > 500 Then
    GAME_STATE = GAME_PASS
    lGdx.CallSubUI("LoadInterstitial", Null)
end if
I'm calling this inside the LG_Render event, i've tried calling from other places also and it still doesn't work, am I missing something?

Please let me know!

thanks,
Walter
If you compile with the obfuscation mode enabled, you have to place an underscore in your sub name.
There's an example of call to CallSubUI in Scene2D_Touchpad.


Informatix

Expert
Licensed User
Longtime User
informatix can you post a simple game like same: flappy birds or super mario using your library?
i m not programer and i like your exemples, it works in my all devices. can you make a simples game using your lib
same mario or flappy birds?
I'm trying to find some time for my own projects, so I don't think I will create new examples and it's very likely that I will be less and less present in this forum for the next months.


walterf25

Expert
Licensed User
Longtime User
If you compile with the obfuscation mode enabled, you have to place an underscore in your sub name.
There's an example of call to CallSubUI in Scene2D_Touchpad.

Thanks Informatix!


walterf25

Expert
Licensed User
Longtime User
How do we add standard elements like buttons , labels to this kind off application. I tried using CAllSubUI but it only enables me to change title,
and not to load lets say empty layout and add labels that will show OVER libGDX surface...
You have to use the lgscn2dtextbuttons or lgscn2dlabel for that but again, it depends on what you're trying to do, i have not tried adding the normal buttons to the libgdx surface but i'm guessing you can do it by adding the libgdx surface as a view to the activity.

for example:
B4X:
Dim config As lgConfiguration
config.useGL20 = True
dim V As View
V = lGdx.InitializeView2(config, "LG")
Activity.AddView(V, 0, 0, 100%x, 100%y)

give it a try i think it should work.


walterf25

Expert
Licensed User
Longtime User
don't know what is wrong but i need simple view (button, label)= displayed over existing lidGDX surface
got error after adding your example
B4X:
java.lang.RuntimeException: Can't create handler inside thread that has not called Looper.prepare()


    at android.os.Handler.<init>(Handler.java:121)
    at android.view.SurfaceView$1.<init>(SurfaceView.java:130)
    at android.view.SurfaceView.<init>(SurfaceView.java:130)
    at android.opengl.GLSurfaceView.<init>(GLSurfaceView.java:213)
    at com.badlogic.gdx.backends.android.surfaceview.GLSurfaceView20.<init>(GLSurfaceView20.java:52)
    at com.badlogic.gdx.backends.android.AndroidGraphics.createGLSurfaceView(AndroidGraphics.java:134)
    at com.badlogic.gdx.backends.android.AndroidGraphics.<init>(AndroidGraphics.java:103)
    at com.badlogic.gdx.backends.android.AndroidApplication.initializeForView(AndroidApplication.java:293)
    at anywheresoftware.b4a.libgdx.LibGDX.InitializeView2(LibGDX.java:70)
    at flm.b4a.pacdroid.main._lg_create(main.java:776)
    at java.lang.reflect.Method.invokeNative(Native Method)
    at java.lang.reflect.Method.invoke(Method.java:511)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:170)


    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:158)
    at anywheresoftware.b4a.libgdx.LibGDX$LibGDX_Listener.create(LibGDX.java:102)
    at com.badlogic.gdx.backends.android.AndroidGraphics.onSurfaceChanged(AndroidGraphics.java:342)
    at android.opengl.GLSurfaceView$GLThread.guardedRun(GLSurfaceView.java:1505)
    at android.opengl.GLSurfaceView$GLThread.run(GLSurfaceView.java:1240)
java.lang.RuntimeException: Can't create handler inside thread that has not called Looper.prepare()
java.lang.RuntimeException: Can't create handler inside thread that has not called Looper.prepare()


    at android.os.Handler.<init>(Handler.java:121)
    at android.app.Dialog.<init>(Dialog.java:110)
    at android.app.AlertDialog.<init>(AlertDialog.java:114)
    at android.app.AlertDialog$Builder.create(AlertDialog.java:913)
    at anywheresoftware.b4a.BA.ShowErrorMsgbox(BA.java:217)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:197)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:158)
    at anywheresoftware.b4a.libgdx.LibGDX$LibGDX_Listener.create(LibGDX.java:102)
    at com.badlogic.gdx.backends.android.AndroidGraphics.onSurfaceChanged(AndroidGraphics.java:342)
    at android.opengl.GLSurfaceView$GLThread.guardedRun(GLSurfaceView.java:1505)
    at android.opengl.GLSurfaceView$GLThread.run(GLSurfaceView.java:1240)
** Activity (main) Pause, UserClosed = true **
can you post your entire code, is hard to say without looking at the code


walterf25

Expert
Licensed User
Longtime User
Hi Frederic, i need your help, i know it might be something simple but i can't seem to figure it out, and i've studied your examples very thoroughly, but can't seem to figure where the problem is, i have a lgscn2dwindow which displays the b4a logo and libgx logo, but for some reason i can't resize those two images to the size i want them, it doesn't matter the size i set they always appear the same size and stretched out, could you maybe point me in the right direction.
this is the code i use to load the images into the window.
B4X:
dim logo1 as lgscn2dimage
Dim logotexture As lgTexture
    logotexture.Initialize("logos\b4alogo.png")
    logotexture.SetFilter(logotexture.FILTER_Linear, logotexture.FILTER_Linear)
    logo1.Initialize4(logotexture, "logo1")
    logo1.pack
    logo1.Width = 18%x
    logo1.Height = 25%y
    logo1.setPosition(20%y, aboutwindow.Height/2)

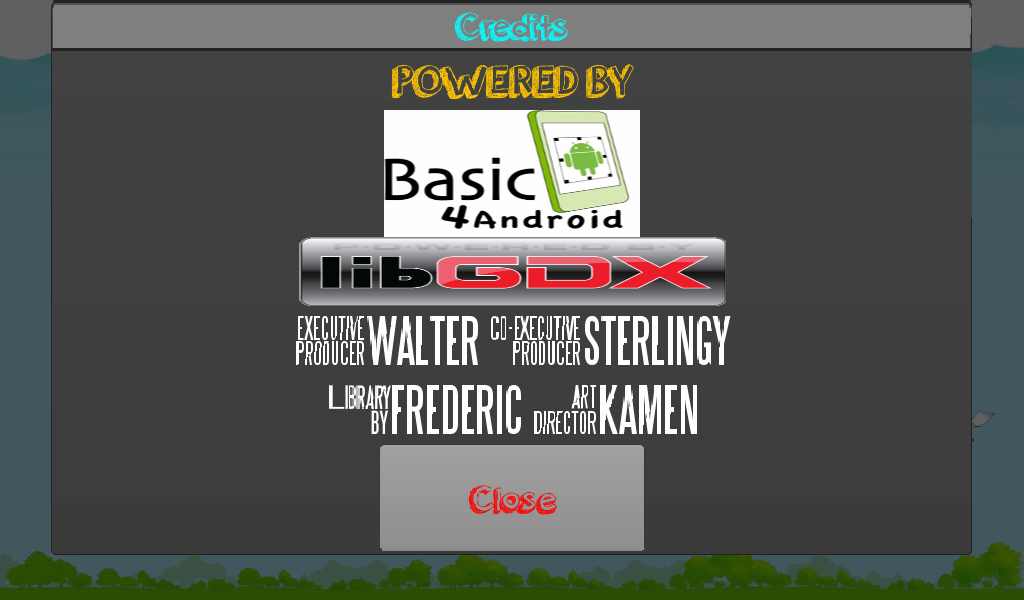

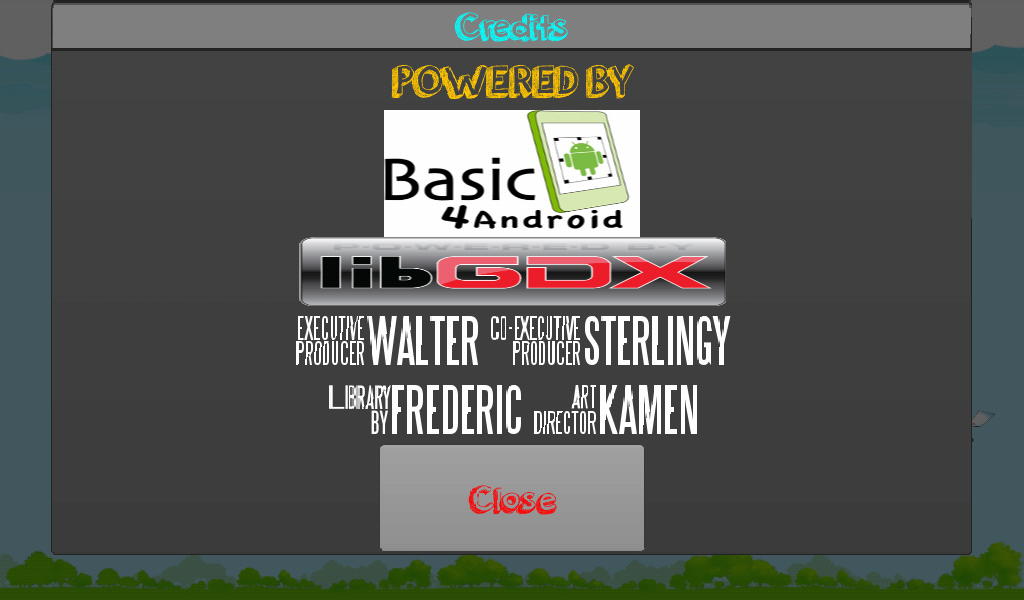

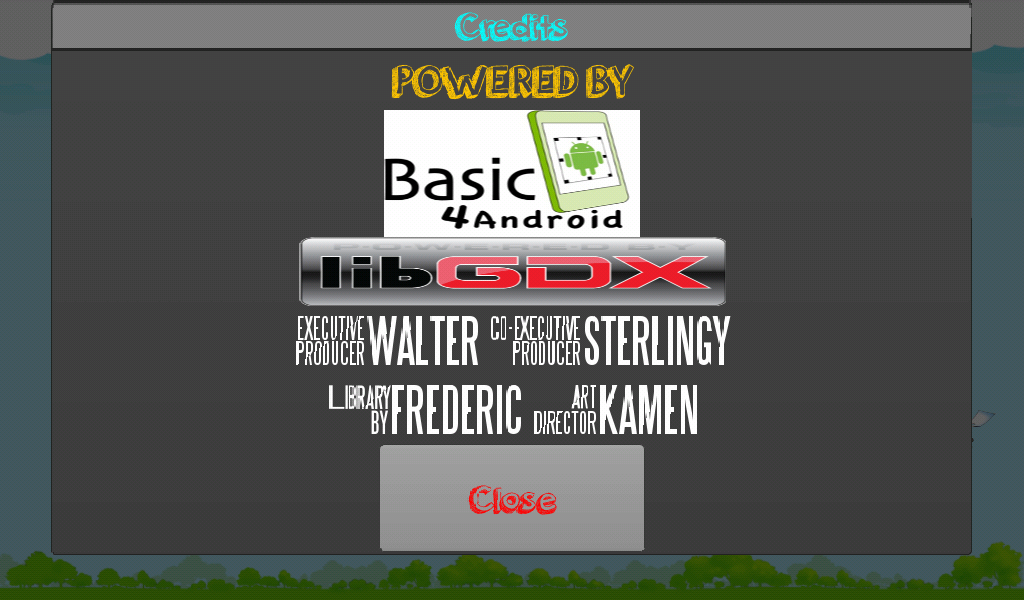

but this is how the image looks.

any suggestions on how to size the images to my taste, and is there a reason as to why the setsize property doesn't work?

Thanks,


mjas

Member
Licensed User
Longtime User
java.lang.RuntimeException: Can't create handler inside thread that has not called Looper.prepare()
Hello, that error happens when the button / label overlaps the libgdx surface. In order to capture the event from those elements they must be out of the libgdx surface, or use the equivalents for libgdx: lgscn2dtextbuttons or lgscn2dlabels


mjas

Member
Licensed User
Longtime User
B4X:
dim logo1 as lgscn2dimage
Dim logotexture As lgTexture
    logotexture.Initialize("logos\b4alogo.png")
    logotexture.SetFilter(logotexture.FILTER_Linear, logotexture.FILTER_Linear)
    logo1.Initialize4(logotexture, "logo1")
    logo1.pack
    logo1.Width = 18%x
    logo1.Height = 25%y
    logo1.setPosition(20%y, aboutwindow.Height/2)

but this is how the image looks.
View attachment 22930
any suggestions on how to size the images to my taste, and is there a reason as to why the setsize property doesn't work?

Thanks,
Try these: logo1.setSize(18%x, 25%y) or logo1.setScale(scaleX, scaleY)


walterf25

Expert
Licensed User
Longtime User
Try these: logo1.setSize(18%x, 25%y) or logo1.setScale(scaleX, scaleY)
that doesn't work, i've already tried that, but i figured it out, what you need to do is when you add the actor to the window like this
B4X:
aboutwindow.AddActor(logo1).Width = 200dip
you can do the same to specify also the height.

thanks


Informatix

Expert
Licensed User
Longtime User
that doesn't work, i've already tried that, but i figured it out, what you need to do is when you add the actor to the window like this
B4X:
aboutwindow.AddActor(logo1).Width = 200dip
you can do the same to specify also the height.

thanks
I didn't try but I suggest to set minWidth and minHeight to the right dimensions as your Image is placed in a container (in a widget that contains other widgets, the prefered size is set to the min size).


maxmolinari

Member
Licensed User
Longtime User
Good evening Mr. Informatix,

I want to write an app where, when I inserted the coordinates of a rectangle (or a room, for example) I can also add the height of this rectangle and then have a parallelepiped that I can rotate within the axis X, Y and Z.

My target is to draw a room that can also have a false ceiling or a floor void, a typical data center, and then put some racks inside of it or something else outside of it next to the walls. Something similar of a small CAD application but not necessary something huge like a real AutoCAD application. Just to draw rooms, nothing more.


Do you think that I can do it using your Library? If you have any other ideas or suggestions, these will be welcome.

Thank you in advance for your support.
With Best Regards,

Max :)


Informatix

Expert
Licensed User
Longtime User
Good evening Mr. Informatix,

I want to write an app where, when I inserted the coordinates of a rectangle (or a room, for example) I can also add the height of this rectangle and then have a parallelepiped that I can rotate within the axis X, Y and Z.

My target is to draw a room that can also have a false ceiling or a floor void, a typical data center, and then put some racks inside of it or something else outside of it next to the walls. Something similar of a small CAD application but not necessary something huge like a real AutoCAD application. Just to draw rooms, nothing more.


Do you think that I can do it using your Library? If you have any other ideas or suggestions, these will be welcome.

Thank you in advance for your support.
With Best Regards,

Max :)
This library has a limited support of 3D objects (mainly by using expert functions) so I don't think that's the good one for your project. You should look at the jPCT-AE library instead.


maxmolinari

Member
Licensed User
Longtime User
Thank you Sir for your reply.
I will folllow your suggestion but I will also study your Library to understand the main carachteristics.

Kind regards,
Max


Informatix

Expert
Licensed User
Longtime User
New major version

I posted a new version that is a major update. All the code supporting OpenGL ES 1.x was removed because the percentage of devices with only this version is now 0.1%. I added the classes for Decal objects so you can put now your 2D objects in 3D space, and added more than 40 functions and properties.
This is probably my last update. The following versions will just fix bugs.

v0.96:
In this version, I:
- removed all the code supporting OpenGL ES 1.x
- fixed a few bugs
- added new classes for decals (2D objects in 3D space): lgDecal, lgDecalBatch, lgCameraGroupStrategy, lgDefaultGroupStrategy, lgSimpleOrthoGroupStrategy
- added an example for decals
- removed the Mesh example as it cannot work with OpenGL 2 without being rewritten
- added the lgScn2DProgressBar class and modified the Scene2D_TextFieldsAndSliders example to show how to use it
- added the IsInitialized function to a dozen of classes
- added these functions:
lgBox2DWheelJoint: isMotorEnabled
lgFontGenerator: CreateFont5, CreateFont6 (for mip maps and filters)
lgMathGeometryUtils: polygonArea, triangleArea
lgMathMatrix3: getScale, getTranslation, setToRotation2, setToRotation3, setToRotationRad, rotateRad
lgMathMatrix4: det3x3, setToRotationRad, setTranslation
lgMathUtils: isEqual, isEqual2, isZero, isZero2
lgMesh: CalculateRadius, CalculateRadius2, CalculateRadiusSquared
lgScn2DDragAndDrop: SetTouchOffset
lgSprite: SetOriginCenter
- added these properties:
lgBox2DJoint: CollideConnected
lgBox2DDistanceJoint, lgBox2DFrictionJoint, lgBox2DRopeJoint, lgBox2DWeldJoint: LocalAnchorA, LocalAnchorB
lgBox2DGearJoint: Joint1, Joint2
lgBox2DPrismaticJoint: LocalAnchorA, LocalAnchorB, MaxMotorForce, ReferenceAngle
lgBox2DWheelJoint: LocalAnchorA, LocalAnchorB, LocalAxisA
lgMathMatrix3: Rotation, RotationRad
lgScn2DActor: isTouchable
lgScn2DScrollPane: ScrollHeight, ScrollWidth, VariableSizeKnobs
lgScn2DWindow: ButtonTable, Resizable, ResizeBorder, TitleWidth
- renamed the functions Translate -> MoveBy, Rotate -> RotateBy and Size -> SizeBy of the lgScn2DActor class
- removed toScreenCoordinates from lgStage and toWindowCoordinates from lgScissorStack
- removed the yDown parameter from ComputePolygon and ComputePolygon2 in the lgMathConvexHull class
- improved a bit the help text of a few functions


Computersmith64

Well-Known Member
Licensed User
Longtime User
Hi Informatix,

I've been playing around with the Cloney Bird example that Andymc wrote using libGDX & I'm finding that I'm pretty regularly getting a crash when I exit the app using the back key (so UserClosed is being set to True in Activity_Pause). I've tried various things to try to figure out what's causing it, but I'm at a bit of a loss. The unfiltered log looks like this:

** Activity (main) Pause, UserClosed = true **
main_lg_render (java line: 909)
java.lang.NullPointerException


at com.airlinemates.poopysheep.main._lg_render(main.java:909)
at java.lang.reflect.Method.invokeNative(Native Method)
at java.lang.reflect.Method.invoke(Method.java:511)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:174)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:162)
at anywheresoftware.b4a.libgdx.LibGDX$LibGDX_Listener.render(LibGDX.java:117)
at com.badlogic.gdx.backends.android.AndroidGraphics.onDrawFrame(AndroidGraphics.java:397)
at android.opengl.GLSurfaceView$GLThread.guardedRun(GLSurfaceView.java:1516)
at android.opengl.GLSurfaceView$GLThread.run(GLSurfaceView.java:1240)
Reconfiguring input devices. changes=0x00000004
Device reconfigured: id=1, name='androVM Virtual Input', surface size is now 480x800, mode is 1
Device reconfigured: id=2, name='androVM via VirtualBox seamless mouse', surface size is now 480x800, mode is 3
java.lang.NullPointerException
setOrientation with orientation=0
setOrientation orientation=0
setOrientation with fbDev=0xb78d5af0 fbDev->setOrientation=0xb5fccf20 orientation=0
setOrientation: orientation=0
Config changed: {1.0 0mcc0mnc en_US sw320dp w320dp h460dp nrml port finger qwerty/v/v dpad/v s.108}
threadid=10: thread exiting with uncaught exception (group=0xa6252288)


java.lang.RuntimeException: Can't create handler inside thread that has not called Looper.prepare()


at android.os.Handler.<init>(Handler.java:121)
at android.app.Dialog.<init>(Dialog.java:107)
at android.app.AlertDialog.<init>(AlertDialog.java:114)
at android.app.AlertDialog$Builder.create(AlertDialog.java:913)
at anywheresoftware.b4a.BA.ShowErrorMsgbox(BA.java:221)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:201)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:162)
at anywheresoftware.b4a.libgdx.LibGDX$LibGDX_Listener.render(LibGDX.java:117)
at com.badlogic.gdx.backends.android.AndroidGraphics.onDrawFrame(AndroidGraphics.java:397)
at android.opengl.GLSurfaceView$GLThread.guardedRun(GLSurfaceView.java:1516)
at android.opengl.GLSurfaceView$GLThread.run(GLSurfaceView.java:1240)
FATAL EXCEPTION: GLThread 192
java.lang.RuntimeException: Can't create handler inside thread that has not called Looper.prepare()
at android.os.Handler.<init>(Handler.java:121)
at android.app.Dialog.<init>(Dialog.java:107)
at android.app.AlertDialog.<init>(AlertDialog.java:114)
at android.app.AlertDialog$Builder.create(AlertDialog.java:913)
at anywheresoftware.b4a.BA.ShowErrorMsgbox(BA.java:221)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:201)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:162)
at anywheresoftware.b4a.libgdx.LibGDX$LibGDX_Listener.render(LibGDX.java:117)
at com.badlogic.gdx.backends.android.AndroidGraphics.onDrawFrame(AndroidGraphics.java:397)
at android.opengl.GLSurfaceView$GLThread.guardedRun(GLSurfaceView.java:1516)
at android.opengl.GLSurfaceView$GLThread.run(GLSurfaceView.java:1240)
eglSurfaceAttrib not implemented

I notice that there is a null pointer exception in the render loop & also a fatal exception in GLThread 192. It's making me think that I'm not exiting cleanly, but I have tried call dispose on those libGDX objects that have a dispose method & I still see the issue. I also found that when I did call the various dispose methods, on the occasions that I didn't get a crash, the app would restart with the bitmap font all screwed up. When I removed all the dispose calls & managed to get an exit without a crash, I didn't see the font issue. Any ideas &/or pointers on how to make sure I get a "clean" exit?

Thanks,

- Colin.


Informatix

Expert
Licensed User
Longtime User
It seems that you use GenyMotion or a similar emulator. Do you have the same errors on a real device?
The main reason that I know for a crash while exiting is a call to dispose for an uninitialized object. You should check whether the object is initialized before disposing it: if myTexture.isinitialized then myTexture.dispose

It is very important to dispose properly the used resources because, contrary to the data in the Java heap space, there's no garbage collector for the libGDX resources (most of them are stored in the native heap memory).

Top
