Share My Creation Powertoys Color Picker clone.

Here is a global color picker for B4J, capable of capturing the color of any pixel on the screen, even outside the application, thanks to jnativehook-2.2.2.jar.

It includes:

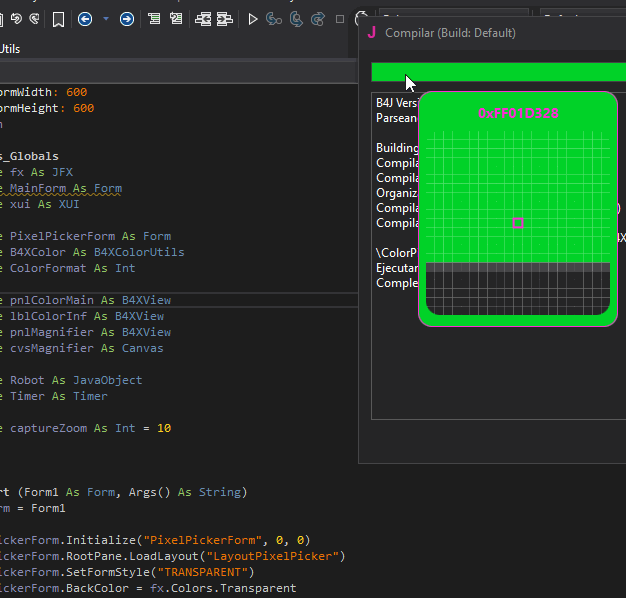

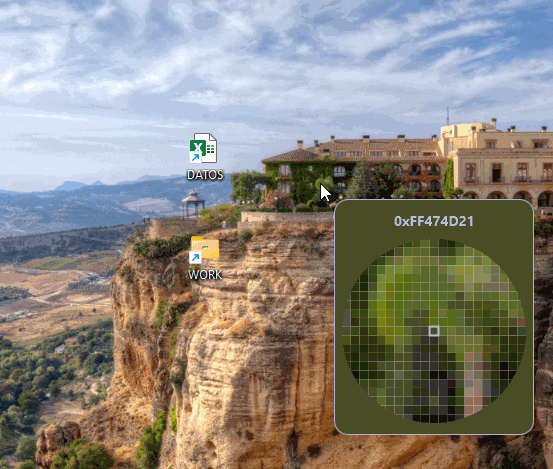

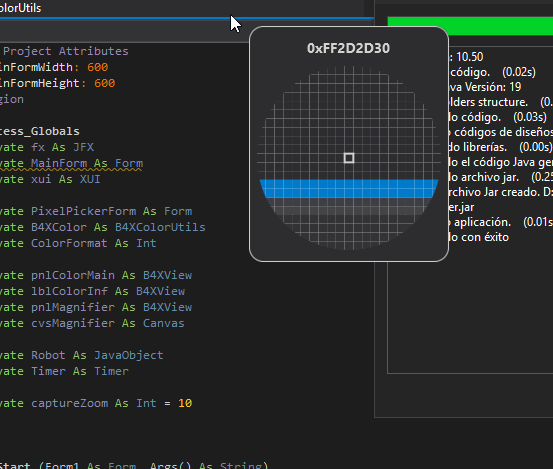

• an ultra-smooth zoom magnifier
• a pixel grid
• a perfectly aligned central crosshair
• a floating popup that always appears on top
• automatic color copying on click
• multiple formats: HEX, RGB, HSL, HSV, CMYK
• activation/deactivation via F8
• closing via ESC

This component functions like professional color pickers (Photoshop, Figma, etc.).

Main features:

• Global mouse capture - Thanks to jnativehook, the picker works even outside the application.
• Zoomed magnifier (150×150 px)
• Clean zoom
• Pixel grid
• Red crosshair in the center
• Perfect alignment of the captured pixel
• Updates every 50 ms

Floating popup

• Borderless
• Always visible
• Displays color + code
• Automatic copy on click

Available formats:

• HEX
• RGB
• HSL
• HSV
• CMYK

The selected format is saved via KeyValueStore.

Keyboard shortcuts Key Action

• F8 Toggle color picker on/off
• ESC Close color picker

Zoom accuracy

The zoom is perfectly centered thanks to:

Dim rx As Int = x - (captureSize / 2) + OffsetX
Dim ry As Int = y - (captureSize / 2) + OffsetY

This small offset corrects the natural JavaFX/Robot offset and ensures that the red cross points exactly to the captured pixel.

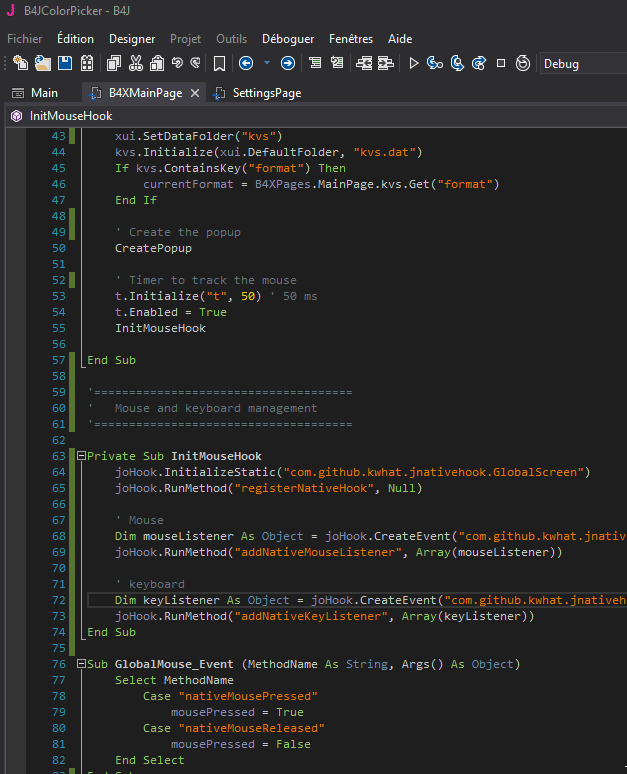

The complete code is provided below.
It's self-contained, requires no layout, and can be integrated into any B4J project.

Why share this component?

Because B4J doesn't have a built-in global color picker, and many developers are looking for a solution that is:

• simple
• reliable
• Windows compatible
• with professional zoom
• This component perfectly meets that need.

Conclusion
This color picker is:

• accurate
• fast
• easy to integrate
• pleasant to use
• and above all, 100% B4J + standard Java

Feel free to improve it, adapt it, or suggest variations (circular magnifier, adjustable zoom, etc.).

Have fun



[Erel]

Looks great. Worth adding a macro:

Something like:

#Macro: Title, Color Picker, ide://run?File=%ADDITIONAL%\ColorPicker.jar

Assuming that the compiled jar is in the additional libraries folder. Or better in the B4X additional folder:

#Macro: Title, Color Picker, ide://run?File=%ADDITIONAL%\..\B4X\ColorPicker.jar



[LucaMs]

Great, thanks for sharing.

Since F8 is used by B4X (in step-by-step Debug mode), I prefer the CTRL+F8 combination.

Sub GlobalKey_Event(MethodName As String, Args() As Object)

    Select MethodName

        Case "nativeKeyPressed"
        Dim keyEvent As JavaObject = Args(0)

        Dim keyCode As Int = keyEvent.RunMethod("getKeyCode", Null)
        Dim modifiers As Int = keyEvent.RunMethod("getModifiers", Null)

        Dim NativeInputEvent As JavaObject
        NativeInputEvent.InitializeStatic("com.github.kwhat.jnativehook.NativeInputEvent")
        Dim CTRL_MASK As Int = NativeInputEvent.GetField("CTRL_MASK")

        ' CTRL + F8
        If keyCode = 66 And Bit.And(modifiers, CTRL_MASK) <> 0 Then
            pickerEnabled = Not(pickerEnabled)
            If pickerEnabled Then
                ShowPopup
            Else
                HidePopup
            End If
        End If

        ' esc key
        If keyCode = 1 Then
            pickerEnabled = False
            HidePopup
        End If

    End Select
End Sub
