Android Question Reading a data file 0-255

[ElliotHC]

Upon looking through the posts in order to find out how in B4A to download and read a file, I have noticed that there may be some issues when importing the data.

In my data file I have 0-255, many of these fall outside of the standard ASCII table, some would call it extended ASCII.

My hardware which is coded using a different Basic compiler, requires that I send it a 2k data bundle created as a file (e.g. 123.ABC) by a VB App I've written.

This data file contains bytes 0-255 in value and I need to read this file which is located on my webserver (http://mydomain.com/123.ABC).

The B4A App which does all the control of the hardware via bluetooth (which is working perfectly), also needs to be able to read the data file and pass it to the hardware through the transparent serial connection that I'm using..

So basically and in as simple form as possible, I need to read from the web location, load that data in to an array that I can parse with the B4A App and send to the hardware.

Erel has given me this example, but I am not sure how to implement it.

Dim lines As List = File.ReadList(...)
Dim s As String = File.ReadString(...)

Will that string give me access to the full 0-255 byte?



[ElliotHC]



[ElliotHC]

You're probably right.



[sorex]

also check that the bytes() array is big enough and try

job.GetInputStream.ReadBytes(bytes,0,bytes.Length)



[sorex]

by the way... I see that your msg has 7 00's prefixed. maybe you just need to add 7 extra bytes to the msg (lenght)?

or figure out where those 00's are coming from and remove them.



[ElliotHC]

I think I have found an issue.

When I try and send this which should be 74 bytes.

Dim Bytes_40 As String
        Bytes_40 = "1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZ"
        CallSub2(Starter, "SendMessage", Bytes_40.GetBytes("utf8"))
        CallSub2(Starter, "SendMessage", Bytes_40.GetBytes("utf8"))

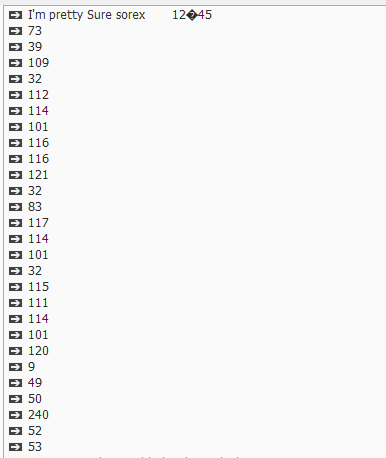

I get this which is only 40...

Shows that my PIC has no issues getting 40, so why are these two strings getting cut off at the 20 byte point?



[ElliotHC]

by the way... I see that your msg has 7 00's prefixed. maybe you just need to add 7 extra bytes to the msg (lenght)?

or figure out where those 00's are coming from and remove them.

That was just some stray 0's, I've now set my code only to output when it sees more than one byte coming in..



[ElliotHC]

https://www.b4x.com/android/forum/threads/ble2-library-20-byte-notification-limit.100074/



[sorex]

ok, then you need to use a send loop based on div & mod 20



[ElliotHC]

Thanks sorex, is there an example posted?



[sorex]

sorry my work day ended and I just got behind my laptop at home.

I'll see if I can give you an example.



[ElliotHC]

Thanks, I did it but it's messy.

        Log(job.GetString)



        job.GetInputStream.ReadBytes(bytes,0,job.GetInputStream.BytesAvailable)
        Dim Bytes20(20) As Byte
        Log("Data Length=" & (job.GetInputStream.BytesAvailable - 1))

        Dim Loop_Counter As Int

        For x = 0 To job.GetInputStream.BytesAvailable - 1



            For X2 = 0 To 19' X2_Top
                Loop_Counter = Loop_Counter + 1
                Bytes20(X2) = bytes(x + X2)

            Next

            CallSub2(Starter, "SendMessage",Bytes20)
            ' Wait for the next send byte request
            For X3 = 0 To 2
                If Packet_Requested = False Then
                    X3 = 1
                    Else
                        Log("Packet Recieved")
                End If
            Next
            Packet_Requested = False

            x = x + 20
        Next



[sorex]

ok, here my attempt but I couldn't verify if it's correct.

Public Sub SendMessage(msg() As Byte)
    Dim xv As Int
    For x=0 To msg.Length-1 Step 20
        xv=20
        If msg.Length-x<20 Then    xv=msg.Length Mod 20
        Dim mybytes(xv) As Byte
        For b=0 To xv-1
            mybytes(b)=msg(x+b)
        Next
        manager.WriteData(ServiceId2, WriteChar2, mybytes)
    Next
End Sub
