Android Question Script to check compatibility 16kb

[MarcoRome]

As the title suggests, here's a script to check 16kb compatibility (for those who don't use Android Studio's APK Analyzer).

The script analyzes apk, aar, aab or zip files.

You need to download and unzip android-ndk-r28c-windows.zip, which you can find at this link: ( https://developer.android.com/ndk/downloads?hl=en )
After unzipping it, you can modify the script with your own path.
The script runs in Windows PowerShell. So, after running the command cmd ... and typing PowerShell or
Shift+right-clicking in the folder → "Open PowerShell window here".
Type:

PS F:\downloadF> .\check-16kb.ps1 -ArchivePath "F:\DownloadF\testpdf\name.apk"

if your script is blocked you can execute this comand:

Set-ExecutionPolicy -Scope CurrentUser -ExecutionPolicy RemoteSigned

and repeat

PS F:\downloadF> .\check-16kb.ps1 -ArchivePath "F:\DownloadF\testpdf\name.apk"

The resul will be:

Negative (KO) if inside the arm64-v8a directory it will find libraries not aligned to 16kb

if the files arent aligned it will give their name ( look above )

or Positive (OK) if inside the arm64-v8a directory it will find libraries aligned to 16kb

(Of course, the path is yours, i.e., where the check-16kb.ps1 file was placed.)
Also inside the script insert your path (line 11)

This is the script:

<# check-16kb-arm64.ps1
   Controlla SOLO le .so nella cartella arm64-v8a
   Verifica che TUTTI i segmenti PT_LOAD abbiano Alignment >= 16384 (16 KB).
#>

param(
  [Parameter(Mandatory = $true)]
  [Alias('ArchivePath')]
  [string]$Path,

  [string]$Readobj = "F:\android-ndk-r28c\toolchains\llvm\prebuilt\windows-x86_64\bin\llvm-readobj.exe",
  [string]$ReportPath,
  [int]$MinAlign = 16384
)

function Get-PtLoadAlignments {
  param([string]$SoPath, [string]$ReadobjExe)

  $result = New-Object PSObject -Property @{ Alignments = @(); Error = $null }

  $out = & $ReadobjExe --program-headers $SoPath 2>&1
  if ($LASTEXITCODE -ne 0) {
    $result.Error = ("llvm-readobj exit code {0}: {1}" -f $LASTEXITCODE, $SoPath)
    return $result
  }

  $reTypeLoad  = '^\s*Type:\s*(?:PT_)?LOAD\b'
  $reAnyType   = '^\s*Type:\s*\S+'
  $reAlignment = '^\s*Align(?:ment)?:\s*(0x[0-9A-Fa-f]+|\d+)'

  $inLoad = $false
  foreach ($line in ($out -split "`n")) {
    $l = $line.TrimEnd()

    if ($l -match $reTypeLoad) { $inLoad = $true; continue }
    if ($l -match $reAnyType)  { $inLoad = $false; continue }

    if ($inLoad -and ($l -match $reAlignment)) {
      $val = $Matches[1]
      if ($val -like '0x*') { $n = [Convert]::ToInt32($val,16) } else { $n = [int]$val }
      $result.Alignments += $n
    }
  }
  return $result
}

function Get-SoResult {
  param([string]$SoPath, [string]$ReadobjExe, [int]$MinAlign)

  $r = Get-PtLoadAlignments -SoPath $SoPath -ReadobjExe $ReadobjExe
  $aligns = $r.Alignments

  $ok = $true
  $reason = $null
  if ($r.Error) {
    $ok = $false; $reason = $r.Error
  } elseif ($aligns.Count -eq 0) {
    $ok = $false; $reason = "nessun segmento PT_LOAD trovato"
  } else {
    foreach ($a in $aligns) {
      if ($a -lt $MinAlign) { $ok = $false; $reason = ("PT_LOAD < {0}" -f $MinAlign); break }
    }
  }

  return New-Object PSObject -Property @{
    File       = $SoPath
    Alignments = $aligns
    OK         = $ok
    Reason     = $reason
  }
}

# --- Controlli preliminari ---
if (!(Test-Path -LiteralPath $Readobj)) { throw ("llvm-readobj.exe non trovato: {0}" -f $Readobj) }
if (!(Test-Path -LiteralPath $Path))    { throw ("Percorso non trovato: {0}" -f $Path) }

$AllLines = New-Object System.Collections.ArrayList
$FailList = New-Object System.Collections.ArrayList

# --- Determina i file da analizzare (SOLO arm64-v8a) ---
$TempRoot = $null
$soFiles = @()

if ((Get-Item -LiteralPath $Path).PSIsContainer) {
  $soFiles = Get-ChildItem -Recurse -Path $Path -Filter *.so | Where-Object { $_.FullName -match "arm64-v8a" } | Select-Object -Expand FullName
} else {
  $ext = [IO.Path]::GetExtension($Path).ToLower()
  if ($ext -eq ".so") {
    if ($Path -match "arm64-v8a") { $soFiles = ,(Resolve-Path -LiteralPath $Path).Path }
  } elseif ($ext -in @(".aar",".apk",".aab",".zip")) {
    $TempRoot = Join-Path $env:TEMP ("check16kb_" + (Get-Random))
    New-Item -ItemType Directory -Path $TempRoot | Out-Null
    $ZipCopy = Join-Path $TempRoot "archive.zip"
    Copy-Item -LiteralPath $Path -Destination $ZipCopy -Force
    Expand-Archive -LiteralPath $ZipCopy -DestinationPath $TempRoot -Force
    $soFiles = Get-ChildItem -Recurse -Path $TempRoot -Filter *.so | Where-Object { $_.FullName -match "arm64-v8a" } | Select-Object -Expand FullName
  } else {
    throw ("Estensione non supportata: {0}" -f $ext)
  }
}

if (!$soFiles -or $soFiles.Count -eq 0) {
  if ($TempRoot) { Remove-Item -Recurse -Force $TempRoot -ErrorAction SilentlyContinue }
  throw "Nessuna .so trovata nella cartella arm64-v8a."
}

# --- Analisi ---
foreach ($so in $soFiles) {
  $res = Get-SoResult -SoPath $so -ReadobjExe $Readobj -MinAlign $MinAlign

  [void]$AllLines.Add($res.File)
  [void]$AllLines.Add(("    PT_LOAD Alignments: {0}" -f $(if($res.Alignments){ ($res.Alignments -join ', ') }else{'<none>' })))
  if ($res.OK) {
    [void]$AllLines.Add(("    Risultato: OK (>= {0})" -f $MinAlign))
  } else {
    $msg = "    Risultato: NON allineato"
    if ($res.Reason) { $msg += " - " + $res.Reason }
    [void]$AllLines.Add($msg)
    [void]$FailList.Add($res.File)
  }
  [void]$AllLines.Add("")
}

# --- Pulizia e report ---
if ($TempRoot) { Remove-Item -Recurse -Force $TempRoot -ErrorAction SilentlyContinue }
if ($ReportPath) { $AllLines | Out-File -FilePath $ReportPath -Encoding UTF8 }

# --- Output finale ---
if ($FailList.Count -eq 0) {
  Write-Host ("OK: tutte le .so in arm64-v8a hanno PT_LOAD con Alignment >= {0}." -f $MinAlign)
  if ($ReportPath) { Write-Host ("Report salvato in: {0}" -f $ReportPath) }
  exit 0
} else {
  Write-Host ("KO: file arm64-v8a non conformi (almeno un PT_LOAD < {0}):" -f $MinAlign)
  $FailList | ForEach-Object { Write-Host (" - {0}" -f $_) }
  if ($ReportPath) { Write-Host ("Report completo in: {0}" -f $ReportPath) }
  exit 2
}

Save the same in a text file named check-16kb.ps1 ( in attachment if you want )
P.S.: Written with the help of chatgpt and after a few things to fix it works
Bye



[mcqueccu]

Hi did you find a solution to determine what was not compliant using the script or otherwise?

EDIT: Check the Enhanced Script which checks everything:

Android 16KB Page Size Compatibility Checker

This script checks for all the necessary markers to be sure your APK/AAB/SO files are 16KB page size compatible. It has been simplified to easy usage. What Does This Check? Starting with Android 15, devices may use 16KB memory page sizes instead of the traditional 4KB. Apps with improperly...

www.b4x.com

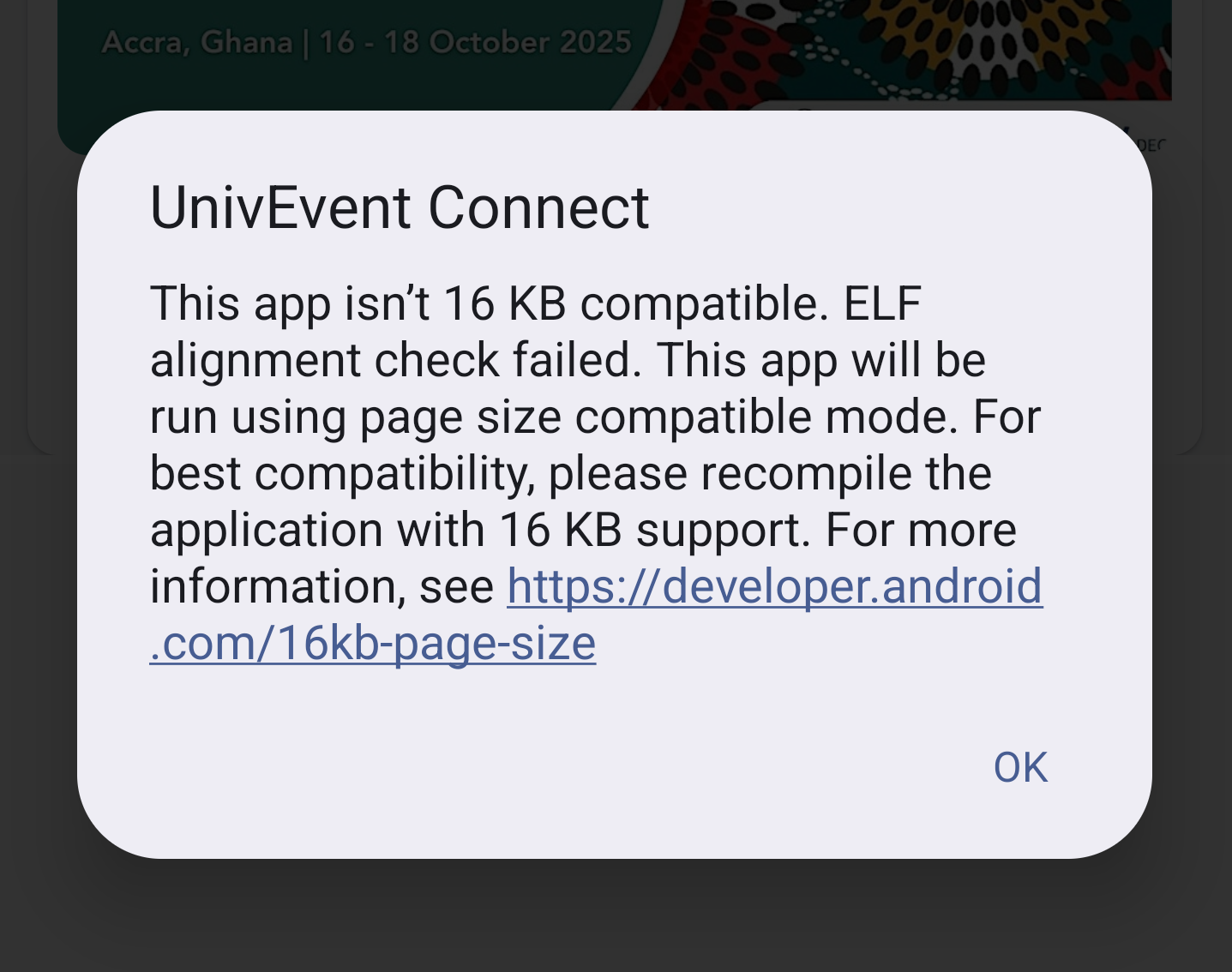

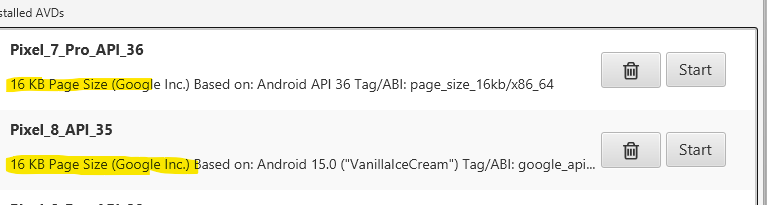

I use Android Emulator setup with 16kb Support, so when you run the app and its not compatible, you get a popup lilke this.

EMULATOR WILL SHOW

I also analyze the script with ChatGPT, and it says,

I see what’s happening. Your script is only checking the PT_LOAD alignment values from llvm-readobj, which is necessary but not sufficient for Android 16KB compatibility.
The emulator warning is likely triggered because Android 16’s dynamic linker (ld-android) also validates:
Segment alignment (PT_LOAD ≥ 16384) → your script covers this. ✅
ELF header field p_align and p_vaddr/p_offset consistency → not all segments pass just because p_align looks okay. ⚠️
Relocation sections (.rel/.rela) alignment.
Whether .note.gnu.property includes the ANDROID, 16K page size tag introduced in newer NDKs.
That’s why you see OK in your script but still get emulator warnings.
