B4A Library SignPad V0.20 - Signature Capture - incl Java source

SignPad
Version: 0.20

Android Signature Pad is an Android library for drawing smooth signatures. It uses variable width Bézier curve interpolation based on Smoother Signatures.

For those who want to play with the library or mayybe to extend
i have included the java source of this library so you can change it by yourself and then recompile the lib with SLC. Have fun


This wrapper is based on this

• SignPad
  Events:
  • onSigned (sign As Bitmap)
  Methods:
  • AddToParent (Parent As ViewGroup, left As Int, top As Int, width As Int, height As Int)
  • Capture
  • DesignerCreateView (base As PanelWrapper, lw As LabelWrapper, props As Map)
  • Initialize (EventName As String)
  • clear
  • getAlbumStorageDir (albumName As String) As File
  • saveBitmapToJPG (bitmap As Bitmap, photo As File)
  Properties:
  • Left As Int
  • SignatureBitmap As Bitmap [read only]
  • Top As Int
  • TransparentSignatureBitmap As Bitmap [read only]

For those who want to extend the library i have attached the java-source of this library. FEEL FREE TO MODIFY IT



[Beja]

Hi Don and all,
This is an old post, but I visited here again today and found it very simple for my purpose.. at more than 65 my
memory is less than perfect . and I see so many version and contributions from Don and others.. someone help
please with the last and final version of this great project.

Best regards, -b



[AnandGupta]

someone help
please with the last and final version of this great project.

check

[B4X] XUI Views - Cross platform views and dialogs

XUI Views is a b4x library (https://www.b4x.com/android/forum/threads/100383/#content). The same b4xlib library is compatible with B4A, B4i and B4J It is a collection of custom views and dialogs. Everything is written in B4X. The source code is included inside the b4xlib file, which is a zip...

www.b4x.com

it has signature template



[Beja]

check

[B4X] XUI Views - Cross platform views and dialogs

XUI Views is a b4x library (https://www.b4x.com/android/forum/threads/100383/#content). The same b4xlib library is compatible with B4A, B4i and B4J It is a collection of custom views and dialogs. Everything is written in B4X. The source code is included inside the b4xlib file, which is a zip...

www.b4x.com

it has signature template

•
  New
• Add bookmark
• #43

Hi Anand,
Thanks but I am looking for the final version and project example of this post.. the same post that we are in right now. (Don's post)



[DonManfred]

for the final version and project example

There ´ll be no more versions. As the library is from 2015 i know i do not have the source anymore (HDD crash in 2016).
Do not expect any new here. Use the library in #1. Example is in #1 too.

If it´s fit your needs; great. If not; search for alternatives.



[AnandGupta]

•
  New
• Add bookmark
• #43

Hi Anand,
Thanks but I am looking for the final version and project example of this post.. the same post that we are in right now. (Don's post)

I see the first post has all required library files.



[Beja]

I see the first post has all required library files.

Yes I believe that's the one that I used.. with a signature area not enough.. (the height)



[DonManfred]

DonManfred, how start a conversation with you?

no way; i do not allow it. Create a new thread for our issue.



[netsistemas]

i have a version that donmanfred showme long tome allow
can you allowme shared in this thread?



[DonManfred]

can you allowme shared in this thread?

sure post it



[netsistemas]

This is the original source code for develpment in eclipse/java, and other with a little change for my proyect (touchmadmio) (point over de 'i' are not allowd in original).

inside tochpadmio, have the folfer 'libreriasparab4a': jar and xml

i'm not sure this code are that you need or other more old.



[sadegh.nordeh]

Please enable the onClear event.



[netsistemas]

I encourage you to do it. I can't right now, maybe next week. It is not complicated and you will open up new possibilities.



[netsistemas]

(in spain we say: 'el rascar es todo empezar' - scratching is all beginning)

doit:
- install eclipse
- do a simple change:
* in signPad.java added this code:



ba.raiseEvent(this, eventName + "_onclear");

    @Override
      public void onClear() {
          BA.Log("onClear() evento rav");

          ba.raiseEvent(this, eventName + "_onclear");
          //mSaveButton.setEnabled(false);
          //mClearButton.setEnabled(false);
      }
    };

- install https://www.b4x.com/android/forum/t...-libraries-without-eclipse.29918/#post-173756
and compile

problems:
* b4DocLet are not in my computer (view previous thead)
* case sensitive : ba.raiseEvent(this, eventName + "_onClear"); (C in Clear must be minus!!)

And now, incluye in your B4A proyect the detect event:

Sub SignaturePad_onSigned(sign As Object)
    If ValidarDniYNombre = False Then

        SignaturePad.clear
        SignaturePad.Tag = ""
        MsgboxAsync("Complete Nombre y apellidos,  y  DNI con 9 caracteres. No indique guiones","Faltan datos")
    Else
        SignaturePad.Tag = "Firmado"
    End If

End Sub


'this event are raised a lot of times.
Sub SignaturePad_onClear()
'    MsgboxAsync ("Borrado","Borrado")
End Sub

importan:
may be is better use:

SignPad V0.20 - Signature Capture - incl Java source

SignPad Version: 0.20 Android Signature Pad is an Android library for drawing smooth signatures. It uses variable width Bézier curve interpolation based on Smoother Signatures. For those who want to play with the library or mayybe to extend i have included the java source of this library so...

www.b4x.com

now i have a problem with this library in my proyect:
error pasing librarie
com.github.gcacace.signaturepad.views
signaturepad.strokewidth alrady existe
and the version is 0.0 with the previous are 0.22
i think the problem is the commple method ( in previus version 5 year ago!!! i compile with javadoc ...)
i go to use the previous version in my proyect.

my be the correct implements are in official touchpad of DonManfred.



[netsistemas]

(at the risk of being annoying, but for leaving everything documented

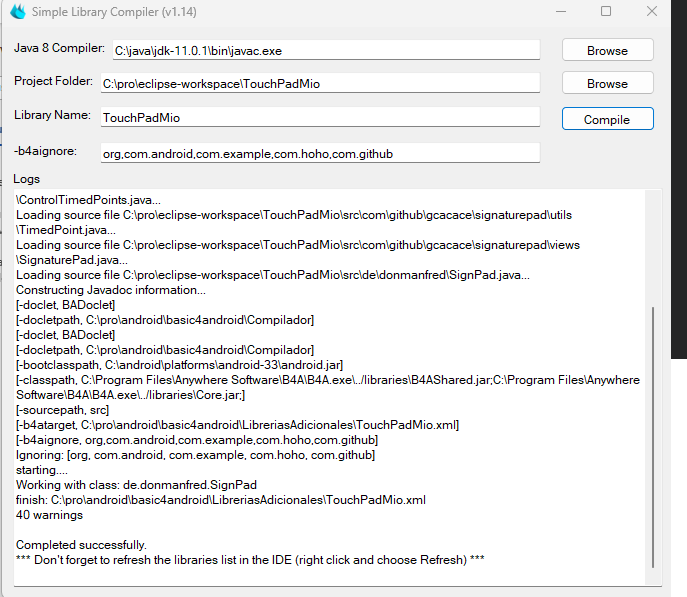

You have to include com.github in the compiler that I mentioned, as I have seen in another thread.
This is:
-b4aignore: org,com.android,com.example,com.hoho,com.github

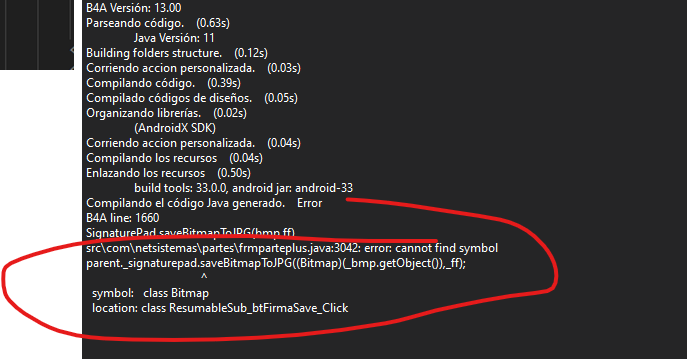

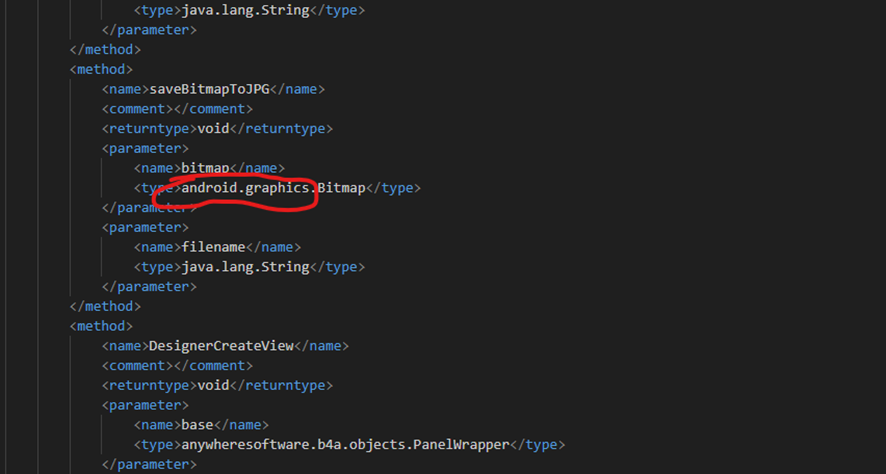

But anyway the XML has some different entries that makes my project fail to compile.


Attach images.
