Android Question Simple Media Manager : timeout or black screen
- Thread starter CR95
- Start date
- Similar Threads Similar Threads
Sorry for the trouble : I sent previous message before terminating
I slightly modified B4A SMM Example1 to connect it to a Web Socket Server developed with B4J and running on RaspBerry.
It works fine with small size videos but I get an error when trying to display huge video files on the Android phone (see below).
All the video files that are "time out" with SMM start immediatly when launched from phone Android browser (same hardware, same server, same communication way)
In some cases, this is not a timeout error but video does not start and screen remains black.
Is there a solution for this kind of issue ?
I slightly modified B4A SMM Example1 to connect it to a Web Socket Server developed with B4J and running on RaspBerry.
It works fine with small size videos but I get an error when trying to display huge video files on the Android phone (see below).
I saw that a modification was made in SMM library on March,6 to adapt DefaultRequestTimeout field -> I am using SMM library 1.12 with this modification.
All the video files that are "time out" with SMM start immediatly when launched from phone Android browser (same hardware, same server, same communication way)
In some cases, this is not a timeout error but video does not start and screen remains black.
Is there a solution for this kind of issue ?
Upvote
0
Thanks Erel.

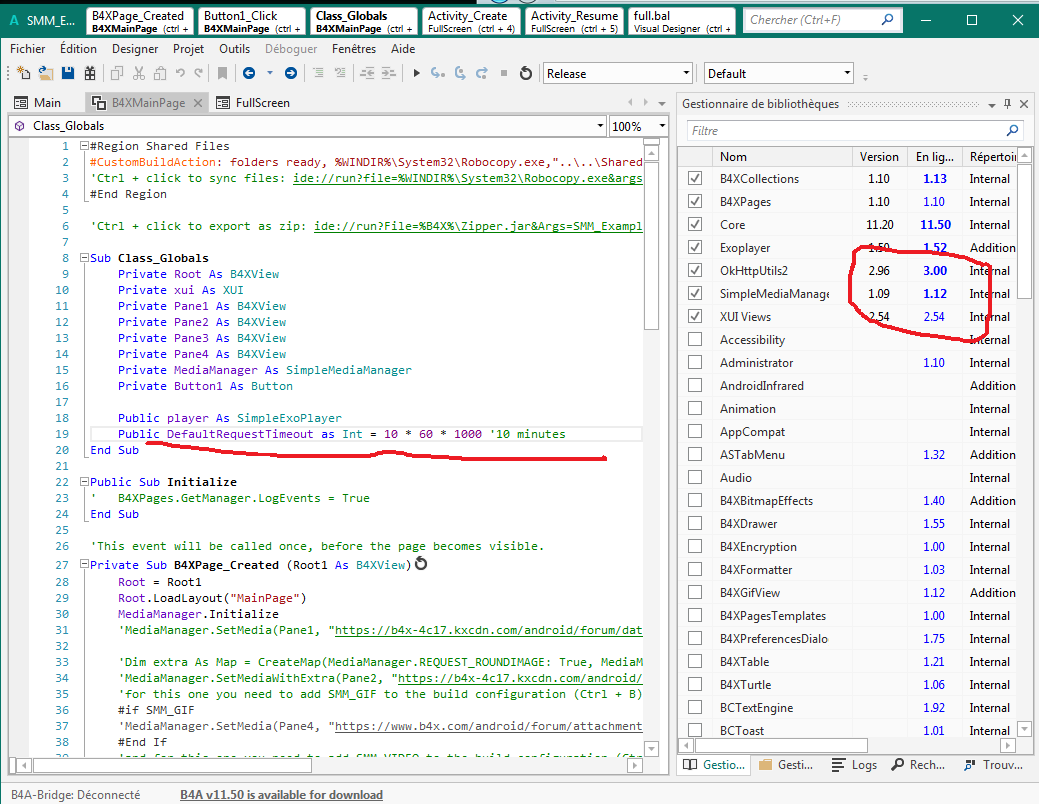

As you advise, I tried to add the timeout value in SMM_Example1 program BUT I discovered that my SMM library is not at the latest level. Please see joined picture.
I am sure that I downloaded and that I copied in my internal libraries the latest version from :
https://www.b4x.com/android/forum/t...-framework-for-images-videos-and-more.134716/
I guess that "your" timeout modification is usable only with the 1.12 version
Please could you help
As you advise, I tried to add the timeout value in SMM_Example1 program BUT I discovered that my SMM library is not at the latest level. Please see joined picture.
I am sure that I downloaded and that I copied in my internal libraries the latest version from :
https://www.b4x.com/android/forum/t...-framework-for-images-videos-and-more.134716/
I guess that "your" timeout modification is usable only with the 1.12 version
Please could you help
Attachments
Upvote
0
Thanks, DonManfred,
I upgraded to B4A.11.5 and SMM library level is now correct (1.12)
I made a test with a long video file BUT it crashes as timeout is still 30 seconds.
I suppose that my declaration to increase it is not correct (in Sub Class_Globals of B4XMainPage)
In Erel's code, there was SMM before the declaration (SMM.DefaultRequestTimeout = 10 * 60 * 1000 '10 minutes)
What am I doing wrong ?
Thanks for helping,
I upgraded to B4A.11.5 and SMM library level is now correct (1.12)
I made a test with a long video file BUT it crashes as timeout is still 30 seconds.
I suppose that my declaration to increase it is not correct (in Sub Class_Globals of B4XMainPage)
B4X:
Public DefaultRequestTimeout As Int = 10 * 60 * 1000 '10 minutesWhat am I doing wrong ?
Thanks for helping,
Upvote
0
This is OK : with the 10 minutes TimeOut setting, it works
But "loading time" (waiting time) is more than 1 minute 10 seconds.
Same video loaded by browser starts after 2/3 seconds
SMM is really powerful, but is there a way to reduce this "loading time", knowing that I modify this file in order to have metadata ("mdat" atom and "moov" atom) at the beginning of the video file ?
(It is recommended that MPEG-4 media to be played over HTTP be formatted such that the headers required to decode the stream appear at the beginning of the file.)
Thanks
But "loading time" (waiting time) is more than 1 minute 10 seconds.
Same video loaded by browser starts after 2/3 seconds
SMM is really powerful, but is there a way to reduce this "loading time", knowing that I modify this file in order to have metadata ("mdat" atom and "moov" atom) at the beginning of the video file ?
(It is recommended that MPEG-4 media to be played over HTTP be formatted such that the headers required to decode the stream appear at the beginning of the file.)
Thanks
Upvote
0
Thanks Erel,
I made a direct loading with ExoPlayer only and.... the video file starts after 1 second !
So the timeout issue is somewhere between SMMExample1 <-> SMMMedia <-> ExoPlayer !
May be if you tell me where I can load the class with SMMMedia, I could insert it in the SMM Example1. Then by adding some time tracing at different places, it could be possible to find which module is responsible for the timeout ????
I made a direct loading with ExoPlayer only and.... the video file starts after 1 second !
So the timeout issue is somewhere between SMMExample1 <-> SMMMedia <-> ExoPlayer !
May be if you tell me where I can load the class with SMMMedia, I could insert it in the SMM Example1. Then by adding some time tracing at different places, it could be possible to find which module is responsible for the timeout ????
Upvote
0
@Omar Parra A.
I already set the DefaultRequestTimeout to 10 minuts
1 added MediaManager.SleepDurationBeforeDownload = 0
Loading time does not change (> 1 minut)
@Erel
Yes SMMDebug was set.
Following is the Log
I also logged the time when launching SMM request (15:53:11) and the time when starting the video on the phone (15:54:25)
I don't understand "mark the timings" as you requested
Thanks for helping
I already set the DefaultRequestTimeout to 10 minuts
1 added MediaManager.SleepDurationBeforeDownload = 0
Loading time does not change (> 1 minut)
@Erel
Yes SMMDebug was set.
Following is the Log
I also logged the time when launching SMM request (15:53:11) and the time when starting the video on the phone (15:54:25)
I don't understand "mark the timings" as you requested
Thanks for helping
Upvote
0
@Erel
Yes, it "pauses" for more than 1 minute..
I added the SMM library classes inside the SMMExample1 B4A program and I added time tracing after some Logs in these classes.
Result is below. For me, time is "lost" between "Creating view" (11:25:00) and "MediaIsReady" (11:26:13)
What can I do for helping you ?
Yes, it "pauses" for more than 1 minute..
I added the SMM library classes inside the SMMExample1 B4A program and I added time tracing after some Logs in these classes.
Result is below. For me, time is "lost" between "Creating view" (11:25:00) and "MediaIsReady" (11:26:13)
What can I do for helping you ?
Upvote
0
I think that I know what happens. The HEAD request isn't handled properly by the server which returns the full video file.
Please try this:
Please try this:
B4X:
Dim url As String = "http://192.168.1.165:51042/CRvideos/Videos2000/ToutRoumanie2.mp4"
SMM.AddLocalMedia(url, url, "video/mp4")
'now call SMM.SetMedia
Last edited:
Upvote
0
SMM relies on the HEAD request. Without it, it cannot properly handle different types of medias.
I missed the fact that you are using a B4J server. A better fix will be to find out why it returned the media itself for a HEAD request.
Upvote
0
Yes, I am using a B4J Web Socket Server.

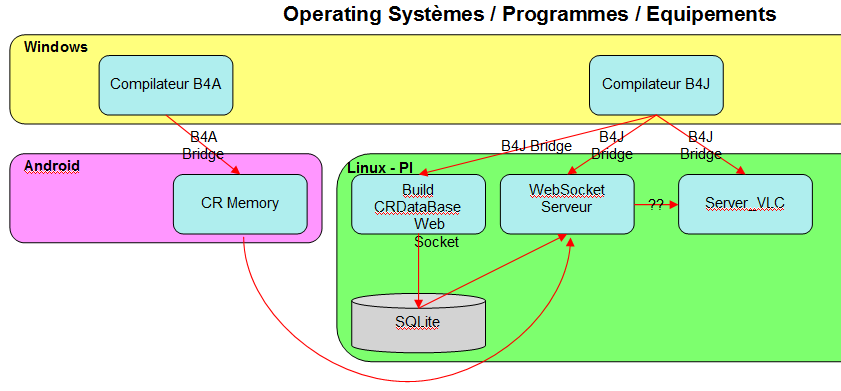

My whole project is called "memory" ; it is made only with B4X pieces. As I am 72 old, my purpose is to save all my MP3, personal videos and photos on a large disk connected to a Raspberry with a Linux server. Then, it is possible to simply hear/show them on phones. Database is useful for perrmitting to sort (thousands of) elements (by artist for MP3, by year or by geographic place for videos, etc...)
Next step is to integrate the memory server with a second server which controls home cinema equipments and to get the same "delivery service" on home TV or sound system.
My whole project is called "memory" ; it is made only with B4X pieces. As I am 72 old, my purpose is to save all my MP3, personal videos and photos on a large disk connected to a Raspberry with a Linux server. Then, it is possible to simply hear/show them on phones. Database is useful for perrmitting to sort (thousands of) elements (by artist for MP3, by year or by geographic place for videos, etc...)
Next step is to integrate the memory server with a second server which controls home cinema equipments and to get the same "delivery service" on home TV or sound system.
