Android Question Sliding menu

[Mrphone]

hi

I want to create a SlidingMenu that is not displayed on the screen. That is, it is displayed next to the screen. Just like Instagram

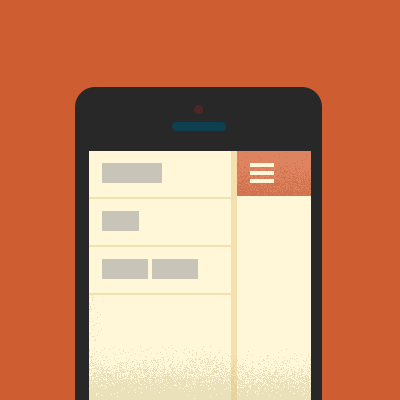

Like the picture above ?

I used the B4XDrawer, unfortunately, it appears on the screen.
I don't want this, I want it to be displayed next to the screen like the image above



[Erel]

If I remember correctly this is how the deprecated SlidingMenu library behaves: https://www.b4x.com/android/forum/threads/jfeinstein10-slidingmenu-library.36482/
Try it.



[Mrphone]

Thank you @Erel

But you don't recommend it

The open source project is no longer maintained and there are compatibility issues with newer versions of Android. It is recommended to use B4XDrawer instead.



[Erel]

That's true. However that is the only drawer library that I'm familiar with that behaves as you want.



[Mrphone]

I used the library you introduced, but it gave an error

main_activity_create (java line: 347)
java.lang.NoClassDefFoundError: Failed resolution of: Landroid/support/v4/view/ViewConfigurationCompat;
    at com.jeremyfeinstein.slidingmenu.lib.CustomViewAbove.initCustomViewAbove(CustomViewAbove.java:167)
    at com.jeremyfeinstein.slidingmenu.lib.CustomViewAbove.<init>(CustomViewAbove.java:157)
    at com.jeremyfeinstein.slidingmenu.lib.CustomViewAbove.<init>(CustomViewAbove.java:152)
    at com.jeremyfeinstein.slidingmenu.lib.SlidingMenu.<init>(SlidingMenu.java:209)
    at com.jeremyfeinstein.slidingmenu.lib.SlidingMenu.<init>(SlidingMenu.java:192)
    at com.jeremyfeinstein.slidingmenu.lib.SlidingMenu.<init>(SlidingMenu.java:181)
    at anywheresoftware.b4a.objects.SlidingMenuWrapper.Initialize(SlidingMenuWrapper.java:25)
    at b4a.example.main._activity_create(main.java:347)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:196)
    at b4a.example.main.afterFirstLayout(main.java:104)
    at b4a.example.main.access$000(main.java:17)
    at b4a.example.main$WaitForLayout.run(main.java:82)
    at android.os.Handler.handleCallback(Handler.java:883)
    at android.os.Handler.dispatchMessage(Handler.java:100)
    at android.os.Looper.loop(Looper.java:214)
    at android.app.ActivityThread.main(ActivityThread.java:7356)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:492)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:930)
Caused by: java.lang.ClassNotFoundException: android.support.v4.view.ViewConfigurationCompat
    ... 20 more

The open source project is no longer maintained and there are compatibility issues with newer versions of Android. It is recommended to use B4XDrawer instead.

Is this error the same as the problem?



[Erel]

Try to jetify the library. Tools - Jetifier.



[Mrphone]

an error occurred



[Erel]

You haven't put it in the correct place. Configure the additional libraries folder (Tools - Configure Paths). Put it under Documents.

Program Files is a restricted folder.



[Mrphone]

Thank you very much @Erel

It works very well
