Android Question Smooth Real-Time Blur Panel Over xCustomListView (Like Telegram)

hesam98 · Feb 8, 2026

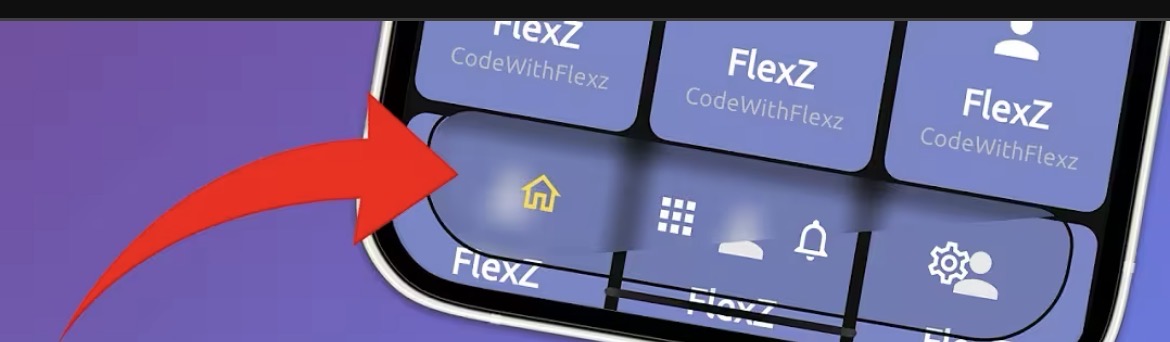

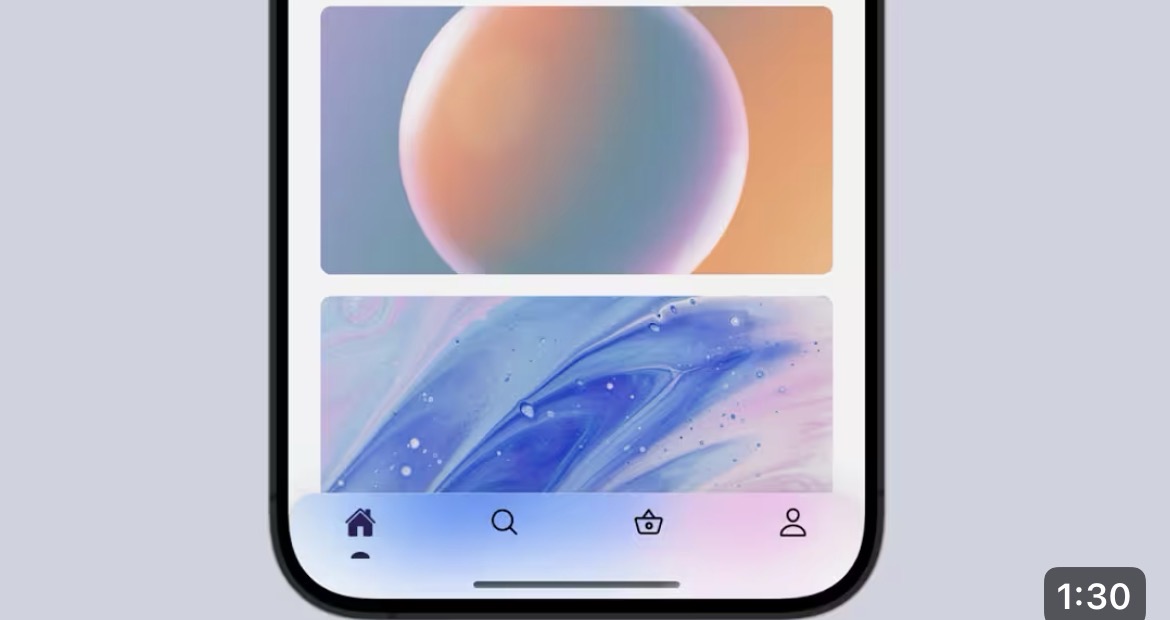

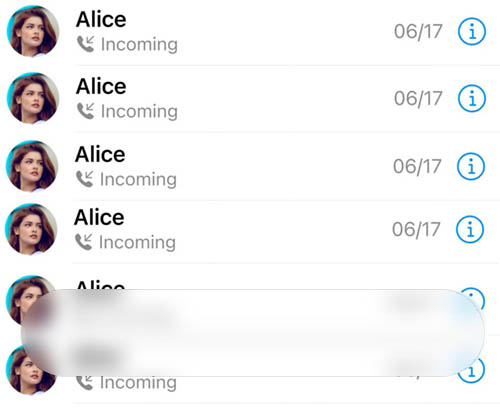

hello , Does anyone know how to make a panel over a xCustomListView blur very smoothly and without any lag, just like in Telegram? The idea is that the items in the ScrollView appear blurred inside/under that panel.

This design style has become very common lately and most modern apps use it in their UI.
I’ve already tested a lot of methods, many libraries that have been released so far, and even AI-generated solutions — but either they didn’t work properly, or they were laggy and nowhere near as smooth as Telegram (for example) .

I would really appreciate any help!

LucasHeer · Feb 9, 2026

I have never tried this, but my first instinct would be to have an overlaying panel with visibility or alpha set to 0.

Then use XUI/B4XView to set alpha or visibility animated (SetVisibleAnimated, SetAlphaAnimated)

You might be able to get away with finding some kind of blur image filter PNG (with alpha transparency) -- And setting the blur panel background to this..

However, I believe the best results would come from copying the pixels from whatever is underneath the panel and using something like BitmapCreatorEffects to blur the copied bitmap.

TILogistic · Feb 9, 2026

For what you want:
First, you need to know which technique or algorithm to use for cropping the image behind the panel.

Gaussian Blur: The most common technique; it uses a mathematical function to smooth and even out the image.
Box Blur: A faster method than Gaussian blur that averages pixels into rectangular patterns, useful for quick previews.
Fast Blur: It is generally based on frame blur (frame defocus) applied in several passes (usually 3).

Second, you need to control the blur when scrolling.

ref,

Blur Effect Demo

My code is hideous and needs to be cleaned but I thought to post a demo here as many people want to know how to do these effects. This is a demo that uses some trickery to create blurry effects that look quite good in apps (for e.g. etsy) Can be used on slideout drawers, scrolling listviews etc...

www.b4x.com

fsGlassmorphism(View with a blurred background)

Hi, This is my first experiment with glassmorphism. The class “fsGlassmorphism.bas” can be used to create a view with a blurred background and works with B4a and B4i. The test project can be run with B4a and B4i. Anyone can expand and improve the project as they wish. The expansions or...

www.b4x.com

[B4X] [BitmapCreator] Blur Image

Returns a blurred image: Private Sub Blur (bmp As B4XBitmap) As B4XBitmap Dim n As Long = DateTime.Now Dim bc As BitmapCreator Dim ReduceScale As Int = 2 bc.Initialize(bmp.Width / ReduceScale / bmp.Scale, bmp.Height / ReduceScale / bmp.Scale) bc.CopyPixelsFromBitmap(bmp)...

www.b4x.com

[B4X] [UPDATE] Glassmorphism

Class that converts panels to Glassmorphism Features: - Blur - Opacity - Corner Radius - Glass Color - Glass Border Width - Glass Border Color This class uses B4X (cross-platform) code, with no external libraries. Your comments are welcome. Regards. Ref. https://ui.glass/generator/

www.b4x.com

TILogistic · Feb 9, 2026

Another single:

Transparent panel

I have modify card example. Is it possible set a total and percentage trasparent on panel?

www.b4x.com

Transparent Panel but with Shadow

Hi everyone, I'm experimenting some modern UI techniques... is it possibile to have a panel with transparent color and keeping the shadow? At the moment i'm achieving the shadow using the "Elevation" but if i put Color to transpartent the shadow disappears. Is there a better way to apply a...

www.b4x.com

hesam98 · Feb 9, 2026

Thank you for your reply dear @TILogistic
@LucasHeer

Unfortunately none of the topics mentioned above are optimized for this use case! Those methods are usually fine for blurring a single static item once, but when it comes to live / real-time blur over a scrolling view (ScrollView / xCustomListView) or over a video, they start lagging.
I’ve been trying to implement this properly for about a year now.

Note: I’ve already used library fsGlassmorphism(View with a blurred background) it works great for one-time / static blur, but it’s not suitable for real-time / live blur at all.

I believe Telegram is using something like RenderEffect.createBlurEffect (native Java API 31) for this — probably real-time blur, dynamic blur, or similar names for this technique.
So far I haven’t been able to find a proper library or working example of this method in B4A

I really hope @Erel or other experts in the community will find a good solution for this approach.

Thanks in advance for any help!

TILogistic · Feb 9, 2026

I've seen your replies; the solution for a smooth and quick blur is simple.

Reduce the size of the cropped image.
Apply the box blur technique to the image.

B4X:

Dim scale As Int = 16
Dim bmp As B4XBitmap = PanelBack.Snapshot
bmp = bmp.Resize(bmp.Width / scale, bmp.Height / scale, True)

ImageBlur.Bitmap = BoxBlurFast(bmp, 3)

This will give you a more realistic view of the scrolling by showing the blur of the overlaid panel.

B4X:

Sub BoxBlurFast(bmp As B4XBitmap, radius As Int) As B4XBitmap

Parámeters:
Scale: 1/8 – 1/16
Radius: 3 – 5

If you saw my solution, these techniques are applied where the parameters of blur, color, etc. are adjusted.

[B4X] [UPDATE] Glassmorphism

Class that converts panels to Glassmorphism Features: - Blur - Opacity - Corner Radius - Glass Color - Glass Border Width - Glass Border Color This class uses B4X (cross-platform) code, with no external libraries. Your comments are welcome. Regards. Ref. https://ui.glass/generator/

www.b4x.com

TILogistic · Feb 9, 2026

And finally, you can use this technique to add the blurred image to the top panel.

Fondo de CLV

Buenos dias equipo. Como puedo hacer en B4J para tener una imagen de fondo en un CLV, solo quiero que se vean los ítem y en el fondo la imagen. Gracias.

www.b4x.com

zed · Feb 9, 2026

I'm not sure I understood your request correctly; I'm not familiar with how Telegram works.

This code blurs the CLV during scrolling. When scrolling stops, the blur disappears.

Add a panel above the clv

The example here works with an animation. The project also includes a version without animation.

If this isn't what you asked for, then I don't understand.

B4X:

'-----------------------------
' with animation
'-----------------------------

Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI

    Private CLV1 As CustomListView
    Private BlurPanel As Panel

    Private BlurRadiusStrong As Float = 25dip
    Private BlurRadiusWeak As Float = 0dip

    Private BlurTimer As Timer          ' detects end of scroll
    Private AnimTimer As Timer          ' animates the blur

    Private AnimStart As Float
    Private AnimEnd As Float
    Private AnimStartAlpha As Int
    Private AnimEndAlpha As Int
    Private AnimStartTime As Long
    Private AnimDuration As Int = 200   ' animation duration

    Private CurrentBlur As Float = 0
    Private CurrentAlpha As Int = 0
End Sub



Public Sub Initialize
'    B4XPages.GetManager.LogEvents = True
End Sub

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")

    For i = 1 To 50
        CLV1.AddTextItem("Élément " & i, "")
    Next

    BlurPanel.Color = Colors.ARGB(0, 0, 0, 0)

    ApplyBlur(BlurPanel, 0)

    BlurTimer.Initialize("BlurTimer", 120)
    AnimTimer.Initialize("AnimTimer", 16) ' ~60 FPS

End Sub

Sub ApplyBlur(v As View, radius As Float)
    Dim jo As JavaObject = Me
    jo.RunMethod("BlurEffect", Array(v, radius))
End Sub

Sub AnimateBlurAndAlpha(TargetRadius As Float, TargetAlpha As Int)
    AnimStart = CurrentBlur
    AnimEnd = TargetRadius

    AnimStartAlpha = CurrentAlpha
    AnimEndAlpha = TargetAlpha

    AnimStartTime = DateTime.Now
    AnimTimer.Enabled = True
End Sub

Sub AnimTimer_Tick
    Dim elapsed As Long = DateTime.Now - AnimStartTime
    Dim t As Float = elapsed / AnimDuration
    If t >= 1 Then
        t = 1
        AnimTimer.Enabled = False
    End If

    ' Blur interpolation
    CurrentBlur = AnimStart + (AnimEnd - AnimStart) * t
    ApplyBlur(BlurPanel, CurrentBlur)

    ' opacity Interpolation
    CurrentAlpha = AnimStartAlpha + (AnimEndAlpha - AnimStartAlpha) * t
    BlurPanel.Color = Colors.ARGB(CurrentAlpha, 255, 255, 255)
End Sub


Sub CLV1_ScrollChanged(Offset As Int)
    AnimateBlurAndAlpha(BlurRadiusStrong, 180)
    BlurTimer.Enabled = False
    BlurTimer.Enabled = True
End Sub

Sub BlurTimer_Tick
    BlurTimer.Enabled = False
    AnimateBlurAndAlpha(BlurRadiusWeak, 0)
End Sub

and JAVA

java:

public static void BlurEffect(android.view.View v, float radius) {
    if (android.os.Build.VERSION.SDK_INT >= 31) {
        android.graphics.RenderEffect effect =
            android.graphics.RenderEffect.createBlurEffect(
                radius, radius,
                android.graphics.Shader.TileMode.CLAMP
            );
        v.setRenderEffect(effect);
    }
}

alwaysalearner · Feb 10, 2026

zed said:
I'm not sure I understood your request correctly; I'm not familiar with how Telegram works.
.........
}[/CODE]

Any idea Why I get 'java.lang.reflect.InvocationTargetException' ? I run the project as is. Thank you.

** Activity (main) Create (first time) **
Error occurred on line: 61 (B4XMainPage)
java.lang.reflect.InvocationTargetException
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4j.object.JavaObject.RunMethod(JavaObject.java:132)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.shell.Shell.runVoidMethod(Shell.java:777)
at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:354)
at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
at anywheresoftware.b4a.debug.Debug.delegate(Debug.java:262)
at b4a.example.b4xmainpage._b4xpage_created(b4xmainpage.java:147)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.debug.Debug.CallSub4(Debug.java:318)
at anywheresoftware.b4a.debug.Debug.CallSubNew2(Debug.java:285)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.keywords.Common.CallSubDebug2(Common.java:1140)
at b4a.example.b4xpagesmanager._createpageifneeded(b4xpagesmanager.java:1068)
at b4a.example.b4xpagesmanager._showpage(b4xpagesmanager.java:425)
at b4a.example.b4xpagesmanager._addpage(b4xpagesmanager.java:245)
at b4a.example.b4xpagesmanager._addpageandcreate(b4xpagesmanager.java:259)

Erel · Feb 10, 2026

Can you post the logs when running in release mode?

zed · Feb 10, 2026

setRenderEffect only exists on Android 12+ (API 31) and your device/emulator is probably below 31.

alwaysalearner · Feb 10, 2026

Erel said:
Can you post the logs when running in release mode?

Thanks for looking into it. Here is the Log from release mode:

Logger connected to: Xiaomi 23076RN4BI
Logger connected to: Xiaomi 23076RN4BI
--------- beginning of main
*** Service (starter) Create ***
** Service (starter) Start **
** Activity (main) Create (first time) **
b4xmainpage_applyblur (java line: 97)
java.lang.reflect.InvocationTargetException
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4j.object.JavaObject.RunMethod(JavaObject.java:132)
at b4a.example.b4xmainpage._applyblur(b4xmainpage.java:97)
at b4a.example.b4xmainpage._b4xpage_created(b4xmainpage.java:121)
at b4a.example.b4xmainpage.callSub(b4xmainpage.java:195)
at anywheresoftware.b4a.keywords.Common.CallSub4(Common.java:1151)
at anywheresoftware.b4a.keywords.Common.CallSubNew2(Common.java:1122)
at b4a.example.b4xpagesmanager._createpageifneeded(b4xpagesmanager.java:528)
at b4a.example.b4xpagesmanager._showpage(b4xpagesmanager.java:865)
at b4a.example.b4xpagesmanager._addpage(b4xpagesmanager.java:199)
at b4a.example.b4xpagesmanager._addpageandcreate(b4xpagesmanager.java:206)
at b4a.example.b4xpagesmanager._initialize(b4xpagesmanager.java:716)
at b4a.example.main._activity_create(main.java:365)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:221)
at b4a.example.main.afterFirstLayout(main.java:105)
at b4a.example.main.access$000(main.java:17)
at b4a.example.main$WaitForLayout.run(main.java:83)
at android.os.Handler.handleCallback(Handler.java:958)
at android.os.Handler.dispatchMessage(Handler.java:99)
at android.os.Looper.loopOnce(Looper.java:224)
at android.os.Looper.loop(Looper.java:318)
at android.app.ActivityThread.main(ActivityThread.java:8772)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:561)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1013)
Caused by: java.lang.IllegalArgumentException: nativePtr is null
at libcore.util.NativeAllocationRegistry.registerNativeAllocation(NativeAllocationRegistry.java:509)
at android.graphics.RenderEffect.<init>(RenderEffect.java:314)
at android.graphics.RenderEffect.createBlurEffect(RenderEffect.java:117)
at b4a.example.b4xmainpage.BlurEffect(b4xmainpage.java:201)
... 26 more
*** Service (starter) Create ***
** Service (starter) Start **
** Activity (main) Create (first time) **
b4xmainpage_applyblur (java line: 97)
java.lang.reflect.InvocationTargetException
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4j.object.JavaObject.RunMethod(JavaObject.java:132)
at b4a.example.b4xmainpage._applyblur(b4xmainpage.java:97)
at b4a.example.b4xmainpage._b4xpage_created(b4xmainpage.java:121)
at b4a.example.b4xmainpage.callSub(b4xmainpage.java:195)
at anywheresoftware.b4a.keywords.Common.CallSub4(Common.java:1151)
at anywheresoftware.b4a.keywords.Common.CallSubNew2(Common.java:1122)
at b4a.example.b4xpagesmanager._createpageifneeded(b4xpagesmanager.java:528)
at b4a.example.b4xpagesmanager._showpage(b4xpagesmanager.java:865)
at b4a.example.b4xpagesmanager._addpage(b4xpagesmanager.java:199)
at b4a.example.b4xpagesmanager._addpageandcreate(b4xpagesmanager.java:206)
at b4a.example.b4xpagesmanager._initialize(b4xpagesmanager.java:716)
at b4a.example.main._activity_create(main.java:365)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:221)
at b4a.example.main.afterFirstLayout(main.java:105)
at b4a.example.main.access$000(main.java:17)
at b4a.example.main$WaitForLayout.run(main.java:83)
at android.os.Handler.handleCallback(Handler.java:958)
at android.os.Handler.dispatchMessage(Handler.java:99)
at android.os.Looper.loopOnce(Looper.java:224)
at android.os.Looper.loop(Looper.java:318)
at android.app.ActivityThread.main(ActivityThread.java:8772)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:561)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1013)
Caused by: java.lang.IllegalArgumentException: nativePtr is null
at libcore.util.NativeAllocationRegistry.registerNativeAllocation(NativeAllocationRegistry.java:509)
at android.graphics.RenderEffect.<init>(RenderEffect.java:314)
at android.graphics.RenderEffect.createBlurEffect(RenderEffect.java:117)
at b4a.example.b4xmainpage.BlurEffect(b4xmainpage.java:201)
... 26 more

I tried shifting 'apply blur' function to B4x_Appear but I still get the error:

B4X:

Private Sub B4XPage_Appear
    Sleep(0)
    ApplyBlur(BlurPanel, 0)

    BlurTimer.Initialize("BlurTimer", 120)
    AnimTimer.Initialize("AnimTimer", 16) ' ~60 FPS
End Sub

alwaysalearner · Feb 10, 2026

zed said:
setRenderEffect only exists on Android 12+ (API 31) and your device/emulator is probably below 31.

Thank you but my test device OS is Android 14.

zed · Feb 10, 2026

I can't reproduce the error. Have you tested the project as it is?

hesam98 · Feb 10, 2026

Thanks for the reply @zed @TILogistic

I tested the code, but unfortunately the floating panel over the ScrollView doesn’t get blurred. It only appears blurred when there’s an item/content on the panel itself.
When the panel is empty and placed over the ScrollView, it doesn’t show a blurred version of the ScrollView content underneath it.
(Maybe the problem is with my SDK and it’s not showing the blur properly, but I tested it on Root1.GetView(0) and it worked fine there. What I actually want is for the floating panel itself to show the blurred content from behind it)

I explained what I mean in the attached screenshot in the topic.
I re-attached my more precise meaning.

Maybe the only practical way is to take a snapshot, blur it, and set it as the panel’s background inside the xCustomListView_ScrollChanged event.

But this method is very slow, causes noticeable lag, and disrupts the scrolling experience.

Thank you for your help.

alwaysalearner · Feb 11, 2026

zed said:
I can't reproduce the error. Have you tested the project as it is?

I am using the code as is. May be it is brand specific .
Chat GPT says

Why this is Xiaomi-specific (but not a bug):
MIUI aggressively delays view attachment
Render pipeline initialized late
Google Pixel often works earlier
Samsung sometimes in between

I am not sure if it is hallucinating or saying the truth

I will try with Samsung later.

alwaysalearner · Feb 11, 2026

If I set the 'BlurPanel' as the parent of CLV1, it works

Android Question Smooth Real-Time Blur Panel Over xCustomListView (Like Telegram)

New Member

Attachments

Active Member

Expert

Expert

New Member

Expert

Expert

Well-Known Member

Attachments

Member

B4X founder

Well-Known Member

Member

Member

Well-Known Member

New Member

Attachments

Member

Member

Similar Threads
