B4J Question [SOLVED] B4J-WEB Server Event Parameter size limitation

Ganiadi

Active Member
Licensed User
Longtime User
Dear Expert,

I've a function in WEB App that handle an image selection in HTML
It's working fine and B4J Event triggered and parse all the parameter smoothly, but when the image size is bigger than 49000 Byte / 49 KB, it broken when running

b4j_raiseEvent("GetImage_ClickEvent", { value1: e.target.result, value2: fileproperties.files.item(0).size, value3: fileproperties.files.item(0).name, value4: cFile });

Below is the script of the HTML

Get Image:
<!DOCTYPE html>
<html lang="en">

<head>

  <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
  <meta name="apple-mobile-web-app-capable" content="yes">
  <meta name="apple-mobile-web-app-status-bar-style" content="black-translucent">
  <meta name="viewport"
    content="width=device-width, initial-scale=1, minimum-scale=1, maximum-scale=1, viewport-fit=cover" />

  <link rel="stylesheet" type="text/css" href="/template/styles/bootstrap.css">
  <link rel="stylesheet" type="text/css" href="/template/styles/style.css">
  <link rel="stylesheet" type="text/css" href="/template/fonts/css/fontawesome-all.min.css">

  <link rel="manifest" href="_manifest.json" data-pwa-version="set_in_manifest_and_pwa_js">
  <link rel="apple-touch-icon" sizes="180x180" href="/template/app/icons/icon-192x192.png">

  <title>Accomodation</title>
  <style id="jqstyle">
  </style>
</head>

<body class="theme-light" data-highlight="highlight-red" data-gradient="body-default" style="background-color: white;">

  <div id="preloader">
    <div class="spinner-border color-highlight" role="status"></div>
  </div>

  <div class="sidebaradmin" style="position: fixed; z-index:99;">
    <div id="jqheader"></div>
    <div id="jqmore"></div>
  </div>

  <div class="main">
    <div id="jqcontent"></div>

    <div id="footer-bar" class="footer-bar-1" style="margin-left: 200px; background-color: whitesmoke;">
      <button id="jqaddguest" type="button" class="btn btn-danger rounded-xxl"" style=" height: 50px; width: 47px;
        margin-top: 5px; margin-left: 48%; text-align: center; font-size:x-large; padding-top: 5px;">+</button>
    </div>

  </div>

   <!--==========================JAVA SCRIPT========================== -->
  <script type="text/javascript" src="/template/scripts/jquery.min.js"></script>
  <script type="text/javascript" src="/template/scripts/b4j_ws.js"></script>
  <script type="text/javascript" src="/template/scripts/bootstrap.min.js"></script>
  <script type="text/javascript" src="/template/scripts/custom.js"></script>

  <script>
    $(document).ready(function () {
      b4j_connect("/wspgAccomodationDetail");
    });
  </script>

    function getimage(cFile) {
      var file = document.getElementById(cFile).files[0];
      const fileproperties = document.getElementById(cFile);
      var reader = new FileReader();
      reader.onloadend = function (e) {
        b4j_raiseEvent("GetImage_ClickEvent", { value1: e.target.result, value2: fileproperties.files.item(0).size, value3: fileproperties.files.item(0).name, value4: cFile });
      }
      reader.readAsDataURL(file);
    }

  </script>

</body>

</html>

Please help, is there any way to solve this issue ?


Thanks for your help


Ganiadi

Active Member
Licensed User
Longtime User
Where does it fail? Are you sure that the client is sending the data?

There is an example of combining WebSocket handler with a regular handler for file uploads: https://b4x.com:51041/websocket_with_fileupload/index.html
This will be more efficient than sending the data as a WebSocket text message.
Hi Erel

Yes the client sends the data



I need to verify the file first in B4J and wrapped with checksum protocol for security before uploading to the B4J Server.

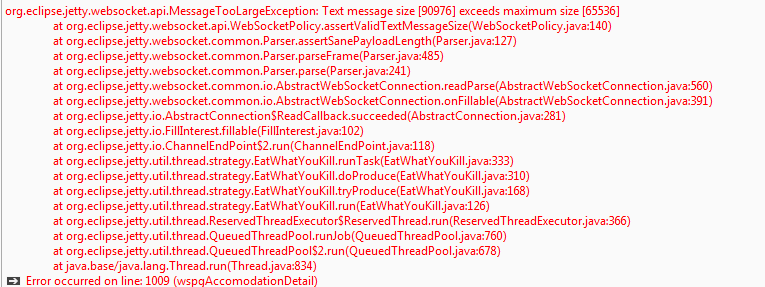

it seems it fail in b4j_raiseEvent("GetImage_ClickEvent", { value1: e.target.result, value2: fileproperties.files.item(0).size, value3: fileproperties.files.item(0).name, value4: cFile });
where e.target.result is over size

Please advice if i'm doing wrong


Tks for helping

Upvote 0

Ganiadi

Active Member
Licensed User
Longtime User
Upvote 0
