Android Question [Solved]HttpJob

[Ale_resource]

Hi I should download a json from a web service via an api call ,This is the code I used :

    Dim JobDoc As HttpJob
    JobDoc.Initialize("JobDoc",Me)
    JobDoc.Download("https://webapide.aliasgrouplab.it/api/DocumentoAttivo/100009")
    JobDoc.GetRequest.SetHeader("APIKey","2b6dedd8efc2668b56b2d070424a436f0027134c293199724ee80.........")
    JobDoc.GetRequest.SetHeader("APISecret","47c55ace70212b27d79db9e5824d09541ea120de3e88bf8993c4152c62239b0df9382242e9570dd00e6cfcf3980ba74a95630305cf00661fe89d8......."")
    JobDoc.GetRequest.SetHeader("CodiceCliente","0185469.....")
    Wait For (JobDoc) JobDone(JobDoc As HttpJob)
    If JobDoc.Success Then
        Log(JobDoc.GetString)
    Else
        Log(JobDoc.ErrorMessage)
    End If

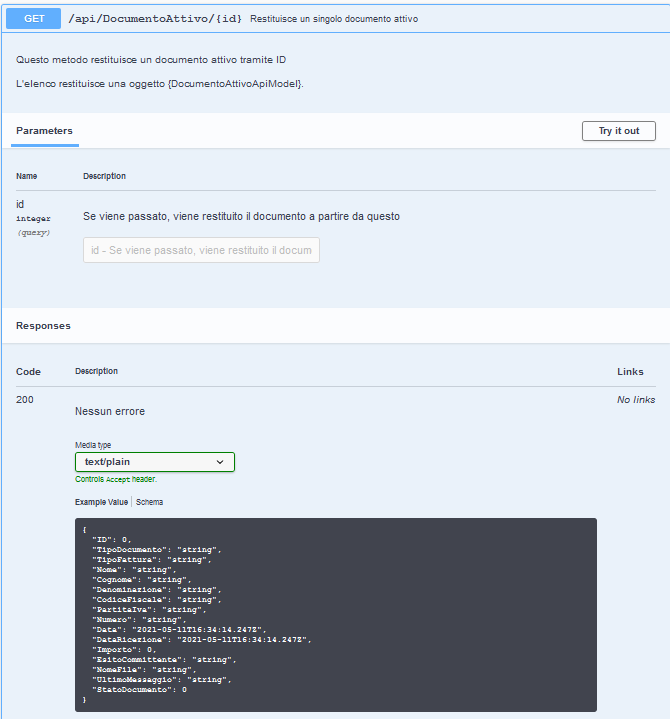

and this is the documentation :

but i can't download anything, i always get this error

I tried with Postman to manage the api and it works fine.
What am I doing wrong ?



[Andrew (Digitwell)]

when you say an empty response do you get the same 401 error. You can see this in postman at the right hand side of the results window.



[Ale_resource]

when you say an empty response do you get the same 401 error. You can see this in postman at the right hand side of the results window.

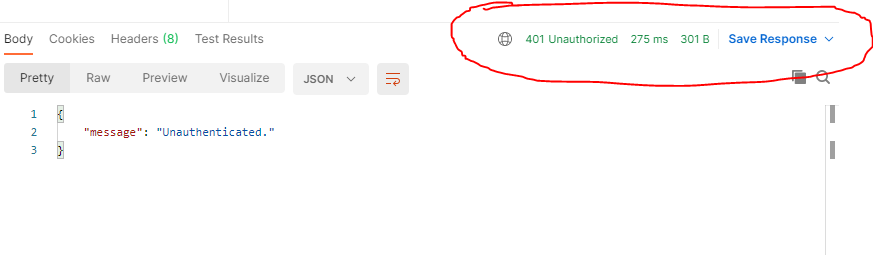

View attachment 113231

Exactly if on postman I remove the headers it returns me as a 401 response.
So how come with the code I used it doesn't send me the headers?



[Andrew (Digitwell)]

Sorry , I can't help further without the the actual code. Is it possible to create some temporary API keys to use?



[Andrew (Digitwell)]

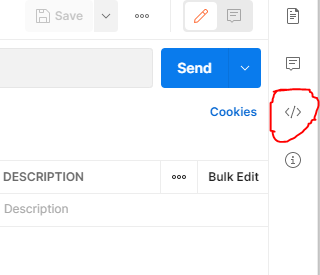

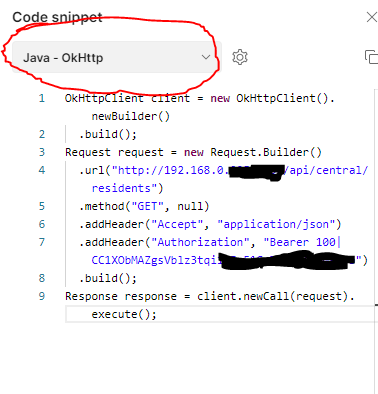

As another test can you use the Code snippet option to display the working version as Java-okhttp.

Then cut and paste that into the b4a code.



[Ale_resource]

Sorry , I can't help further without the the actual code. Is it possible to create some temporary API keys to use?

here is the data i am using:
Url = https://webapide.aliasgrouplab.it/api/DocumentoAttivo/100012
ApiKey = ce8ac27ca1c73f5afd1d2f66976aa6be88335fe6e282a921acc963d575163b6e
APISecret = e290984a3d0d8ae286306dc152b5493c70b637ffcc48f2049ba90cab73f3e26c337fa2fc97379ce9b52586b98ae92c3934bf261731d095a949a47fbb2853f58b
CodiceCliente =01854690433
Method = Get



[Ale_resource]

here is the data i am using:
Url = https://webapide.aliasgrouplab.it/api/DocumentoAttivo/100012
ApiKey = ce8ac27ca1c73f5afd1d2f66976aa6be88335fe6e282a921acc963d575163b6e
APISecret = e290984a3d0d8ae286306dc152b5493c70b637ffcc48f2049ba90cab73f3e26c337fa2fc97379ce9b52586b98ae92c3934bf261731d095a949a47fbb2853f58b
CodiceCliente =01854690433
Method = Get

OkHttpClient client = new OkHttpClient().newBuilder()
.build();
Request request = new Request.Builder()
.url("https://webapide.aliasgrouplab.it/api/DocumentoAttivo/100012")
.method("GET", null)
.addHeader("APIKey", "ce8ac27ca1c73f5afd1d2f66976aa6be88335fe6e282a921acc963d575163b6e")
.addHeader("APISecret", "e290984a3d0d8ae286306dc152b5493c70b637ffcc48f2049ba90cab73f3e26c337fa2fc97379ce9b52586b98ae92c3934bf261731d095a949a47fbb2853f58b")
.addHeader("CodiceCliente", "01854690433")
.build();
Response response = client.newCall(request).execute();



[Andrew (Digitwell)]

That works for me.

Here is the code.



[Andrew (Digitwell)]

Ahhh...

In my haste, I mistakenly used HTTP and HTTPUTILS libraries in the program.

This works.

HOWEVER, when you change them to OKHTTP and OKHTTPUTILS2 libraries it does NOT work.

Is this a bug in the library?



[Ale_resource]

Ahhh...

In my haste, I mistakenly used HTTP and HTTPUTILS libraries in the program.

This works.

HOWEVER, when you change them to OKHTTP and OKHTTPUTILS2 libraries it does NOT work.

Is this a bug in the library?

I don't know, who can tell me?



[Andrew (Digitwell)]

I think this is one for @Erel



[Ale_resource]

I think this is one for @Erel

it seems as if using the download only 1 header is taken and the others are excluded



[OliverA]

it seems as if using the download only 1 header is taken and the others are excluded

No. Using ptsv2.com, I created a "toilet" and all headers are transferred. Looking at what postman sends and what okhttp2utils2/okhttp sends, I don't really see any breaking issues. This one is a head scratcher.

okhttp2utils2/okhttp headers not working (I've modified the header output to take out my IP address)

Accept-Encoding	gzip
Apikey	ce8ac27ca1c73f5afd1d2f66976aa6be88335fe6e282a921acc963d575163b6e
Apisecret	e290984a3d0d8ae286306dc152b5493c70b637ffcc48f2049ba90cab73f3e26c337fa2fc97379ce9b52586b98ae92c3934bf261731d095a949a47fbb2853f58b
Cache-Control	no-cache
Codicecliente	01854690433
Content-Length	0
Forwarded	for="xx.xx.xx.xx";proto=https
Traceparent	00-ac9cb4655ed3e146eeb1746950fc56c0-9c898a2070e75ba3-00
User-Agent	okhttp/3.12.12
X-Client-Data	CgSL6ZsV
X-Cloud-Trace-Context	ac9cb4655ed3e146eeb1746950fc56c0/11279698613663914915
X-Forwarded-For	xx.xx.xx.xx, 169.254.1.1
X-Forwarded-Proto	https
X-Google-Apps-Metadata

Postman headers (modified to be more like above) working:

Accept-Encoding	gzip
Apikey	ce8ac27ca1c73f5afd1d2f66976aa6be88335fe6e282a921acc963d575163b6e
Apisecret	e290984a3d0d8ae286306dc152b5493c70b637ffcc48f2049ba90cab73f3e26c337fa2fc97379ce9b52586b98ae92c3934bf261731d095a949a47fbb2853f58b
Cache-Control	no-cache
Codicecliente	01854690433
Content-Length	0
Forwarded	for="54.86.50.139";proto=https
Postman-Token	5cdecaaf-a473-48c9-b13c-20cfe779a1b9
Traceparent	00-680b416320050ed3f828b5f4ee34dcb6-de69b3f24b271339-00
User-Agent	PostmanRuntime/7.28.0
X-Cloud-Trace-Context	680b416320050ed3f828b5f4ee34dcb6/16026538602198930233
X-Forwarded-For	54.86.50.139, 169.254.1.1
X-Forwarded-Proto	https
X-Google-Apps-Metadata	domain=gmail.com,host=ptsv2.com



[OliverA]

Code used for the above

    'Dim url As String = "https://ptsv2.com/t/**************/post"
    Dim url As String = "https://webapide.aliasgrouplab.it/api/DocumentoAttivo/100012"
    Dim apiKey As String = "ce8ac27ca1c73f5afd1d2f66976aa6be88335fe6e282a921acc963d575163b6e"
    Dim apiSecret As String = "e290984a3d0d8ae286306dc152b5493c70b637ffcc48f2049ba90cab73f3e26c337fa2fc97379ce9b52586b98ae92c3934bf261731d095a949a47fbb2853f58b"
    Dim codiceCliente As String = "01854690433"
    Dim j As HttpJob
    j.Initialize("", Me)
    j.Download(url)
    j.GetRequest.SetHeader("APIKey",apiKey)
    j.GetRequest.SetHeader("APISecret",apiSecret)
    j.GetRequest.SetHeader("CodiceCliente",codiceCliente)
    j.GetRequest.SetHeader("Content-Length", 0)
    j.GetRequest.SetHeader("Cache-Control", "no-cache")
    Wait For (j) JobDone (j As HttpJob)
    If j.Success Then
        xui.MsgboxAsync($"Success:
--- GetString
${j.GetString}"$, "B4X")
    Else
        xui.MsgboxAsync($"Failure (${j.Response.StatusCode}):
--- ErrorMessage
${j.ErrorMessage}"$, "B4X")
    End If
    j.Release



[Ale_resource]

Code used for the above

    'Dim url As String = "https://ptsv2.com/t/**************/post"
    Dim url As String = "https://webapide.aliasgrouplab.it/api/DocumentoAttivo/100012"
    Dim apiKey As String = "ce8ac27ca1c73f5afd1d2f66976aa6be88335fe6e282a921acc963d575163b6e"
    Dim apiSecret As String = "e290984a3d0d8ae286306dc152b5493c70b637ffcc48f2049ba90cab73f3e26c337fa2fc97379ce9b52586b98ae92c3934bf261731d095a949a47fbb2853f58b"
    Dim codiceCliente As String = "01854690433"
    Dim j As HttpJob
    j.Initialize("", Me)
    j.Download(url)
    j.GetRequest.SetHeader("APIKey",apiKey)
    j.GetRequest.SetHeader("APISecret",apiSecret)
    j.GetRequest.SetHeader("CodiceCliente",codiceCliente)
    j.GetRequest.SetHeader("Content-Length", 0)
    j.GetRequest.SetHeader("Cache-Control", "no-cache")
    Wait For (j) JobDone (j As HttpJob)
    If j.Success Then
        xui.MsgboxAsync($"Success:
--- GetString
${j.GetString}"$, "B4X")
    Else
        xui.MsgboxAsync($"Failure (${j.Response.StatusCode}):
--- ErrorMessage
${j.ErrorMessage}"$, "B4X")
    End If
    j.Release

in my opinion not all the lines set in the header are sent, in fact if I call another api on which there is no need for header it works. moreover and from postman I remove one of the 3 headers it returns me the error 401



[OliverA]

in my opinion not all the lines set in the header are sent

Did you look at the output of the ptsv2.com site? The headers ARE sent. All of them. And the removed headers are not. Try it for yourself. Create a "toilet" at the site and run your request against the provided link (should be in the form of https://ptsv2.com/t/**************/post, with the *'s being your toilet id).



[Ale_resource]

Did you look at the output of the ptsv2.com site? The headers ARE sent. All of them. And the removed headers are not. Try it for yourself. Create a "toilet" at the site and run your request against the provided link (should be in the form of https://ptsv2.com/t/**************/post, with the *'s being your toilet id).

at this point then i have no idea what it could be, i tried to use the library HttpUtils2
and it works while with OkHttpUtils2 doesn't work with



[Ale_resource]

I also tried with the code below but I have the exact same problem.

Sub Button1_Click
    Dim url As String = "https://webapide.aliasgrouplab.it/api/DocumentoAttivo/100012"
    Dim apiKey As String = "ce8ac27ca1c73f5afd1d2f66976aa6be88335fe6e282a921acc963d575163b6e"
    Dim apiSecret As String = "e290984a3d0d8ae286306dc152b5493c70b637ffcc48f2049ba90cab73f3e26c337fa2fc97379ce9b52586b98ae92c3934bf261731d095a949a47fbb2853f58b"
    Dim codiceCliente As String = "01854690433"
    Dim hc As OkHttpClient
    hc.InitializeAcceptAll("hc")
    Dim req As OkHttpRequest
    req.InitializeGet(url)
    req.SetHeader("APIKey",apiKey)
    req.SetHeader("APISecret",apiSecret)
    req.SetHeader("CodiceCliente",codiceCliente)
    hc.Execute(req,1000)

End Sub


Sub hc_ResponseSuccess (Response As OkHttpResponse, TaskId As Int)
   out.InitializeToBytesArray(0)
   Response.GetAsynchronously("res", out, False, TaskId)
End Sub

Sub res_StreamFinish (Success As Boolean, TaskId As Int)
   Log($" ${Success}"$)
   If Success Then Log(BytesToString(out.ToBytesArray, 0, out.ToBytesArray.Length, "utf8"))
End Sub


Sub hc_ResponseError (Response As OkHttpResponse, Reason As String, StatusCode As Int, TaskId As Int)
   Log($"Error: ${Response.ErrorResponse}, ${Reason}, ${StatusCode}"$)
   If Response <> Null Then Response.Release
End Sub



[Ale_resource]

Sorry @Erel, can you help me?



[aeric]

What is the link for the API documentation?



[Ale_resource]

What is the link for the API documentation?

DocEasy R5 Api - Documentazione

webapide.aliasgrouplab.it
