Android Tutorial TabStripViewPager - Better ViewPager

This library is based on the following open source project: https://github.com/astuetz/PagerSlidingTabStrip
License: http://www.apache.org/licenses/LICENSE-2.0

It is an alternative to StdViewPager. It is simpler to use and looks better.
It is implemented as a custom view. It requires B4A v5.8+.

It is very simple to add a TabStrip to your app.

Add the TabStrip with the visual designer and configure it:

Note the usage of anchors to fill the available space.

Create a layout file for each page. Again use anchors to fill the available space:

Load the main layout and then add pages with a call to TabStrip.LoadLayout:

Sub Activity_Create(FirstTime As Boolean)
   Activity.LoadLayout("Main")
   TabStrip1.LoadLayout("Page1", "PAGE 1")
   TabStrip1.LoadLayout("Page2", "THIS IS PAGE 2")
   TabStrip1.LoadLayout("Page3", "AND PAGE 3")
End Sub

Add the following text to the manifest editor (it creates the short press effect):

'********* TabStrip ***********************
CreateResource(drawable, background_tab.xml,
<selector xmlns:android="http://schemas.android.com/apk/res/android"
   android:exitFadeDuration="@android:integer/config_shortAnimTime">
  <item android:state_pressed="true" android:drawable="@color/background_tab_pressed" />
  <item android:state_focused="true" android:drawable="@color/background_tab_pressed"/>
  <item android:drawable="@android:color/transparent"/>
</selector>)
CreateResource(values, colors.xml,
<resources>
  <color name="background_tab_pressed">#6633B5E5</color>
</resources>)
'******************************************

If you are using B4A v6+ then you should add this line:

#AdditionalJar: com.android.support:support-v4

As Android support library requires Android 4+ (API level 14+), TabStripViewPager also requires Android 4+.



[hongbii khaw]

Hi,
May i know how to adjust the TabStripViewPager's size to make it same activity size when initialize?
normally i use this method to make the panel fix in different size of screen:

panel.left = activity.left
panel.top = activity.top
panel.height = activity.height
panel.width = activity.width

if that any method to make the tabstrip1's size same as activity size other than using designer?



[ilan]

you can add it via designer and set the Anchor settings to BOTH or set it in designer script.



[KingEdem]

You need to use a more recent version of android.jar (Tools - Configure Paths).

I used latest android jar and still getting following error:

Generating R file. Error
res\values-v20\theme.xml:3: error: Error retrieving parent for item: No resource found that matches the given name '@android:style/Theme.Material.Light'.



[Erel]

Please post a screenshot of the path configuration dialog.



[KingEdem]

Please post a screenshot of the path configuration dialog.



[DonManfred]

Change android jar to Api 23+ (25 is up to date)

If you only have 19 then you need to download the newest Api



[KingEdem]

Change android jar to Api 23+ (25 is up to date)

If you only have 19 then you need to download the newest Api

Hi Don,

Still not working and throwing same error.



[ilan]

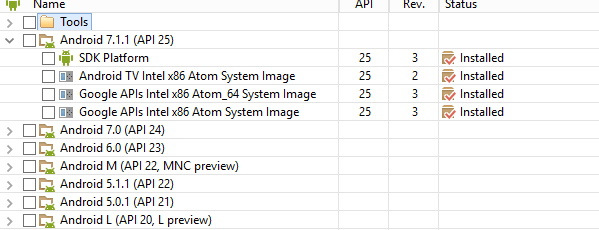

after updating to api 25 have you change the android.jar path in your path configurations?



[KingEdem]

after updating to api 25 have you change the android.jar path in your path configurations?

Thanks ilan,

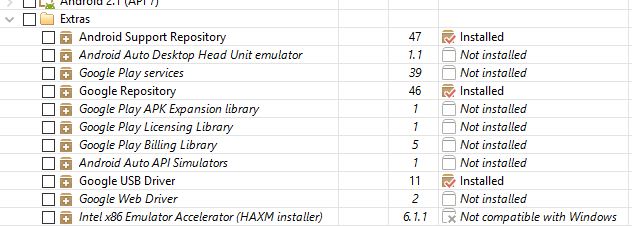

Now I have this:



[DonManfred]

Did you read this note in post #1?

If you are using B4A v6+ then you should add this line:

#AdditionalJar: com.android.support:support-v4



[DonManfred]

provide me link to download the jar.

There is no download for it. It is part of the two maven repos you need to have installed for B4A 6+
you dont need to copy anything to your additional libs folder.

Using the #additionaljar line will create a reference to the repo in the google android repository... B4A will find the file by itself.

Additionally you should NOT copy ANYTHING to the folder you posted (except you get told to do so for a specific library)... It is the INTERNAL library folder!

Configure the additional libs folder in the ide and put all additional libs in this folder.



[KingEdem]

There is no download for it. It is part of the two maven repos you need to have installed for B4A 6+
you dont need to copy anything to your additional libs folder.

Using the #additionaljar line will create a reference to the repo in the google android repository... B4A will find the file by itself.

Additionally you should NOT copy ANYTHING to the folder you posted (except you get told to do so for a specific library)... It is the INTERNAL library folder!

Configure the additional libs folder in the ide and put all additional libs in this folder.

Thanks Don, ilan, Erel,

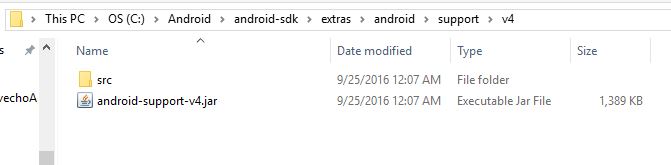

I got the jar here: C:\Android\android-sdk\extras\android\support\v4

problem resolved!



[yolira]

Hi, I get an error. Please can you help me?

B4A version: 6.80
Parsing code. (0.00s)
Compiling code. (0.04s)
Compiling layouts code. (0.00s)
Organizing libraries. (0.00s)
Generating R file. (0.16s)
Compiling debugger engine code. (0.62s)
Compiling generated Java code. Error
Cannot find: C:\Program Files (x86)\Anywhere Software\Basic4android\libraries\android-support-v4.jar

Thanks



[ilan]

the reason is written in this line.

Cannot find: C:\Program Files (x86)\Anywhere Software\Basic4android\libraries\android-support-v4.jar

download android-support-v4.jar and put it in the library folder.



[yolira]

Where can I download?
Thanks



[ilan]

Where can I download?
Thanks

have you added this line:

#AdditionalJar: com.android.support:support-v4



[yolira]

have you added this line:

#AdditionalJar: com.android.support:support-v4

Where should I put it?



[MarcoRome]

Where should I put it?

Where you want in Activity Main, often after #Region Activity Attributes



[yolira]

Where you want in Activity Main, often after #Region Activity Attributes

Thanks you



[achtrade]

Hello,

I'm getting the same error and I did all the recommendation written in this thread.

B4A version: 6.80
Parsing code. (0.03s)
Compiling code. (0.07s)
Compiling layouts code. (0.00s)
Organizing libraries. (0.00s)
Generating R file. Error
res\drawable\background_tab.xml:4: error: Error: No resource found that matches the given name (at 'drawable' with value '@Color/background_tab_pressed').
res\drawable\background_tab.xml:5: error: Error: No resource found that matches the given name (at 'drawable' with value '@Color/background_tab_pressed').

what's wrong ?

Weird thing, the sample is working well buy my app isn't. Same computer, same android device.

See all my config in the attached files.

what's wrong ?
