Share My Creation Thermometer For Chrome Browser

USB thermometer using DS18B20 as a temperature sensor.

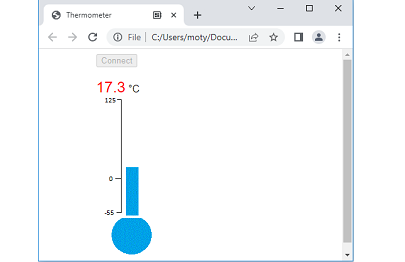

The temperature can be displayed in Chrome, Edge and Opera browsers https://developer.chrome.com/en/articles/serial/#browser-support . Run the Arduino connected to PC, open file web_thermo.html in the browser and click Connect. For temperature below zero the display is in blue. The html includes javascript.

B4X:
Sub Process_Globals
    Public Serial1 As Serial
    Private AStream As AsyncStreams
    Private onewire As OneWire
    Private timer1 As Timer
    Private address(8) As Byte
    Private type_s As Boolean
End Sub

Private Sub AppStart
    Serial1.Initialize(9600)
    AStream.Initialize(Serial1.Stream, "Astream_NewData", "Astream_Error")
    onewire.Initialize(10)
    timer1.Initialize("timer1_Tick", 2000)
    timer1.Enabled = True
End Sub

Sub Timer1_Tick
    If onewire.Search(address) = False Then
        onewire.ResetSearch
        Return
    End If
    If onewire.CRC8(address, 7) <> address(7) Then
        Return
    End If
    Select address(0)
        Case 0x10
            type_s = True
        Case 0x28
            type_s = False
        Case 0x22
            type_s = False
        Case Else
            Return
    End Select
    onewire.Reset
    onewire.Select(address)
    onewire.Write(0x44, True)
    'give it 1 second to read the temperature
    CallSubPlus("ReadTemparature", 1000, 0)
End Sub

Private Sub ReadTemparature (u As Byte)
    Dim ps(8) As Byte
    Dim temp As String

    onewire.Reset
    onewire.Select(address)
    onewire.Write(0xBE, False)
    Dim data(12) As Byte
    onewire.ReadBytes(data, 9)
    Dim raw As Int = Bit.Or(Bit.ShiftLeft(data(1), 8), data(0))
    If type_s Then
        raw = Bit.ShiftLeft(raw, 3)
        If data(7) = 0x10 Then
            raw = Bit.And(raw, 0xFFF0) + 12 - data(6)
        End If
    Else
        Dim cfg As Byte = Bit.And(data(4), 0x60)
        If cfg = 0 Then
            raw = Bit.And(raw, Bit.Not(7))
        Else if cfg = 0x20 Then
            raw = Bit.And(raw, Bit.Not(3))
        Else if cfg = 0x40 Then
            Bit.And(raw, Bit.Not(1))
        End If
    End If

    'raw=0xFF5E    '-10.125
    Dim celsius As Double = raw / 16

    temp = celsius
    ps = temp.GetBytes
    AStream.Write(" ")
    AStream.Write(ps)
    If celsius < 0 Then AStream.Write("!")
    AStream.Write("C")

End Sub


Attachments

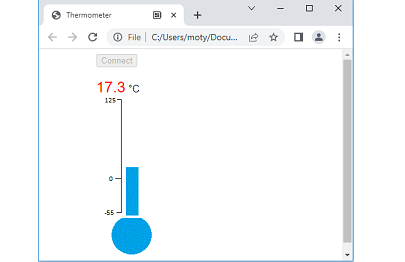

  • web_thermo405.png
    18.3 KB · Views: 1,515
  • web_thermo.zip
    6.2 KB · Views: 145
  • web_thermo_uno.gif
    2.8 KB · Views: 163
