Android Question Try to make MQTT on ESP8266 Transmitter/receiver commands

[Adamdam]

Dear all.
I found this project:

Garage Door Opener (with source code)

Hi all: *** ADDED Project with B4XPages working on B4A and B4J. See post #15 Not sure if this is the rigth place, or if I should publish it in Examples, @Erel, feel free to move. The code is not perfect, but it works. Most of code is copied/pasted/modified from forums, so this app is made by...

www.b4x.com

I compiled it before with ESP32.
I tried to compile it again for ESP8266 but fail, I got this error

Can any one help me please to solve this problem,
I need urgent to have MQTT-Client on ESP8266 that and able to transmit and receive with mobile App.
By B4A and B4r or B4A and Arduino.
Thanks on advance.
Best regards



[XorAndOr]

Try this

Home Control 4

Hi guys I want to share my project on this great community (source code free no donation) I think it may be useful to someone in the source code I commented out the functions it should be simple enough to figure out. hardware: Module Elegoo 4 Relays 5V NodeMCU ESP8266 wifi (chip 2102 drive)...

www.b4x.com



[Adamdam]

Thanks Mr. XorAndOr for your help.

but I still have the same error message at B4R compiler.

The error from compiler configuration/setting, any help please.



[Adamdam]

Thanks Mr. XorAndOr for your help.

but I still have the same error message at B4R compiler.

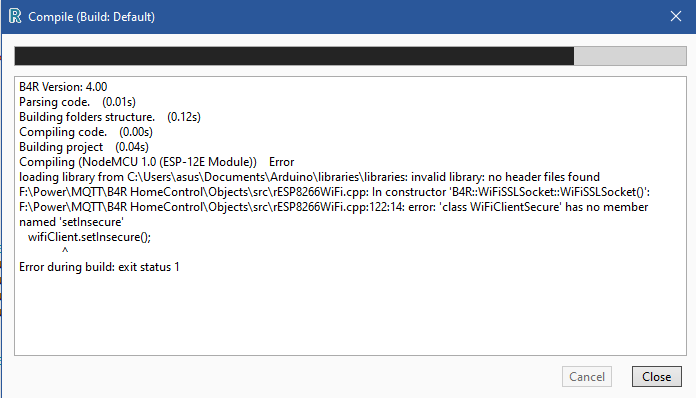

View attachment 156076

The error from compiler configuration/setting, any help please.

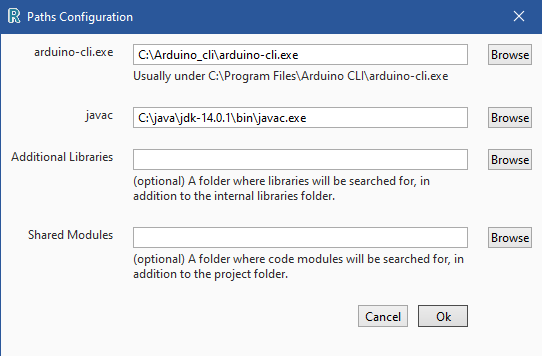

I set the paths as following:



[XorAndOr]

I tried it just now and it works great

esptool.py v3.0
Serial port COM4
Connecting....
Chip is ESP8266EX
Features: WiFi
Crystal is 26MHz
MAC: 5c:cf:7f:76:fa:48
Uploading stub...
Running stub...
Stub running...
Configuring flash size...
Auto-detected Flash size: 4MB
Compressed 289360 bytes to 212101...
Writing at 0x00000000... (7 %)
Writing at 0x00004000... (15 %)
Writing at 0x00008000... (23 %)
Writing at 0x0000c000... (30 %)
Writing at 0x00010000... (38 %)
Writing at 0x00014000... (46 %)
Writing at 0x00018000... (53 %)
Writing at 0x0001c000... (61 %)
Writing at 0x00020000... (69 %)
Writing at 0x00024000... (76 %)
Writing at 0x00028000... (84 %)
Writing at 0x0002c000... (92 %)
Writing at 0x00030000... (100 %)
Wrote 289360 bytes (212101 compressed) at 0x00000000 in 19.0 seconds (effective 122.1 kbit/s)...
Hash of data verified.
Leaving...
Hard resetting via RTS pin...

Connected to Router WiFi --> Ok
ESP8266 IP --> 192.168.1.35
Connected to broker --> Ok

I don't know why it gives you an error Recheck the installation of b4r and arduino sdk



[Adamdam]

Yes, Mr. XorAndOr ,
The problem with me due to the B4R compiler setting/configuration.
I need help to find my error and how to solve it.



[XorAndOr]

see here if it can help

error: 'class WiFiClientSecure'

This Program works on my lap top. I get this error on my desktop PC Compiling (Adafruit HUZZAH ESP8266) Error L:\LEE-2024\B4X\B4R-04-TEST-04-04-2024\B4R-04-TEST-04-03-2024\Objects\src\rESP8266WiFi.cpp: In constructor 'B4R::WiFiSSLSocket::WiFiSSLSocket()'...

www.b4x.com



[Adamdam]

see here if it can help

error: 'class WiFiClientSecure'

This Program works on my lap top. I get this error on my desktop PC Compiling (Adafruit HUZZAH ESP8266) Error L:\LEE-2024\B4X\B4R-04-TEST-04-04-2024\B4R-04-TEST-04-03-2024\Objects\src\rESP8266WiFi.cpp: In constructor 'B4R::WiFiSSLSocket::WiFiSSLSocket()'...

www.b4x.com

The thread hasn't answer/solution.



[teddybear]

The thread hasn't answer/solution.

The answer/solution is at the post#2. Which version of ESP8266 is installed in Arduino IDE
