B4J Tutorial UI apps packaging - self contained installers

Status
Not open for further replies.
It is recommended to use B4JPackager11: Integrated B4JPackager11 - The simple way to distribute standalone UI apps

B4J Packager is a small utility that uses javapackager to create a single file installer for Mac or Windows, that includes the app files and the Java runtime.

This means that from the end user perspective your app doesn't depend on any additional runtime. It makes deployments very simple.
The installer size will be around 40mb as it includes the JRE.



The Windows installer (exe) is built on a Windows computer and the Mac installer (dmg) is built on a Mac computer.
You need to install Inno Setup on the Windows computer: http://www.jrsoftware.org/isinfo.php

You can either run the attached source code from the IDE or download the jar file: www.b4x.com/b4j/files/B4JPackager.jar

The source code depends on the following additional libraries: Archiver (B4A library) and jControlFX

Using this tool is quite simple. First you need to set the path to javapackager.
On Windows the path will be similar to:
C:\Program Files\Java\jdk1.8.0_51\bin\javapackager.exe
On Mac:
/Library/Java/JavaVirtualMachines/jdk1.8.0_51.jdk/Contents/Home/bin/javapackager

Compile your app in release mode and then set the path to the Jar file and fill the other fields.
The icon on Windows is an ico file and on Mac is an icns file.

Click on the Build button. The building process can take a minute or two.
The installer will be created under the bundles folder (the folder will be opened).

Notes & tips:

1. Make sure to test your app after it is installed. It will be installed under Program Files.
Program Files is a read-only folder. Any attempt to write to File.DirApp will fail (you should use File.DirData instead).

2. javapackager documentation:
Windows - https://docs.oracle.com/javase/8/docs/technotes/tools/windows/javapackager.html#BGBIJBHF
Linux / Mac - https://docs.oracle.com/javase/8/docs/technotes/tools/unix/javapackager.html

3. It is recommended to run the packager from the IDE (at least in the beginning) as it prints important information in the logs.
You can also run it from the command line with: java -jar B4JPackager.jar
4. The installers will use the app package name to identify the app. Make sure to change it from the default value. Otherwise all applications will be installed in the same folder.
5. Java 9 is currently not supported. Make sure that both B4J and the path to javapackager point to Java 8.
6. If running on a Mac then you probably should change the package to pkg. See this discussion: https://www.b4x.com/android/forum/t...staller-dmg-failed-to-produce-a-bundle.87897/

Change log:

v1.50

- Adds support for newer versions of Java 8.
- javapackager is run in verbose mode.
- The logs are updated while the process is running.


Attachments

  • B4J Packager.zip
    4.7 KB · Views: 2,541
Last edited:
Click to expand...
Eric Baker

Eric Baker

Member
Licensed User
Longtime User
Happy New Year!!

Trying to use B4JPackager on Mac OS High Sierra

Some googling indicates, that this seems to be some code signing issue?

B4X:
Erics-MacBook-Air:Desktop Eric$ java -jar B4JPackager.jar
App identifier: xxxx.asap.main
Success: true
StdOut: No base JDK. Package will use system JRE.
No base JDK. Package will use system JRE.
Building DMG package for XXXX
Did not find a key matching 'Developer ID Application: '

StdErr: Error: Bundler "DMG Installer" (dmg) failed to produce a bundle.

ExitCode: 255

Any ideas on what to do or where to look?

Eric

appie21

appie21

Active Member
Licensed User
Longtime User
I try to download the B4JPackager.jar but it fail (after a few seconds to download)


EDIT :
I guess a local problem

Last edited:
Bethleem

Bethleem

New Member
Hi.

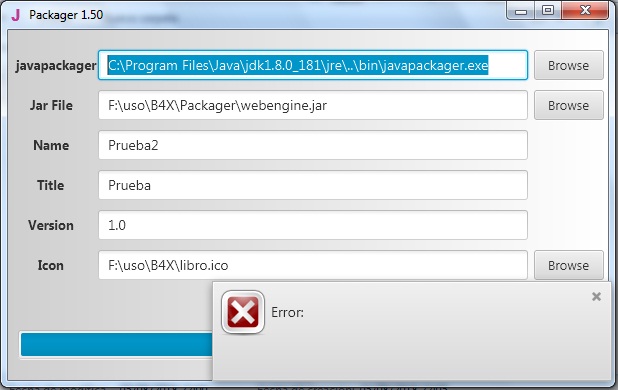

I have installed the last jdk, 8u181, and you jar file throws an error while trying to make the exe.


Theera

Theera

Well-Known Member
Licensed User
Longtime User
Erel said:
B4J Packager is a small utility that uses javapackager to create a single file installer for Mac or Windows, that includes the app files and the Java runtime.

This means that from the end user perspective your app doesn't depend on any additional runtime. It makes deployments very simple.
The installer size will be around 40mb as it includes the JRE.



The Windows installer (exe) is built on a Windows computer and the Mac installer (dmg) is built on a Mac computer.
You need to install Inno Setup on the Windows computer: http://www.jrsoftware.org/isinfo.php

You can either run the attached source code from the IDE or download the jar file: www.b4x.com/b4j/files/B4JPackager.jar

The source code depends on the following additional libraries: Archiver (B4A library) and jControlFX

Using this tool is quite simple. First you need to set the path to javapackager.
On Windows the path will be similar to:
C:\Program Files\Java\jdk1.8.0_51\bin\javapackager.exe
On Mac:
/Library/Java/JavaVirtualMachines/jdk1.8.0_51.jdk/Contents/Home/bin/javapackager

Compile your app in release mode and then set the path to the Jar file and fill the other fields.
The icon on Windows is an ico file and on Mac is an icns file.

Click on the Build button. The building process can take a minute or two.
The installer will be created under the bundles folder (the folder will be opened).

Notes & tips:

1. Make sure to test your app after it is installed. It will be installed under Program Files.
Program Files is a read-only folder. Any attempt to write to File.DirApp will fail (you should use File.DirData instead).

2. javapackager documentation:
Windows - https://docs.oracle.com/javase/8/docs/technotes/tools/windows/javapackager.html#BGBIJBHF
Linux / Mac - https://docs.oracle.com/javase/8/docs/technotes/tools/unix/javapackager.html

3. It is recommended to run the packager from the IDE (at least in the beginning) as it prints important information in the logs.
You can also run it from the command line with: java -jar B4JPackager.jar
4. The installers will use the app package name to identify the app. Make sure to change it from the default value. Otherwise all applications will be installed in the same folder.
5. Java 9 is currently not supported. Make sure that both B4J and the path to javapackager point to Java 8.
6. If running on a Mac then you probably should change the package to pkg. See this discussion: https://www.b4x.com/android/forum/t...staller-dmg-failed-to-produce-a-bundle.87897/

Change log:

v1.50

- Adds support for newer versions of Java 8.
- javapackager is run in verbose mode.
- The logs are updated while the process is running.
Click to expand...
It will be better, if it can used with raspberry pi desktop, too.

Blueforcer

Blueforcer

Well-Known Member
Licensed User
Longtime User
I Have a folder with some settingsfiles in my Object folder wich is needed to start the app. How can i copy this folder with the installer?
