Share My Creation Weather Underground data in Gauges

Hi,

request Weather Information from Weather Underground and display selective weather information in Gauges.
To be able to place requests, a Weather Underground API Key is required (free for Plan Stratus Developer).

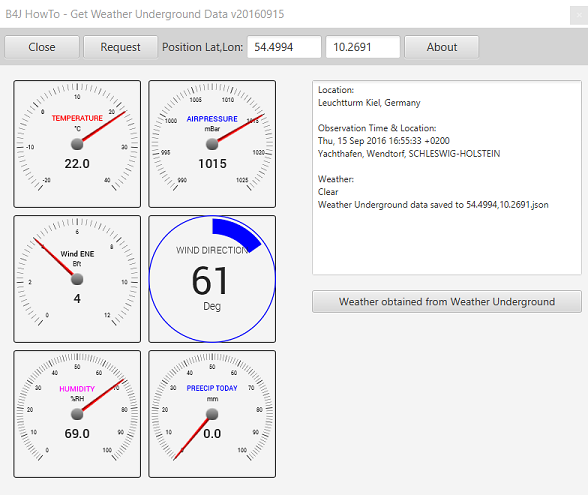

B4J Desktop Version
The weather information is displayed in Gauges with the jGauges library.
The standard gauges are used - leaves room to explore other skin types.
The additional Libraries: cssutils, jgauges, json, jhttputils2, javaobject, jrldialogs8
The documented source code is attached.

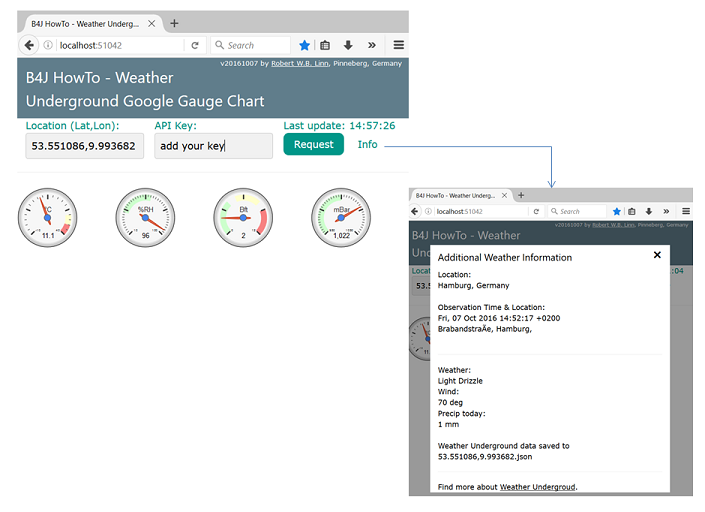

B4J Server Version (WebApp)
The weather information is displayed in a Browser Window with Google Chart Gauges. This non-ui application places requests to Weather Underground via the non-ui classes HTTPJob & HTTPUtils2Services.
The html index file uses w3.css responsive design.
The additional libraries: jserver,json,jnetwork,jhttp,jstringutils
The documented source code is attached.

Notes
The basic versions leave room open to included additional functionality, like a timer to request in interval weather information, additional gauges, thresholds to notify via email.

Change Log
20161007: B4J Server Version (see post #2)



[rwblinn]

Update #1 20161007 (see post #1)
In addition to the B4J desktop version, created a B4J server version showing 4 Gauges in the Browser using w3.css responsive design (tests conducted using Firefox browser on Windows, Raspberry Pi browser & Android Smartphone.



[positrom2]

Looks very promising, but I can't find a link to the
jrldialogs8 library.



[rwblinn]

Hi, thanks for feedback = jRLDialogs8 link added in post #1.



[swChef]

Hi,

request Weather Information from Weather Underground and display selective weather information in Gauges.
To be able to place requests, a Weather Underground API Key is required (free for Plan Stratus Developer).

Per Wunderground, "You must own a Personal Weather Station in order to generate an API key."
Thought this might avoid others creating an account just to learn this.
