B4J Tutorial [Web][SithasoDaisy] Table Row Column Conditional Colors

Hi Fam

Conditional table row column coloring is a process of changing the color of a row column in a table based on a condition.

Currently one is able to set a row column background color (of the visible rows) and or row column text color, by executing

B4X:
tb2.SetRowColumnBackgroundColor("color", 1, "red")

Meaning on row 1, find the color column and change the background color to be red.

B4X:
tb2.SetRowColumnTextColor("color", 1, "white")

Meaning on row 1, find the color column and change the text color there to be white.

Should you have multiple row column (matrix) to color code, you will have to pass the index of each row and column name for these calls. A more advanced approach is using computed colors.

With computed colors, you assign a computed background color and or text color and this will be executed in all the pages in your table. The rows in your table are loaded each time one navigates. For example if your records per page is 10, only the first 10 pages will be added to the table, the rest only added when you navigate between the pages.

In this example, we are doing 2 things, setting both the text & background color per row on the "Articolor" column based on a condition. The white text color per row has been added for emphasis and making it more readable due to the red background on that row & column

NB: The "As Zebra" property should be turned off on the table properties.

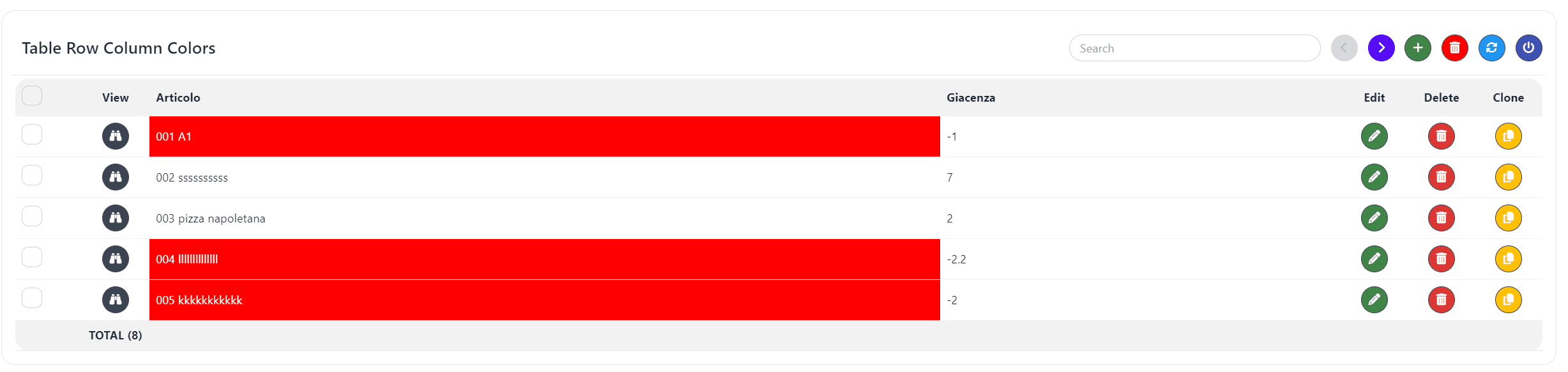

In this example, we want to make the row and column color red each time a value of "Giacenza" / "Stock" is less than zero. This will work each time we navigate to each page. To do this, we need to indicate the callback to be called for the column we are interested in.

Let's look at our code.

B4X:
'set the title of the table listing
    tbltablecrud.Title = "Table Row Column Colors"
    '
    tbltablecrud.AddColumnAction("vedo","View","fa fa-binoculars",app.COLOR_BLUE)
    tbltablecrud.AddColumn("nome", "Articolo")
    'define the background color callback to call for this column
    tbltablecrud.SetColumnComputeBackgroundColor("nome", "ComputeBackgroundColorNome")
    'define the text color callback to call for this column
    tbltablecrud.SetColumnComputeTextColor("nome", "ComputeTextColorNome")
    tbltablecrud.AddColumn("qta", "Giacenza")
    tbltablecrud.AddDesignerColums

We have defined 2 callbacks,

B4X:
      tbltablecrud.SetColumnComputeBackgroundColor("nome", "ComputeBackgroundColorNome")

and

B4X:
    tbltablecrud.SetColumnComputeTextColor("nome", "ComputeTextColorNome")

For our table

Each of these callback receives the row data each time a record is added to the table. We use this row data to return the background color for that particular row column being added to the table.

Let's look at the sub routines to be called each time a row is added. We need to create these subs ourselves.

1. Computing the conditional background color of the row column "nome"


B4X:
'this receives the row data being added to the table
Sub ComputeBackgroundColorNome(item As Map) As String
    'read the qta and convert it to js float
    Dim qta As Double = SDUIShared.CDbl(item.Get("qta"))
    If qta < 0 Then
        'red
        Return "#FF0000"
    Else
        Return ""
    End If
End Sub

This gets the data of the row to be added, read the "qta" contents. Converts this into a JavaScript float value / b4x double. If the value is < 0 then return red.

2. Computing the conditional text color of the row column "nome"

Just like the example above, we also find out if the qta is< 0 then return a white color.

B4X:
'this receives the row data being added to the table
Sub ComputeTextColorNome(item As Map) As String
    'read the qta and convert it to js float
    Dim qta As Double = SDUIShared.CDbl(item.Get("qta"))
    If qta < 0 Then
        'white
        Return "#FFFFFF"
    Else
        Return ""
    End If
End Sub

I have attached the source code here for clarity.


Attachments

  • SDTableRowColumnConditionalColors.zip
    13.9 KB · Views: 180
