Hello everyone,
I tried to write a code that allows me to draw the attached image on a canvas. But with disappointing results, does anyone know how to give me a hand?

or



[LucaMs]

Set anti aliasing to get a better result:
https://www.b4x.com/android/forum/threads/how-to-set-anti_alias_flag.14579/



[Star-Dust]

Sorry..but.... What's aliasing?



[DavideV]

I find a new solution
I think this solution is best

Hi Star-Dust,
i slightly modified your code:

'colored circle generator #1
Private Sub Pattern (Diameter As Int)As Bitmap
    Dim Btm As Bitmap
    Dim Can As Canvas
    Dim Width As Int = Diameter        '200dip
    Dim Height As Int = Diameter    '200dip
    'Center Point
    Dim CenterX As Int = Width/2
    Dim CenterY As Int = Height/2
    Dim radius As Int = CenterX * CenterY
    ' RED
    Dim redX As Int = Width
    Dim redY As Int = Height /2
    Dim redRad As Int = Width*Width
    ' Green
    Dim greenX As Int = 0
    Dim greenY As Int = Height/2
    Dim greenRad As Int = Width*Width
    'Blue
    Dim blueX As Int = Width/ 2
    Dim blueY As Int = Height
    Dim blueRad As Int = Width*Width

    Btm.InitializeMutable(Width,Height)
    Can.Initialize2(Btm)

    For i=0 To Width-1
        For j=0 To Height-1
            Dim a As Int = i - CenterX
            Dim b As Int = j - CenterY

            Dim distance As Int = a * a + b * b
            If (distance < radius) Then
                Dim rdx As Int = i - redX
                Dim rdy As Int = j - redY
                Dim redDist As Int = (rdx * rdx + rdy * rdy)
                Dim redVal As Int = (255 - ((redDist / redRad) * 256))

                Dim gdx As Int = i - greenX
                Dim gdy As Int = j - greenY
                Dim greenDist As Int = (gdx * gdx + gdy * gdy)
                Dim greenVal As Int = (255 - ((greenDist / greenRad) * 256))

                Dim bdx As Int = i - blueX
                Dim bdy As Int = j - blueY
                Dim blueDist As Int = (bdx * bdx + bdy * bdy)
                Dim blueVal As Int = (255 - ((blueDist / blueRad) * 256))

                Dim HSV() As Int=RGBtoHSV(redVal,greenVal,blueVal)
                Dim V As Double=HSV(2)/255
                Dim c As Int =  Colors.rgb(redVal/v, greenVal/v, blueVal/v)

                Can.DrawPoint(i,j,c)
            Else
                Can.DrawPoint(i,j,Colors.RGB(255,255,255))    'color of points outside the circle
            End If
        Next
    Next
    Return Can.Bitmap
End Sub


'RGB to HSV colorspace, probably not accurate
Private Sub RGBtoHSV(red As Int, Green As Int, Blue As Int) As Int()

    Dim h,s,v As Int
    Dim mMin,mMax As Int
    mMin=Min(Min(red,Green),Blue)
    mMax=Max(Max(red,Green),Blue)
    v=mMax
    If v=0 Then
        s=0:h=0
        Return Array As Int(h,s,v)
    End If
    s = 255 * (mMax - mMin) / v
    If s=0 Then
        h=0
        Return Array As Int(h,s,v)
    End If
    If mMax =red Then
        h = 0 + 43 * (Green - Blue) / (mMax - mMin)
    else if mMax = Green Then
        h = 85 + 43 * (Blue - red) / (mMax - mMin)
    Else
        h = 171 + 43 * (red - Green) / (mMax - mMin)
    End If
    Return Array As Int(h,s,v)

End Sub

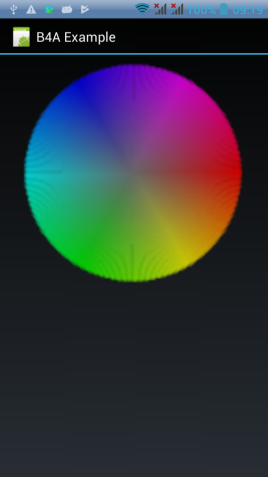

and got this:



[Star-Dust]

La perfect



[Star-Dust]

I realized this ColorDialog
From 15second



[LucaMs]

Sorry..but.... What's aliasing?

You should read that thread.

Anyway, you would get a better picture but in your case it might be a mistake (question of added pixels).



[Star-Dust]

instead work it good.

Sub ColorWheel As Bitmap
    Dim Can As Canvas
    Dim Bt As Bitmap
    Dim D As Int = 240
    Dim Center As Int = D/4
    Dim Radius As Int = D/4
    Dim X,Y As Int

    Bt.InitializeMutable(d/2,d/2)
    Can.Initialize2(Bt)
    SetAntiAlias(Can)
    For h=0 To d
        For s=0 To d-10
            X=Center+(s*Radius/D)*Cos(2*cPI*H/d)
            Y=Center+(s*Radius/D)*Sin(2*cPI*H/D)
            Can.DrawPoint(x,y ,HSLtoRGB(H,s,100,255))
'            X2=Center+(s*Radius/D*Cos(2*cPI*(H-1)/d))
'            Y2=Center+(s*Radius/D)*Sin(2*cPI*(H-1)/D)
'            Can.DrawLine(X,Y,X2,Y2,HSLtoRGB(H,s+10,100,255),3)
        Next
    Next
    Return Can.Bitmap
End Sub

Sub HSLtoRGB(Hue As Int, Saturation As Int, Luminance As Int, Alpha As Int ) As Int
    Dim temp3(3) As Double , Red As Int, Green As Int, Blue As Int ,temp1 As Double, temp2 As Double ,n As Int
    Dim pHue As Double, pSat As Double, pLum As Double , pRed As Double, pGreen As Double, pBlue As Double

    pHue = Min(239, Hue) / 239
    pSat = Min(239, Saturation) / 239
    pLum = Min(239, Luminance) / 239

    If pSat = 0 Then
        pRed = pLum
        pGreen = pLum
        pBlue = pLum
    Else
        If pLum < 0.5 Then
            temp2 = pLum * (1 + pSat)
        Else
            temp2 = pLum + pSat - pLum * pSat
        End If
        temp1 = 2 * pLum - temp2

        temp3(0) = pHue + 1 / 3
        temp3(1) = pHue
        temp3(2) = pHue - 1 / 3

        For n = 0 To 2
            If temp3(n) < 0 Then temp3(n) = temp3(n) + 1
            If temp3(n) > 1 Then temp3(n) = temp3(n) - 1

            If 6 * temp3(n) < 1 Then
                temp3(n) = temp1 + (temp2 - temp1) * 6 * temp3(n)
            Else
                If 2 * temp3(n) < 1 Then
                    temp3(n) = temp2
                Else
                    If 3 * temp3(n) < 2 Then
                        temp3(n) = temp1 + (temp2 - temp1) * ((2 / 3) - temp3(n)) * 6
                    Else
                        temp3(n) = temp1
                    End If
                End If
            End If
        Next

        pRed = temp3(0)
        pGreen = temp3(1)
        pBlue = temp3(2)
    End If

    Red = pRed * 255
    Green = pGreen * 255
    Blue = pBlue * 255

    Return Colors.ARGB(Alpha, Red,Green,Blue)
End Sub

Sub SetAntiAlias (c As Canvas)
    Dim r As Reflector
    Dim NativeCanvas As Object
    r.Target = c
    NativeCanvas = r.GetField("canvas")
    Dim PaintFlagsDrawFilter As Object
    PaintFlagsDrawFilter = r.CreateObject2("android.graphics.PaintFlagsDrawFilter", _
      Array As Object(0, 1), Array As String("java.lang.int", "java.lang.int"))
    r.Target = NativeCanvas
    r.RunMethod4("setDrawFilter", Array As Object(PaintFlagsDrawFilter), Array As String("android.graphics.DrawFilter"))
End Sub



[LucaMs]

instead work it good.

I know but if you need to pick up a single pixel it might be a pixel added by the antialiasing.



[Star-Dust]

I find this (is very nice)
https://github.com/QuadFlask/colorpicker



[LucaMs]

I find this (is very nice)
https://github.com/QuadFlask/colorpicker

Do not forget that there are lucky people like me: colorblind.
For "us" it is necessary to have the 3 cursors for red, green, blue (and alpha?).



[Star-Dust]

Do not forget that there are lucky people like me: colorblind.
For "us" it is necessary to have the 3 cursors for red, green, blue (and alpha?).

You're right, I just saw that it's aesthetically pleasing.



[Star-Dust]

The thread spoke of the color wheel and that was an interesting variant.

Of course you can add the basic color bar
