Android Question Access to a cross-platform class for managing an internal SQLite database

[GeoT]

Hello.

I've been researching, using AI, the best way to create and use a class for managing an internal SQLite database, but in a way that's cross-platform and accessible from the entire app (including a service).

The solution we've found is to create a code module within a B4XPages project that instantiates the class so it's accessible to the entire app.
Because if it were only for B4A, we could omit that code module and instantiate it from the Starter module, for example. I think.

Is this the best or only way to do it?

Can this be corrected, improved, or extended in any way?

Can any more common methods be added or modified?

How can we then verify that it works correctly with the B4J and B4i code generated by the B4XPages project?

I've used a UNIQUE field as a reference.

It is only a reference example.

Thanks.



[walt61]

I haven't checked the entire example project, but how about
- making it a standard class (they offer more functionality than code modules IMHO)
- declaring it as Public in B4XMainPage
- and then instantiating it in B4XMainPage.Initialize?

In other classes/pages, you would then just refer to B4XMainPage.DBModule.



[GeoT]

Hi walt61.
Yes, it would be easier, but it wouldn't be accessible from a standalone service that starts automatically, or if the app is in the background (paused) and the system has killed the process due to lack of memory, for example.



[walt61]

I didn't think of that. For B4J something like this might work (no idea about B4I, I don't use it):
- create a Starter module (standard class)
- instantiate/initialise Starter in Main
- Starter instantiates/initialises its Public DBModule
- and then in B4A and B4J you can refer to Starter.DBModule?



[LucaMs]

You could create a B4XPages project, a DB management class, an object of this type declared as Public and initialized in the B4XMainPage.
Even when the Activity is in the background, you can access the B4XMainPage and therefore your "DB manager object."



[GeoT]

As far as I know, Starter is a service.
It exists in B4A.
In B4J I believe it's optional.
And it doesn't exist in B4I.



[GeoT]

Hi, LucaMs.
The problem is that when the service wakes up on its own: when a service runs in the background (by a receiver, a timer, or the system), Android starts the service process, but does not start the graphical interface or the pages.
No?
But I'm not talking about the Starter service.



[aeric]

There are some database management classes and libraries on this forum.
I created MiniORMUtils library for cross platform apps.
In B4A, you don't need to initialize your database in Starter. You can initialize it in Main or B4XMainPage too.



[AnandGupta]

There is some confusion here, I think.
@GeoT wants the service process for db, so that no matter how the app starts/re-starts , the db is started.
Rest of us are advising on easiest way of senility db service, right ?

I do not use db still in b4x, so no idea about it so may be I am wrong here, but I think we are not following what GeoT is trying to state.



[walt61]

As far as I know, Starter is a service.
It exists in B4A.
In B4J I believe it's optional.

I know. That's why I suggested to create a standard class in B4J. That way, you can refer to Starter.DBModule in both B4A and B4J. Perhaps in B4I something similar is possible, no clue about that one.



[GeoT]

Thanks, Aeric.
I haven't found all those database management classes and libraries on this forum yet.
Your creation uses a MiniORMUtils.v4 file that I can't find.



[DonManfred]

Your creation uses a MiniORMUtils.v4 file that I can't find.

Search Results

www.b4x.com

GitHub - pyhoon/MiniORMUtils-B4X: A mini object–relational mapping (ORM) that can be use for creating db schema and SQL queries.

A mini object–relational mapping (ORM) that can be use for creating db schema and SQL queries. - pyhoon/MiniORMUtils-B4X

github.com



[GeoT]

AnandGupta is right.
I also want to access or start the database from the service without opening the interface.
Apart from the Starter.
That's why it uses the code module as an intermediary.

Forgive my ignorance. B4I doesn't have services, but what about B4J?
I program basically with B4A.

Thanks, Walt61.
How do I add the Starter in B4J?

Do I need to add the class module and code module to the B4J part of the project again?



[GeoT]

Ok. Thanks, DonManfred.



[aeric]

Your creation uses a MiniORMUtils.v4 file that I can't find.

You are right. The latest version is now renamed to MiniORMUtils. I only keep the latest version attached in first post of the library page.
If you are trying the project template, you need to rereference the library or find the older version from my GitHub as pointed by DonManfred.

Edit: MiniORM project template updated to v4.10



[GeoT]

Thanks, aeric.
I will study your code.



[walt61]

How do I add the Starter in B4J?

Do I need to add the class module and code module to the B4J part of the project again?

Small example project attached, check the comments in the 3 modules (Main, B4XMainPage, jStarter).



[GeoT]

Thanks, walt61, for showing me how to add a Starter in B4J.
But for now, I'll stick with my current structure.



[GeoT]

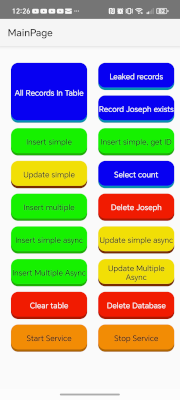

I've edited the post 1 with a new version of the project attached.
What I didn't know is that B4J doesn't have services.

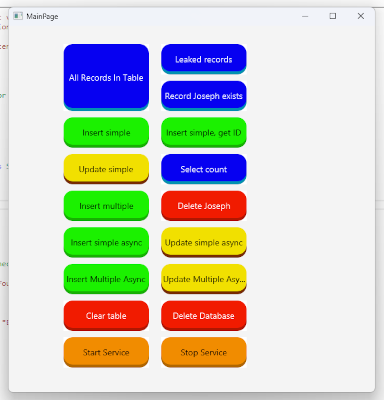

Thanks to studying aeric's code, the project now also works with B4J.
I've moved the DBModule and DBManager modules to make them common.
I've also unified more code and corrected errors and translations.

Regards.
