Other B4A UI Cloud is now online - The easy way to test your layout!

[Erel]

Basic4android UI Cloud is a new service that will help you with testing your layouts on multiple devices.

Using the UI Cloud is very simple. From the designer you choose Tools - Send To UI Cloud (or press F6). The layout will be sent to a set of devices hosted by Anywhere Software. Once the process is complete, the browser will open with two screenshots taken from each device.

Pressing on any thumbnail image will show the full image.

The set of devices currently includes:
- Galaxy S4
- Samsung Galaxy I9000
- Nexus 7
- Nexus 5
- Samsung Galaxy Tab 2
- Kindle Fire
- HTC One S
- Samsung Galaxy Note
- Samsung Pocket

The variant used for each device (and orientation) is the same as the variant that will be chosen at runtime.



[Erel]

It should be online now. The Samsung Pocket is a low end device and sometimes it disconnects for a few minutes and then reconnects.



[moster67]

It should be online now. The Samsung Pocket is a low end device and sometimes it disconnects for a few minutes and then reconnects.

Thanks. I can see it now.



[devlei]

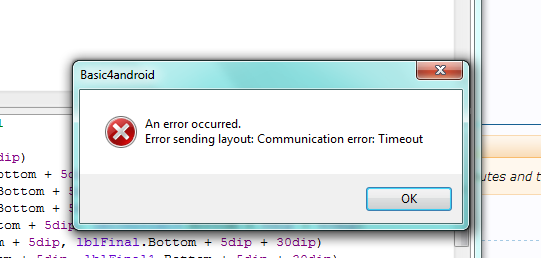

Until recently I have been able to connect to the UI Cloud with no problem. Now I am repeatedly getting a "communication timeout error" as seen from the screenshot below. The browser does not even open. Can anyone help?



[Erel]

I have just checked it and it seems to work fine. Does it happen if you try to send a very simple layout?



[devlei]

A simple layout from the same project gives the same error, but with other projects all layouts run 100% correctly on the UI Cloud.

The project giving the error has 32 layouts and all use Designer Scripts to set the layout. Could this be the cause?



[Erel]

What happens if you create a new empty layout in this project? Does it also fail?



[devlei]

A new empty layout in the project works 100% correctly! So also if I add a few views to it and save it - still works 100%. Seems the problem is not in the project, but with the layout file!!

Most of the layouts in this projects I have created by opening an existing one then using 'Save As' in order to maintain certain background colors etc.

Any other suggestions?



[Erel]

Can you upload the layout file (with the required images)?



[devlei]

Thanks for your assistance, Erel!

I have attached two layout files that give the error (main & feedlot) and three that don't (assetlist, stockworklist, flockstockwork).

Initially it seemed it was whenever files had a different script for Landscape vs Portrait it would result in an error, but as 'flockstockwork' file shows this is not always the case.



[Erel]

I've tested the two problematic layouts (without the images) and they work fine. Maybe the images are related to this issue?



[devlei]

If I try the 'main.bal' without the images it still gives the same error & the other problematic one (feedlot) doesn't have an image.
Do you get the error when running the 'main.bal' with the images?



[Erel]

You didn't upload the images.



[devlei]

Am I understanding you correctly - is that the images that are part of the layout? If so, the image (there is only one), bmanlogo2.jpg, was uploaded. Will upload it again.



[Erel]

It complains about two additional images: bmanlogo.jpg and bmanlogo1.jpg. If they are not used then you should remove them from the images list as they will still be included in the layout.



[udg]

Hi all,

I like very much the Designer script idea and the UI cloud testing-bed.
Since I just began using B4A, let's say the former is what I'm working on daily and the one leading to some results.
The latter is currently somewhat untested because I always receive an error:
An error occured.
Error sending layout: Communication error: ConnectFailure

I guess it has something to do with firewall rules, so please can you specify which port/address should I create a rule for?

TIA

Umberto



[Erel]

Does your firewall block outgoing connections? You should open port 25613 for outgoing connections.



[udg]

Hi Erel,

I set up a firewall rule specific to Basic4android.exe where any protocol/any port is allowed. The only restriction is on the subnet which is currently limited to "local" but I could add an external address or two just to reach the UI cloud server(s).



[Erel]

The IP address of the UI Cloud is dynamic. You will need to allow Basic4android.exe to create outgoing connections on port 80 (basic4ppc.com) and 25613 (any ip).



[udg]

Thanks Erel.
I set up a new rule and it seems to work (the web browser opens up but nothing is showed due to a somewhat different problem).
In the browser url editbox I can read : http://79.181.98.67:25613/?method=file&file=5875780720285969604.html
If I'm right this should suggest that almost everything works as expected and the problem now is just something related to an overloaded server or an intervening timeout. Can you confim? Tia



[udg]

SOLVED!
I was wrong...
I had to open port 25613 for the browser too.
Now it all works.
