B4A Library [B4X] B4XGifView - Cross platform animated gif view



I was missing a cross platform, animated gif view, so created one.

Usage is simple:
Add with the visual designer and call SetGif to set the gif file.


The B4i implementation depends on FLAnimatedImage open source project: https://github.com/Flipboard/FLAnimatedImage
The FLAnimatedImage library was uploaded to the hosted builders. If you are using a local Mac then download FLAnimatedImage-Mac and copy the files to the Libs folder.
The B4A implementation is based on this open source project: https://github.com/koral--/android-gif-drawable
The two dependent aars are attached. Copy them to B4A additional libraries folder.

Updates:

1.12 - SetGif2 - Allows loading an animated gif from an array of bytes.
1.11 - GIF image ratio is preserved.
1.10 - New B4A implementation based on Android GIF Drawable. It provides better performance. Note that the Activity_Resume method has been removed. Don't miss the B4A-Dependencies zip file.


Attachments

  • B4A-Dependencies.zip
    168.2 KB · Views: 3,140
  • Example.zip
    256.4 KB · Views: 1,793
  • B4XGifView.b4xlib
    1.5 KB · Views: 2,048
  • FLAnimatedImage-Mac.zip
    140 KB · Views: 438
Last edited:
Click to expand...
Beja

Beja

Expert
Licensed User
Longtime User
Hi Erel,
Tried to run the B4A example and got this error message.. Any meaning appreciated..

Could not find file 'C:\B4A95\libraries\relinker-1.3.1.aar'.

Beja

Beja

Expert
Licensed User
Longtime User
Erel said:
You need to download B4A-dependencies.zip, unzip it and copy the files to the additional libraries folder. It is attached to the first post.
Click to expand...

Perfect.. working like a charm.. the two GIF files loaded in no time and started immediately!!

Thanks Erel

AnandGupta

AnandGupta

Expert
Licensed User
Longtime User
AZKANSOY said:
Can I Start & Stop Animation ?
Click to expand...
See

B4X Gif View How to Stop Loop

Hello all, I've been trying this new B4XView and it works great but, i need a function or something to stop the loop of the gif or to set to Null to the control. I have already tried: B4XGifView1.mBase.SetBitmap(Null) B4XGifView1.GifDrawable=Null With no success, only thing to do like a...
www.b4x.com www.b4x.com

Regards,

Anand

Guenter Becker

Guenter Becker

Active Member
Licensed User
Erel said:

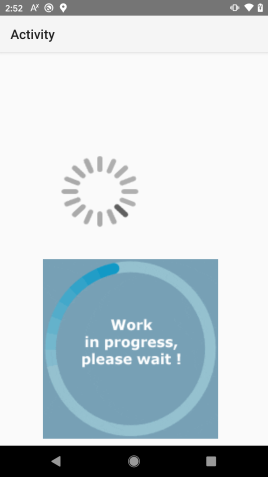

View attachment 95135

I was missing a cross platform, animated gif view, so created one.

Usage is simple:
Add with the visual designer and call SetGif to set the gif file.


The B4i implementation depends on FLAnimatedImage open source project: https://github.com/Flipboard/FLAnimatedImage
The FLAnimatedImage library was uploaded to the hosted builders. If you are using a local Mac then download FLAnimatedImage-Mac and copy the files to the Libs folder.
The B4A implementation is based on this open source project: https://github.com/koral--/android-gif-drawable
The two dependent aars are attached. Copy them to B4A additional libraries folder.

Updates:

1.11 - GIF image ratio is preserved.
1.10 - New B4A implementation based on Android GIF Drawable. It provides better performance. Note that the Activity_Resume method has been removed. Don't miss the B4A-Dependencies zip file.
Click to expand...


Hello, hope you are well.
Is it possible and if yes how to do it, to start/stop the animation by code?I
Is it possible and if yes how to do it, to start/stop repeating the animation by code?

AnandGupta

AnandGupta

Expert
Licensed User
Longtime User
See,

[B4X] B4XGifView - Cross platform animated gif view

I was missing a cross platform, animated gif view, so created one. Usage is simple: Add with the visual designer and call SetGif to set the gif file. The B4i implementation depends on FLAnimatedImage open source project: https://github.com/Flipboard/FLAnimatedImage The FLAnimatedImage library...
www.b4x.com www.b4x.com

Regards,

Anand

D

Daica

Active Member
Licensed User
Hi Erel, do you think you can add a click event to this library?
Thank you!

I tried editing the source code and added:

B4X:
#Event: Click

Private Sub iv_Click
    If xui.SubExists(mCallBack,mEventName&"_Click",0) Then
        CallSub(mCallBack,mEventName&"_Click")
    End If
End Sub

Nothing happens when I click the view. I think I might be doing something wrong?

Last edited:
Unobtainius

Unobtainius

Active Member
Licensed User
Longtime User
it could be other languages I am used to but
mEventName&"_Click"
in a continuous line looks odd to me
does
mEventName & "_Click" work?

D

Daica

Active Member
Licensed User
Unobtainius said:
it could be other languages I am used to but
mEventName&"_Click"
in a continuous line looks odd to me
does
mEventName & "_Click" work?
Click to expand...

I tried to format it correctly but nothing happens when I click. Maybe the view that is being returned isn't the one that is actually being clicked on?

Unobtainius

Unobtainius

Active Member
Licensed User
Longtime User
Sorry I cant help much I've never dived into the source code of any of the controls before but I think you may be on the right track.
They are usually made up of a few control and IV is like the base for getting at the other controls, so yeah, dig a bit deeper, the click event of some of the other controls may yield a result. Good luck

Unobtainius

Unobtainius

Active Member
Licensed User
Longtime User
Also, it's best not to post questions directly at Erel, as we are all here to help if we can.
plus @klaus will tell you off ;)

D

Daica

Active Member
Licensed User
Unobtainius said:
Also, it's best not to post questions directly at Erel, as we are all here to help if we can.
plus @klaus will tell you off ;)
Click to expand...

I know there are many great talented people here, I just assumed since Erel created it, I should direct the attention of the person writing the library.

LucaMs

LucaMs

Expert
Licensed User
Longtime User
Daica said:
I tried editing the source code and added:

B4X:
#Event: Click

Private Sub iv_Click
If xui.SubExists(mCallBack,mEventName&"_Click",0) Then
CallSub(mCallBack,mEventName&"_Click")
End If
End Sub
Nothing happens when I click the view. I think I might be doing something wrong?
Click to expand...
The wrong thing is that you should also set the event name when the ImageView is initialized, within the DesignerCreateView routine:
B4X:
Public Sub DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
    mBase = Base
    Tag = mBase.Tag
    mBase.Tag = Me
    #if B4J
    iv.Initialize("iv") '<--------- here
    mBase.AddView(iv, 0, 0, mBase.Width, mBase.Height)
    #Else If B4i
    Dim no As NativeObject
    AnimatedImageView = no.Initialize("FLAnimatedImageView").RunMethod("new", Null)
    mBase.AddView(AnimatedImageView, 0, 0, mBase.Width, mBase.Height)
    Dim iv As ImageView = AnimatedImageView
    iv.ContentMode = iv.MODE_FIT
    #Else If B4A
    iv.Initialize("iv") ' <--------- here
    mBase.AddView(iv, 0, 0, mBase.Width, mBase.Height)
    #End If
End Sub
As you can see I did it and it works but I couldn't do it for B4i.

I'm attaching a version (1.12) that works with B4A and B4J; Erel will probably be able to fix it to work with B4i as well.


Attachments

  • B4XGifView.b4xlib
    1.5 KB · Views: 339
Last edited:
D

Daica

Active Member
Licensed User
LucaMs said:
The wrong thing is that you should also set the event name when the ImageView is initialized, within the DesignerCreateView routine:
Click to expand...

Ahh of course, there is no event name so there is no _click event for the iv. ?‍♂️

aeric

aeric

Expert
Licensed User
Longtime User
LucaMs said:
The wrong thing is that you should also set the event name when the ImageView is initialized, within the DesignerCreateView routine:
B4X:
Public Sub DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
    mBase = Base
    Tag = mBase.Tag
    mBase.Tag = Me
    #if B4J
    iv.Initialize("iv") '<--------- here
    mBase.AddView(iv, 0, 0, mBase.Width, mBase.Height)
    #Else If B4i
    Dim no As NativeObject
    AnimatedImageView = no.Initialize("FLAnimatedImageView").RunMethod("new", Null)
    mBase.AddView(AnimatedImageView, 0, 0, mBase.Width, mBase.Height)
    Dim iv As ImageView = AnimatedImageView
    iv.ContentMode = iv.MODE_FIT
    #Else If B4A
    iv.Initialize("iv") ' <--------- here
    mBase.AddView(iv, 0, 0, mBase.Width, mBase.Height)
    #End If
End Sub
As you can see I did it and it works but I couldn't do it for B4i.

I'm attaching a version (1.12) that works with B4A and B4J; Erel will probably be able to fix it to work with B4i as well.
View attachment 115395
Click to expand...
It works for B4J and B4A.
I tried to make it work with B4i but no success.
In B4i, when I don't have an image loaded, the click event is fired but once I loaded a Gif file, the click event is not fired.
