B4A Library [B4X] [XUI] AS SegmentedTab

New year, new ASViews

I spend a lot of time in creating views, like this and to create a high quality view cost a lot of time. If you want to support me and further views, then you can do it here by Paypal or with a coffee.

Spoiler: Dependencies/Libraries you need for this view

B4j: jXUI,JavaObject
B4a: XUi,JavaObject
B4i: iXUI

NEW PaddingSelectionPanel - Picture Value: 5

NEW ShowSeperators

Custom Tab Width Example

[B4X] AS SegmentedTab - Custom tab width

https://www.b4x.com/android/forum/threads/b4x-xui-as-segmentedtab.126563/ ASSegmentedTab3.mBase.Color = xui.Color_ARGB(255,42, 156, 255) ASSegmentedTab3.SelectionPanel.Color = xui.Color_White ASSegmentedTab3.ItemTextProperties.TextColor = xui.Color_Black...

www.b4x.com

AS_SegmentedTab
Author: Alexander Stolte
Version: 2.00

Spoiler: Properties, Functions, Events, etc.

• ASSegmentedTab
  • Events:
    • DisabledTabClicked (xTab As ASSegmentedTab_Tab)
    • TabChanged (Index As Int)
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • AddTab (Text As String, icon As B4XBitmap) As ASSegmentedTab_Tab
    • AddTab2 (Text As String, icon As B4XBitmap, Value As Object) As ASSegmentedTab_Tab
    • AddTabAdvanced (xTab As ASSegmentedTab_Tab) As ASSegmentedTab_Tab
    • CreateASSegmentedTab_DisabledTabProperties (TextColor As Int, BackgroundColor As Int) As ASSegmentedTab_DisabledTabProperties
    • CreateASSegmentedTab_ItemTextProperties (TextColor As Int, SelectedTextColor As Int, TextFont As B4XFont, TextAlignment_Vertical As String, TextAlignment_Horizontal As String, BackgroundColor As Int) As ASSegmentedTab_ItemTextProperties
    • CreateASSegmentedTab_SeperatorProperties (Color As Int, Width As Float, HeightPercentage As Int, CornerRadius As Float) As ASSegmentedTab_SeperatorProperties
    • CreateASSegmentedTab_Tab (Text As String, Icon As B4XBitmap, Value As Object, Enabled As Boolean, ItemTextProperties As ASSegmentedTab_ItemTextProperties) As ASSegmentedTab_Tab
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
      Base type must be Object
    • DisabledTabProperties As ASSegmentedTab_DisabledTabProperties
    • FontToBitmap (text As String, IsMaterialIcons As Boolean, FontSize As Float, color As Int) As B4XBitmap


      FontAwesome To Bitmap

      Unlike an older "TextToBitmap" sub that you can find in the forum, this code vertically centers the icon. It can also be used in B4J and B4i (only need to change the font line). Sub Activity_Create(FirstTime As Boolean) 'usage example Activity.AddMenuItem3("Android", "Test"...

      www.b4x.com
    • GetTab (Index As Int) As ASSegmentedTab_Tab
      Call RefreshTabs if you change something
    • GetValue (Index As Int) As Object
    • Initialize (Callback As Object, EventName As String)
    • RebuildTabs
      Removes all tabs And adds them again
    • RefreshTabs
    • RemoveTab (Index As Int)
      Removes a tab at the specified index
    • RemoveTab2 (Value As Object)
      Removes a tab with the specified value
    • SelectedIndex (index As Int, Duration As Int)
    • UpdateSeperators
  • Properties:
    • AutoDecreaseTextSize As Boolean
      The text size is automatically adjusted to the space, if the text should not fit on one line
      Default: False
    • BackgroundColor As Int
    • BackgroundPanel As B4XView [read only]
      the child panel of mBase
    • Base As B4XView [read only]
    • CornerRadiusBackground As Float [write only]
      changes the CornerRadius of the view
    • CornerRadiusSelectionPanel As Float [write only]
      changes the CornerRadius of the selector
    • HapticFeedback As Boolean
    • ImageHeight As Float [write only]
    • Index As Int
    • Index2 As Int [write only]
      Sets the index without the TabChanged Event
    • ItemTextProperties As ASSegmentedTab_ItemTextProperties [read only]
      change the properties before you add atab, then this settings will be change the on the next added tab
      <code>ASSegmentedTab1.ItemTextProperties.TextFont = xui.CreateDefaultBoldFont(15)</code>
    • PaddingSelectionPanel As Float [write only]
      set a distance from the corners for the selector
    • SelectionColor As Int
    • SelectionPanel As B4XView [read only]
      gets the selection panel - the panel that highlight the selected tab
    • SeperatorProperties As ASSegmentedTab_SeperatorProperties [read only]
    • SeperatorsHeight As Float [read only]
    • ShowSeperators As Boolean [write only]
    • Size As Int [read only]
    • Theme As ASSegmentedTab_Theme [write only]
    • Theme_Dark As ASSegmentedTab_Theme [read only]
    • Theme_Light As ASSegmentedTab_Theme [read only]

Changelog

Spoiler: Version 1.0-1.22

• 1.00
  • Release
• 1.01
  • BugFix the selected tab is now keeping if the view is resizing
• 1.02
  • Adds getSelectionPanel - gets the selection panel - the panel that highlight a tab on click
    • this is now possible:
    •

    •
  • Adds getBackgroundPanel - the child panel of mBase
  • TabChanged is now only triggered on a new tab, if you click on the same tab, nothing happens
• 1.03
  • Adds getItemTextProperties - change the properties before you add atab, then this settings will be change the on the next added tab
    • now you can add Material- or FontAwesome-Icons on the Text parameter
• 1.04 (read more about this update)
  • B4A and B4J - Corner Radius Fix
  • Add DesignerProperty CornerRadiusBackground - changes the CornerRadius of the view
  • Add DesignerProperty CornerRadiusSelectionPanel - changes the CornerRadius of the selector
  • Add DesignerProperty PaddingSelectionPanel - set a distance from the corners for the selector
    •
• 1.05 (read more about this update)
  • Add Seperators - displays seperator items between non selected tabs
    • Add Designer Property "ShowSeperators" - default: False
    • Add UpdateSeperators - commit style changes
    • Add get SeperatorProperties - change the properties and call UpdateSeperators
    •
• 1.06 (read more about this update)
  • Performance Improvements
    • Seperators only added if ShowSeperators = True
      • If you set the ShowSeperators = False then the seperators will be removed and vice versa
  • Seperators - Add HeightPercentage - default:50% - 50% from the view height
    • ASSegmentedTab1.SeperatorProperties.HeightPercentage = 50
  • Seperators - Add CornerRadius - default:0 - set the corner radius of the seperators
    • ASSegmentedTab2.SeperatorProperties.CornerRadius = ASSegmentedTab2.SeperatorProperties.Width/2'round seperators
  • Add get SeperatorProperties - gets the seperators height
  • B4J and B4I Resize BugFixes
  • Add set ImageHeight - sets the image Height/Width
• 1.07
  • BugFix - SelectedIndex the index was not set
  • Add set Index - change the index without animation, do the same as SelectedIndex(1,0)
• 1.08
  • BugFix - get Index
• 1.09
  • BugFix - The new index at getIndex was assigned only after the TabChanged event
• 1.10
  • BugFix - SelectedIndex the PaddingSelectionPanel is now observed with
• 1.11 (read more about this update)

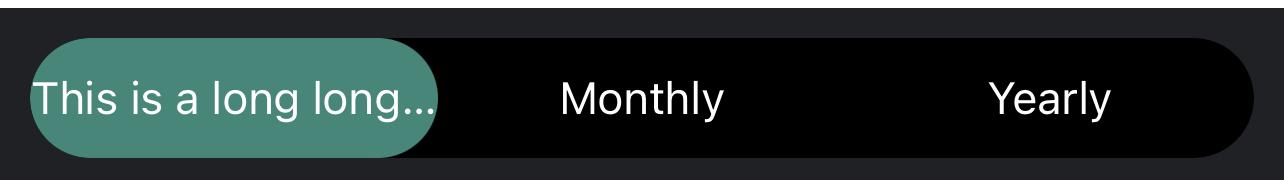

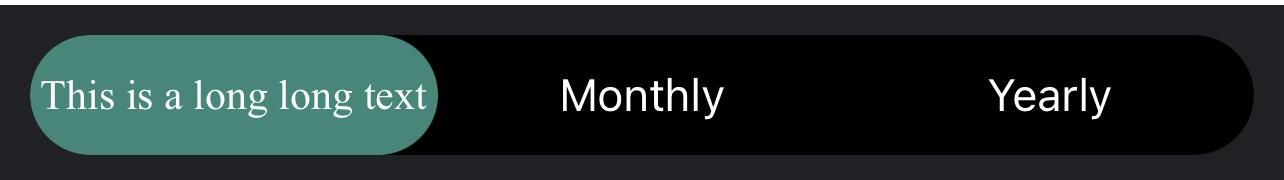

  • Add get and set AutoDecreaseTextSize - The text size is automatically adjusted to the space, if the text should not fit on one line
• 1.12
  • Add GetTab - Gets the tab text, icon and the text properties
  • Add RefreshTab - If you change something on the tab, then call this
• 1.13
  • Add Designer Porperty TabBackgroundColor
  • Add Designer Porperty SelectionColor
  • Add Designer Porperty SeperatorColor
  • Add Designer Porperty TextColor
• 1.14
  • Designer Properties are now converted into dip
• 1.15 (read more)
  • Add AddTab2
  • Add GetValue
  • Add Value to Type ASSegmentedTab_Tab
• 1.16
  • Add Designer Property SelectionTextColor
  • Add SelectionTextColor to Type ASSegmentedTab_ItemTextProperties
• 1.17
  • BugFix
• 1.18
  • Add get Size - Number of tabs
• 1.19 (read more)
  • Add AddTabAdvanced - Add a tab with the ASSegmentedTab_Tab type
  • Add Width to the ASSegmentedTab_Tab type
    • It's a optional tab property
    • If 0, then the width of the tab is calculated automatically
    • Default: 0
• 1.20
  • B4J BugFix
• 1.21
  • AutoDecreaseTextSize BugFix
• 1.22
  • Add set Index2 - Sets the index without the TabChanged Event

• 2.00 (read more)
  • BugFixes and Improvements
  • New RemoveTab and RemoveTab2
  • New get and set BackgroundColor
  • New get and set SelectionColor
  • New RebuildTabs - Removes all tabs And adds them again
  • New "Enabled" to ASSegmentedTab_Tab type
    • please check if enabled = true is set when using AddTabAdvanced
  • New Event DisabledTabClicked - Is triggered when the user clicks on a deactivated tab
  • New Designer Property HapticFeedback
    • Default: False
  • New Themes - You can now switch to Light or Dark mode
  • New set Theme
  • New get Theme_Dark
  • New get Theme_Light
  • New Designer Property ThemeChangeTransition
    • Default: None

Github: github.com/StolteX/AS_SegmentedTab

Have Fun



[Alexander Stolte]

i will be much more thankful to you if you go through it and suggest or make it scrollable,

but then you don't learn it.

1. Put the ASSegmentedTab to a own form
2. add a xCustomListView under the ACToolBarLight
3. use xCustomListView instead of "ListView", i dont know, how to add a panel to a "ListView"
4. create a new panel
   1. Dim xpnl_seg_Tab_background As B4XView = xui.CreatePanel("")
5. set a larger width than your ASSegmentedTab width is
   1. xpnl_seg_Tab_background.SetLayoutAnimated(0,0,0,Activity.Width*2,40dip)
6. load the form with the ASSegmentedTab to this panel
   1. xpnl_seg_Tab_background.LoadLayout("frm_seg_tab")
7. add this panel to your xCustomListView
   1. CustomListView1.Add(xpnl_seg_Tab_background,"")

For further questions, please make a new thread, I don't want this thread to be endless.



[Ulhas Rane]

but then you don't learn it.

1. Put the ASSegmentedTab to a own form
2. add a xCustomListView under the ACToolBarLight
3. use xCustomListView instead of "ListView", i dont know, how to add a panel to a "ListView"
4. create a new panel
   1. Dim xpnl_seg_Tab_background As B4XView = xui.CreatePanel("")
5. set a larger width than your ASSegmentedTab width is
   1. xpnl_seg_Tab_background.SetLayoutAnimated(0,0,0,Activity.Width*2,40dip)
6. load the form with the ASSegmentedTab to this panel
   1. xpnl_seg_Tab_background.LoadLayout("frm_seg_tab")
7. add this panel to your xCustomListView
   1. CustomListView1.Add(xpnl_seg_Tab_background,"")

For further questions, please make a new thread, I don't want this thread to be endless.

Thanks a lot
i will try your suggestion, and also i will start new thread if required



[Ulhas Rane]

Thanks again

I have created new thread at following link

AS SegmentedTab Scrolling problem

Hello, This thread is in continuation with following thread https://www.b4x.com/android/forum/threads/b4x-xui-as-segmentedtab.126563/page-2 Hi Alexander, First of all thanks again for helping me out I like your approach about learning myself & followed your instruction step by step, but still...

www.b4x.com

Regards



[Alexander Stolte]

Update
1.04

• B4A and B4J - Corner Radius Fix
• Add DesignerProperty CornerRadiusBackground - changes the CornerRadius of the view
• Add DesignerProperty CornerRadiusSelectionPanel - changes the CornerRadius of the selector
• Add DesignerProperty PaddingSelectionPanel - set a distance from the corners for the selector

Corner Radius Old VS New:

'old way:
ASSegmentedTab2.Base.SetColorAndBorder(ASSegmentedTab2.Base.Color,0,0,10dip) 'make the view rounded
'new way:
ASSegmentedTab2.CornerRadiusBackground = 10dip 'make the view rounded

'old
ASSegmentedTab2.SelectionPanel.SetColorAndBorder(ASSegmentedTab2.SelectionPanel.Color,0,0,10dip)'makes the selector rounded
'new
ASSegmentedTab2.CornerRadiusSelectionPanel = 10dip'makes the selector round

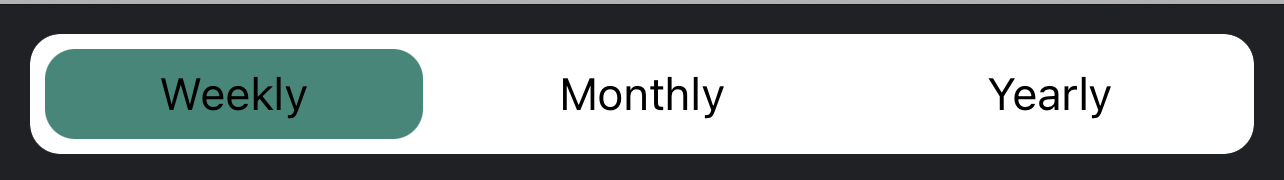

PaddingSelectionPanel:

ASSegmentedTab1.PaddingSelectionPanel = 5

Result:



[Alexander Stolte]

Update
1.05

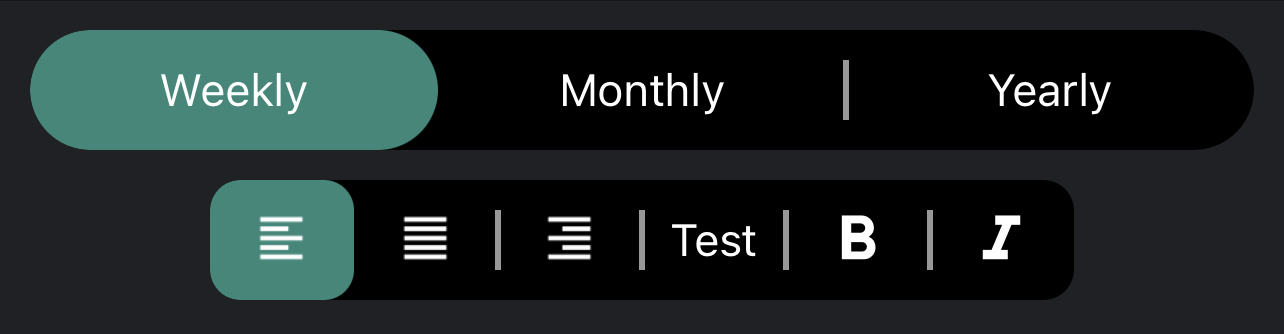

• Add Seperators - displays seperator items between non selected tabs
  • Add Designer Property "ShowSeperators" - default: False
  • Add UpdateSeperators - commit style changes
  • Add get SeperatorProperties - change the properties and call UpdateSeperators

Examples:

ASSegmentedTab1.ShowSeperators = True 'Shows the seperators - or use the Designer Property
ASSegmentedTab1.SeperatorProperties.Width = 2dip 'the width of the seperators
ASSegmentedTab1.SeperatorProperties.Color = xui.Color_Red 'the color of the seperators
ASSegmentedTab1.UpdateSeperators 'commit the style changes



[Alexander Stolte]

I had another update in the pipeline, I don't know why I didn't publish it back then, version 1.05 is still available as backup in the 1st post.
Update

• 1.06
  • Performance Improvements
    • Seperators only added if ShowSeperators = True
      • If you set the ShowSeperators = False then the seperators will be removed and vice versa
  • Seperators - Add HeightPercentage - default:50% - 50% from the view height
    • ASSegmentedTab1.SeperatorProperties.HeightPercentage = 50
  • Seperators - Add CornerRadius - default:0 - set the corner radius of the seperators
    • ASSegmentedTab2.SeperatorProperties.CornerRadius = ASSegmentedTab2.SeperatorProperties.Width/2'round seperators
  • Add get SeperatorProperties - gets the seperators height
  • B4J and B4I Resize BugFixes
  • Add set ImageHeight - sets the image Height/Width



[Alexander Stolte]

Update

• 1.07
  • BugFix - SelectedIndex the index was not set
  • Add set Index - change the index without animation, do the same as SelectedIndex(1,0)



[tufanv]

Update

• 1.07
  • BugFix - SelectedIndex the index was not set
  • Add set Index - change the index without animation, do the same as SelectedIndex(1,0)

Does this fix the problem where selectedindex changes to selected-1 for some reason? I tried it a while ago and this was happening



[Alexander Stolte]

Does this fix the problem where selectedindex changes to selected-1 for some reason? I tried it a while ago and this was happening

You have to tell me, I never had such a problem.



[Alexander Stolte]

Update

• 1.08
  • BugFix - get Index



[Alexander Stolte]

Update

• 1.09
  • BugFix - The new index at getIndex was assigned only after the TabChanged event



[Rubsanpe]

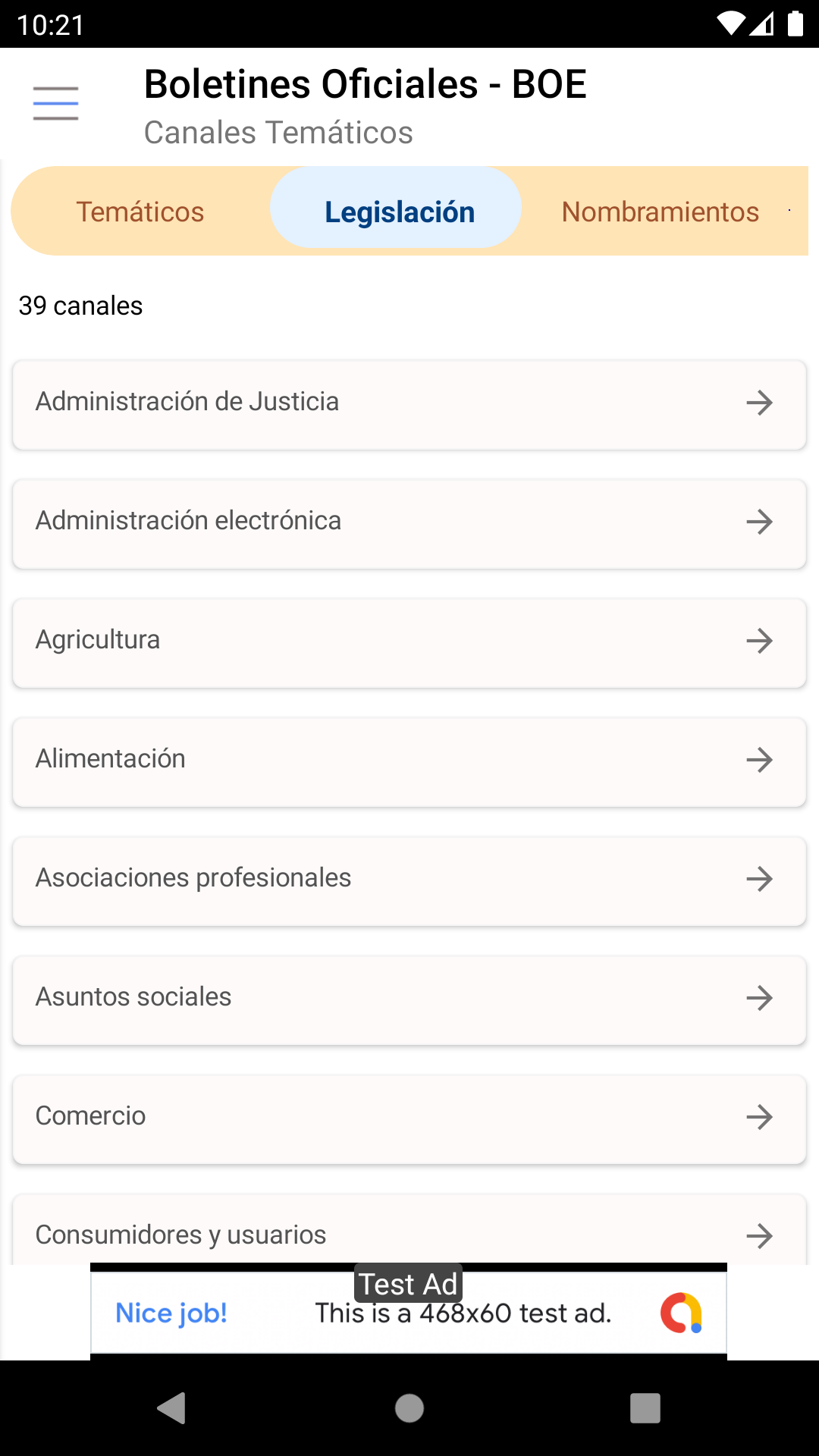

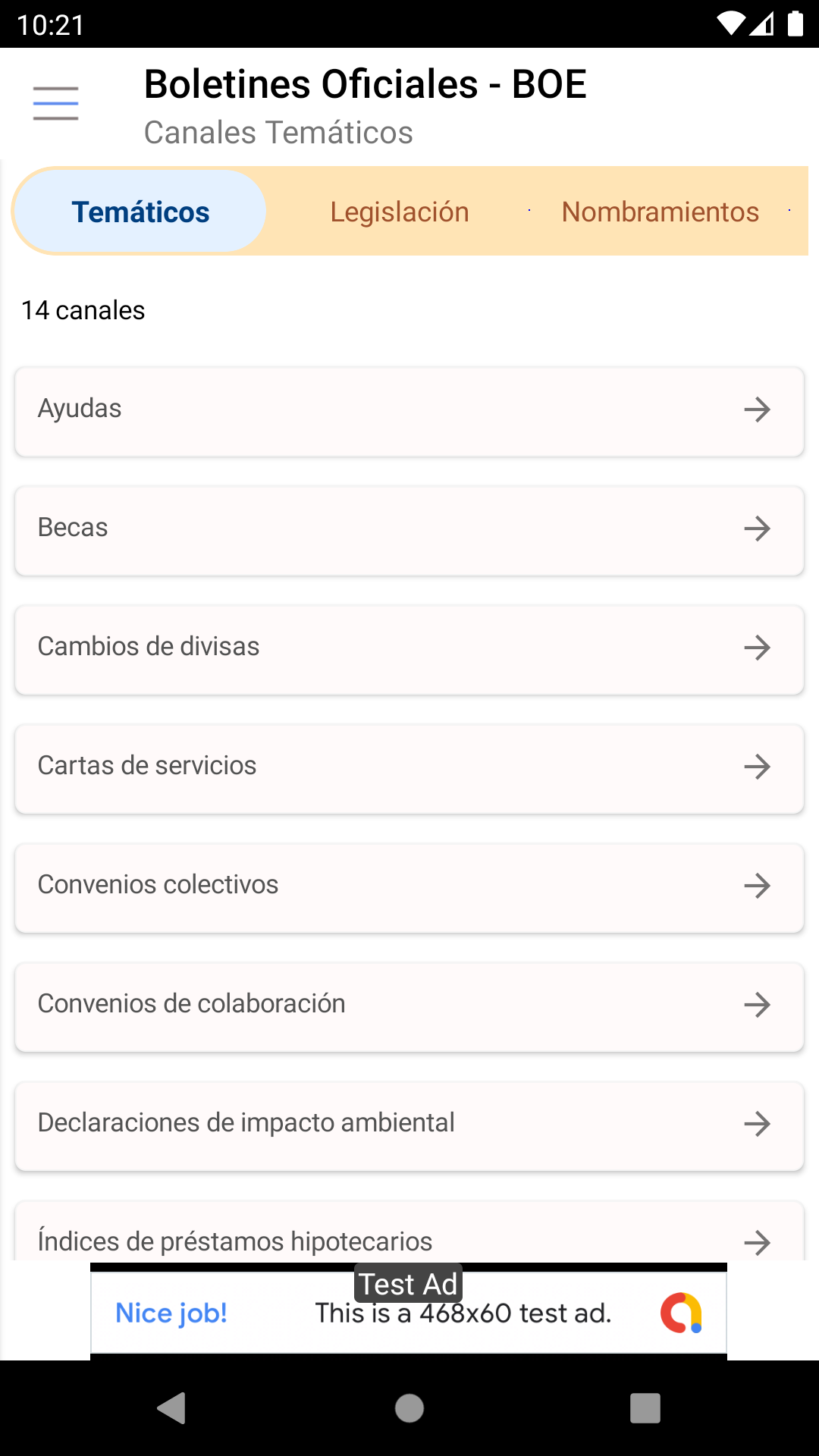

Hi in AS SegmentedTab I have tested the option PaddingSelectionPanel = 5 and the result is correct.

The problem is that when the tab is changed the selection is not centred with the indicated margin.

Thanks for your great work on B4X

Rubén



[Alexander Stolte]

Update

• 1.10
  • BugFix - SelectedIndex the PaddingSelectionPanel is now observed with

Thanks for your great work on B4X

Thank you!



[Rubsanpe]

Thank you very much. Your work is making B4X better and much more attractive.

Rubén



[Alexander Stolte]

Your work is making B4X better and much more attractive.

more is coming next week ?



[Alexander Stolte]

Update

• 1.11
  • Add get and set AutoDecreaseTextSize - The text size is automatically adjusted to the space, if the text should not fit on one line

AutoDecreaseTextSize
Default: False

ASSegmentedTab1.AutoDecreaseTextSize = False

ASSegmentedTab1.AutoDecreaseTextSize = True



[Alexander Stolte]

Update

• 1.12
  • Add GetTab - Gets the tab text, icon and the text properties
  • Add RefreshTab - If you change something on the tab, then call this

    'Changes the icon
    ASSegmentedTab2.GetTab(0).Icon = ASSegmentedTab2.FontToBitmap(Chr(0xE195),True,15,xui.Color_White)

    'Removes the icon and sets a text
    ASSegmentedTab2.GetTab(1).Icon = Null
    ASSegmentedTab2.GetTab(1).Text = "Test"

    'Makes the changes visible
    ASSegmentedTab2.RefreshTabs



[adrianfreitas]

I would like to thank you for your great work and great contribution to the community. I would also like to ask if there is any way to use icon and text at the same time in the tab... I tried to simulate it in your example but without success. Thanks!

I just found your AS Tab Menu... thank you!



[jahswant]

I just found your AS Tab Menu... thank you!

You can also try this one :

[B4X] [XUI] AS TabMenuAdvanced

A container view controller that manages a multiselection interface, where the selection determines which child view controller to display. This view was developed and structured from scratch :) i spend a lot of time in creating views, some views i need by my self, but some views not and to...

www.b4x.com



[Alexander Stolte]

Update

• 1.13
  • Add Designer Porperty TabBackgroundColor
  • Add Designer Porperty SelectionColor
  • Add Designer Porperty SeperatorColor
  • Add Designer Porperty TextColor

No idea why these properties were missing... Now they are there and you can reach your goal even faster.
