B4A Library [B4X][XUI] WobbleMenu - a cross platform animated bottom navigation

Hi everyone,

This is a B4X compatible bottom navigation. It has 4 types of tab changing animation and 3 types of icon revealing animation.



WobbleMenu
Author:
@Biswajit
Version: 1.5
Dependency: JavaObject, BitmapCreator, XUI
  • WobbleMenu
    • Functions:
      • GetCurrentTab As Int
        Get the current tab id (1 to 5)
      • GetHeight As Int
        Get menu height.
      • SetAnimationType(Animation_Type As Int)
        Set the tab changing animation type. Check properties
      • SetCurrentTab(TabID As Int)
        Set the current tab from 1 to 5
      • SetCurrentTab2(TabID As Int, triggerEvent As Boolean) NEW
        Same as SetCurrentTab. If you set triggerEvent = false then it will not trigger the tab click event.
      • SetIconAppearStyle(Icon_Appear_Style As Int)
        Set icon revealing animation type. Check properties
      • SetTabTextIcon(TabID As Int, Text As String, Icon As String, IconFont As Typeface)
        Set the tab text and icons (TabID must be between 1 to 5)
      • SetTabTextIcon2(TabID As Int, Text As String, Icon As Bitmap, tinted As Boolean) NEW
        Set the tab text and image icon (TabID must be between 1 to 5)
      • SetBadge(TabID As Int, Count As Int, BackColor As Int, TxtColor As Int)
        Set tab badge. (after 99 it will show 99+)
      • RemoveBadge(TabID As Int)
        Remove badge from a tab.
      • SetTabCount(count As Int)
        Set tab count at runtime.
        Count must be either 5 or 3
        Note: You can't change the tab count to 3 if your selected tab id is 4 or 5
      • SetEnableTab(TabID As Int, enable As Boolean)
        Enable or disable a tab.
      • GetEnableTab(TabID As Int) As Boolean
        Check if a tab is enabled or not.
      • SetVisible(show As Boolean, animate As Boolean) NEW
        Set menu visibility
    • Events:
      • Tab1Click
      • Tab2Click
      • Tab3Click
      • Tab4Click
      • Tab5Click
    • Properties:
      • ANIMATION_TYPE_ELASTIC_OUT As Int
      • ANIMATION_TYPE_ELASTIC_IN As Int
      • ANIMATION_TYPE_EASE_OUT As Int
      • ANIMATION_TYPE_EASE_IN As Int
      • ANIMATION_TYPE_NONE As Int
      • ICON_APPEAR_FROM_CENTER As Int
      • ICON_APPEAR_FROM_EDGE As Int
      • ICON_APPEAR_FADE_IN As Int
      • ICON_APPEAR_NO_ANIMATION As Int
    • Designer Properties:
      • No. of Tabs (Default: 5)
      • Active Tab (Default 3) NEW
      • Background Color (Default: 0xFFFFFFFF)
      • Shadow Color (Default: Dark)
      • Icon Color (Default: 0xFFBBBBBB)
      • Icon Size (Default: 18)
      • Text Color (Default: 0xFFFFFFFF)
      • Text Size (Default: 14)
      • Selected Icon Color (Default: 0xFF000000)
      • Icon Appear Style (Default: FROM EDGE)
      • Animation Type (Default: ELASTIC OUT)
      • Animation Duration (Default: 500)
You can implement your own animation. Check this link.
Copy the library to the additional library folder then run the examples. Have fun!

UPDATE v1.2 (Latest Examples and Library Attached):
  1. Added 3 Tabs option to designer properties
  2. Added Icon Fade In and no animation option
  3. Fixed SetTabIcon method, previously it was unable to handle any TabID value other than 1 to 5
UPDATE v1.3:
  1. Added Shadow Type (Light/Dark) Option
UPDATE v1.4:
  1. Now you can add text under icons
  2. Now you can add a badge to each tab
  3. Control icon size, text color, and text size from the designer.
  4. More smooth curve.
UPDATE v1.41: Fixed a variable mismatch error.
UPDATE v1.42: Added getHeight method.
UPDATE v1.43:
  1. Change tab count at runtime
  2. Get or set the tab enable status.
UPDATE v1.44:
  1. Minor animation bug fixed.
  2. Added b4xpage+viewpager example.
UPDATE v1.5:
  1. Added image icon support.
  2. Added setVisible method.
  3. Added setCurrentTab2 method which supports changing active tab without triggering click event.
  4. Now the default active tab can be selected from the designer.
UPDATE v1.51: Badge visibility bug fix.


Attachments

  • B4A_Example.zip
    9.3 KB · Views: 2,392
  • B4i_Example.zip
    110.4 KB · Views: 970
  • B4J_Example.zip
    2.3 KB · Views: 1,078
  • b4xpage example with viewpager.zip
    487.3 KB · Views: 1,905
  • WobbleMenu.b4xlib
    6.9 KB · Views: 1,887
Last edited:

Biswajit

Active Member
Licensed User
Longtime User
Hi. I would like to know if it is possible to change the font size at runtime, is it possible?
Currently, that's not possible.


Biswajit

Active Member
Licensed User
Longtime User
Good morning, everyone! I'm new to B4x, and I'm having trouble using the "WobbleMenu1_Tab1Click" with a layout, please help me how to do it. Thank you !
Could you please explain the issue you are facing?


Biswajit

Active Member
Licensed User
Longtime User
Inside the WobbleMenu1_Tab1Click sub call StartActivity(Your-Activity-Name).
For more details check these tutorials, https://www.b4x.com/etp.html


Rubsanpe

Active Member
Licensed User
Hi. Im having errors with samples compilation:

B4X:
Error occurred on line: 94 (WobbleMenu)
java.lang.NumberFormatException: For input string: "null"
    at sun.misc.FloatingDecimal.readJavaFormatString(FloatingDecimal.java:2043)
    at sun.misc.FloatingDecimal.parseDouble(FloatingDecimal.java:110)
    at java.lang.Double.parseDouble(Double.java:538)
    at anywheresoftware.b4a.BA.ObjectToNumber(BA.java:684)
    at b4a.example.wobblemenu._designercreateview(wobblemenu.java:1095)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:144)
    at anywheresoftware.b4a.objects.CustomViewWrapper.AfterDesignerScript(CustomViewWrapper.java:61)
    at anywheresoftware.b4a.keywords.LayoutBuilder.loadLayout(LayoutBuilder.java:162)
    at anywheresoftware.b4a.objects.PanelWrapper.LoadLayout(PanelWrapper.java:134)
    at anywheresoftware.b4a.objects.B4XViewWrapper.LoadLayout(B4XViewWrapper.java:312)
    at b4a.example.b4xmainpage._b4xpage_created(b4xmainpage.java:58)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.debug.Debug.CallSub4(Debug.java:318)
    at anywheresoftware.b4a.debug.Debug.CallSubNew2(Debug.java:285)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.keywords.Common.CallSubDebug2(Common.java:1055)
    at b4a.example.b4xpagesmanager._createpageifneeded(b4xpagesmanager.java:1060)
    at b4a.example.b4xpagesmanager._showpage(b4xpagesmanager.java:417)
    at b4a.example.b4xpagesmanager._addpage(b4xpagesmanager.java:245)
    at b4a.example.b4xpagesmanager._addpageandcreate(b4xpagesmanager.java:259)
    at b4a.example.b4xpagesmanager._initialize(b4xpagesmanager.java:165)
    at b4a.example.main._activity_create(main.java:408)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:144)
    at b4a.example.main.afterFirstLayout(main.java:105)
    at b4a.example.main.access$000(main.java:17)
    at b4a.example.main$WaitForLayout.run(main.java:83)
    at android.os.Handler.handleCallback(Handler.java:883)
    at android.os.Handler.dispatchMessage(Handler.java:100)
    at android.os.Looper.loop(Looper.java:214)
    at android.app.ActivityThread.main(ActivityThread.java:7356)
    at java.lang.reflect.Method.invoke(Native Method)

Rubén


Biswajit

Active Member
Licensed User
Longtime User
Hi. Im having errors with samples compilation:

B4X:
Error occurred on line: 94 (WobbleMenu)
java.lang.NumberFormatException: For input string: "null"
    at sun.misc.FloatingDecimal.readJavaFormatString(FloatingDecimal.java:2043)
    at sun.misc.FloatingDecimal.parseDouble(FloatingDecimal.java:110)
    at java.lang.Double.parseDouble(Double.java:538)
    at anywheresoftware.b4a.BA.ObjectToNumber(BA.java:684)
    at b4a.example.wobblemenu._designercreateview(wobblemenu.java:1095)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:144)
    at anywheresoftware.b4a.objects.CustomViewWrapper.AfterDesignerScript(CustomViewWrapper.java:61)
    at anywheresoftware.b4a.keywords.LayoutBuilder.loadLayout(LayoutBuilder.java:162)
    at anywheresoftware.b4a.objects.PanelWrapper.LoadLayout(PanelWrapper.java:134)
    at anywheresoftware.b4a.objects.B4XViewWrapper.LoadLayout(B4XViewWrapper.java:312)
    at b4a.example.b4xmainpage._b4xpage_created(b4xmainpage.java:58)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.debug.Debug.CallSub4(Debug.java:318)
    at anywheresoftware.b4a.debug.Debug.CallSubNew2(Debug.java:285)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.keywords.Common.CallSubDebug2(Common.java:1055)
    at b4a.example.b4xpagesmanager._createpageifneeded(b4xpagesmanager.java:1060)
    at b4a.example.b4xpagesmanager._showpage(b4xpagesmanager.java:417)
    at b4a.example.b4xpagesmanager._addpage(b4xpagesmanager.java:245)
    at b4a.example.b4xpagesmanager._addpageandcreate(b4xpagesmanager.java:259)
    at b4a.example.b4xpagesmanager._initialize(b4xpagesmanager.java:165)
    at b4a.example.main._activity_create(main.java:408)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:144)
    at b4a.example.main.afterFirstLayout(main.java:105)
    at b4a.example.main.access$000(main.java:17)
    at b4a.example.main$WaitForLayout.run(main.java:83)
    at android.os.Handler.handleCallback(Handler.java:883)
    at android.os.Handler.dispatchMessage(Handler.java:100)
    at android.os.Looper.loop(Looper.java:214)
    at android.app.ActivityThread.main(ActivityThread.java:7356)
    at java.lang.reflect.Method.invoke(Native Method)

Rubén
This error is coming from the designer. Open the layout file and save the file from the designer again. Then try to compile.


Biswajit

Active Member
Licensed User
Longtime User
Can you please add the functionality to return the top position? I need to add a control directly on top of the wobble menu.

Thanks.
B4X:
Dim top as int = 100%y - wobblemenu1.GetHeight 'b4a
Dim top as int = Page1.RootPanel.Height - wobblemenu1.GetHeight 'b4i


Mashiane

Expert
Licensed User
Longtime User
Hi there

I seem to have a problem with the b4i example, i cannot run it, posted the issue here


Thanks


TILogistic

Expert
Licensed User
Longtime User
Hi, is it possible to create something like this purely in HTML for b4j webapp? Thanks.
You know that you can find these and other better ones on the web that are developed in javascripts and css,

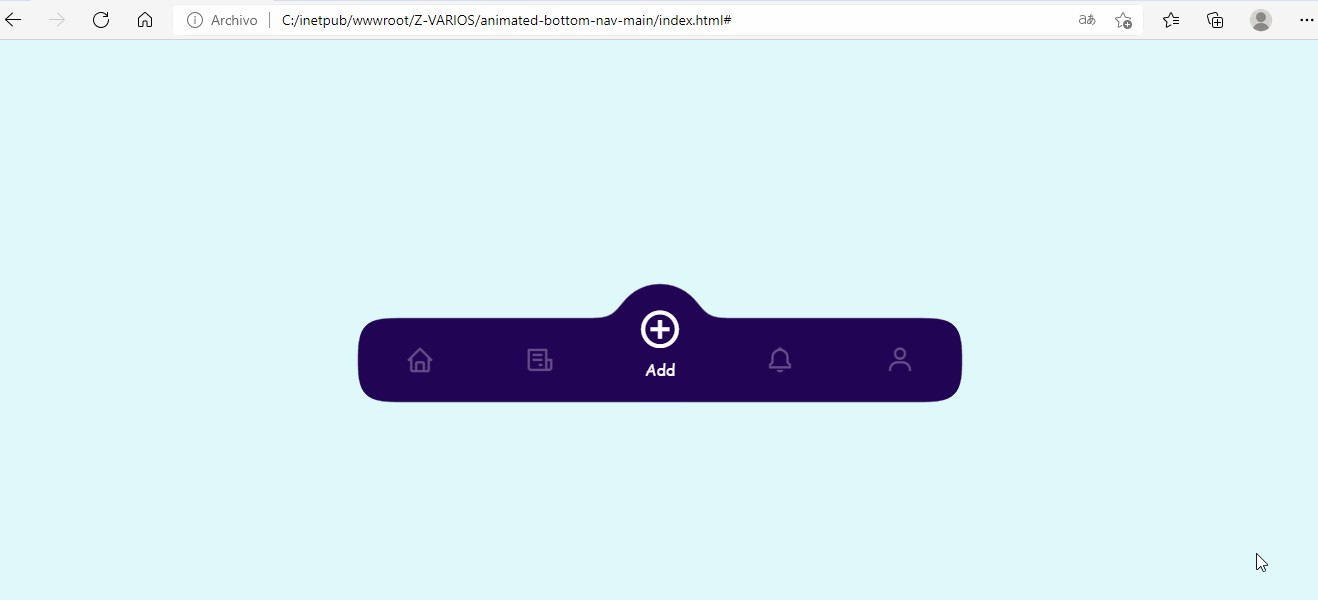

Recognize this example:


Attachments

  • 1.gif
    188 KB · Views: 412

Biswajit

Active Member
Licensed User
Longtime User
Hi, is it possible to create something like this purely in HTML for b4j webapp? Thanks.
Yes. But as @oparra suggested there are many bottom bar plugins available on the internet.


Biswajit

Active Member
Licensed User
Longtime User

EduardoElias

Well-Known Member
Licensed User
Longtime User
I see there is a background band on the wooble menu. I have a color for the menu itself but the background (the half upper part) changing on the background to transparent does not cause change.... I want to have the wooble menu over a google maps (it is pure visual)

is it possible?
