Hi everyone,

This is a B4X compatible bottom navigation. It has 4 types of tab changing animation and 3 types of icon revealing animation.



WobbleMenu
Author: @Biswajit
Version: 1.5
Dependency: JavaObject, BitmapCreator, XUI
  • WobbleMenu
    • Functions:
      • GetCurrentTab As Int
        Get the current tab id (1 to 5)
      • GetHeight As Int
        Get menu height.
      • SetAnimationType(Animation_Type As Int)
        Set the tab changing animation type. Check properties
      • SetCurrentTab(TabID As Int)
        Set the current tab from 1 to 5
      • SetCurrentTab2(TabID As Int, triggerEvent As Boolean) NEW
        Same as SetCurrentTab. If you set triggerEvent = false then it will not trigger the tab click event.
      • SetIconAppearStyle(Icon_Appear_Style As Int)
        Set icon revealing animation type. Check properties
      • SetTabTextIcon(TabID As Int, Text As String, Icon As String, IconFont As Typeface)
        Set the tab text and icons (TabID must be between 1 to 5)
      • SetTabTextIcon2(TabID As Int, Text As String, Icon As Bitmap, tinted As Boolean) NEW
        Set the tab text and image icon (TabID must be between 1 to 5)
      • SetBadge(TabID As Int, Count As Int, BackColor As Int, TxtColor As Int)
        Set tab badge. (after 99 it will show 99+)
      • RemoveBadge(TabID As Int)
        Remove badge from a tab.
      • SetTabCount(count As Int)
        Set tab count at runtime.
        Count must be either 5 or 3
        Note: You can't change the tab count to 3 if your selected tab id is 4 or 5
      • SetEnableTab(TabID As Int, enable As Boolean)
        Enable or disable a tab.
      • GetEnableTab(TabID As Int) As Boolean
        Check if a tab is enabled or not.
      • SetVisible(show As Boolean, animate As Boolean) NEW
        Set menu visibility
    • Events:
      • Tab1Click
      • Tab2Click
      • Tab3Click
      • Tab4Click
      • Tab5Click
    • Properties:
      • ANIMATION_TYPE_ELASTIC_OUT As Int
      • ANIMATION_TYPE_ELASTIC_IN As Int
      • ANIMATION_TYPE_EASE_OUT As Int
      • ANIMATION_TYPE_EASE_IN As Int
      • ANIMATION_TYPE_NONE As Int
      • ICON_APPEAR_FROM_CENTER As Int
      • ICON_APPEAR_FROM_EDGE As Int
      • ICON_APPEAR_FADE_IN As Int
      • ICON_APPEAR_NO_ANIMATION As Int
    • Designer Properties:
      • No. of Tabs (Default: 5)
      • Active Tab (Default 3) NEW
      • Background Color (Default: 0xFFFFFFFF)
      • Shadow Color (Default: Dark)
      • Icon Color (Default: 0xFFBBBBBB)
      • Icon Size (Default: 18)
      • Text Color (Default: 0xFFFFFFFF)
      • Text Size (Default: 14)
      • Selected Icon Color (Default: 0xFF000000)
      • Icon Appear Style (Default: FROM EDGE)
      • Animation Type (Default: ELASTIC OUT)
      • Animation Duration (Default: 500)
You can implement your own animation. Check this link.
Copy the library to the additional library folder then run the examples. Have fun!

UPDATE v1.2 (Latest Examples and Library Attached):
  1. Added 3 Tabs option to designer properties
  2. Added Icon Fade In and no animation option
  3. Fixed SetTabIcon method, previously it was unable to handle any TabID value other than 1 to 5
UPDATE v1.3:
  1. Added Shadow Type (Light/Dark) Option
UPDATE v1.4:
  1. Now you can add text under icons
  2. Now you can add a badge to each tab
  3. Control icon size, text color, and text size from the designer.
  4. More smooth curve.
UPDATE v1.41: Fixed a variable mismatch error.
UPDATE v1.42: Added getHeight method.
UPDATE v1.43:
  1. Change tab count at runtime
  2. Get or set the tab enable status.
UPDATE v1.44:
  1. Minor animation bug fixed.
  2. Added b4xpage+viewpager example.
UPDATE v1.5:
  1. Added image icon support.
  2. Added setVisible method.
  3. Added setCurrentTab2 method which supports changing active tab without triggering click event.
  4. Now the default active tab can be selected from the designer.
UPDATE v1.51: Badge visibility bug fix.


Attachments

  • B4A_Example.zip
    9.3 KB · Views: 2,420
  • B4i_Example.zip
    110.4 KB · Views: 978
  • B4J_Example.zip
    2.3 KB · Views: 1,094
  • b4xpage example with viewpager.zip
    487.3 KB · Views: 1,923
  • WobbleMenu.b4xlib
    6.9 KB · Views: 1,919
Last edited:
Click to expand...
Biswajit

Biswajit

Active Member
Licensed User
Longtime User
eelias said:
I see there is a background band on the wooble menu. I have a color for the menu itself but the background (the half upper part) changing on the background to transparent does not cause change.... I want to have the wooble menu over a google maps (it is pure visual)

is it possible?
Click to expand...
Sorry didn't understand. The upper half is transparent by default. Post a small screenshot of that menu area. And explain what is the problem.

EduardoElias

EduardoElias

Well-Known Member
Licensed User
Longtime User
Biswajit said:
Sorry didn't understand. The upper half is transparent by default. Post a small screenshot of that menu area. And explain what is the problem.
Click to expand...

See the red box... I cant get rid of that area in b4a and b4i



the map is going under, changing the background color to transparent does nothing... changing the activity background color on the layout does change this area, but that does not solve the map thing.

Biswajit

Biswajit

Active Member
Licensed User
Longtime User
eelias said:
changing the background color to transparent does nothing
Click to expand...
Maybe your layout is wrong. Maybe you have placed the wobble menu right after the map view so the map view's bottom is the top of the wobble menu.

Half of the wobble menu view has the shadow and the selected icon view with a transparent background and the other half has the bottom part.

So increase the map view height. New height = Current height + (wobble menu height / 2)

I think it will solve the issue.

EduardoElias

EduardoElias

Well-Known Member
Licensed User
Longtime User
Biswajit said:
Maybe your layout is wrong. Maybe you have placed the wobble menu right after the map view so the map view's bottom is the top of the wobble menu.

Half of the wobble menu view has the shadow and the selected icon view with a transparent background and the other half has the bottom part.

So increase the map view. New height = Current height + (wobble menu height / 2)

I think it will solve the issue.
Click to expand...

The map is already under the wobblemenu.... so if it is transparent is should be showing it , if you see to the left there is a small portion of the map right there

Biswajit

Biswajit

Active Member
Licensed User
Longtime User
eelias said:
The map is already under the wobblemenu.... so if it is transparent is should be showing it , if you see to the left there is a small portion of the map right there
Click to expand...
Can you post your layout file?

aeric

aeric

Expert
Licensed User
Longtime User
When I try to run the example, I encountered the following error:

Error occurred on line: 94 (WobbleMenu)
java.lang.NumberFormatException: For input string: "null"
at sun.misc.FloatingDecimal.readJavaFormatString(FloatingDecimal.java:2043)
at sun.misc.FloatingDecimal.parseDouble(FloatingDecimal.java:110)
at java.lang.Double.parseDouble(Double.java:539)
at anywheresoftware.b4a.BA.ObjectToNumber(BA.java:684)
at b4a.example.wobblemenu._designercreateview(wobblemenu.java:1095)

I fixed it by open the layout designer and set the corner radius to value other than 0.

Pravee7094

Pravee7094

Active Member
aeric said:
When I try to run the example, I encountered the following error:

Error occurred on line: 94 (WobbleMenu)
java.lang.NumberFormatException: For input string: "null"
at sun.misc.FloatingDecimal.readJavaFormatString(FloatingDecimal.java:2043)
at sun.misc.FloatingDecimal.parseDouble(FloatingDecimal.java:110)
at java.lang.Double.parseDouble(Double.java:539)
at anywheresoftware.b4a.BA.ObjectToNumber(BA.java:684)
at b4a.example.wobblemenu._designercreateview(wobblemenu.java:1095)

I fixed it by open the layout designer and set the corner radius to value other than 0.
Click to expand...
I faced the same Issue. I just open the designer and save the layout without any changes and then run. It successfully worked.

epiCode

epiCode

Active Member
Licensed User
Hi @Biswajit
I see that many users have already raised this concerns regarding the other controls/layout under the wobble menu.

As I understand, height of menu will vary on different devices depending on height to width ratio. It makes other content either leave a gap or go under the menu which might not be intended.

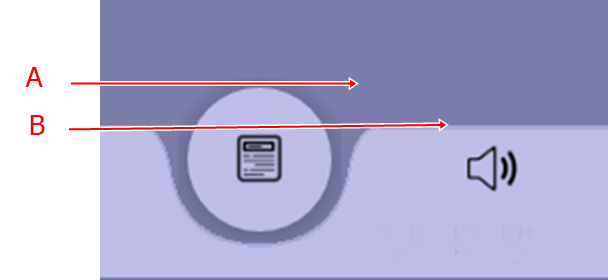

It would be nice if you can share from following image:
A - (Top height which can be retrieved from getHeight method)
B - How to Calculate that ?

Also, is it possible that height be fixed lets say at 100dip irrespective of device height ?



Thanks!

tufanv

tufanv

Expert
Licensed User
Longtime User
Hello,
Biswajit said:
Hi everyone,

This is a B4X compatible bottom navigation. It has 4 types of tab changing animation and 3 types of icon revealing animation.

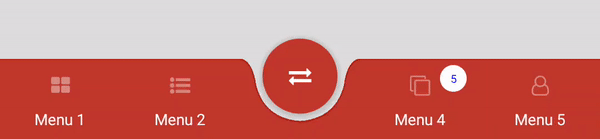

View attachment 94944

WobbleMenu
Author: @Biswajit
Version: 1.5
Dependency: JavaObject, BitmapCreator, XUI
  • WobbleMenu
    • Functions:
      • GetCurrentTab As Int
        Get the current tab id (1 to 5)
      • GetHeight As Int
        Get menu height.
      • SetAnimationType(Animation_Type As Int)
        Set the tab changing animation type. Check properties
      • SetCurrentTab(TabID As Int)
        Set the current tab from 1 to 5
      • SetCurrentTab2(TabID As Int, triggerEvent As Boolean) NEW
        Same as SetCurrentTab. If you set triggerEvent = false then it will not trigger the tab click event.
      • SetIconAppearStyle(Icon_Appear_Style As Int)
        Set icon revealing animation type. Check properties
      • SetTabTextIcon(TabID As Int, Text As String, Icon As String, IconFont As Typeface)
        Set the tab text and icons (TabID must be between 1 to 5)
      • SetTabTextIcon2(TabID As Int, Text As String, Icon As Bitmap, tinted As Boolean) NEW
        Set the tab text and image icon (TabID must be between 1 to 5)
      • SetBadge(TabID As Int, Count As Int, BackColor As Int, TxtColor As Int)
        Set tab badge. (after 99 it will show 99+)
      • RemoveBadge(TabID As Int)
        Remove badge from a tab.
      • SetTabCount(count As Int)
        Set tab count at runtime.
        Count must be either 5 or 3
        Note: You can't change the tab count to 3 if your selected tab id is 4 or 5
      • SetEnableTab(TabID As Int, enable As Boolean)
        Enable or disable a tab.
      • GetEnableTab(TabID As Int) As Boolean
        Check if a tab is enabled or not.
      • SetVisible(show As Boolean, animate As Boolean) NEW
        Set menu visibility
    • Events:
      • Tab1Click
      • Tab2Click
      • Tab3Click
      • Tab4Click
      • Tab5Click
    • Properties:
      • ANIMATION_TYPE_ELASTIC_OUT As Int
      • ANIMATION_TYPE_ELASTIC_IN As Int
      • ANIMATION_TYPE_EASE_OUT As Int
      • ANIMATION_TYPE_EASE_IN As Int
      • ANIMATION_TYPE_NONE As Int
      • ICON_APPEAR_FROM_CENTER As Int
      • ICON_APPEAR_FROM_EDGE As Int
      • ICON_APPEAR_FADE_IN As Int
      • ICON_APPEAR_NO_ANIMATION As Int
    • Designer Properties:
      • No. of Tabs (Default: 5)
      • Active Tab (Default 3) NEW
      • Background Color (Default: 0xFFFFFFFF)
      • Shadow Color (Default: Dark)
      • Icon Color (Default: 0xFFBBBBBB)
      • Icon Size (Default: 18)
      • Text Color (Default: 0xFFFFFFFF)
      • Text Size (Default: 14)
      • Selected Icon Color (Default: 0xFF000000)
      • Icon Appear Style (Default: FROM EDGE)
      • Animation Type (Default: ELASTIC OUT)
      • Animation Duration (Default: 500)
You can implement your own animation. Check this link.
Copy the library to the additional library folder then run the examples. Have fun!

UPDATE v1.2 (Latest Examples and Library Attached):
  1. Added 3 Tabs option to designer properties
  2. Added Icon Fade In and no animation option
  3. Fixed SetTabIcon method, previously it was unable to handle any TabID value other than 1 to 5
UPDATE v1.3:
  1. Added Shadow Type (Light/Dark) Option
UPDATE v1.4:
  1. Now you can add text under icons
  2. Now you can add a badge to each tab
  3. Control icon size, text color, and text size from the designer.
  4. More smooth curve.
UPDATE v1.41: Fixed a variable mismatch error.
UPDATE v1.42: Added getHeight method.
UPDATE v1.43:
  1. Change tab count at runtime
  2. Get or set the tab enable status.
UPDATE v1.44:
  1. Minor animation bug fixed.
  2. Added b4xpage+viewpager example.
UPDATE v1.5:
  1. Added image icon support.
  2. Added setVisible method.
  3. Added setCurrentTab2 method which supports changing active tab without triggering click event.
  4. Now the default active tab can be selected from the designer.
UPDATE v1.51: Badge visibility bug fix.
Click to expand...
Hello,

Sometimes we got some crash reports with this:
java.lang.IllegalArgumentException - Cannot set 'scaleX' to Float.NaN
https://console.firebase.google.com...85bd76f?time=last-seven-days&versions=5 (502)
Any solution?

Biswajit

Biswajit

Active Member
Licensed User
Longtime User
tufanv

tufanv

Expert
Licensed User
Longtime User
Biswajit said:
Could you please share the error log? The provided links are not working.
Click to expand...
I had copied the text instead I pasted here the url :) sorry

B4X:
Fatal Exception: java.lang.RuntimeException
java.lang.IllegalArgumentException: Cannot set 'scaleX' to Float.NaN
anywheresoftware.b4a.keywords.Common$14.run (Common.java:1750)

com.android.internal.os.ZygoteInit.main (ZygoteInit.java:947)

Caused by java.lang.IllegalArgumentException
Cannot set 'scaleX' to Float.NaN
android.view.View.sanitizeFloatPropertyValue (View.java:17483)

anywheresoftware.b4a.objects.B4XViewWrapper.SetLayoutAnimated (B4XViewWrapper.java:180)
ct.canlidoviz.wobblemenu$ResumableSub_SetCircleIcon.resume (wobblemenu.java:1163)
anywheresoftware.b4a.keywords.Common$14.run (Common.java:1748)

com.android.internal.os.ZygoteInit.main (ZygoteInit.java:947)

P

pcicom

Member
Licensed User
Longtime User
How can I add a space below the wobblemenu, on iPhone the bottom navigation bar is superimposed on the menu.


Attachments

  • navigatinbar.png
    240.5 KB · Views: 87
Biswajit

Biswajit

Active Member
Licensed User
Longtime User
pcicom said:
How can I add a space below the wobblemenu, on iPhone the bottom navigation bar is superimposed on the menu.
Click to expand...
Check this tutorial

iPhone X Safe Area

As you can see in the above image, the screen area near the top and bottom are considered unsafe. Meaning that you shouldn't put anything important on these areas as they are less accessible or partially hidden. You can use the new Page.SafeAreaInsets property to find the four required offsets...
www.b4x.com www.b4x.com

You must log in or register to reply here.

Similar Threads

Mashiane
  • Question
Android Question [B4X][XUI] WobbleMenu - A few questions..
2
Replies
23
Views
4K
Mashiane
Mashiane
Alexander Stolte
  • Article
B4A Library [B4X] [XUI] AS Radio Button
2
Replies
22
Views
8K
wimpie3
wimpie3
Biswajit
  • Article
B4A Library [B4X][XUI] xImageSliderIG - Instagram style image and video slider
2 3
Replies
55
Views
16K
Biswajit
Biswajit
Alberto Iglesias
  • Question
Android Question [B4X] [XUI] B4XDialog - Custom dialogs with ANIMATION to show?
Replies
2
Views
2K
Alberto Iglesias
Alberto Iglesias
Erel
  • Article
B4A Library [B4X][XUI] AnimatedArrow - focus the user attention
Replies
1
Views
6K
Erel
Erel
Top
