Android Question CustomLayoutDialog without padding

[rraswisak]

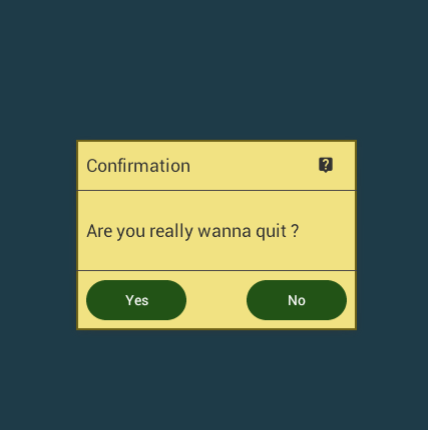

base on thread https://www.b4x.com/android/forum/threads/customlayoutdialog-with-customlistview.82259/ , while SetSize is 100%x and 100%y, is it possible to make the dialog show without padding around it ?

many thanks



[rraswisak]

ok, i just figure it out, no need to adjust the padding, just make the dialog color to transparent

from sample above link, i modify Activity_Click event to this:

Sub Activity_Click
   Dim cd As CustomLayoutDialog
   Dim cdlg As Object = cd.ShowAsync("Choose item", "", "", "", Null, False)
   cd.SetSize(100%x, 100%y)

   Dim jo As JavaObject = cdlg
   Dim warna As ColorDrawable
   warna.Initialize(Colors.Transparent,0)
   jo.RunMethodJO("getWindow",Null).RunMethod("setBackgroundDrawable", Array(warna))

   Wait For Dialog_Ready (DialogPanel As Panel)
   DialogPanel.LoadLayout("CustomDialogLayout")
   For i = 1 To 20
       CLVDialog.AddTextItem("Item #" & i, i)
   Next
   Wait For CLVDialog_ItemClick (Index As Int, Value As Object)
   Log("Selected item: " & Value)
   cd.CloseDialog(DialogResponse.POSITIVE)
End Sub



[rraswisak]

I confirm that transparent dialog will not work on android 4, so i really need any help here...



[Erel]

Please upload a small project with the relevant layout.



[rraswisak]

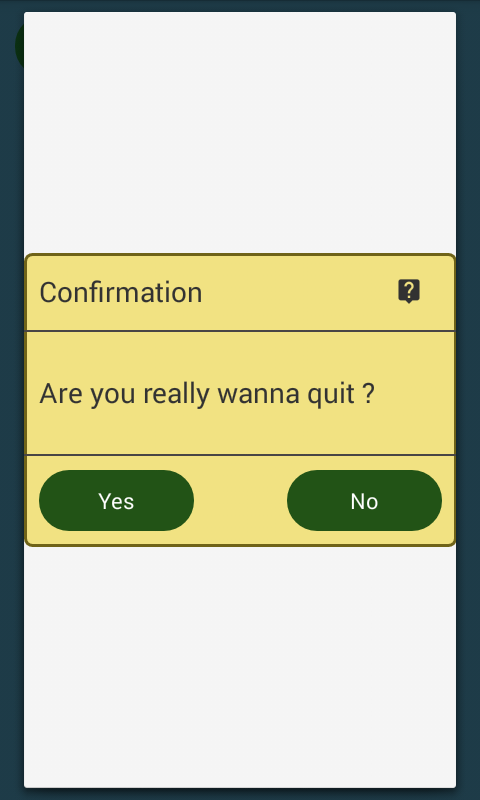

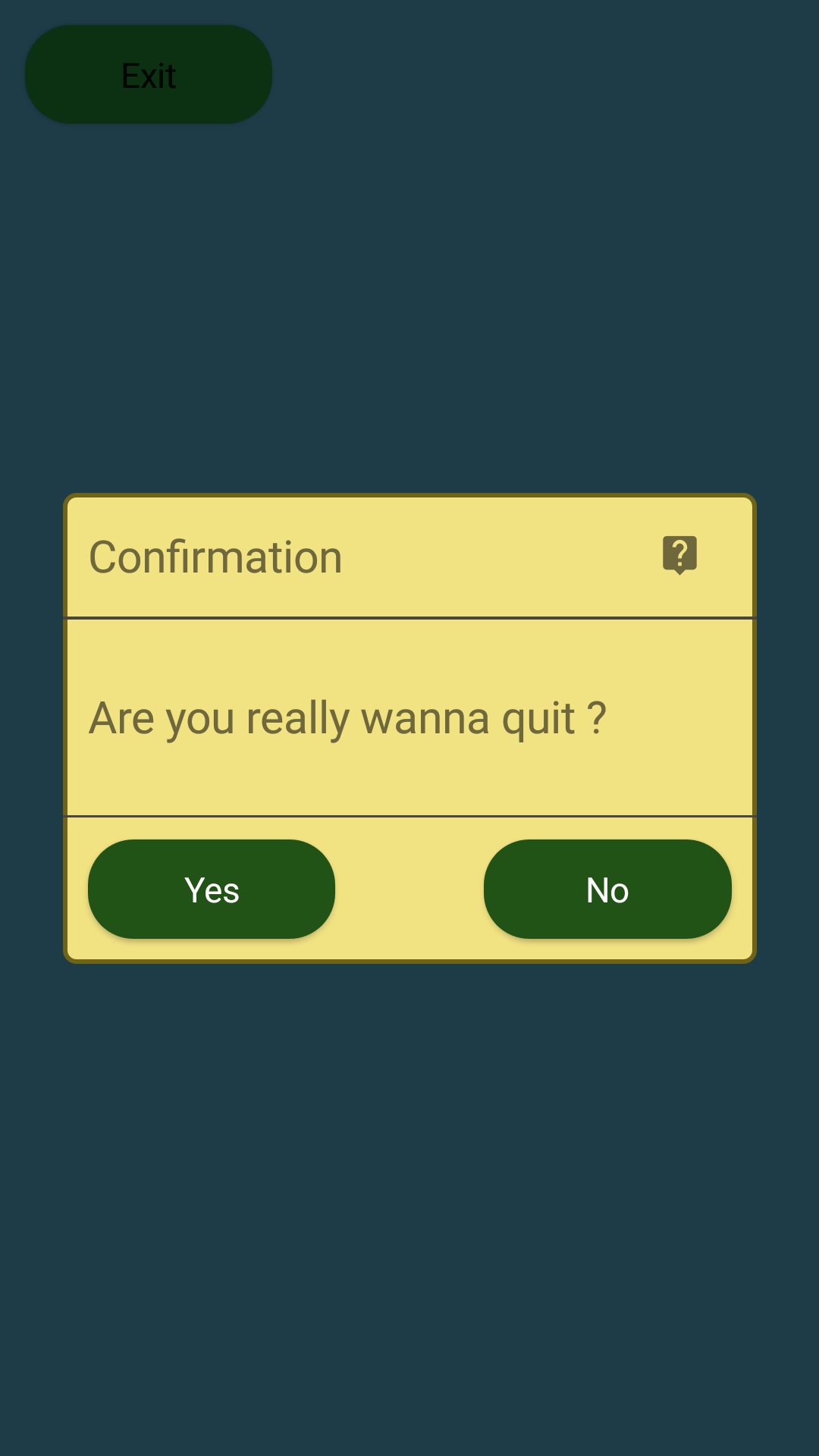

here with small project how i show the dialog, in android 4 (emulator and real device) the dialog color still white while in android 7 the color was transparent as expected.

Thank you for your enlightment



[Erel]

This is not the correct way to build the dialog. You should instead set the size of the dialog to match the actual content.

Tips:
1. Remove the call to AutoScaleAll as the exact size is important here.
2. Code to set the dialog:

cd.ShowAsync("", "", "", "", Null, False)
cd.SetSize(280dip + 32dip, 220dip - 14dip)
Wait For Dialog_Ready (DialogPanel As Panel)
Log(DialogPanel)
DialogPanel.LoadLayout("1")

3. The panel with the content should be at the top of the layout.



[rraswisak]

Erel, what if the Panel has corner radius set ?, the background still visible on each corner



[Erel]

That's true. You can use round corners on newer devices only.
