Android Question [Solved] Print text, rectangle and image in PDFDocumet don't works.

[asales]

I try to create a PDF document using this library, based in the example of the post.

It is a profile form, with a title in a rectangle and an image,
The title with the rectangle is printing, but the image don't.

What could be happen? How can I fix this?

The code is below and the example is in attached.

Thanks in advance for any tip.

Dim A4Width As Int = 595
Dim A4Height As Int = 842

Dim pdf As PdfDocument
pdf.Initialize

pdf.StartPage(A4Width, A4Height) 'A4 size

Dim Rect1 As Rect
Rect1.Initialize(50, 60, 545, 90)
pdf.Canvas.DrawRect(Rect1, Colors.Black, False, 0.8)
pdf.Canvas.DrawText("NAME OF THE USER", 300, 80, Typeface.DEFAULT_BOLD, 14 / GetDeviceLayoutValues.Scale , Colors.Black, "CENTER")

Dim Bitmap1 As Bitmap
Bitmap1 = LoadBitmap(File.DirAssets, "smiley.png")
Dim DestRect As Rect
DestRect.Initialize(100, 150, 80, 250)
pdf.Canvas.DrawBitmap(Bitmap1, Null, DestRect) 'draws the bitmap to the destination rectangle.

pdf.FinishPage



[teddybear]

I try to create a PDF document using this library, based in the example of the post.

It is a profile form, with a title in a rectangle and an image,
The title with the rectangle is printing, but the image don't.

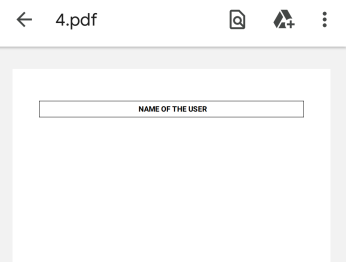

View attachment 138998

What could be happen? How can I fix this?

You need to set the width and height of the rect.

Dim DestRect As Rect
DestRect.Initialize(100, 150, 80, 250)
'------------------------------------------------------
DestRect.width = Bitmap1.width/Bitmap1.scale
DestRect.height = Bitmap1.height/Bitmap1.scale
'------------------------------------------------------
pdf.Canvas.DrawBitmap(Bitmap1, Null, DestRect) 'draws the bitmap to the destination rectangle.
pdf.FinishPage
