B4J Question Trouble writing text to image

[warayTek]

Hi, I am not sure why the following code is not working. I'm calling a second form.

The code below is what I'm using when the form is called.

Dim newForm As Form
    newForm.Initialize("digiSignForm",530,380)
    newForm.Resizable = False
    newForm.RootPane.LoadLayout("MainPage")
    newForm.ShowAndWait
    pnDraw = xui.CreatePanel("")
    '
    'MainForm.AddView(pnDraw, ImageView1.Left, ImageView1.Top,ImageView1.Width, ImageView1.Height)
    Log(ImageView1.Width & " " & ImageView1.Height)
    mCanvas.Initialize(pnDraw)
    mRect.Initialize(0, 0, ImageView1.Width, ImageView1.Height)
    mCanvas.DrawBitmap(ImageView1.Snapshot, mRect)

And in the "Write" button this is the code.

mCanvas.ClearRect(mCanvas.TargetRect)
mCanvas.DrawBitmap(ImageView1.Snapshot, mRect)
mCanvas.DrawText(TextField1.Text, 5, 24, xui.CreateDefaultFont(22), xui.Color_Black, "LEFT")



[klaus]

What is not working ?
It would be easier to help you if you posted your project as a zip file !



[warayTek]

What is not working ?
It would be easier to help you if you posted your project as a zip file !

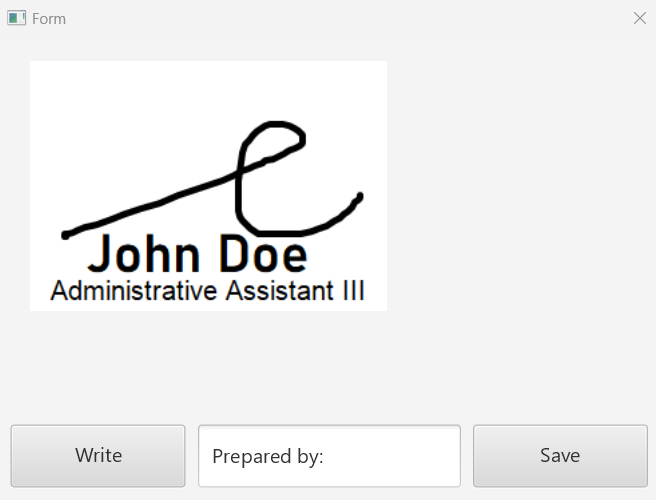

Hi @klaus, I am not able to write text to the image. Please click on the link below.
The function I'm trying to work on is on "SECOND form" button.

Demo program - this is the link.



[klaus]

Please see the attached file.

Which file ?



[DonManfred]

Hi @klaus, I am not able to write text to the image. Please see the attached file.
The function I'm trying to work on is on "SECOND form" button.

Where is the testproject we can try?
Without seeing what you have done and how it is impossible to give any congrete Advice.



[warayTek]

Sorry, I was not able to attach the file. Instead, I put a link.



[klaus]

I had a look at your project.
The main problem was this line:
newForm.ShowAndWait
From the help :

The current code is stopped...

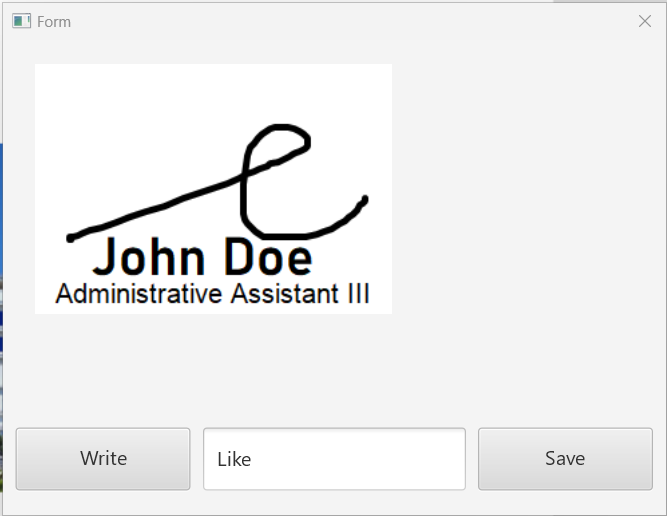

I made some changes in your code to show the drawing.
I replaced newForm.ShowAndWait by newForm.Show.
Instead of adding pnlDraw in the code, i added it to your MainPage layout.
I do not use the ImageView1 but load the digSig2.png image as a B4XBitmap and draw this one instead of ImageView1.Snapshot.

You tryed to add pnlDraw to MainForm with this line which will not work:
MainForm.AddView(pnDraw, ImageView1.Left, ImageView1.Top,ImageView1.Width, ImageView1.Height)
It should have been B4J specific:
MainForm.RootPane.AddNode(pnDraw, ImageView1.Left, ImageView1.Top,ImageView1.Width, ImageView1.Height)

Attached the modified project.

I would suggest you to switch to B4XPages, which will make the use of different forms much easier.
And another advice, use as much as possible B4XViews instead of platform specific objects, even for single platform projects.
B4XViews have some more properties than platform specific objects.



[warayTek]

@klaus works great! I will try to make the changes based on your suggestions. Thank you.
